Polynomial Functions and Graphs

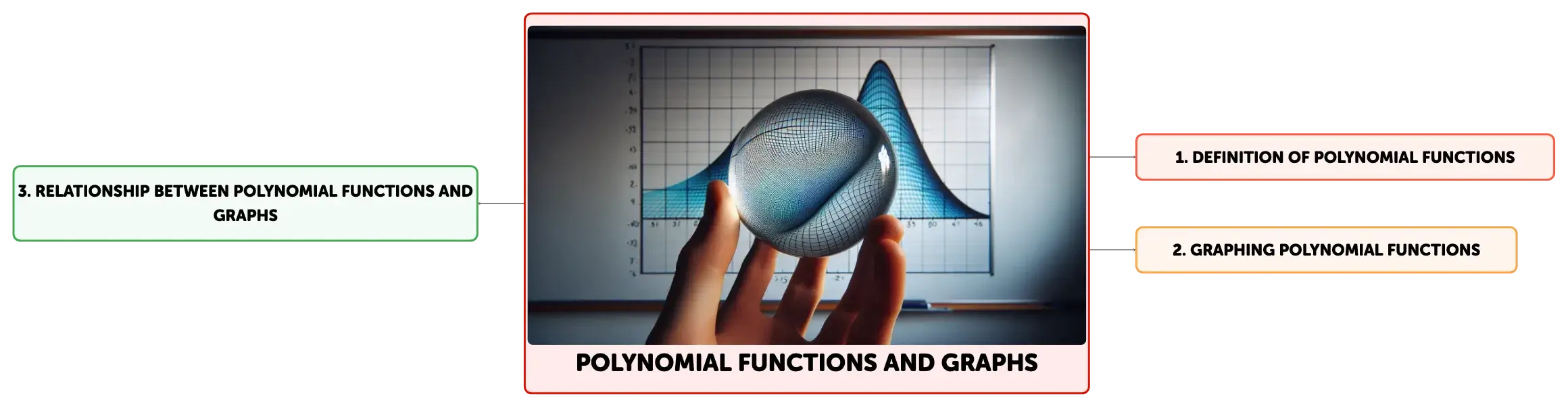

Concept Map
Polynomial functions are algebraic expressions with variables raised to non-negative integer exponents. This overview covers graphing techniques, identifying roots, turning points, y-intercepts, and end behavior. It also discusses constructing polynomial graphs and deducing equations from graphical representations, highlighting the importance of understanding polynomial functions in algebra and calculus.
Summary
Outline
Exploring the Basics of Polynomial Functions
Polynomial functions are algebraic expressions composed of terms that include variables raised to non-negative integer exponents, combined with real number coefficients. These functions are conventionally expressed in descending order of the power of the variable, known as the standard form: f(x) = a_nx^n + a_(n-1)x^(n-1) + ... + a_1x + a_0, where 'n' represents the degree of the polynomial. The degree indicates the highest power of the variable in the polynomial and is a non-negative integer. For example, f(x) = 3x^2 + 2x + 5 is a second-degree polynomial. Polynomials do not include variables with negative exponents or variables in the denominator, as these would create rational expressions rather than polynomial expressions.Graphing Polynomial Functions: Key Characteristics
Graphing polynomial functions requires the identification of several critical characteristics. The roots, or x-intercepts, are the values of x for which the polynomial equals zero. These can be determined by setting the polynomial to zero and solving for x, using algebraic techniques such as factoring, applying the quadratic formula, or utilizing synthetic division. For example, the polynomial f(x) = (x-1)(x+3)(x+4) has roots at x = 1, x = -3, and x = -4. A root of multiplicity greater than one indicates that the graph will touch the x-axis at that point and either bounce off or flatten out, depending on the multiplicity. The turning points, which are the local maxima and minima, can be found by calculating the derivative of the function and solving for when the derivative equals zero. These x-values are then substituted back into the original function to find the corresponding y-values.Analyzing the Y-Intercept and End Behavior of Polynomial Graphs
The y-intercept of a polynomial graph is the point where the graph crosses the y-axis, which can be found by evaluating the polynomial at x = 0. The end behavior of a polynomial graph describes the direction in which the graph extends as x approaches positive or negative infinity. This behavior is influenced by the leading term, which is the term with the highest power of x. For polynomials with an odd degree and a positive leading coefficient, the graph descends to the left and ascends to the right. If the leading coefficient is negative, the graph ascends to the left and descends to the right. For even-degree polynomials, a positive leading coefficient results in the graph rising in both directions, while a negative leading coefficient causes the graph to fall in both directions.Constructing Polynomial Graphs and Recognizing Their Varieties
After identifying the key features, one can construct a rough sketch of a polynomial function's graph. The degree of the polynomial is related to the maximum number of direction changes in the graph, which is one less than the degree, and also to the maximum number of real roots. The types of polynomial graphs include linear (first degree), quadratic (second degree), cubic (third degree), quartic (fourth degree), and quintic (fifth degree), among others. Each type has a characteristic shape and a number of turning points that is at most one less than the degree of the polynomial.Reconstructing Polynomial Equations from Their Graphs
The equation of a polynomial function can often be deduced from its graph by identifying the x-intercepts and determining the multiplicity of each. These intercepts correspond to the factors of the polynomial. Additionally, the leading coefficient or stretch factor can be inferred from the y-intercept and the end behavior of the graph. Once these elements are identified, the polynomial can be written in factored form, which can then be expanded to standard form if necessary. This reverse-engineering process is a valuable skill for analyzing the relationship between polynomial equations and their graphical representations.Essential Insights into Polynomial Graphs
In conclusion, polynomial graphs are visual representations of polynomial functions that showcase distinct features such as roots, turning points, y-intercepts, and end behavior. The complexity of a polynomial graph is directly related to its degree, which influences the number of direction changes and potential real roots. Mastery of these concepts enables one to graph a given polynomial function with precision and to derive its equation from a graphical representation, underscoring the importance of polynomial graphs in the study of algebra and calculus.
Show More
Definition of Polynomial Functions
Algebraic expressions with variables and coefficients
Polynomial functions are composed of terms with variables and coefficients
Standard form and degree
Descending order of variable powers
Polynomial functions are conventionally expressed in descending order of variable powers
Degree as the highest power of the variable
The degree of a polynomial function indicates the highest power of the variable
Restrictions on variables and exponents
Polynomial functions do not include negative exponents or variables in the denominator
Graphing Polynomial Functions
Critical characteristics
Graphing polynomial functions requires identifying roots, turning points, y-intercepts, and end behavior
Finding roots
Methods for finding roots
Roots can be found by setting the polynomial to zero and solving for x using factoring, the quadratic formula, or synthetic division
Multiplicity of roots
A root with multiplicity greater than one indicates a touch or bounce on the x-axis
Turning points
Turning points can be found by calculating the derivative and solving for when it equals zero
Y-intercept and end behavior
The y-intercept can be found by evaluating the polynomial at x = 0, and the end behavior is influenced by the leading term
Types of polynomial graphs
Polynomial graphs can be linear, quadratic, cubic, quartic, or quintic, depending on the degree
Constructing a rough sketch
The degree of a polynomial determines the maximum number of direction changes and real roots, allowing for a rough sketch of the graph
Relationship between Polynomial Functions and Graphs
Deducing the equation from the graph
Identifying x-intercepts and multiplicity
The x-intercepts and their multiplicity correspond to the factors of the polynomial
Inferring the leading coefficient
The leading coefficient can be inferred from the y-intercept and end behavior
Reverse-engineering process
The process of deducing the equation from the graph is a valuable skill for understanding the relationship between polynomial functions and their graphical representations
Polynomial Functions and Graphs
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The highest power of the variable in a polynomial, which is a non-negative integer, is known as the ______ of the polynomial.
degree
01
Roots of a Polynomial
Values of x where the polynomial equals zero; found by factoring, quadratic formula, or synthetic division.
02
Multiplicity of a Root
Indicates graph's behavior at x-axis: single root crosses, multiple root touches or flattens.
