Charge Distribution and Its Effects on Electrical Behavior
Concept Map
Understanding charge distribution in materials is crucial for grasping their electrical properties. This encompasses linear, surface, and volume charge distributions, each significant for different material geometries and charge application methods. Conductors allow charge mobility, resulting in surface distribution, while insulators keep charges localized. External electric fields influence these distributions differently, with conductors reaching electrostatic equilibrium and insulators showing minimal charge movement.
Summary
Outline
Principles of Charge Distribution in Materials
Charge distribution is the arrangement of electric charge within a material, which is pivotal in understanding the material's electrical properties and behavior under electric fields. Charge can be distributed in three primary ways: linearly, on surfaces, or throughout a volume. Linear charge distribution is found in one-dimensional structures like wires, characterized by a linear charge density (\(\lambda\)), which is the charge per unit length. Surface charge distribution occurs on two-dimensional planes, such as the outer layer of a conductor, with surface charge density (\(\sigma\)) representing charge per unit area. Volume charge distribution is present in three-dimensional bodies, like a charged solid sphere, with volume charge density (\(\rho\)) indicating charge per unit volume. These densities are fundamental in quantifying the amount of charge in a given space and in predicting the material's interaction with external electric fields.Charge Dynamics in Conductors versus Insulators
Conductors and insulators exhibit distinct charge distribution behaviors due to differences in charge carrier mobility. In conductors, free electrons can move easily, allowing them to redistribute and occupy the surface to minimize repulsive forces, resulting in a uniform surface charge distribution. Insulators, however, have electrons that are strongly bound to their atoms, limiting their ability to move. As a result, any excess charge on an insulator tends to remain localized, leading to little or no charge redistribution after the charge is applied.Influence of Electric Fields on Charge Distribution
Electric fields exert forces on charges, influencing their distribution within materials. In conductors, charges move until they reach electrostatic equilibrium, where the internal electric field is nullified, and the charges settle on the surface, creating a surface charge distribution. In insulators, the absence of free charge carriers means that an external electric field does not cause significant charge movement, and the internal electric field can vary depending on the material's permittivity. The charge distribution in insulators is thus relatively unaffected by external electric fields.Charging Techniques and Resulting Charge Redistribution
Various charging methods, such as friction, induction, and conduction, lead to different patterns of charge distribution. Frictional charging typically involves two insulating materials; rubbing them together transfers electrons from one to the other, resulting in a localized charge imbalance. Inductive charging involves a charged object being brought near a conductor, inducing a charge separation within the conductor without direct contact. Grounding the conductor allows for charge redistribution, and upon removing the ground, a net charge remains on the conductor. Conduction charging occurs when a charged object comes into direct contact with a conductor, permitting free charge movement and resulting in an equalized charge distribution across both objects.Comprehensive Overview of Charge Distribution
Charge distribution is a key concept in understanding the electrical behavior of materials, influenced by the material's structure and the presence of electric fields. Conductors, with their free-moving charges, typically exhibit surface charge distribution, while insulators maintain localized charges due to restricted electron mobility. The specific type of charge distribution—linear, surface, or volume—is determined by the material's geometry and the method of charge application. Mastery of these concepts is crucial for the design and use of electrical and electronic devices and for a thorough understanding of charged particle dynamics in various environments.
Show More

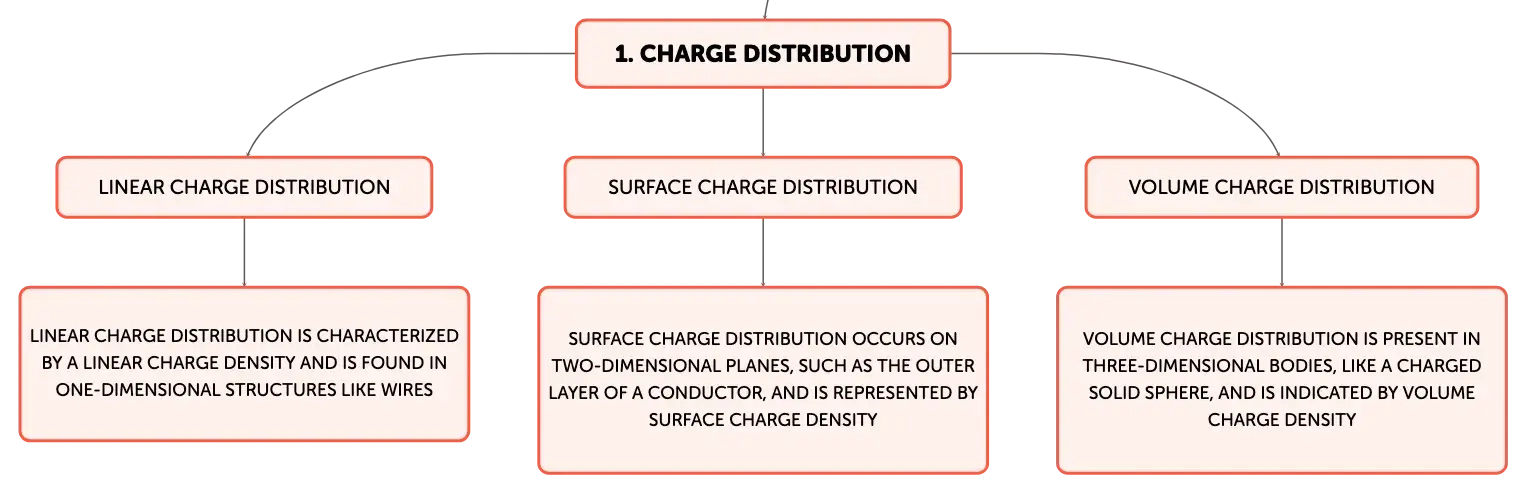

Charge Distribution
Linear Charge Distribution
Linear charge distribution is characterized by a linear charge density and is found in one-dimensional structures like wires
Surface Charge Distribution
Surface charge distribution occurs on two-dimensional planes, such as the outer layer of a conductor, and is represented by surface charge density
Volume Charge Distribution
Volume charge distribution is present in three-dimensional bodies, like a charged solid sphere, and is indicated by volume charge density

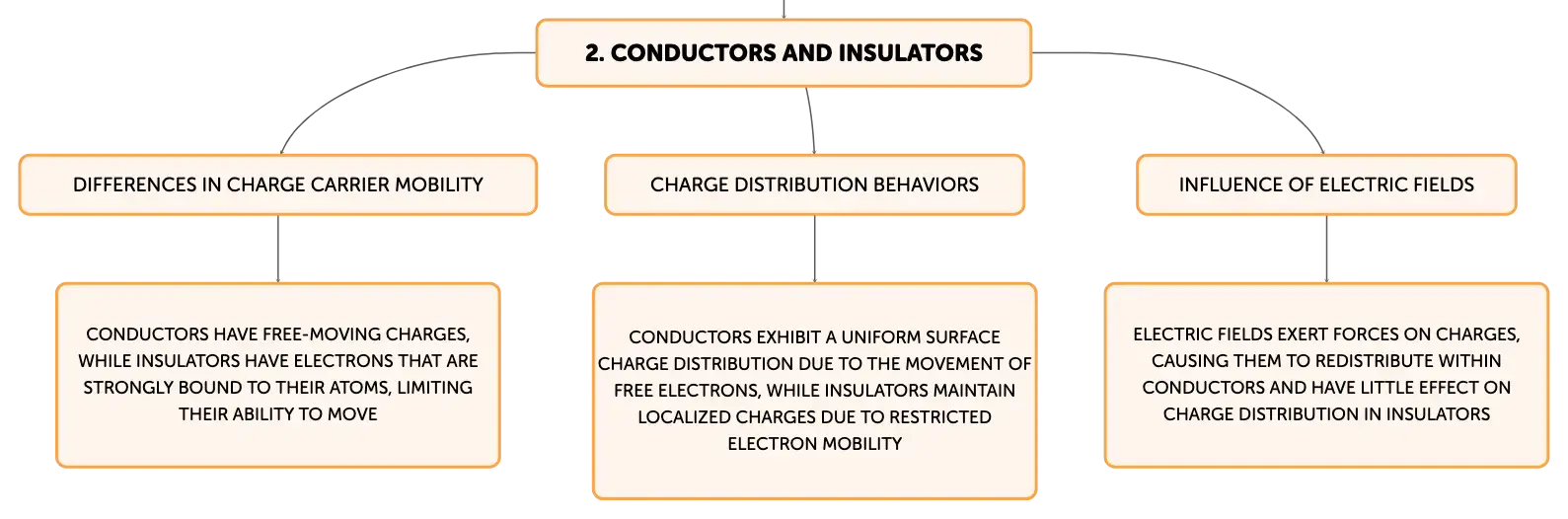

Conductors and Insulators
Differences in Charge Carrier Mobility
Conductors have free-moving charges, while insulators have electrons that are strongly bound to their atoms, limiting their ability to move
Charge Distribution Behaviors
Conductors exhibit a uniform surface charge distribution due to the movement of free electrons, while insulators maintain localized charges due to restricted electron mobility
Influence of Electric Fields
Electric fields exert forces on charges, causing them to redistribute within conductors and have little effect on charge distribution in insulators
Charging Methods
Frictional Charging
Frictional charging involves transferring electrons between two insulating materials through rubbing, resulting in a localized charge imbalance
Inductive Charging
Inductive charging involves inducing a charge separation within a conductor by bringing a charged object near it, without direct contact
Conduction Charging
Conduction charging occurs when a charged object comes into direct contact with a conductor, allowing for free charge movement and equalized charge distribution
Charge Distribution and Its Effects on Electrical Behavior
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ have electrons that are tightly attached to their atoms, causing any excess charge to stay ______ without significant redistribution.
Insulators
localized
01
Electrostatic equilibrium in conductors
Charges move to surface, internal electric field becomes zero.
02
Charge movement in insulators under external electric field
Minimal charge movement due to lack of free carriers; internal field varies with permittivity.
