Two-dimensional Arrays in C
Concept Map
Two-dimensional arrays in C are pivotal for matrix computations and data organization, offering a matrix-like structure for storing data in rows and columns. Understanding their memory allocation, which is contiguous and follows a row-major order, is crucial for performance. These arrays enable matrix operations, searching, and sorting algorithms, and can be declared statically, as variable-length arrays, or dynamically, requiring careful memory management to avoid leaks.
Summary
Outline
Exploring Two-Dimensional Arrays in C
Two-dimensional (2D) arrays in C are a type of data structure that facilitates the organization and handling of data in a tabular form, akin to a matrix. These arrays consist of rows and columns and are defined as an array of arrays, allowing each element to be uniquely identified by a pair of indices representing its position in the row and column. This structure is invaluable for applications that require the representation of matrices, tables, or any grid-based data, making the understanding of 2D arrays an essential skill for programmers.Memory Allocation and Data Layout in 2D Arrays
The declaration of a 2D array in C requires the specification of both its row and column sizes using the syntax 'data_type array_name[row_size][column_size];'. Memory for a 2D array is allocated in a contiguous block, with elements stored sequentially in memory. C adheres to row-major order, meaning that the rows of the array are placed in contiguous memory segments. Comprehending this memory layout is vital for optimizing data access and manipulation within the array.Implementing Matrix Operations with 2D Arrays
2D arrays are instrumental in performing matrix operations, such as matrix multiplication and addition. Matrix multiplication entails the computation of the dot product between corresponding rows and columns of two matrices, yielding a new matrix. This process is executed using nested loops to traverse the array elements and accumulate the products. Matrix addition is similarly conducted by summing the matching elements of two matrices, resulting in a new matrix of identical dimensions.Dynamic Memory Allocation for 2D Arrays
Dynamic memory allocation is a technique used when the dimensions of a 2D array are not known until runtime. In C, this is accomplished with pointers and the 'malloc' or 'calloc' functions, which allocate a block of memory and return a pointer to the beginning of that block. Programmers must allocate memory for each row and then for each column within that row. After using the dynamically allocated array, it is crucial to release the memory with the 'free' function to avoid memory leaks.Searching and Sorting Algorithms for 2D Arrays
Searching and sorting are fundamental operations that can be applied to 2D arrays. A linear search method involves sequentially checking each element until the desired value is located. For arrays that are sorted, a binary search can be more efficient, halving the search range with each iteration. Sorting algorithms, such as selection sort, can be adapted for 2D arrays by finding the smallest element in the unsorted section and moving it to the correct position, iterating until the entire array is sorted.Various Declaration Techniques for 2D Arrays
C offers multiple methods for declaring 2D arrays, each suited to different scenarios. Static allocation is simple but inflexible, as the array dimensions are fixed at compile time. Variable-length arrays (VLAs) provide the ability to define array dimensions at runtime, although their support varies across different compilers. Dynamic memory allocation is the most versatile approach, allowing arrays to be sized during program execution, but it necessitates meticulous memory management to prevent leaks and fragmentation.Essential Concepts of 2D Arrays in C Programming
Two-dimensional arrays are a cornerstone in C programming for managing structured data and are extensively utilized for a variety of operations, including matrix computations and data organization. They occupy contiguous memory space and are organized in row-major order. Practical applications encompass matrix arithmetic, searching, and sorting, among others. Programmers have several options for declaring 2D arrays, each offering a trade-off between ease of use, flexibility, and control. Mastery of these concepts is imperative for developers to effectively employ 2D arrays in their software projects.
Show More

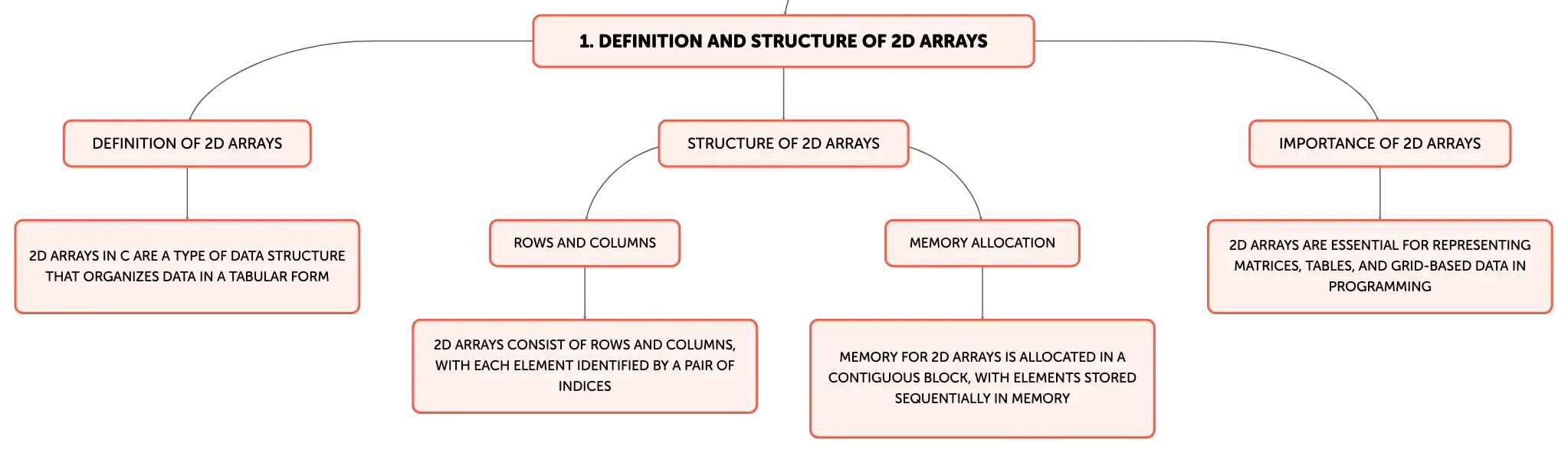

Definition and Structure of 2D Arrays
Definition of 2D Arrays
2D arrays in C are a type of data structure that organizes data in a tabular form
Structure of 2D Arrays
Rows and Columns
2D arrays consist of rows and columns, with each element identified by a pair of indices
Memory Allocation
Memory for 2D arrays is allocated in a contiguous block, with elements stored sequentially in memory
Importance of 2D Arrays
2D arrays are essential for representing matrices, tables, and grid-based data in programming

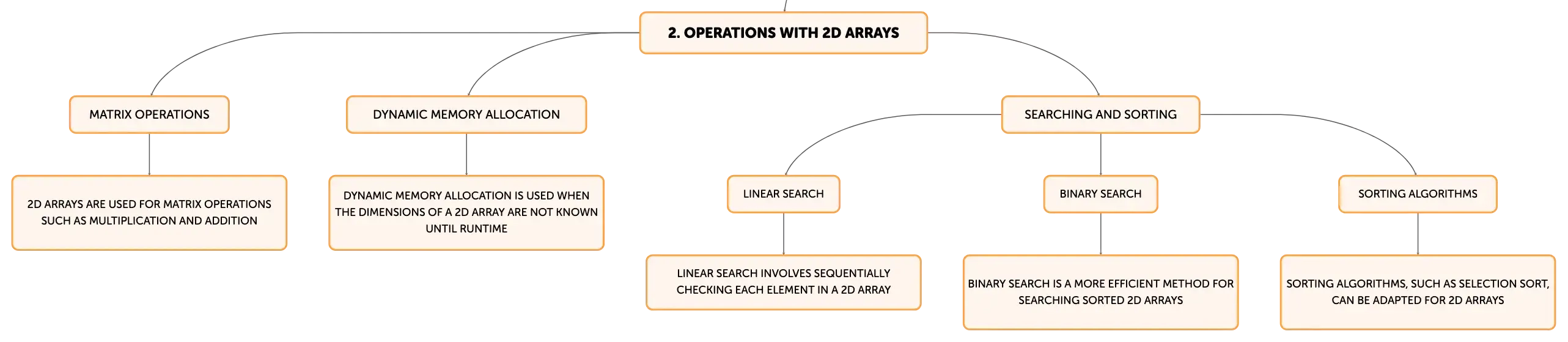

Operations with 2D Arrays
Matrix Operations
2D arrays are used for matrix operations such as multiplication and addition
Dynamic Memory Allocation
Dynamic memory allocation is used when the dimensions of a 2D array are not known until runtime
Searching and Sorting
Linear Search
Linear search involves sequentially checking each element in a 2D array
Binary Search
Binary search is a more efficient method for searching sorted 2D arrays
Sorting Algorithms
Sorting algorithms, such as selection sort, can be adapted for 2D arrays

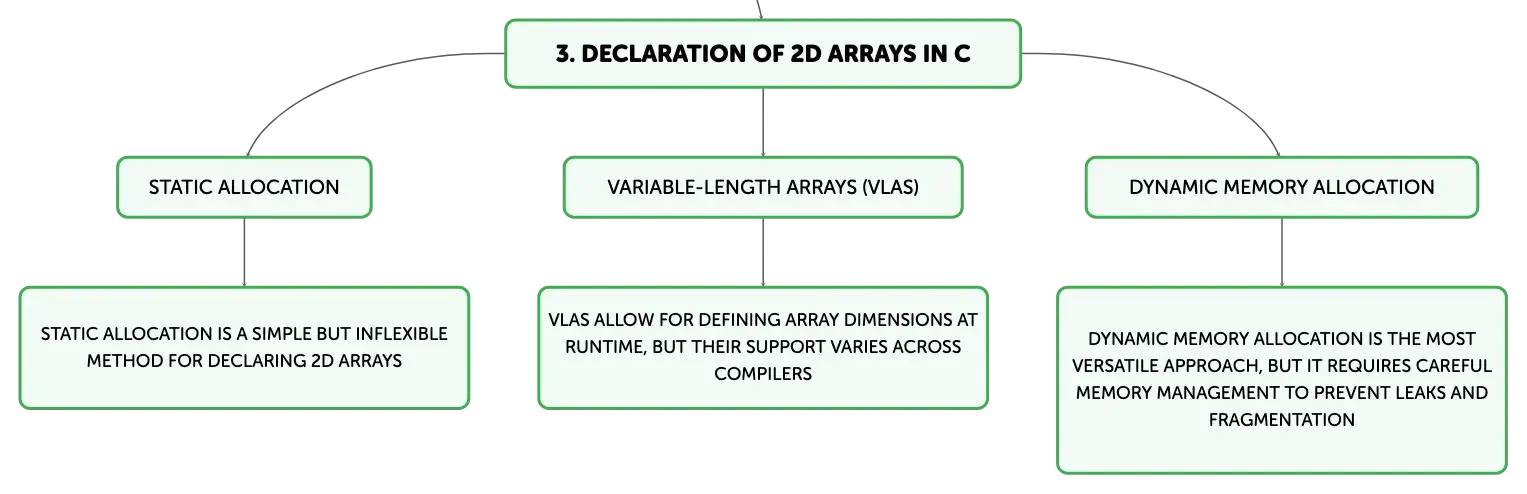

Declaration of 2D Arrays in C
Static Allocation
Static allocation is a simple but inflexible method for declaring 2D arrays
Variable-Length Arrays (VLAs)
VLAs allow for defining array dimensions at runtime, but their support varies across compilers
Dynamic Memory Allocation
Dynamic memory allocation is the most versatile approach, but it requires careful memory management to prevent leaks and fragmentation

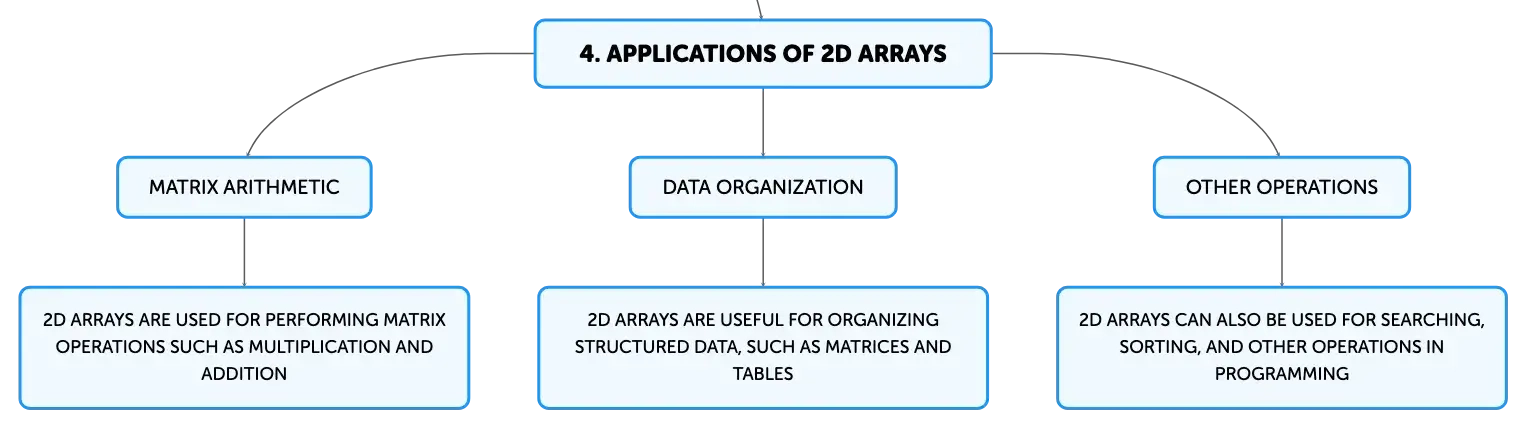

Applications of 2D Arrays
Matrix Arithmetic
2D arrays are used for performing matrix operations such as multiplication and addition
Data Organization
2D arrays are useful for organizing structured data, such as matrices and tables
Other Operations
2D arrays can also be used for searching, sorting, and other operations in programming
Two-dimensional Arrays in C
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
In C programming, ______ arrays are akin to a matrix and consist of rows and columns.
Two-dimensional (2D)
01
2D array declaration syntax in C
Use 'data_type array_name[row_size][column_size];' to declare.
02
Row-major order in C arrays
Rows stored in contiguous memory, affecting iteration and access speed.
