Logo
Log in
Logo
Log inSign up
Logo

Tools

AI Concept MapsAI Mind MapsAI Study NotesAI FlashcardsAI QuizzesAI Transcriptions

Resources

BlogTemplate

Info

PricingFAQTeam

info@algoreducation.com

Corso Castelfidardo 30A, Torino (TO), Italy

Algor Lab S.r.l. - Startup Innovativa - P.IVA IT12537010014

Privacy PolicyCookie PolicyTerms and Conditions

Electric Fields and Isolines

This content delves into the visualization and interpretation of electric fields through electric field lines and equipotential lines. It explains how these lines represent the direction and strength of electric fields, the relationship between electric and gravitational fields, and how to calculate electric field strength. The comparison of topographic isolines with electric field lines provides a comprehensive understanding of field concepts in physics.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In disciplines like meteorology and physics, ______ depict locations with identical measurements of a specific variable, such as temperature.

Click to check the answer

Isolines

2

Origin and termination of electric field lines

Click to check the answer

Electric field lines emanate from positive charges and end at negative charges.

3

Electric field line density meaning

Click to check the answer

Density of electric field lines indicates the field's relative strength; closer lines mean stronger field.

4

Electric field lines intersection rule

Click to check the answer

Electric field lines never intersect, as intersection would imply multiple field directions at one point, which is not possible.

5

For ______ charges, the field can be modeled as originating from a point charge at the center, simplifying the electric field analysis.

Click to check the answer

spherical

6

Meaning of equipotential lines being contours of constant electric potential

Click to check the answer

Equipotential lines represent regions where electric potential is the same, no potential difference.

7

Consequence of moving a charge along an equipotential line

Click to check the answer

No work is done by the electric field, as there is no potential difference along the line.

8

Implication of spacing between equipotential lines

Click to check the answer

Closer lines indicate a steeper potential gradient and stronger electric field strength.

9

For a solitary point charge, the ______ lines appear as ______ circles around the charge.

Click to check the answer

equipotential concentric

10

Source of electric vs. gravitational fields

Click to check the answer

Electric fields arise from positive/negative charges; gravitational fields only from mass.

11

Direction of field lines in electric vs. gravitational fields

Click to check the answer

Electric field lines can emanate or converge; gravitational field lines always point toward mass.

12

Equipotential surfaces relation to field lines

Click to check the answer

Equipotential surfaces are perpendicular to field lines in both electric and gravitational fields.

13

In the space between two parallel plates with opposite charges, the electric field is ______, as shown by parallel lines that are spaced ______.

Click to check the answer

uniform equally

14

Direction of electric field lines

Click to check the answer

Show force direction on positive charge; arrows point away from positive, toward negative charges.

15

Density of electric field lines

Click to check the answer

Indicates field strength; closer lines mean stronger field.

16

Equipotential lines relation to electric field

Click to check the answer

Perpendicular to electric field lines; represent points of constant potential.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Parallel Beams in Physics

Physics

Wave Equations and Their Applications

Physics

Optical Aberrations

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

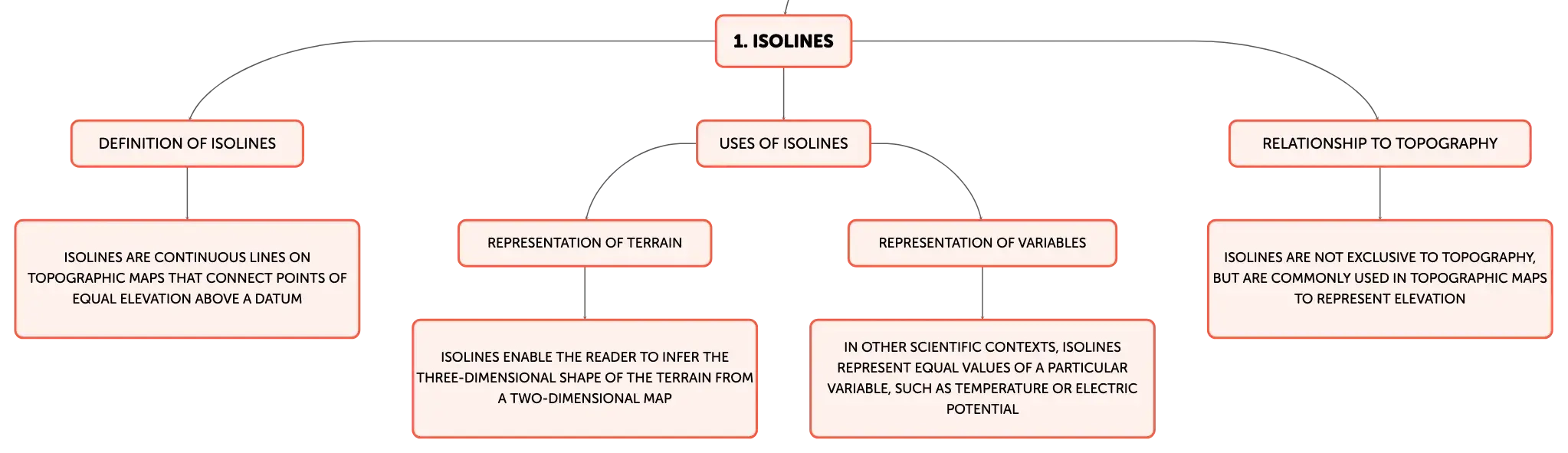

Understanding Topographic Isolines

Isolines on topographic maps are continuous lines that connect points of equal elevation above a datum, typically sea level. These lines, also known as contours, enable the reader to infer the three-dimensional shape of the terrain from a two-dimensional map. The closer the isolines, the steeper the slope they represent. Conversely, when isolines are spaced far apart, the terrain is relatively flat. Isolines are not exclusive to topography; in other scientific contexts, such as meteorology and physics, they represent equal values of a particular variable, like temperature or electric potential.
Scientific experiment with iron filings aligning along magnetic field lines in a glass tank beneath a suspended bar magnet, next to an idle Van de Graaff generator.

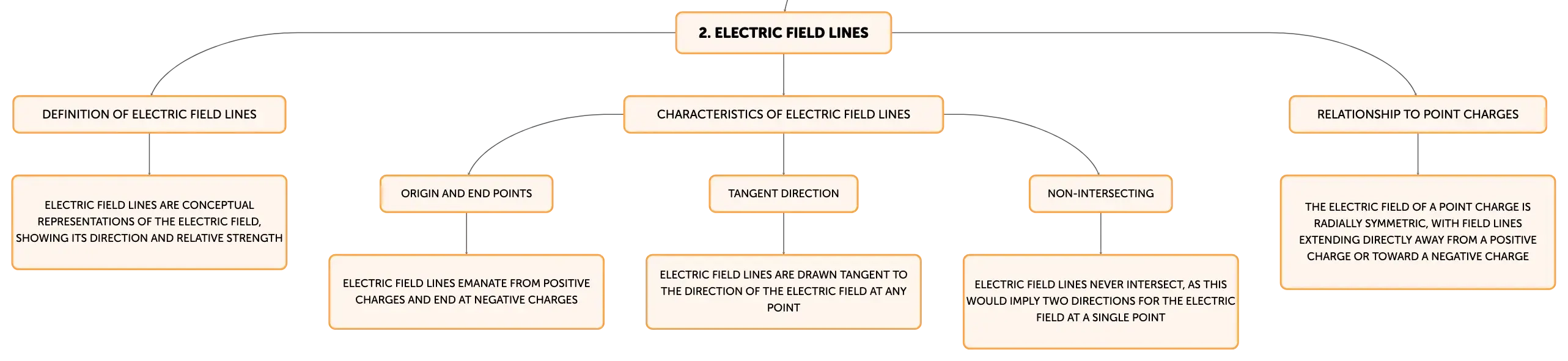

Electric Field Lines Defined

Electric field lines are a conceptual representation of the electric field, which is the force field surrounding electric charges. These lines provide a visual indication of the field's direction and relative strength: they emanate from positive charges and end at negative charges, with their density indicating the field's intensity. The lines are drawn tangent to the direction of the electric field at any point, ensuring that they illustrate the path a positive test charge would take under the influence of the field. They also never intersect, as this would imply two directions for the electric field at a single point, which is physically impossible.

Visualizing Electric Fields of Point Charges

The electric field of a point charge is radially symmetric, with field lines extending directly away from a positive charge or toward a negative charge. The density of these lines decreases with distance from the charge, illustrating the decrease in field strength. For spherical charges, the charge distribution can be considered uniform across the surface, and the field can be modeled as if it originated from a point charge at the center of the sphere, simplifying the analysis of the electric field.

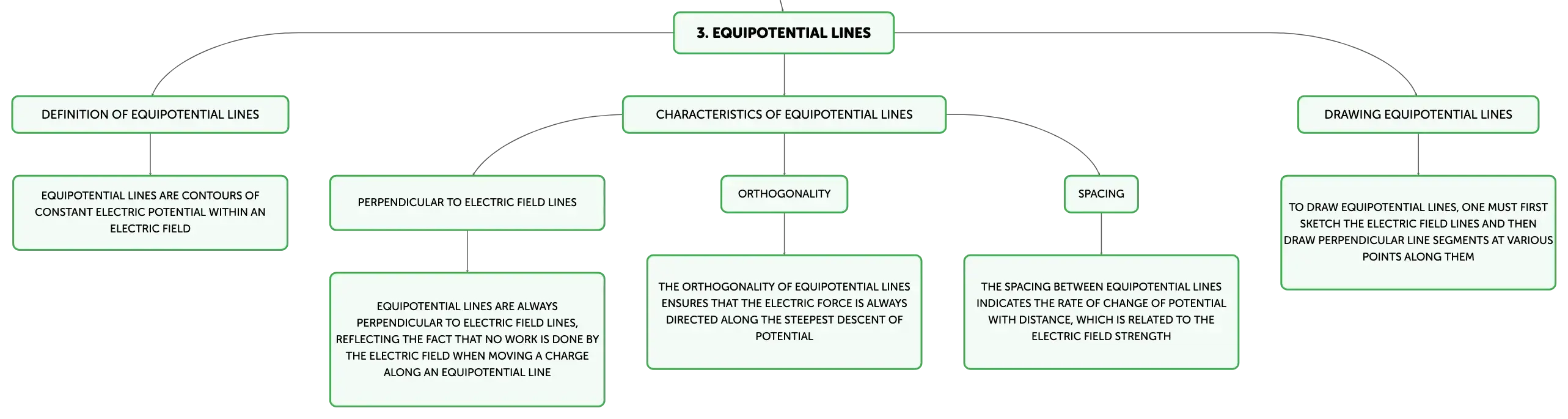

Equipotential Lines and Electric Fields

Equipotential lines are contours of constant electric potential within an electric field. They are always perpendicular to electric field lines, reflecting the fact that no work is done by the electric field when moving a charge along an equipotential line. This orthogonality ensures that the electric force is always directed along the steepest descent of potential, and no component of the force is parallel to the equipotential surface. The spacing between equipotential lines indicates the rate of change of potential with distance, which is related to the electric field strength.

Constructing Isolines for Electric Fields

To draw isolines for electric fields, one must first sketch the electric field lines emanating from or converging upon the charge(s). Then, at various points along these field lines, one draws line segments perpendicular to the field lines, representing locations of equal potential. These segments are smoothly connected to form closed loops around the charge(s), with each loop representing an equipotential line. For a single point charge, these equipotential lines are concentric circles. Theoretically, an infinite number of equipotential lines exist, corresponding to the continuum of potential values.

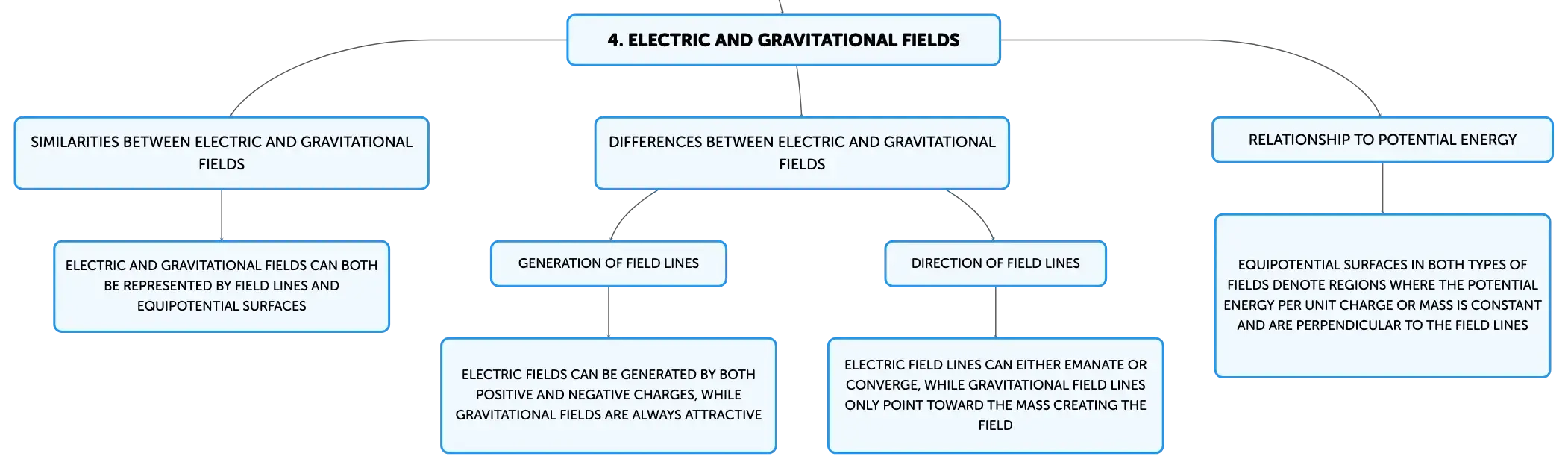

Electric and Gravitational Fields Compared

Electric and gravitational fields are analogous in that they both can be represented by field lines and equipotential surfaces. However, while electric fields can be generated by both positive and negative charges, resulting in lines that can either emanate or converge, gravitational fields are always attractive, as mass is always positive. Thus, gravitational field lines only point toward the mass creating the field. Equipotential surfaces in both types of fields denote regions where the potential energy per unit charge or mass is constant and are perpendicular to the field lines.

Calculating Electric Field Strength

The electric field strength (E) between two charged plates can be calculated using the formula E = V/d, where V is the potential difference between the plates and d is the separation distance. This relationship holds true for the uniform electric field that exists between two parallel plates with opposite charges. The uniformity of the field is depicted by equally spaced, parallel electric field lines, and the field strength is constant at all points between the plates.

Key Takeaways on Electric Field Lines

Electric field lines are an invaluable tool in visualizing and understanding electric fields. They depict the direction of the electric force on a positive test charge and the relative strength of the field based on their density. The concepts of electric field lines and equipotential lines are fundamental in physics and extend to other fields, such as gravitational fields, demonstrating the universal nature of these principles. These visual tools help students and scientists alike to conceptualize and calculate the effects of electric forces in various scenarios.
