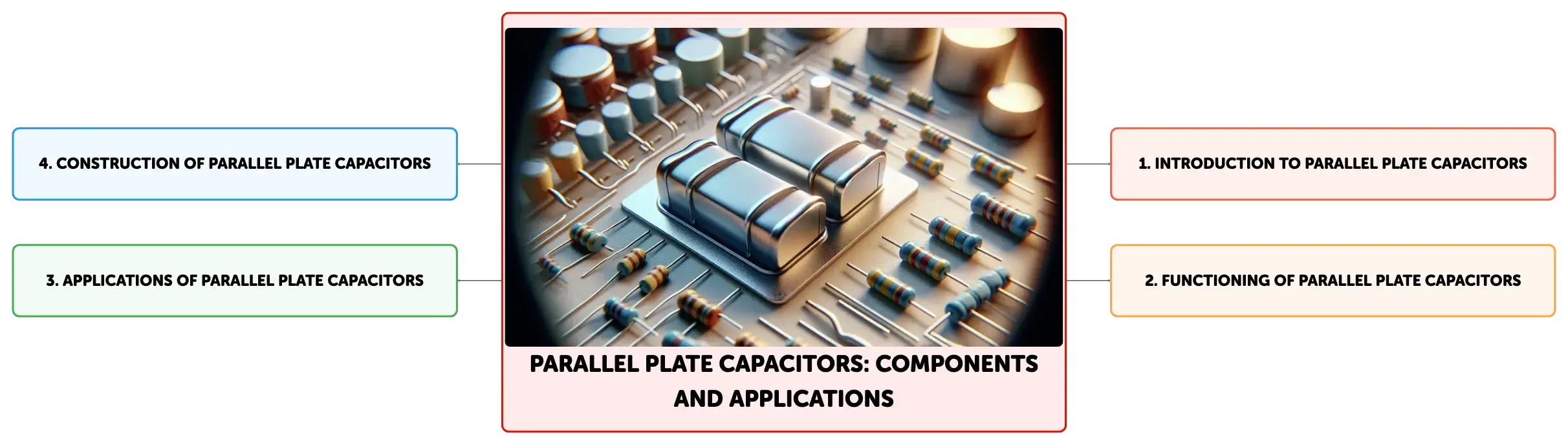

Parallel Plate Capacitors: Components and Applications

Parallel plate capacitors are critical in electronics, storing charge via conductive plates separated by a dielectric. Their capacitance depends on plate area, dielectric permittivity, and plate separation. Dielectrics enhance charge storage, while leakage currents limit long-term energy retention. These capacitors are used for energy storage, voltage regulation, and signal processing, and can be DIY projects using everyday materials.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Components of a parallel plate capacitor

Click to check the answer

Two conductive plates with equal surface areas and a dielectric material in between.

2

Effect of voltage on parallel plate capacitor

Click to check the answer

Voltage causes one plate to gain positive charge and the other negative, creating an electric field.

3

Function of electric field in a capacitor

Click to check the answer

The electric field stores energy and exerts force on charges, influencing current flow in circuits.

4

______ materials are crucial for improving a capacitor's ability to store charge by aligning their molecules to create electric ______ when exposed to an electric field.

Click to check the answer

Dielectric dipoles

5

Capacitance (C) formula for parallel plate capacitor

Click to check the answer

C = ε·A/d, where ε is permittivity, A is area, d is plate separation

6

Effect of plate size on capacitance

Click to check the answer

Larger plate area (A) increases capacitance, more charge storage

7

Impact of plate separation on capacitance

Click to check the answer

Smaller separation distance (d) increases capacitance, closer charge attraction

8

In a parallel plate capacitor, when connected to a ______, it accumulates charge due to the voltage making one plate ______ and the other ______.

Click to check the answer

power source positively charged negatively charged

9

Capacitor leakage current cause

Click to check the answer

Leakage current in capacitors is caused by imperfections in the dielectric material.

10

Influence on capacitor discharge process

Click to check the answer

The quality of the dielectric influences the discharge rate; superior materials retain charge longer.

11

Parallel plate capacitors are often used for ______ energy storage and ______ spike suppression.

Click to check the answer

temporary voltage

12

These capacitors are crucial in devices needing quick energy bursts, like ______, and for filtering ______ signals.

Click to check the answer

defibrillators radio

13

Principles of Capacitance

Click to check the answer

Capacitance is the ability of a system to store an electric charge between two conductors separated by an insulator.

14

Role of Electric Polarization in Capacitors

Click to check the answer

Electric polarization occurs when an electric field distorts the negative and positive charges in an insulator, contributing to a capacitor's ability to store energy.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Radiation Pressure

View document

Physics

Optical Aberrations

View document

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

View document

Physics

Parallel Beams in Physics

View document

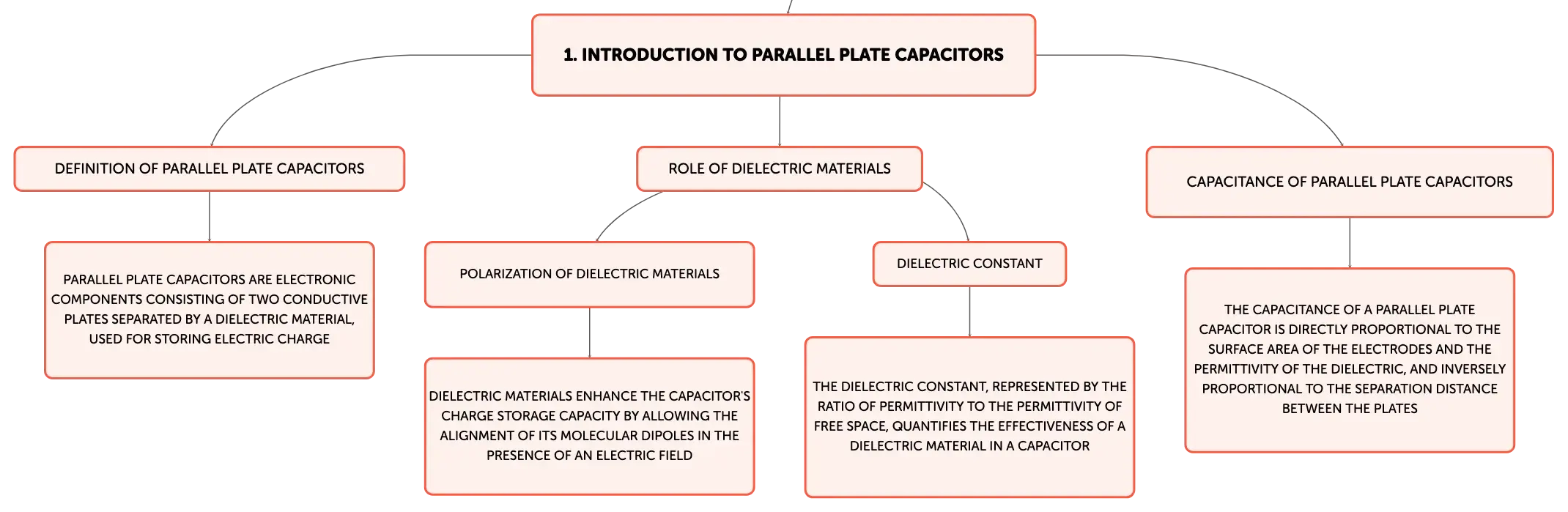

Basics of Parallel Plate Capacitors

Parallel plate capacitors are essential components in electronic circuits, comprising two conductive plates, or electrodes, with equal surface areas, separated by a dielectric material—an insulating substance that can be polarized by an electric field. When a voltage is applied across the plates, one plate accumulates positive charge and the other negative charge, establishing an electric field in the intervening space. The dielectric material enhances the capacitor's charge storage capacity by allowing the alignment of its molecular dipoles, similar to the alignment of magnetic domains in a magnet.

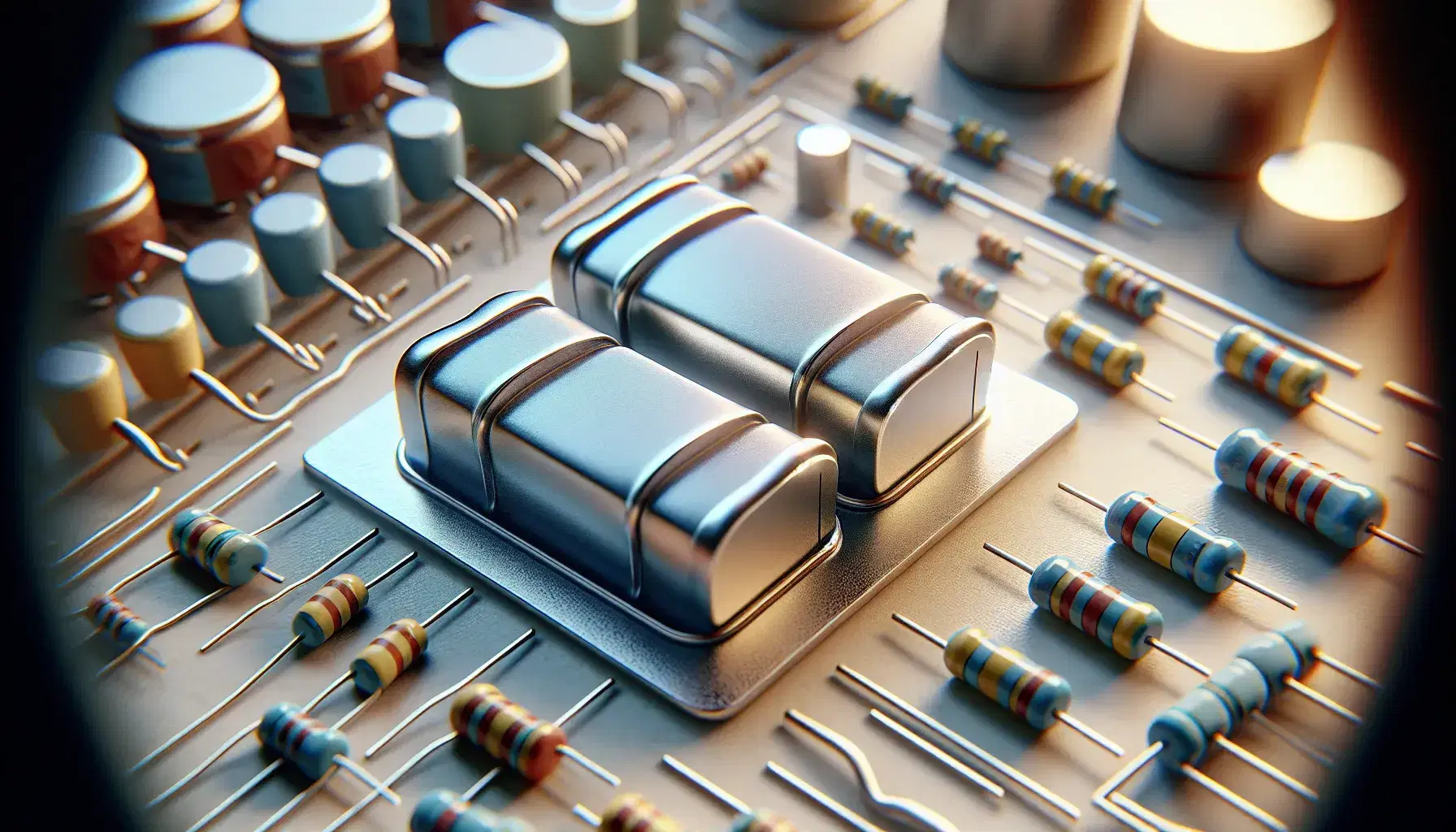

Close-up of a parallel plate capacitor with metallic plates and a clear dielectric, surrounded by resistors, inductors, and various capacitors on a light workbench.

Dielectric Materials in Capacitors

Dielectric materials are pivotal in enhancing a capacitor's performance. They are insulators whose molecules can align to form electric dipoles in the presence of an electric field, thereby increasing the stored charge for a given voltage. This polarization reduces the effective electric field within the dielectric, enabling the capacitor to hold more charge. The dielectric constant (k), a dimensionless number, represents the ratio of the material's permittivity (ε) to the permittivity of free space (ε0), and it quantifies the dielectric's effectiveness in a capacitor.

Capacitance and Its Determinants

The capacitance of a parallel plate capacitor, denoted by C, is the measure of its charge storage capability. It is directly proportional to the electrodes' surface area (A) and the dielectric's permittivity (ε), and inversely proportional to the separation distance (d) between the plates. The formula for capacitance is C = ε·A/d. Therefore, larger plates or a reduced separation can increase capacitance, while a greater distance between the plates decreases it due to the reduced attraction between opposite charges.

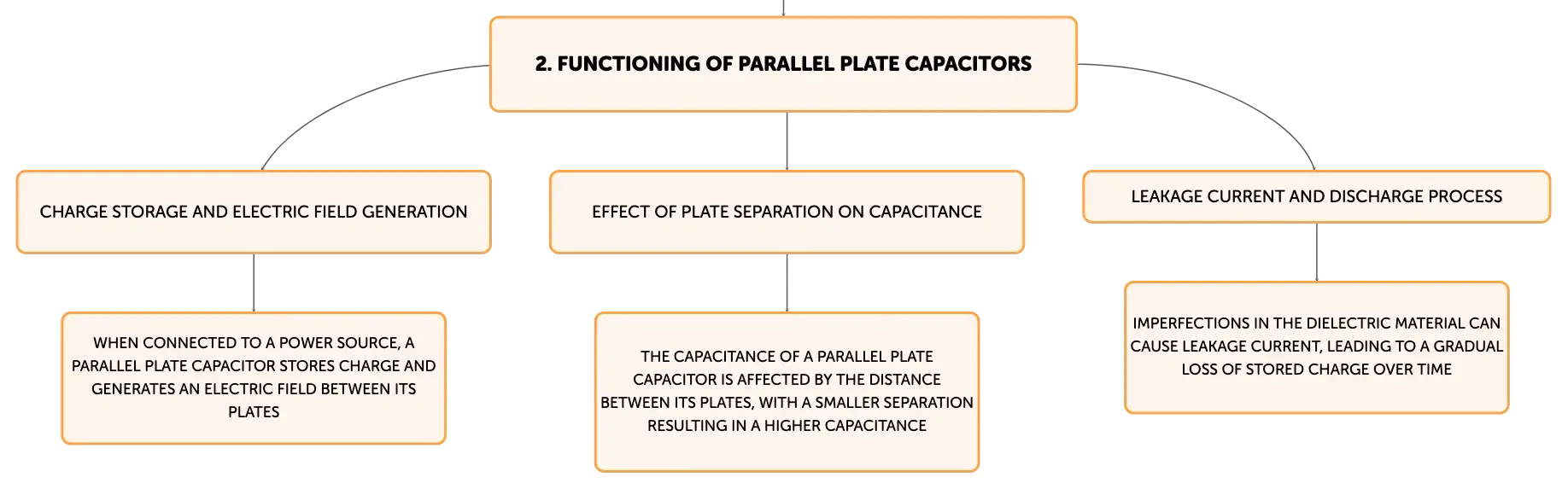

Capacitor Charging and Electric Field

When a parallel plate capacitor is connected to a power source, it stores charge as the voltage causes one plate to become positively charged and the other negatively charged. This charge separation generates an electric field with lines of force extending from the positive to the negative plate. The field is uniform except near the edges where it fringes. The electric field's strength (E) is directly proportional to the applied voltage (V) and inversely proportional to the plate separation (d), expressed as E = V/d.

Leakage Currents and Discharge Phenomena

All capacitors exhibit some degree of leakage current due to imperfections in the dielectric material, leading to a gradual loss of stored charge over time. This discharge process is influenced by the dielectric's quality, with superior materials retaining charge longer. However, this leakage prevents capacitors from serving as long-term energy storage solutions like batteries, as they are prone to self-discharge even when isolated from a circuit.

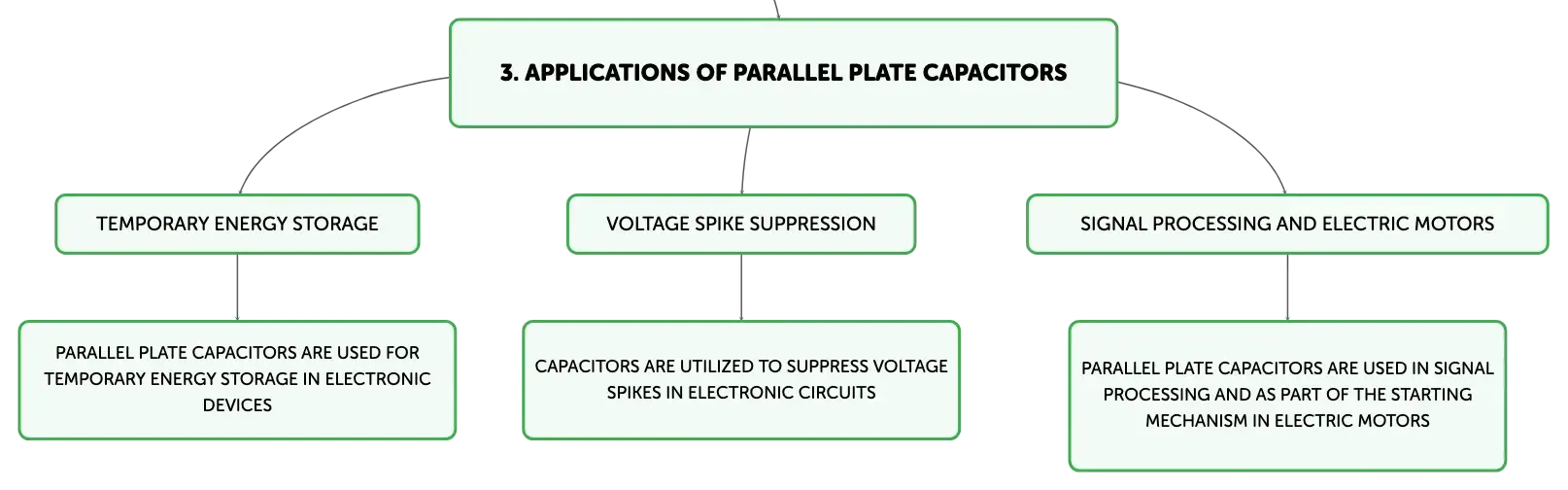

Applications of Parallel Plate Capacitors

Parallel plate capacitors are versatile and find applications across various electronic devices. They are utilized for temporary energy storage, voltage spike suppression, signal processing, and as part of the starting mechanism in electric motors. Their rapid charge and discharge capabilities make them ideal for use in devices requiring quick energy bursts or voltage adjustments, such as defibrillators and in the filtering of radio signals.

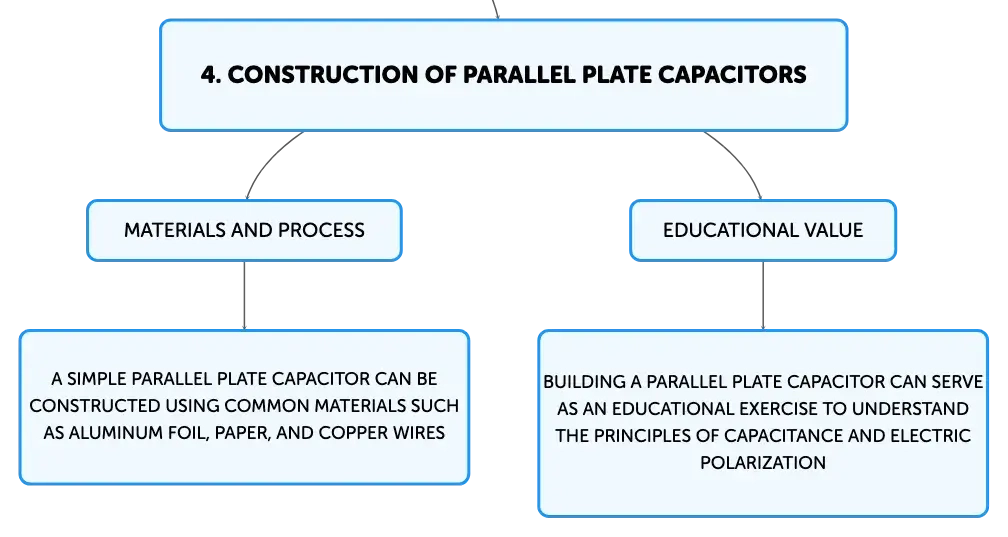

DIY Parallel Plate Capacitor Project

Constructing a simple parallel plate capacitor can be an educational exercise, achievable with common materials like aluminum foil, paper, and copper wires. By affixing the foil to the paper and soldering wires to the foil, one can create a rudimentary capacitor. This project illustrates the principles of capacitance and electric polarization, offering a practical understanding of how capacitors function.
