JK Flip Flops: Memory Storage Devices in Digital Circuits
Concept Map
JK Flip Flops are integral components in digital electronics, serving as memory storage devices for one bit of information. They evolved from SR Flip Flops to eliminate indeterminate states, featuring inputs J and K for toggling output. These devices are pivotal in computing systems for applications like shift registers, counters, and memory devices. Understanding their truth tables, logical expressions, and timing diagrams is essential for designing and troubleshooting digital circuits.
Summary
Outline
Understanding JK Flip Flops in Digital Circuit Design
JK Flip Flops are crucial elements in digital circuit design, acting as memory storage devices that can hold one bit of information. These devices are an evolution of the SR Flip Flop, designed to prevent the indeterminate state that occurs when both the Set and Reset inputs are active simultaneously. A JK Flip Flop has two inputs, labeled J and K, which can be thought of as analogous to the Set and Reset inputs of an SR Flip Flop, but with additional logic to handle the previously undefined state. The output of a JK Flip Flop includes the current state (Q) and its complement (\( \overline{Q} \)). When both J and K inputs are high, the JK Flip Flop toggles its output. The clock input is critical for timing the changes in state, ensuring that the flip flop switches states in a controlled manner, which is essential for sequential logic operations in digital circuits.The Significance of JK Flip Flops in Computing Systems
JK Flip Flops play a significant role in the architecture of computing systems, where they are used in a variety of applications such as shift registers, counters, and memory devices. Their synchronized operation is key to preventing errors that can arise from timing discrepancies, making them indispensable in the design of reliable digital systems. The truth table for a JK Flip Flop provides a detailed account of how the output state is affected by the inputs J and K, in conjunction with the previous state and the clock signal. This table is an essential tool for understanding the behavior of JK Flip Flops and is fundamental for designing and analyzing digital circuits that require precise control of data storage and transfer.The Architecture and Functionality of JK Flip Flop Circuits
The architecture of a JK Flip Flop circuit typically involves a combination of NAND or NOR gates arranged to form a master-slave or edge-triggered flip flop. This configuration ensures that the flip flop changes state only at specific times, dictated by the clock signal. The master-slave setup consists of two coupled flip flops where the first acts as the master, receiving the inputs and the second as the slave, producing the output. This arrangement prevents changes to the output while the clock is high or low, allowing for controlled state transitions. The gates within the circuit are arranged to process the J and K inputs in such a way that the flip flop can toggle, set, or reset based on the input conditions, thereby eliminating the indeterminate state found in SR Flip Flops.Analyzing the JK Flip Flop Truth Table and Logical Expressions
The truth table for a JK Flip Flop is a comprehensive guide that illustrates the possible states of the flip flop based on its inputs and the clock signal. The characteristic equation of the JK Flip Flop, \( Q_{n+1} = (J \cdot \overline{Q_n}) + (\overline{K} \cdot Q_n) \), succinctly expresses the next state of the flip flop as a function of its current state and the J and K inputs. This equation is derived from the truth table and is instrumental in predicting the behavior of the flip flop. By mastering the truth table and the characteristic equation, students and engineers can design and troubleshoot digital circuits with greater accuracy and efficiency.Understanding JK Flip Flop Timing Diagrams
Timing diagrams are graphical representations that depict the sequence of operations in a JK Flip Flop with respect to time. These diagrams show the interplay between the clock signal and the J and K inputs, and how these interactions affect the output Q. By studying timing diagrams, one can discern the precise moments when the flip flop will change state, which is crucial for synchronizing sequential logic circuits. Timing diagrams are not only theoretical tools but also practical aids in the design, analysis, and debugging of digital systems. They help in visualizing the temporal relationships between signals, which is essential for ensuring the correct operation of complex digital circuits.Practical Implementations of JK Flip Flops
Real-world applications of JK Flip Flops provide tangible examples that reinforce theoretical knowledge. For instance, in a positive edge-triggered JK Flip Flop, setting J to 1 and K to 0 will result in the output Q going high at the next rising edge of the clock signal. Conversely, with J set to 0 and K to 1, the output Q will go low at the next rising clock edge. These practical scenarios demonstrate the flip flop's ability to store and toggle states, which is fundamental for constructing more complex digital systems like shift registers, counters, and memory arrays. Through hands-on experimentation and analysis of these examples, students can deepen their understanding of digital logic and its applications in computing and electronic devices.Concluding Insights on JK Flip Flops
JK Flip Flops are a cornerstone of digital electronics, with widespread applications in devices ranging from simple calculators to sophisticated computers. They are defined by their two stable states and their capability to transition between these states in response to input signals, all synchronized by a clock. The truth table and logical equations associated with JK Flip Flops provide a clear framework for understanding their operation, while timing diagrams offer a dynamic perspective of their behavior over time. By engaging with practical examples, students can apply theoretical concepts to actual digital systems, thereby appreciating the significance of JK Flip Flops in the broader context of computer science and electronic engineering.
Show More

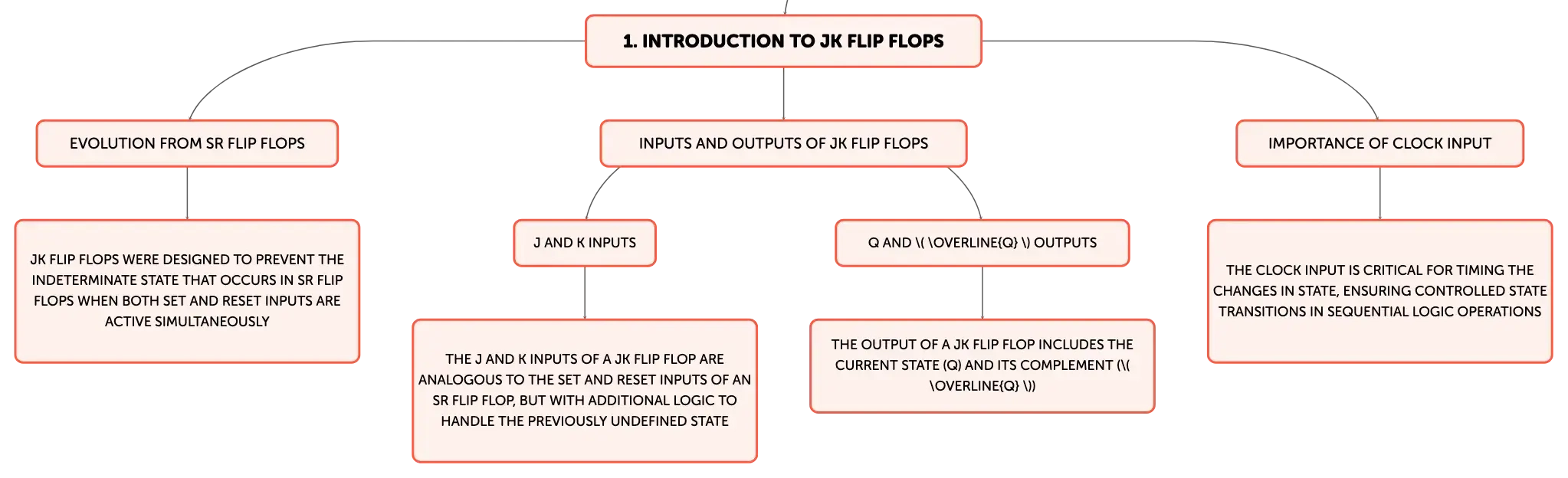

Introduction to JK Flip Flops
Evolution from SR Flip Flops
JK Flip Flops were designed to prevent the indeterminate state that occurs in SR Flip Flops when both Set and Reset inputs are active simultaneously
Inputs and Outputs of JK Flip Flops
J and K Inputs
The J and K inputs of a JK Flip Flop are analogous to the Set and Reset inputs of an SR Flip Flop, but with additional logic to handle the previously undefined state
Q and \( \overline{Q} \) Outputs
The output of a JK Flip Flop includes the current state (Q) and its complement (\( \overline{Q} \))
Importance of Clock Input
The clock input is critical for timing the changes in state, ensuring controlled state transitions in sequential logic operations

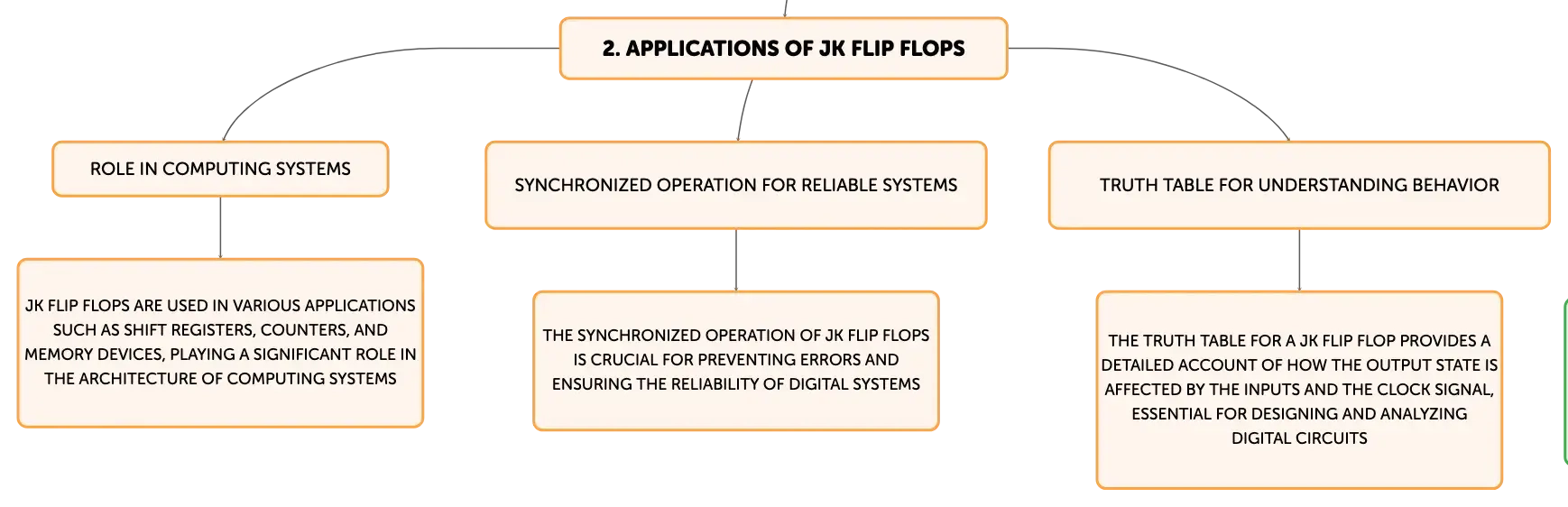

Applications of JK Flip Flops
Role in Computing Systems
JK Flip Flops are used in various applications such as shift registers, counters, and memory devices, playing a significant role in the architecture of computing systems
Synchronized Operation for Reliable Systems
The synchronized operation of JK Flip Flops is crucial for preventing errors and ensuring the reliability of digital systems
Truth Table for Understanding Behavior
The truth table for a JK Flip Flop provides a detailed account of how the output state is affected by the inputs and the clock signal, essential for designing and analyzing digital circuits

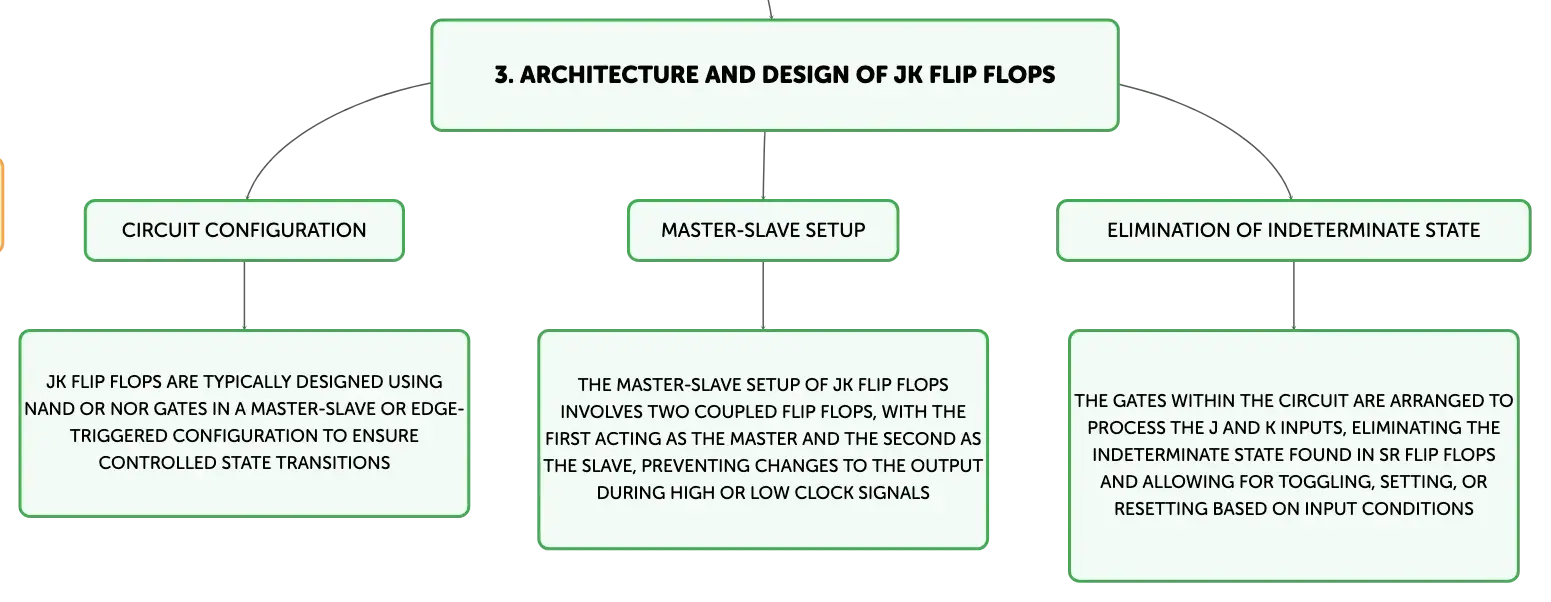

Architecture and Design of JK Flip Flops
Circuit Configuration
JK Flip Flops are typically designed using NAND or NOR gates in a master-slave or edge-triggered configuration to ensure controlled state transitions
Master-Slave Setup
The master-slave setup of JK Flip Flops involves two coupled flip flops, with the first acting as the master and the second as the slave, preventing changes to the output during high or low clock signals
Elimination of Indeterminate State
The gates within the circuit are arranged to process the J and K inputs, eliminating the indeterminate state found in SR Flip Flops and allowing for toggling, setting, or resetting based on input conditions

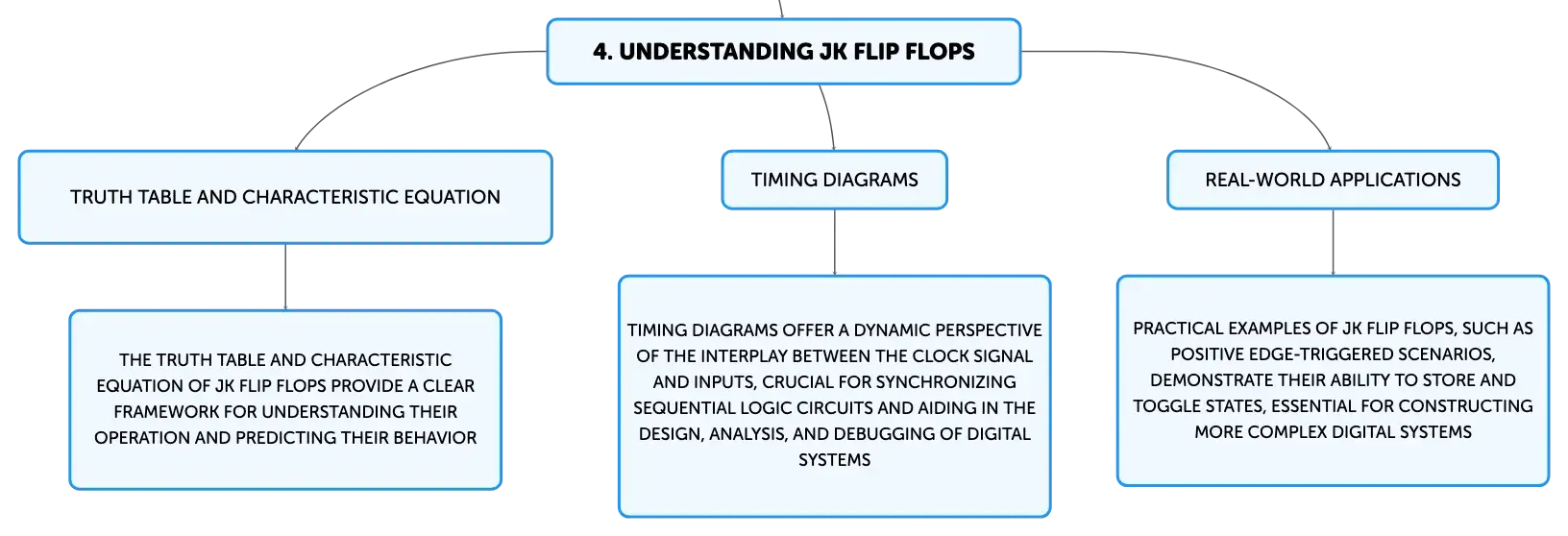

Understanding JK Flip Flops
Truth Table and Characteristic Equation
The truth table and characteristic equation of JK Flip Flops provide a clear framework for understanding their operation and predicting their behavior
Timing Diagrams
Timing diagrams offer a dynamic perspective of the interplay between the clock signal and inputs, crucial for synchronizing sequential logic circuits and aiding in the design, analysis, and debugging of digital systems
Real-World Applications
Practical examples of JK Flip Flops, such as positive edge-triggered scenarios, demonstrate their ability to store and toggle states, essential for constructing more complex digital systems
JK Flip Flops: Memory Storage Devices in Digital Circuits
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In computing system architectures, JK Flip Flops are crucial for applications like ______, ______, and ______ devices.
shift registers
counters
memory
01
JK Flip Flop Gates Configuration
Uses NAND or NOR gates to process J and K inputs for toggle, set, or reset operations.
02
Master-Slave Setup Function
Master flip flop receives inputs, slave flip flop produces output; prevents output changes during clock high or low.
