Electroencephalograms (EEGs) and Event-Related Potentials (ERPs)

Exploring Electroencephalograms (EEGs) and Event-Related Potentials (ERPs), this overview highlights their use in tracking brain activity and diagnosing neurological disorders. EEGs record brain waves to monitor states of consciousness, while ERPs focus on the brain's response to specific stimuli, aiding in cognitive research and clinical practice. Both methods offer non-invasive, cost-effective insights with high temporal resolution, despite some limitations in spatial resolution.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Purpose of EEGs

Click to check the answer

EEGs monitor ongoing electrical activity of cerebral cortex, diagnose neurological disorders.

2

EEG Brain Wave Characteristics

Click to check the answer

Brain waves are characterized by frequency and amplitude, indicating different brain states.

3

Function of ERPs

Click to check the answer

ERPs measure brain response to specific sensory, cognitive, or motor events.

4

During an ______, electrodes are affixed to the scalp to monitor the brain's electrical activity.

Click to check the answer

EEG procedure

5

ERPs, extracted from ______ data, represent the brain's electrical reaction to particular events by averaging the signals.

Click to check the answer

EEG

6

EEGs: Purpose and Utility

Click to check the answer

EEGs provide continuous brain activity data, used for monitoring consciousness states and diagnosing disorders.

7

ERPs: Significance of Averaging EEG Responses

Click to check the answer

Averaging EEG responses to stimuli isolates specific brain reactions, enabling analysis of distinct waves like P1, N1, N2, P3.

8

ERP Wave Characteristics

Click to check the answer

ERP waves are characterized by polarity (positive/negative), latency (timing of occurrence), and topography (location on scalp).

9

EEGs are commonly utilized for diagnosing conditions like ______, sleep disorders, and diseases like ______.

Click to check the answer

epilepsy Alzheimer's

10

Temporal resolution of EEGs/ERPs

Click to check the answer

EEGs/ERPs have high temporal resolution, ideal for tracking rapid brain activity changes.

11

ERP signal isolation technique

Click to check the answer

ERPs isolate specific brain responses to events by averaging EEG signals over repeated stimuli.

12

EEG artifacts and influencing factors

Click to check the answer

EEG readings can be affected by muscle movements, external electrical noise, and varying individual conditions.

13

______ and ______ are crucial in neuroscience and clinical diagnostics, offering insights into brain function.

Click to check the answer

EEGs ERPs

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Psychology

The Human Brain: Structure and Function

View document

Psychology

The Fight-or-Flight Response

View document

Psychology

Aversion Therapy: A Behavioral Intervention for Addiction

View document

Psychology

Understanding Addiction

View document

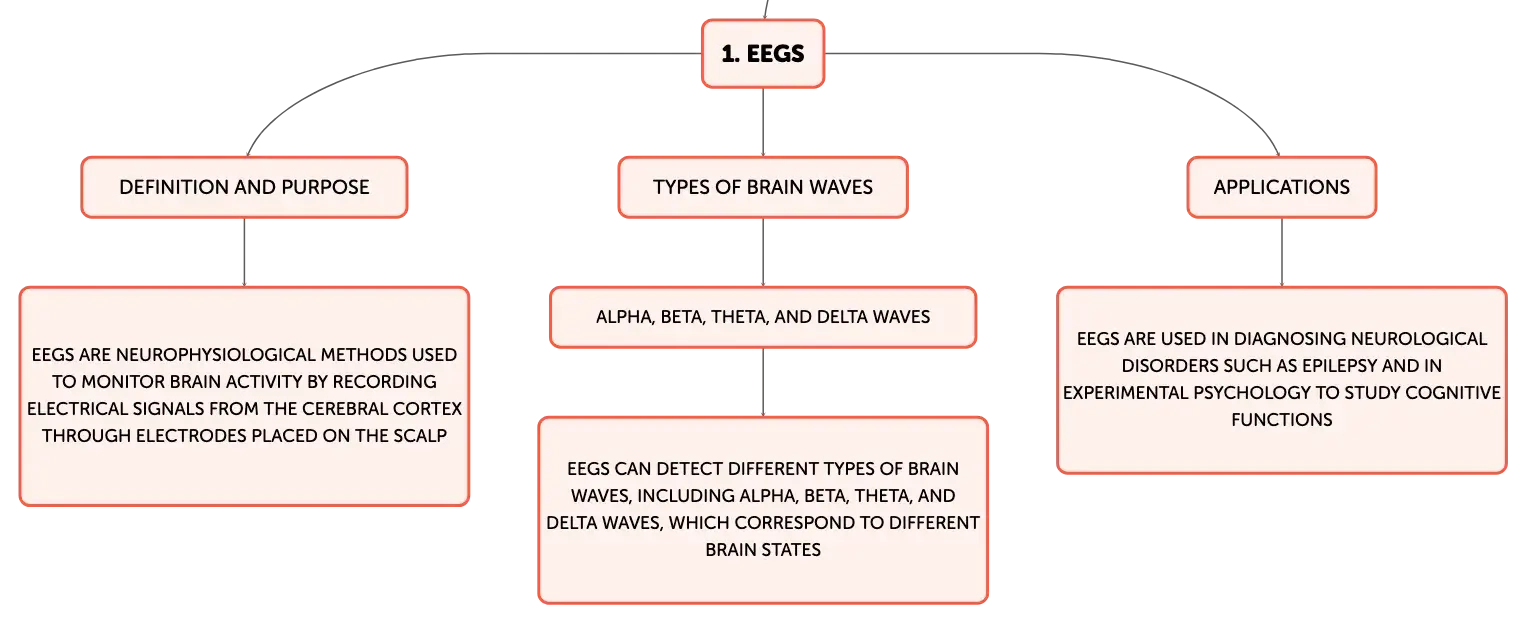

Exploring the Basics of Electroencephalograms (EEGs) and Event-Related Potentials (ERPs)

Electroencephalograms (EEGs) and Event-Related Potentials (ERPs) are fundamental neurophysiological methods for monitoring brain activity. EEGs record the ongoing electrical activity produced by the cerebral cortex through electrodes placed on the scalp. The resulting brain waves are characterized by their frequency and amplitude, with the primary types being Alpha, Beta, Theta, and Delta waves, each correlating with different brain states. EEGs are invaluable in diagnosing neurological disorders such as epilepsy, which is characterized by irregular electrical brain activity.
Patient lying on medical table with electrodes connected to scalp for EEG, healthcare professional observes machinery.

The Methodology of EEG and ERP Procedures

An EEG procedure involves attaching electrodes to the scalp with a conductive paste to capture the electrical signals from brain activity. The recorded signals are then graphically displayed, allowing for the analysis of brain wave patterns across various regions. EEGs can show consistent waveforms during states like sleep or focused concentration, and irregular waveforms during alertness. ERPs, derived from EEG data, isolate the brain's electrical response to specific sensory or cognitive events by averaging the EEG response over several instances of the stimulus, thus highlighting the brain's direct reaction to the event.

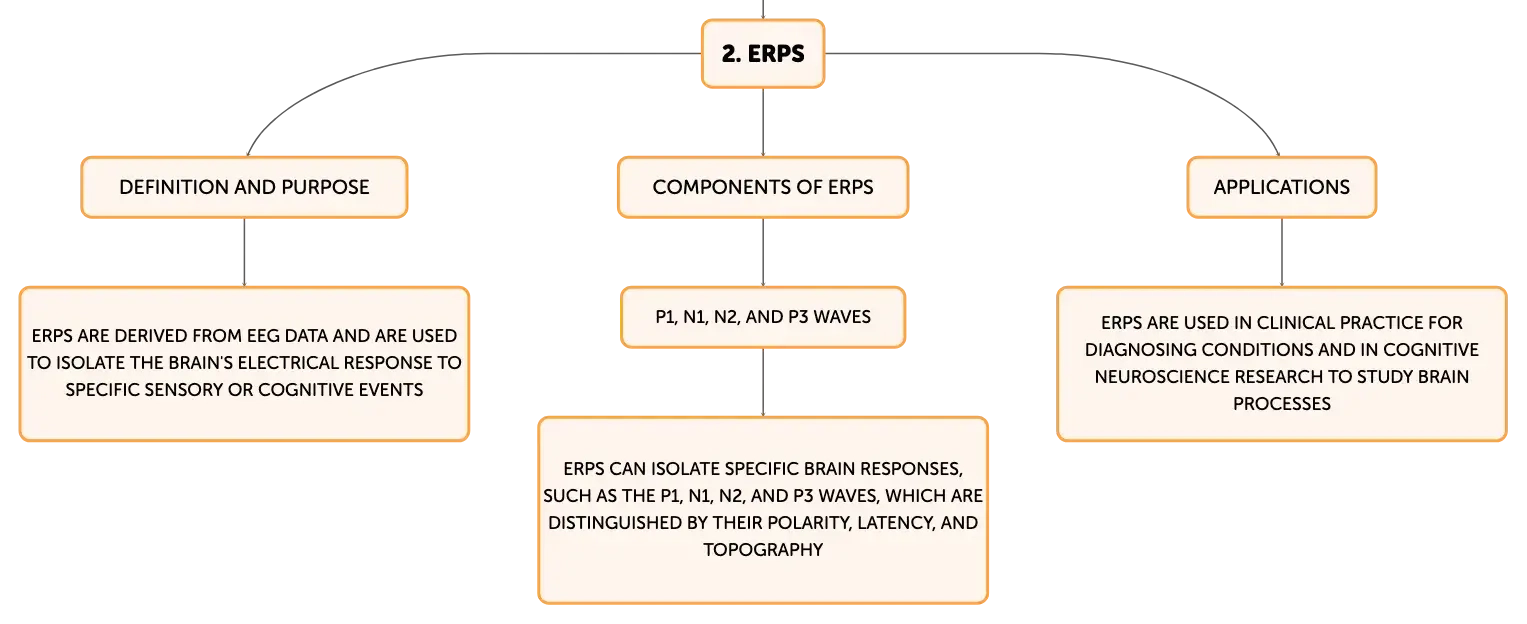

Differentiating EEGs from ERPs

EEGs and ERPs both utilize electrodes to measure brain activity, but they serve different purposes. EEGs provide a continuous overview of brain activity, useful for monitoring states of consciousness and diagnosing disorders. ERPs, however, are time-locked measurements that focus on the brain's response to specific stimuli. By averaging the EEG response to repeated presentations of a stimulus, ERPs can isolate specific brain responses, such as the P1, N1, N2, and P3 waves, which are distinguished by their polarity (positive or negative), latency (timing), and topography (scalp distribution).

Clinical and Experimental Uses of EEGs and ERPs

EEGs are widely used in clinical practice for diagnosing conditions like epilepsy, sleep disorders, and neurodegenerative diseases such as Alzheimer's. In experimental psychology, ERPs are employed to investigate cognitive functions, including attention and memory. For instance, ERP studies on the Stroop effect have provided insights into the neural mechanisms of cognitive control by examining changes in the N2 and P3 components. ERPs have also been used to study emotional processing in individuals with specific phobias, revealing heightened late ERP components, such as the P3, in response to phobia-related stimuli.

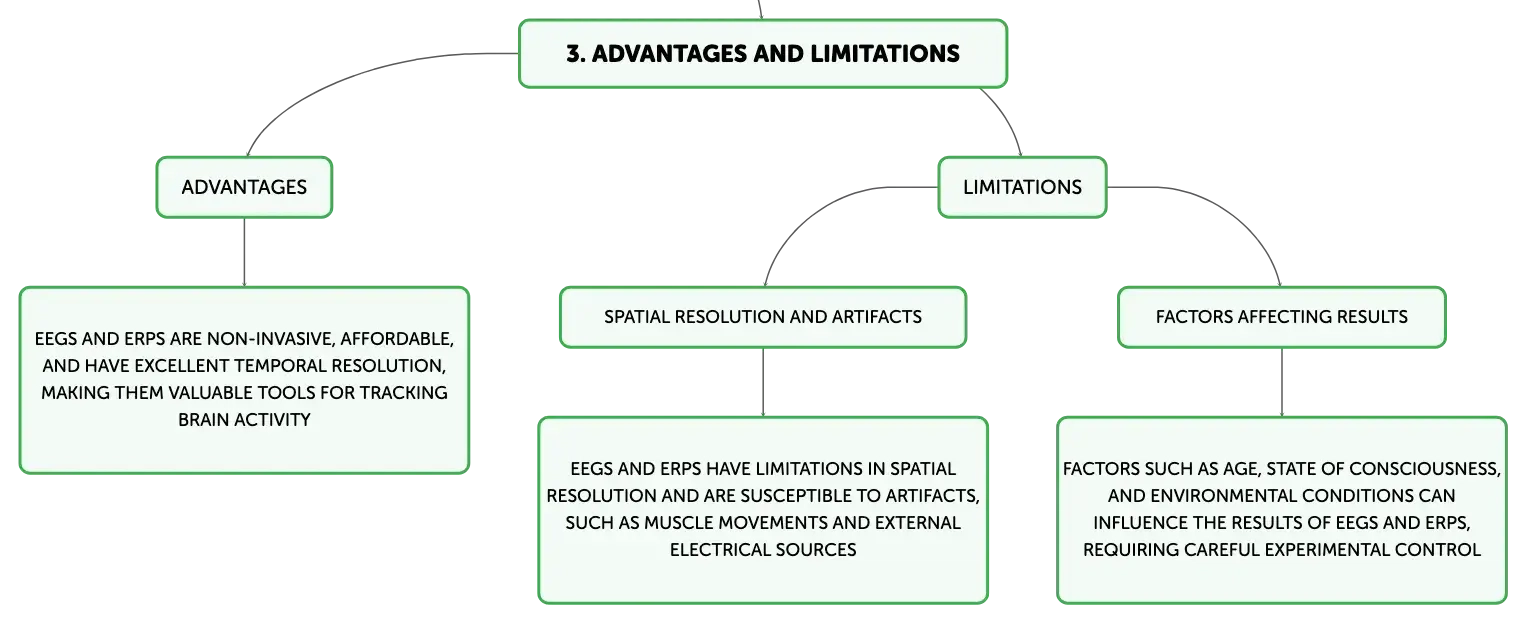

Advantages and Challenges of Using EEGs and ERPs

EEGs and ERPs are advantageous due to their non-invasive nature, affordability, and excellent temporal resolution, which is crucial for tracking the dynamics of brain activity. ERPs are particularly robust in isolating event-specific brain responses through signal averaging. However, both methods have spatial resolution limitations, making it difficult to precisely locate the origins of neural activity. EEGs are also susceptible to artifacts from muscle movements or external electrical sources. Conductive gels may cause discomfort, and factors such as age, state of consciousness, and environmental conditions can influence the results, necessitating careful experimental control.

Concluding Insights on EEGs and ERPs

EEGs and ERPs are indispensable tools in neuroscience and clinical diagnostics, each with distinct approaches and insights into brain function. EEGs offer a comprehensive view of brain activity, while ERPs provide a targeted analysis of the brain's responses to specific events. Their application extends from clinical diagnosis to cognitive neuroscience research, where they contribute to our understanding of brain processes. Despite their limitations, EEGs and ERPs are critical for advancing our knowledge of the brain's electrical activity and its relationship to behavior and mental states.
