Cache Memory: Enhancing Computer Performance

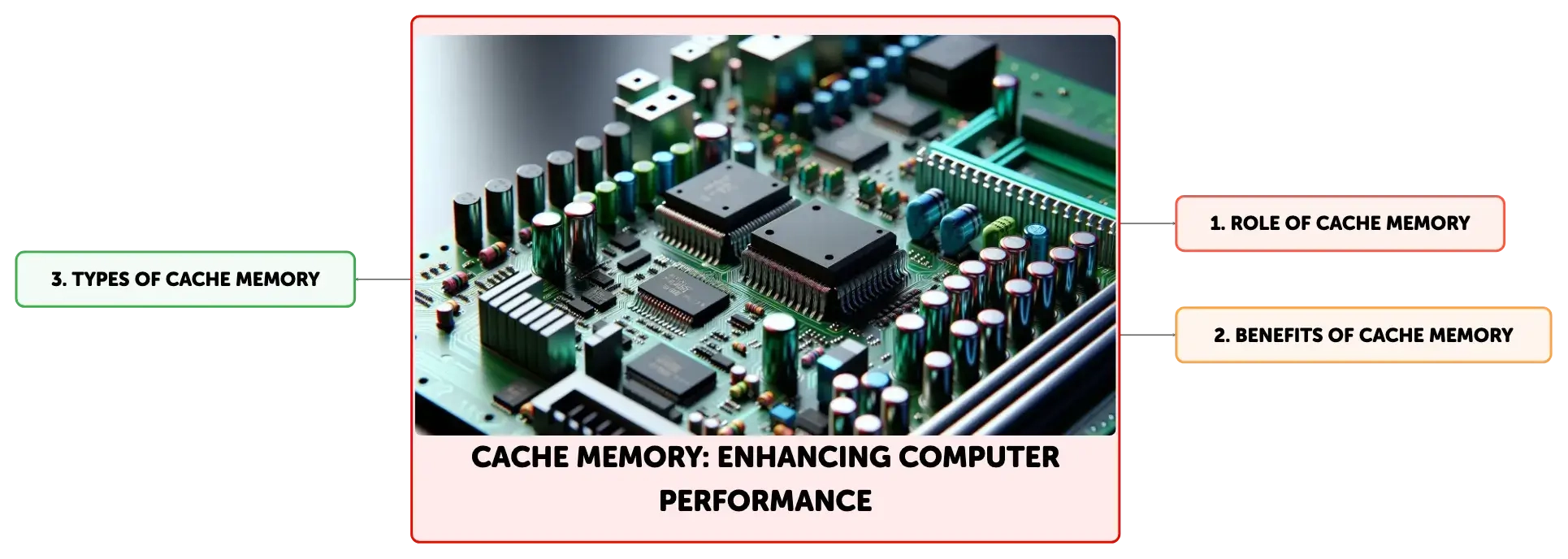

Concept Map
Cache memory is a crucial component in computing that speeds up data access for the CPU by storing frequently used information. It operates on the principle of temporal locality, ensuring that data likely to be reused is quickly accessible. This text delves into the advantages of cache memory, its operational mechanism, hierarchical structure, categorization by mapping techniques, and its distinct functions from RAM. It also discusses considerations for cache memory size and configuration to optimize computer performance.
Summary
Outline
Exploring the Functionality of Cache Memory in Computing
Cache memory is an essential component in modern computing, acting as a high-speed storage layer that is either integrated into the processor or situated close to it. Its role is to temporarily hold copies of frequently accessed data and instructions from the main memory (RAM), thereby reducing the time it takes for the CPU to retrieve this information. By minimizing the delay, known as latency, cache memory enhances the efficiency of data retrieval and significantly boosts the overall performance of a computer system.Advantages of Cache Memory in Computer Performance
The implementation of cache memory within a computer architecture brings forth numerous benefits. It primarily reduces the latency between the CPU and the slower main memory, facilitating faster data access for the processor. This speed enhancement is critical for the smooth execution of applications and the operating system. Furthermore, cache memory is energy-efficient; it consumes less power than main memory during data access, contributing to the overall energy efficiency of the computing system.The Operational Mechanism of Cache Memory
Cache memory operates based on the principle of temporal locality, which posits that data or instructions accessed by the CPU are likely to be needed again in the near future. When the CPU requires data, it first checks the cache. If the data is found there (a cache hit), it can be quickly used. If not (a cache miss), the data must be fetched from the slower main memory. The cache uses algorithms to predict and store the most frequently accessed data, thereby optimizing the system's performance over time.Hierarchical Structure of Cache Memory
Cache memory is organized in a multi-level hierarchy to optimize speed and capacity. The Level 1 (L1) cache, embedded within the CPU, is the fastest and smallest, designed for immediate data access. It is split into separate sections for instructions (instruction cache) and data (data cache). The Level 2 (L2) cache, larger than L1, may be on the CPU or on a separate chip nearby, providing a secondary pool of fast-access memory. The Level 3 (L3) cache, often shared among multiple cores, is the largest and slowest of the caches, but still faster than main memory, serving as a final reservoir of high-speed memory access for the CPU.Categorization of Cache Memory by Mapping Techniques
Cache memory can be classified into three types based on data mapping techniques: Direct-Mapped Cache, Fully Associative Cache, and Set-Associative Cache. Direct-Mapped Cache maps each block of main memory to a single cache line, which is simple but can lead to higher rates of cache misses. Fully Associative Cache, on the other hand, allows any memory block to be stored in any cache line, providing great flexibility but at the cost of higher complexity and slower access times. Set-Associative Cache strikes a balance by grouping cache lines into sets, with each memory block being able to map to any line within a set, thus reducing the likelihood of cache misses while maintaining reasonable complexity and access speed.Distinct Functions of Cache Memory and RAM
Cache memory and RAM are integral to a computer's operation, serving distinct yet complementary roles. Cache memory is optimized for speed, providing the CPU with rapid access to a small subset of data and instructions that are in active use or frequently accessed. RAM, in contrast, is the primary storage for data and instructions that the CPU needs for current operations, offering larger capacity but at slower access speeds. The interplay between the two types of memory is vital for system performance, with cache memory acting to reduce the frequency and impact of accessing the slower RAM, thus enhancing the overall efficiency of data processing.Considerations for Cache Memory Size and Configuration
The optimal size of cache memory for a computer system is influenced by various factors, including the architecture of the processor, the nature of the applications being run, and the balance between performance gains and cost. While larger cache sizes can improve performance, they also increase the cost and physical space requirements within the system. Moreover, there is a point of diminishing returns where additional cache capacity yields minimal performance benefits. Therefore, determining the appropriate cache memory size involves a careful analysis of these factors to achieve an efficient and cost-effective system configuration.
Show More

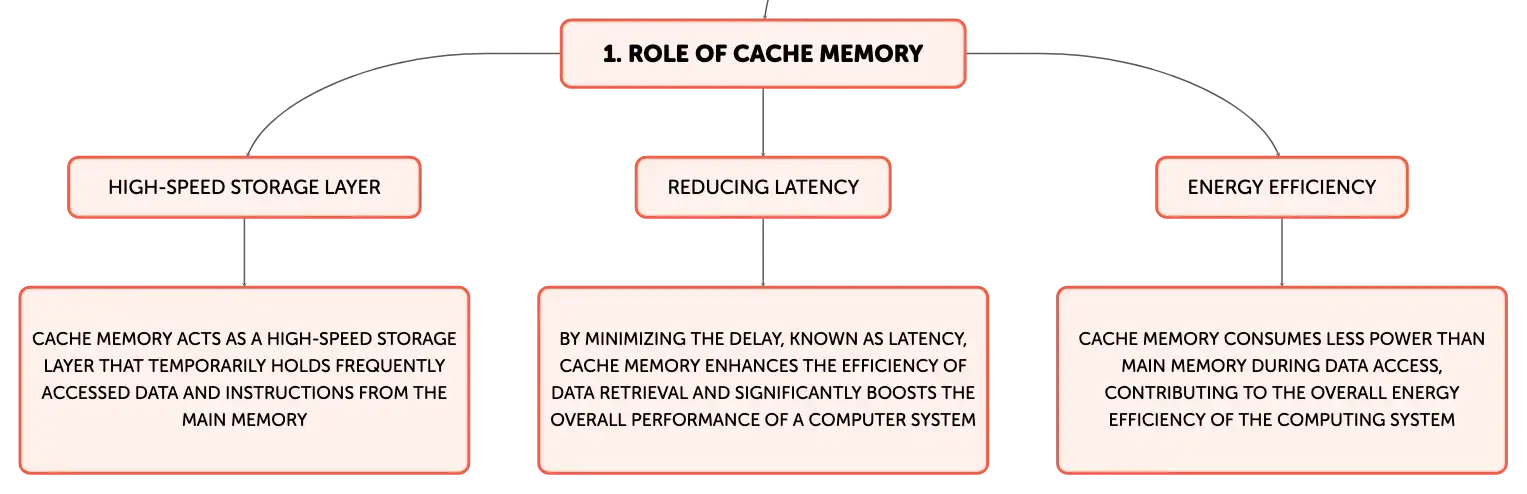

Role of Cache Memory
High-speed storage layer
Cache memory acts as a high-speed storage layer that temporarily holds frequently accessed data and instructions from the main memory
Reducing latency
By minimizing the delay, known as latency, cache memory enhances the efficiency of data retrieval and significantly boosts the overall performance of a computer system
Energy efficiency
Cache memory consumes less power than main memory during data access, contributing to the overall energy efficiency of the computing system

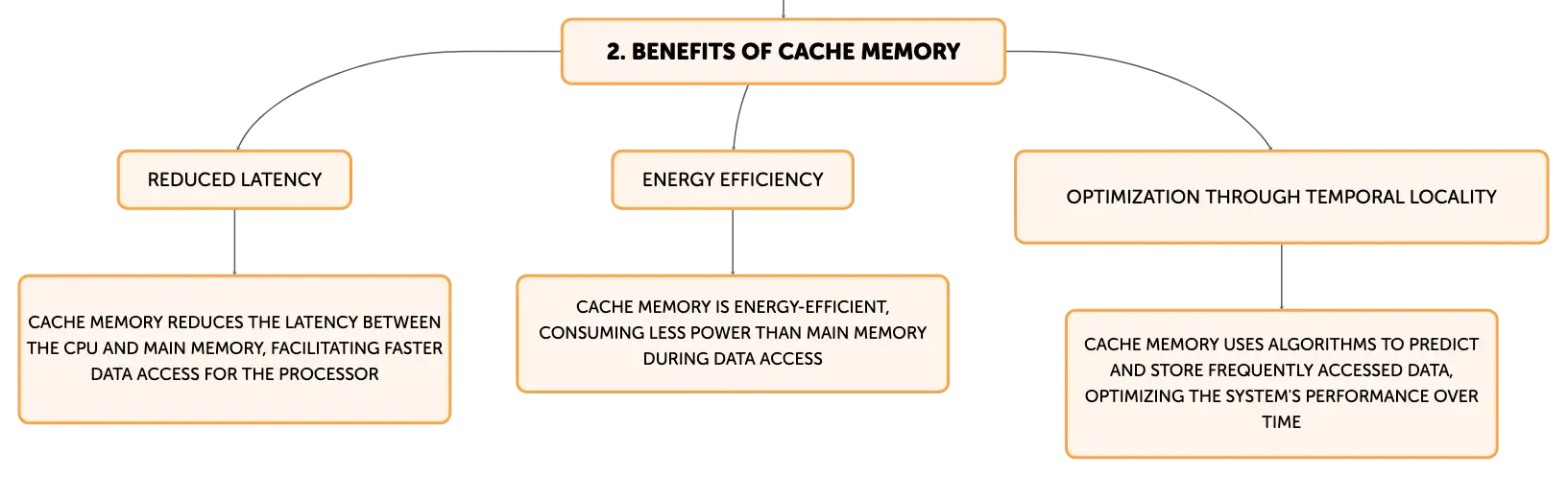

Benefits of Cache Memory
Reduced latency
Cache memory reduces the latency between the CPU and main memory, facilitating faster data access for the processor
Energy efficiency
Cache memory is energy-efficient, consuming less power than main memory during data access
Optimization through temporal locality
Cache memory uses algorithms to predict and store frequently accessed data, optimizing the system's performance over time

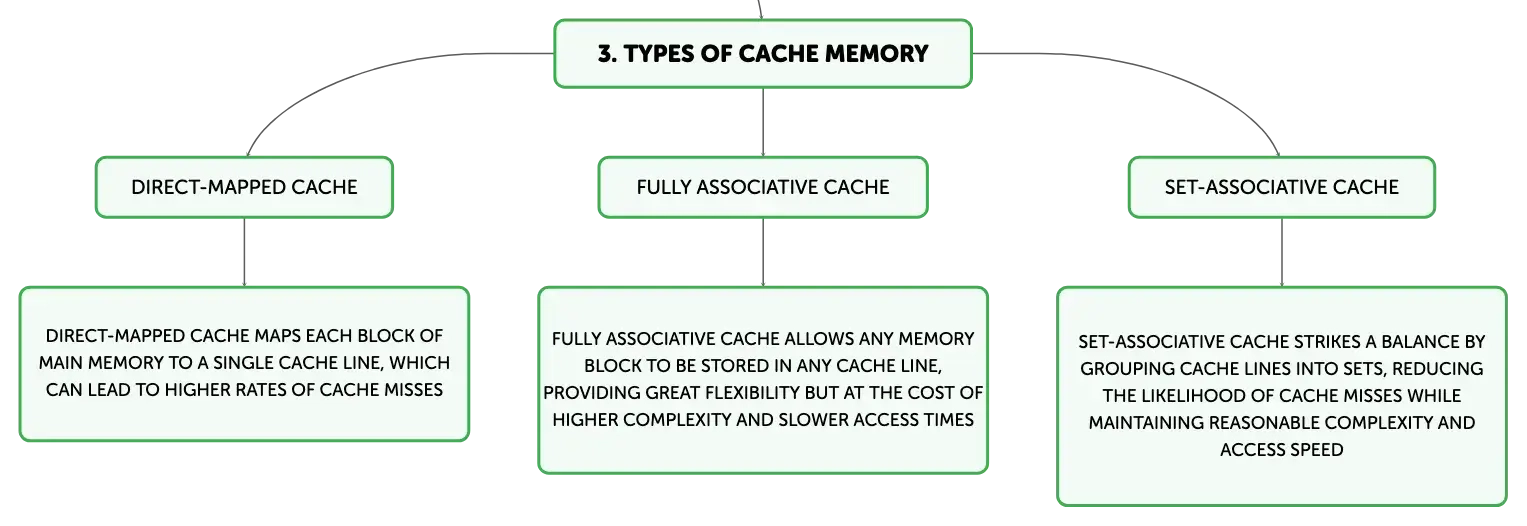

Types of Cache Memory
Direct-Mapped Cache
Direct-Mapped Cache maps each block of main memory to a single cache line, which can lead to higher rates of cache misses
Fully Associative Cache
Fully Associative Cache allows any memory block to be stored in any cache line, providing great flexibility but at the cost of higher complexity and slower access times
Set-Associative Cache
Set-Associative Cache strikes a balance by grouping cache lines into sets, reducing the likelihood of cache misses while maintaining reasonable complexity and access speed
Cache Memory: Enhancing Computer Performance
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Cache memory location relative to CPU
Cache is integrated into the processor or situated close to it for rapid access.
01
Data stored in cache memory
Cache holds copies of frequently accessed data and instructions from RAM.
02
Impact of cache memory on computer performance
Cache reduces latency, enhancing data retrieval efficiency and boosting system performance.
