Logo
Logo
Log inSign up
Logo

Tools

AI Concept MapsAI Mind MapsAI Study NotesAI FlashcardsAI Quizzes

Resources

BlogTemplate

Info

PricingFAQTeam

info@algoreducation.com

Corso Castelfidardo 30A, Torino (TO), Italy

Algor Lab S.r.l. - Startup Innovativa - P.IVA IT12537010014

Privacy PolicyCookie PolicyTerms and Conditions

Moore Automata: A Fundamental Concept in Computational Theory and Digital Circuit Design

Moore automata, pivotal in computational theory and digital circuit design, are defined by state-only dependent outputs. These deterministic machines are essential for creating reliable digital systems, with applications ranging from ATMs to traffic signals. The transition from Mealy to Moore automata, while increasing complexity, leads to more predictable systems. Despite challenges, Moore automata's evolution continues to influence computer science.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Origin of Moore automata

Click to check the answer

Conceptualized by Edward F. Moore, foundational in computational theory and digital design.

2

Output determination in Moore automata

Click to check the answer

Output depends only on current state, not on input, unlike Mealy automata.

3

Moore automaton representation

Click to check the answer

Represented by a 5-tuple (Q, Σ, Δ, λ, q0) defining states, input alphabet, transitions, output function, initial state.

4

______ transitions in Moore automata are not influenced by the input, and the outputs are strictly dependent on the state.

Click to check the answer

Deterministic

5

Mealy vs. Moore Automaton Output Basis

Click to check the answer

Mealy outputs depend on state and input; Moore outputs depend only on state.

6

State Increase in Moore Automaton Conversion

Click to check the answer

Converting from Mealy to Moore often increases state count to represent distinct outputs.

7

Output Response Delay in Moore Automaton

Click to check the answer

Moore automaton may introduce one-cycle delay in output due to state-only output specification.

8

Due to their deterministic nature, ______ automata are easily scalable, aiding in system growth and enhancements.

Click to check the answer

Moore

9

Moore Automata State Complexity

Click to check the answer

Moore machines have increased state complexity due to output being state-dependent, requiring more states than Mealy machines for some tasks.

10

Moore Automata Output Delay

Click to check the answer

Outputs change only on state transitions, which can introduce delays compared to Mealy machines where outputs can change immediately with inputs.

11

Moore Automata in Quantum Computing

Click to check the answer

Future adaptations of Moore automata may extend to non-binary systems, such as quantum computing, to stay relevant in advancing technology.

12

______ automata output depends solely on their state, unlike ______ automata that also consider the input.

Click to check the answer

Moore Mealy

13

Switching from ______ to ______ automata may lead to more complex systems with output delays, but also to more reliable ones.

Click to check the answer

Mealy Moore

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Understanding Processor Cores

View document

Computer Science

Computer Memory

View document

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Secondary Storage in Computer Systems

View document

Exploring Moore Automata in Computational Theory

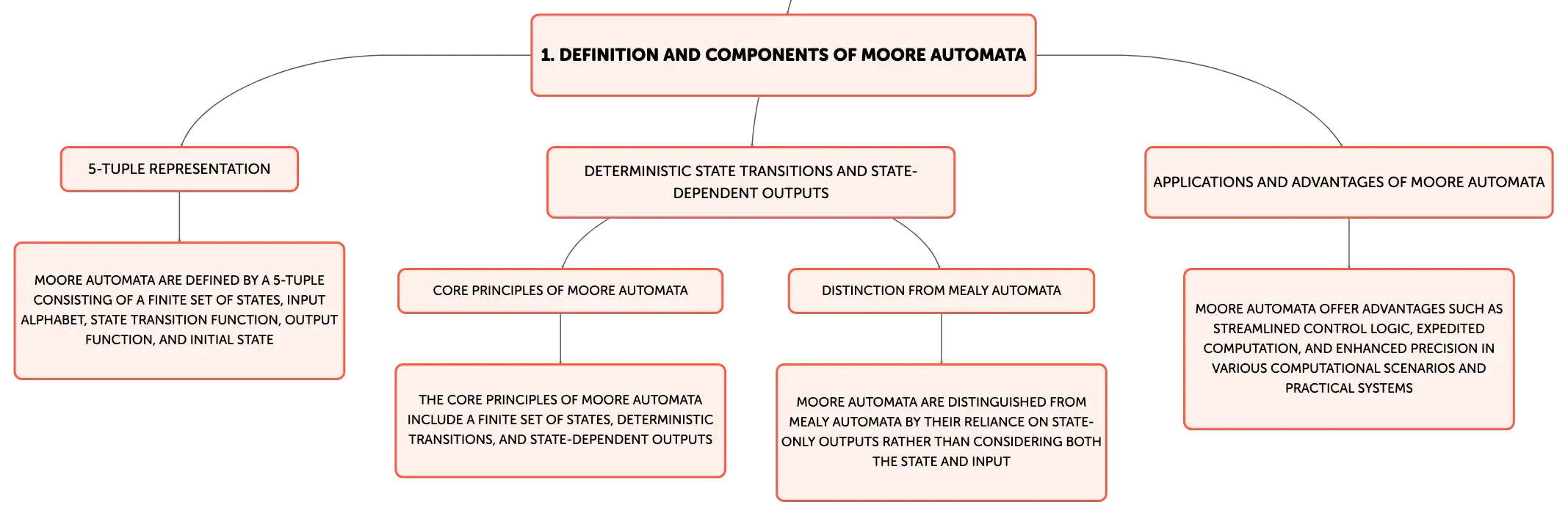

Moore automata, conceptualized by Edward F. Moore, are fundamental in computational theory and digital circuit design. They represent a class of finite-state machines where the output is solely a function of the current state, rather than the input. Defined by a 5-tuple (Q, Σ, Δ, λ, q0), where Q is a finite set of states, Σ is the input alphabet, Δ is the state transition function, λ is the output function, and q0 is the initial state, Moore automata provide a deterministic framework for designing reliable digital circuits, supervisory control systems, and serve as a theoretical foundation for certain computational processes.
Close-up of an electronic board with black integrated circuits, colored resistors and capacitors on green PCB with traces of copper.

Defining Features and Principles of Moore Automata

Moore automata are distinguished by their deterministic state transitions and state-dependent outputs. Each state in a Moore automaton has a predetermined next state and an associated output that is produced immediately upon entering the state. The core principles of Moore automata include a finite set of states, deterministic transitions that are independent of the input, and outputs that are exclusively state-dependent. These principles are applied in various computational scenarios, such as sequence detectors, and practical systems like automated teller machines (ATMs), traffic signals, and other devices where consistent and predictable behavior is essential.

Transitioning from Mealy to Moore Automata

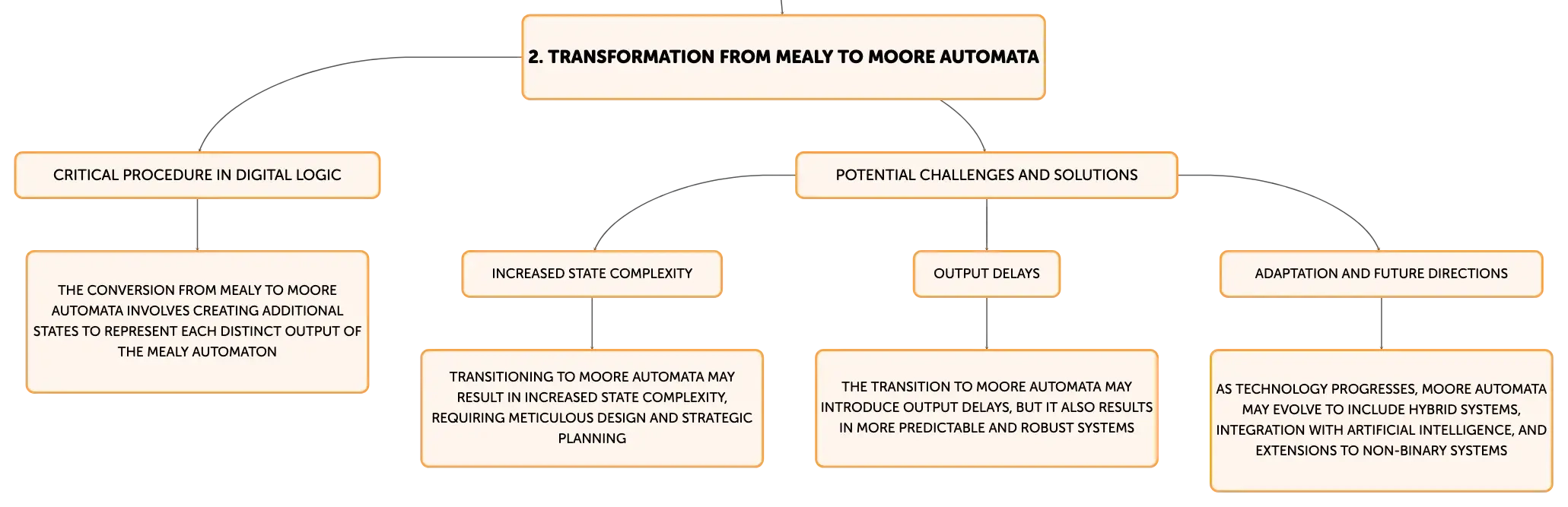

The transformation from a Mealy automaton, which generates outputs based on both the current state and the input, to a Moore automaton, which relies only on the state, is a critical procedure in digital logic. This conversion necessitates the creation of additional states in the Moore automaton to represent each distinct output of the Mealy automaton. Although this may result in an increased number of states and potentially introduce a one-cycle delay in output response, it ensures that the outputs of the Moore automaton conform to its state-only output specification.

Advantages and Utilization of Moore Automata

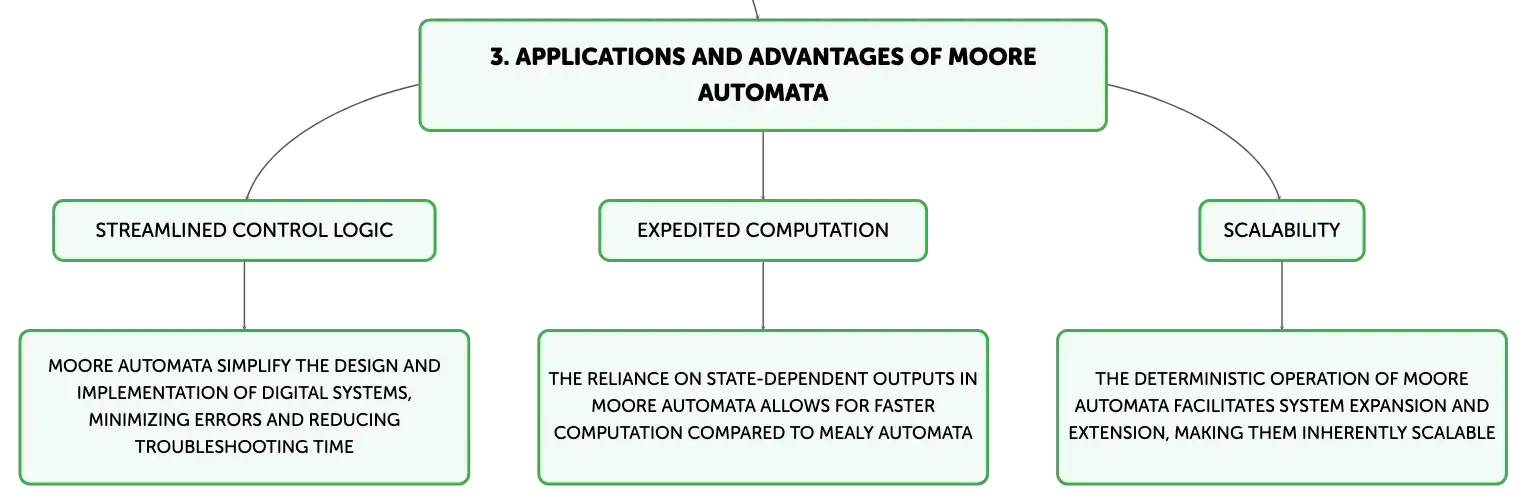

Moore automata offer several advantages, such as streamlined control logic, expedited computation, and enhanced precision. The reliance on state-dependent outputs simplifies the design and implementation of digital systems, minimizing errors and reducing the time required for troubleshooting. Moore automata are also inherently scalable, with their deterministic operation facilitating system expansion and extension. These benefits are evident in a range of applications, from educational tools to complex digital systems involved in sequential circuit design and synchronization tasks, where Moore automata contribute to effective and predictable operation.

Overcoming Challenges and Looking to the Future of Moore Automata

While Moore automata present numerous benefits, they also face challenges such as increased state complexity, potential output delays, and complications in modifying existing systems. Addressing these challenges demands meticulous design and strategic planning. As technology progresses, Moore automata must adapt to remain relevant. Future directions may include hybrid systems that blend Mealy and Moore characteristics, integration with artificial intelligence, and extensions to non-binary systems like those found in quantum computing. Through continuous evolution, Moore automata will maintain their vital role in computational theory and digital circuit design.

Essential Insights into Moore Automata

Moore automata are defined by their unique characteristic of state-only dependent outputs, setting them apart from Mealy automata, which consider both the state and the input. This type of automaton is widely employed across various industries due to its deterministic nature, offering advantages such as simplified control logic, accelerated computation, and scalability. Transitioning from Mealy to Moore automata can increase system complexity and introduce output delays, yet it also results in more predictable and robust systems. Despite potential challenges, Moore automata are expected to evolve and continue to be a cornerstone in the field of computer science.
