See morePrinciples of Light Reflection on Mirrors

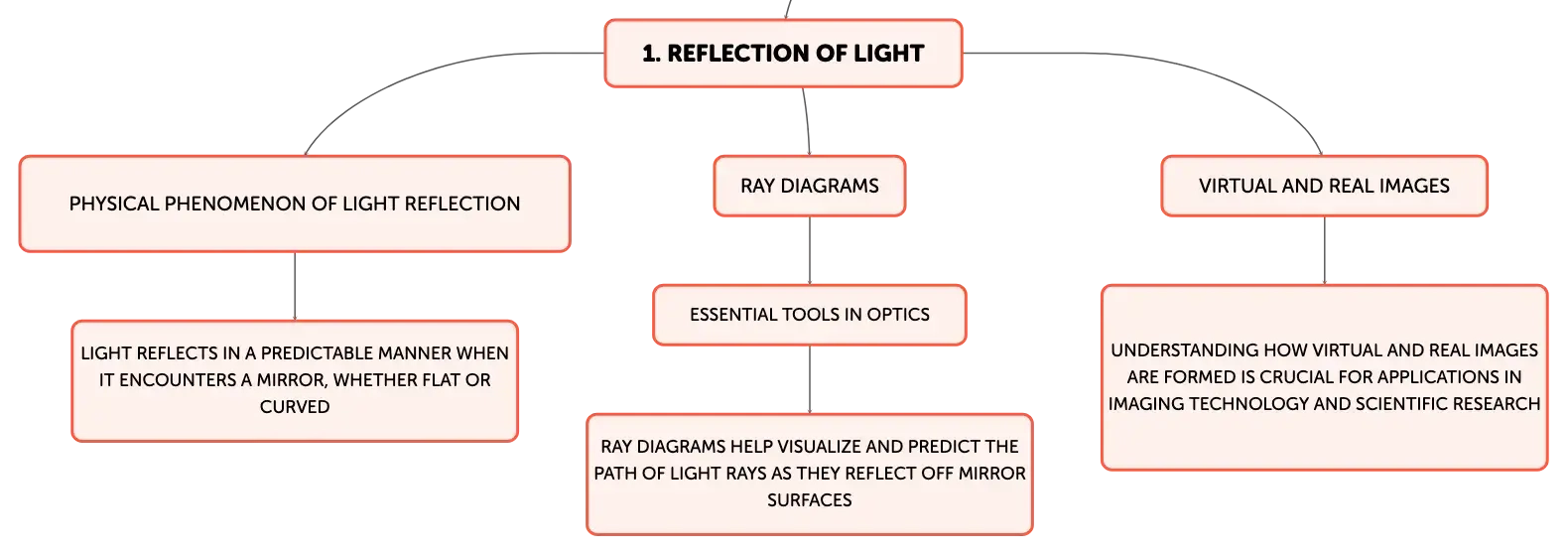

Mirrors are ubiquitous in our lives, serving functions ranging from personal grooming to sophisticated optical instruments. The reflection of light from mirrors is a physical phenomenon that can be understood through the study of optics. When light encounters a mirror, it reflects in a predictable manner, whether the mirror is flat or curved. Ray diagrams are essential tools in optics that help us visualize and predict the path of light rays as they reflect off mirror surfaces. These diagrams facilitate our understanding of how virtual and real images are formed, which is crucial for applications in imaging technology and scientific research.Ray Tracing Fundamentals: Reflection and Refraction

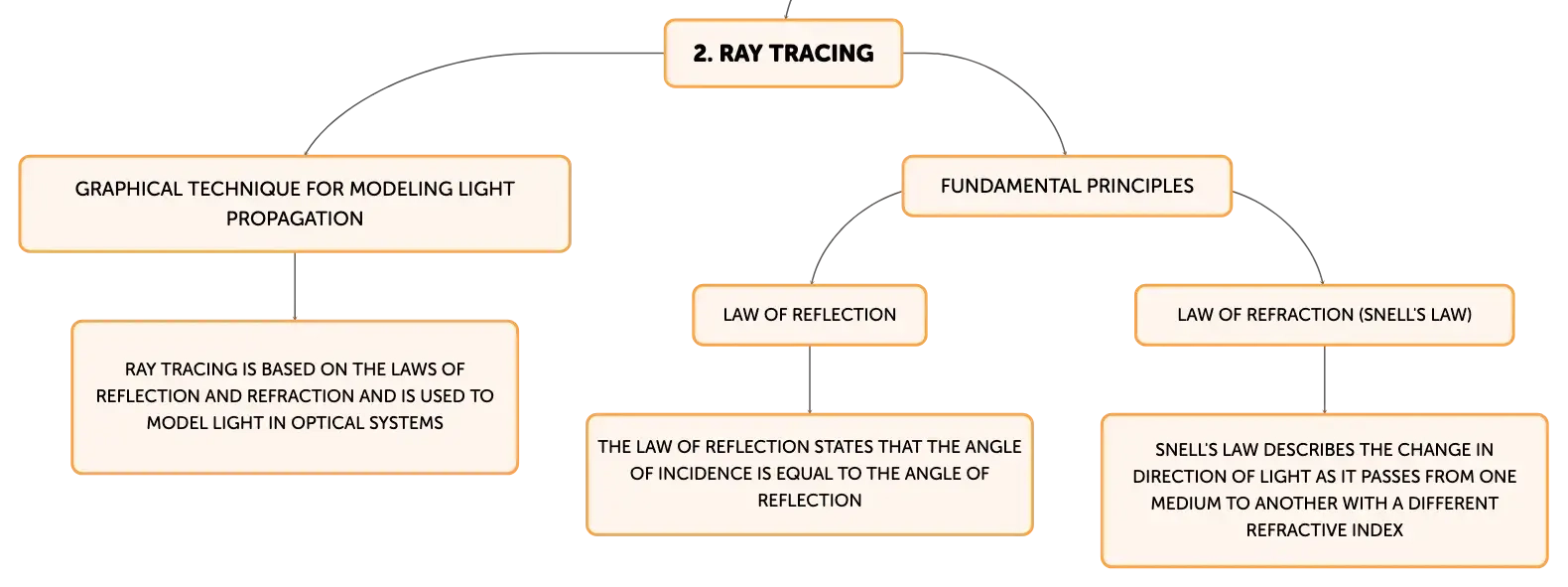

Ray tracing is a graphical technique used to model the propagation of light through optical systems. It is based on two fundamental principles: the law of reflection and the law of refraction (Snell's law). The law of reflection states that the angle of incidence is equal to the angle of reflection, with both angles measured relative to the normal to the surface at the point of incidence. Snell's law describes the change in direction of light as it passes from one medium to another with a different refractive index, stating that the product of the refractive index and the sine of the angle of incidence is constant across the interface. These principles are the foundation for constructing accurate ray diagrams that depict the trajectory of light in environments involving reflection and refraction.Image Formation by Flat Mirrors

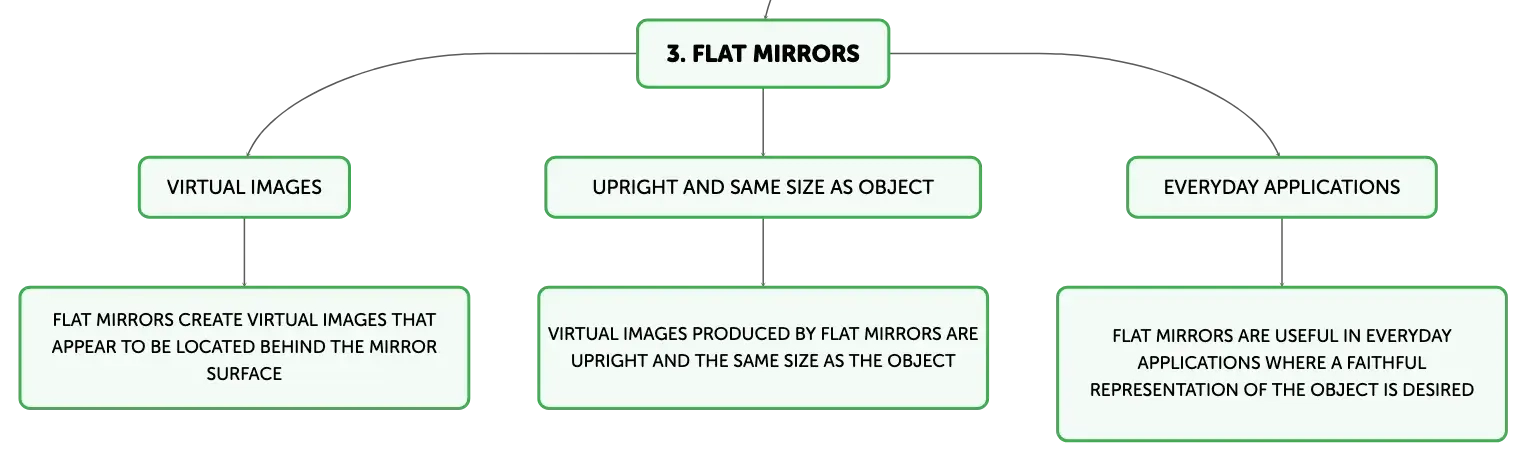

Flat mirrors create virtual images that appear to be located behind the mirror surface. This occurs because the reflected light rays diverge, but when extended backwards, they seem to originate from a point behind the mirror. By tracing these rays, we can determine the position of the virtual image, which will be equidistant from the mirror as the object is in front of it. The virtual image produced by a flat mirror is upright and the same size as the object, making flat mirrors useful in everyday applications where a faithful representation of the object is desired.Image Formation by Curved Mirrors

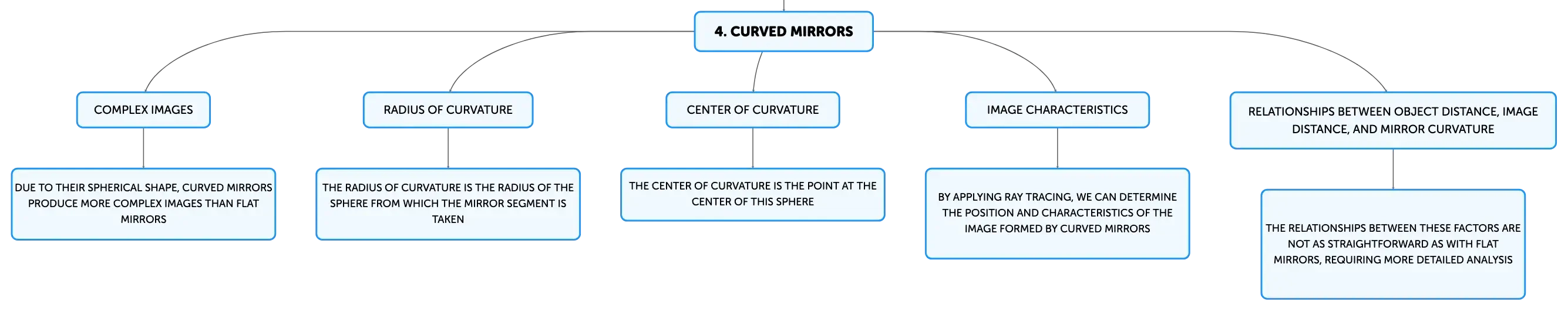

Curved mirrors, which include concave and convex types, produce more complex images due to their spherical shape. The radius of curvature (r) of a mirror is the radius of the sphere from which the mirror segment is taken. Concave mirrors have a positive radius of curvature, while convex mirrors have a negative radius. The center of curvature (C) is the point at the center of this sphere. By applying ray tracing to curved mirrors, we can locate the image formed and determine its characteristics, such as size, orientation, and whether it is real or virtual. The relationships between object distance, image distance, and mirror curvature are not as straightforward as with flat mirrors, requiring more detailed analysis.Distinguishing Real and Virtual Images in Curved Mirrors

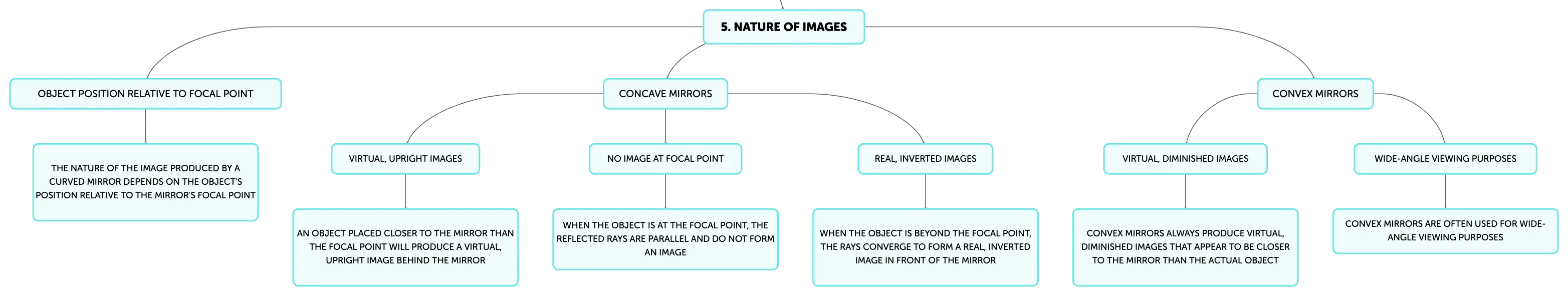

The nature of the image produced by a curved mirror depends on the object's position relative to the mirror's focal point. In concave mirrors, an object placed closer to the mirror than the focal point will produce a virtual, upright image behind the mirror. If the object is at the focal point, the reflected rays are parallel and do not form an image. When the object is beyond the focal point, the rays converge to form a real, inverted image in front of the mirror. Convex mirrors, on the other hand, always produce virtual, diminished images that appear to be closer to the mirror than the actual object, which is why they are often used for wide-angle viewing purposes.The Mirror Equation and Optical Design

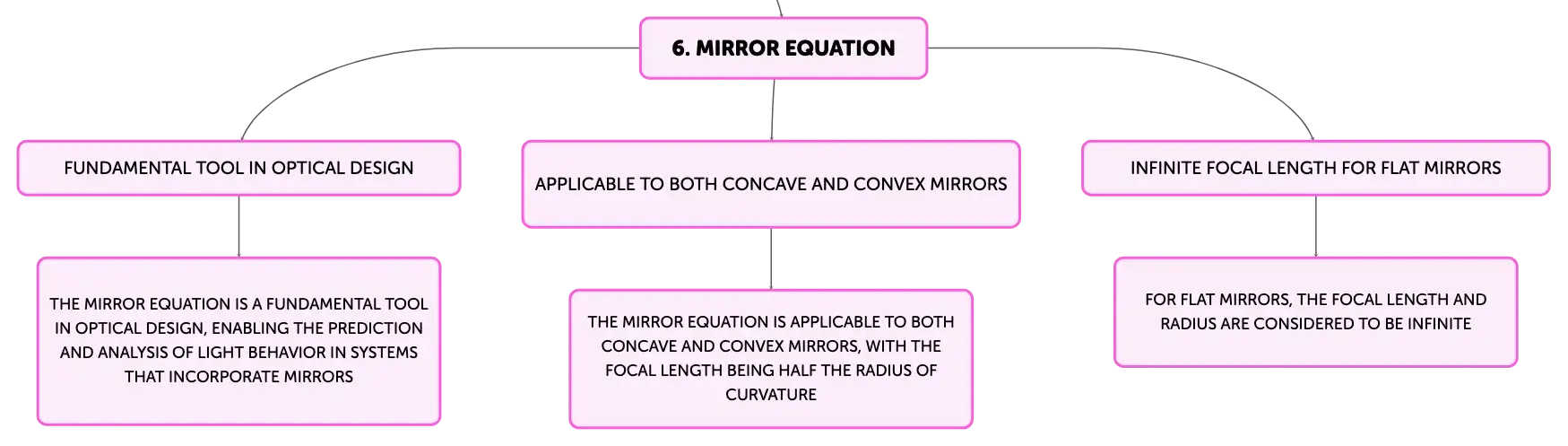

The mirror equation, 1/p + 1/i = 1/f = 2/r, relates the object distance (p), image distance (i), and focal length (f) of a curved mirror. This equation is applicable to both concave and convex mirrors, with the focal length being half the radius of curvature. For flat mirrors, the focal length and radius are considered to be infinite. The mirror equation is a fundamental tool in optical design, enabling the prediction and analysis of light behavior in systems that incorporate mirrors. It is essential for the development of various optical devices, from simple magnifying glasses to complex telescopes.Want to create maps from your material?
