Iterative Methods for Approximate Solutions

Exploring Iterative Methods for Solving Equations

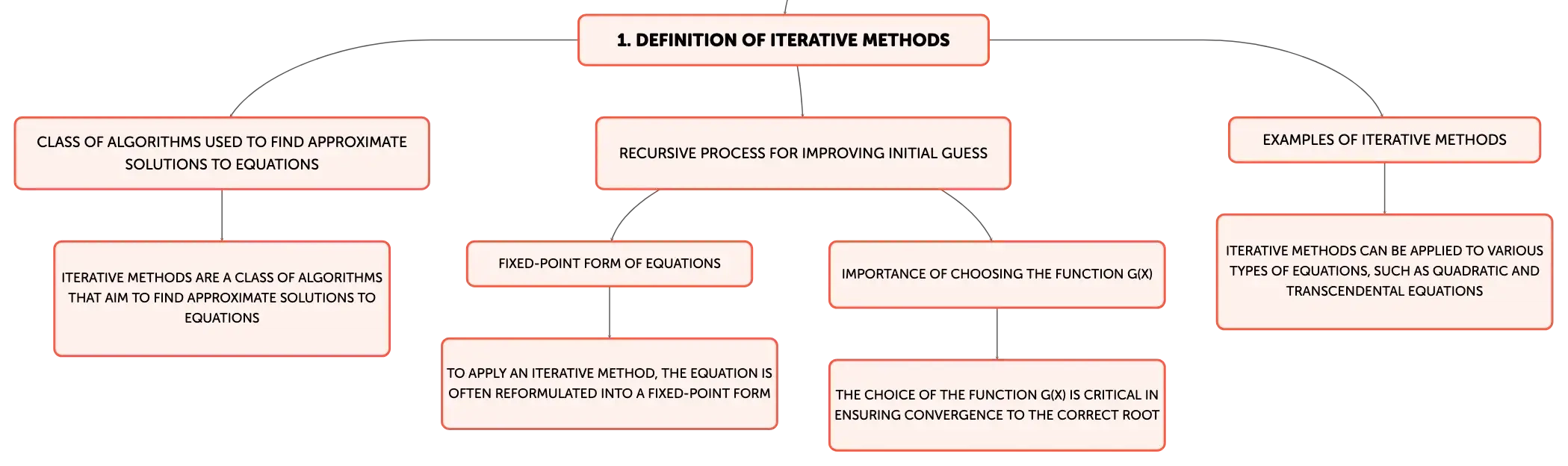

Iterative methods are a class of algorithms used to find approximate solutions to equations, particularly useful when exact analytical solutions are difficult or impossible to obtain. These methods begin with an initial guess and improve this estimate iteratively, using a recursive process that aims to converge to the true solution. To apply an iterative method, the equation f(x)=0 is often reformulated into a fixed-point form x=g(x), setting the stage for the iteration: xn+1 = g(xn). The choice of the function g(x) is critical, as it must ensure convergence to the correct root.

Demonstrating Iterative Methods Through Examples

For example, consider the quadratic equation x^2 - 3x - 5 = 0. To apply an iterative method, we might rearrange it to x = (x^2 - 5)/3. Starting with an initial guess x0, we use the iterative formula xn+1 = (xn^2 - 5)/3 to generate successive approximations. Each iteration refines the estimate of the root. Another example involves the transcendental equation f(x) = xe^(-x) - x + 3. By rearranging, we get x = ln(x - 3)/-1, which leads to the iterative formula xn+1 = ln(xn - 3)/-1. With a suitable initial guess, this process yields increasingly accurate approximations of the solution.

Graphical Interpretation of Iterative Methods

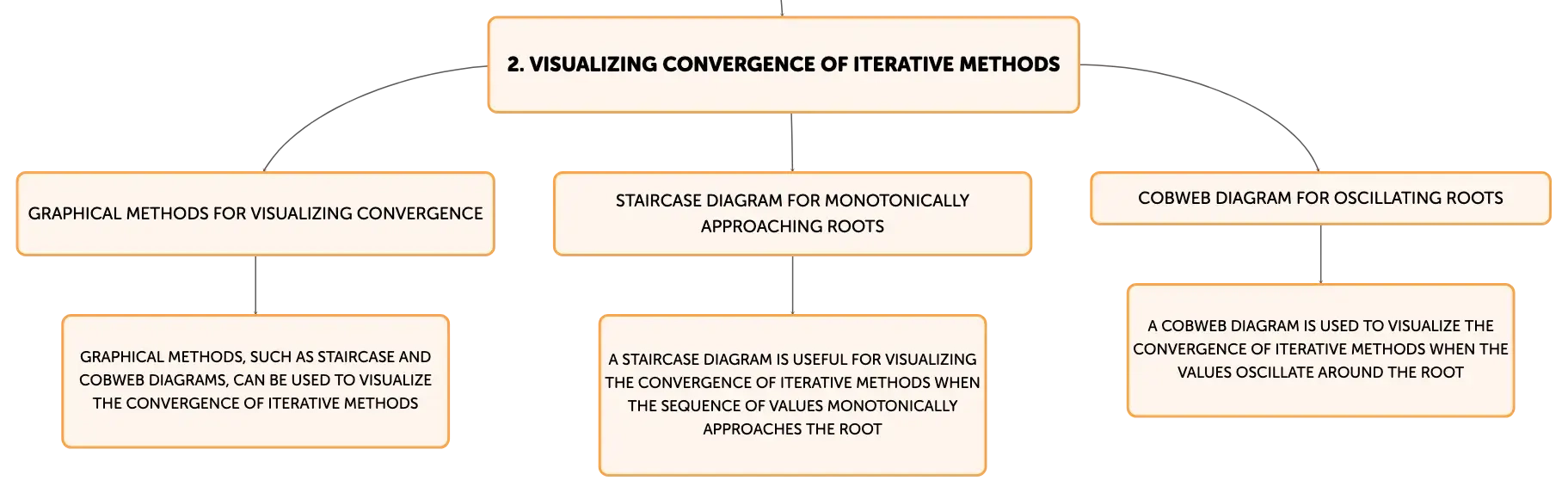

Graphical methods can be employed to visualize the convergence of iterative methods. These visualizations can provide insight into the behavior of the iterative process and the nature of the solution. A staircase diagram is useful when the sequence of iterative values monotonically approaches the root. For instance, plotting the function f(x) = x^2 - 3x - 5 alongside the iterative values x0, x1, x2, and x3, we can observe a pattern of convergence that resembles a staircase, indicating a steady progression towards the solution.

Understanding Convergence Patterns with Diagrams

Alternatively, a cobweb diagram is used when the iterative values oscillate around the root. This pattern is observed in the transcendental equation example, where the iterative values may alternate above and below the root. By plotting these values, a cobweb-like pattern emerges, illustrating the convergence of the iterative process from different directions. Both staircase and cobweb diagrams are valuable pedagogical tools that help students visualize and understand the dynamics of iterative methods and the nature of their convergence.

Conclusions on Iterative Methods

Iterative methods are indispensable in solving complex equations, offering a practical approach to finding approximate solutions where direct methods are not feasible. These methods, supported by graphical tools like staircase and cobweb diagrams, allow for a visual understanding of the convergence process. While iterative methods may not provide exact solutions, they enable us to approximate the roots with considerable precision, which is essential for many applications in science, engineering, and mathematics.
