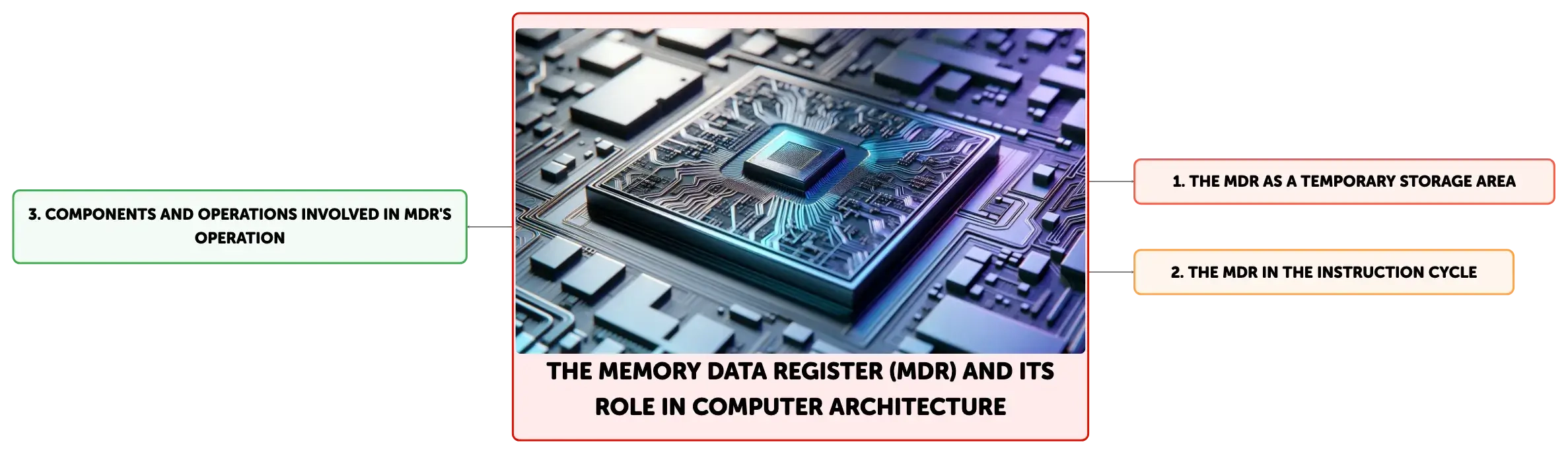

Concept Map
Algorino
Edit available
The Memory Data Register (MDR) is a crucial component in CPU architecture, serving as a buffer for data during transfer to and from main memory. It works with the Memory Address Register (MAR) to facilitate read and write operations, influencing the speed and efficiency of data processing. Technological improvements in the MDR can significantly enhance a computer's performance, making it a key focus for advancements in computing.
Summary
Outline
Exploring the Function of the Memory Data Register in CPU Architecture
The Memory Data Register (MDR), also known as the Memory Buffer Register, is an essential component of a computer's central processing unit (CPU). It acts as a temporary storage area for data that is being transferred to or from the main memory. The MDR ensures that data can be moved efficiently by holding it during the brief interval needed for the transfer, thereby facilitating the CPU's operations. It is actively involved in both reading data from memory to the CPU and writing data from the CPU to memory, making it a pivotal element in the computer's data handling and processing activities.Operational Dynamics of the Memory Data Register
The MDR works in conjunction with the Memory Address Register (MAR), which holds the address of the memory location to be accessed. When the CPU executes a read operation, it sends the address of the required data to the MAR, which then communicates with the memory to retrieve the data into the MDR. The data is subsequently moved to the CPU's internal registers for processing. In a write operation, the CPU places the data to be stored into the MDR and uses the MAR to direct the memory to the correct location for storage. This coordination between the MDR, MAR, and other CPU components is critical for the smooth execution of memory operations.Enhancing Computer Performance through the Memory Data Register
The performance of the MDR has a significant impact on the overall speed and efficiency of a computer system. A high-speed MDR can accelerate the data transfer rate between the CPU and memory, leading to faster execution of programs and an improved user experience. The speed of the MDR is particularly crucial during the execution of instructions that require rapid data retrieval and storage. Additionally, the MDR's performance is affected by the Dynamic Random-Access Memory (DRAM) Access Time, which is the time taken for data to be ready for use in the MDR after a request. Technological advancements that minimize this access time can greatly enhance the efficiency of memory operations.The Memory Data Register's Contribution to Data Processing
The MDR is a key player in the data processing and management functions of a computer. It is an active participant in the Instruction Cycle, especially during the fetch and execute phases. For example, when executing a program that calculates a factorial, the MDR temporarily stores the operands retrieved from memory, allowing the CPU to perform the necessary calculations. The computed result is then placed back into the MDR before being saved to memory. Improvements in the MDR's capacity or speed can lead to better data management and processing, ultimately enhancing the computer's overall performance.Fundamental Components and Operations Involving the Memory Data Register
The MDR's operation is facilitated by several fundamental components and operations. The Address Bus, in collaboration with the MAR, identifies the specific memory location for data retrieval or storage. The Data Bus is responsible for the actual movement of data to and from the MDR. The Control Bus carries control signals, such as read or write commands, from the CPU to the memory and other peripherals. These components and operations are orchestrated with the MDR to ensure efficient data transfer and processing within the computer system, enabling the execution of a wide range of tasks from complex computations to simple file management.Educational Significance of the Memory Data Register in Computing
The MDR's unique role as an intermediary in data transfer between the CPU and memory, along with its capability to temporarily hold different types of data, underscores its importance in computer architecture. It enhances the CPU's efficiency by providing a buffer for data transactions and contributes to the swift execution of computational instructions. For students and professionals in computer science, understanding the MDR's functions and advantages is crucial. It offers insights into the intricate operations of computer systems and the pivotal role of data transfer in computational efficiency. The study of the MDR is valuable for grasping the complexities of modern computing and appreciating its influence on technological progress.
Show More

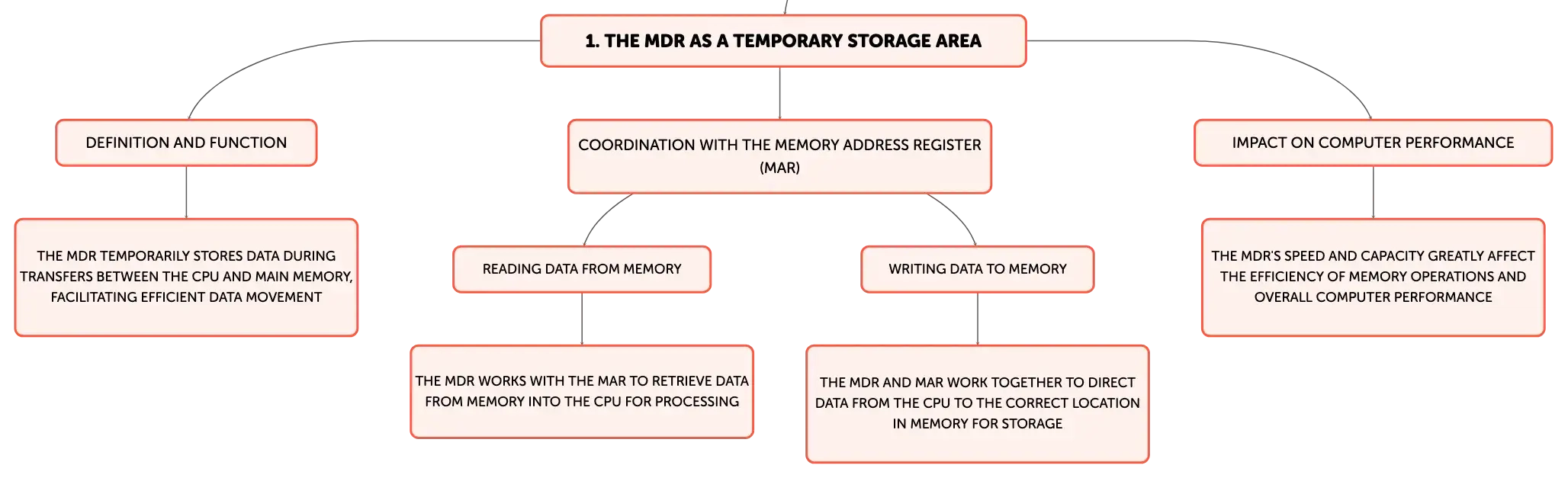

The MDR as a Temporary Storage Area
Definition and Function
The MDR temporarily stores data during transfers between the CPU and main memory, facilitating efficient data movement
Coordination with the Memory Address Register (MAR)
Reading Data from Memory
The MDR works with the MAR to retrieve data from memory into the CPU for processing
Writing Data to Memory
The MDR and MAR work together to direct data from the CPU to the correct location in memory for storage
Impact on Computer Performance
The MDR's speed and capacity greatly affect the efficiency of memory operations and overall computer performance

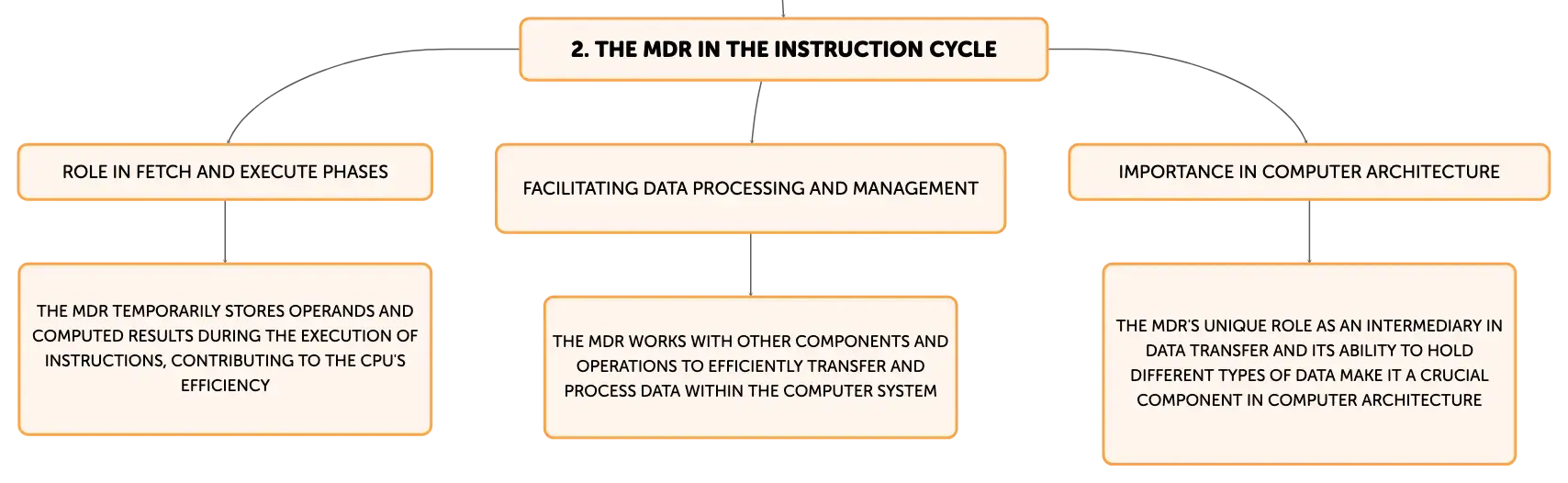

The MDR in the Instruction Cycle
Role in Fetch and Execute Phases
The MDR temporarily stores operands and computed results during the execution of instructions, contributing to the CPU's efficiency
Facilitating Data Processing and Management
The MDR works with other components and operations to efficiently transfer and process data within the computer system
Importance in Computer Architecture
The MDR's unique role as an intermediary in data transfer and its ability to hold different types of data make it a crucial component in computer architecture

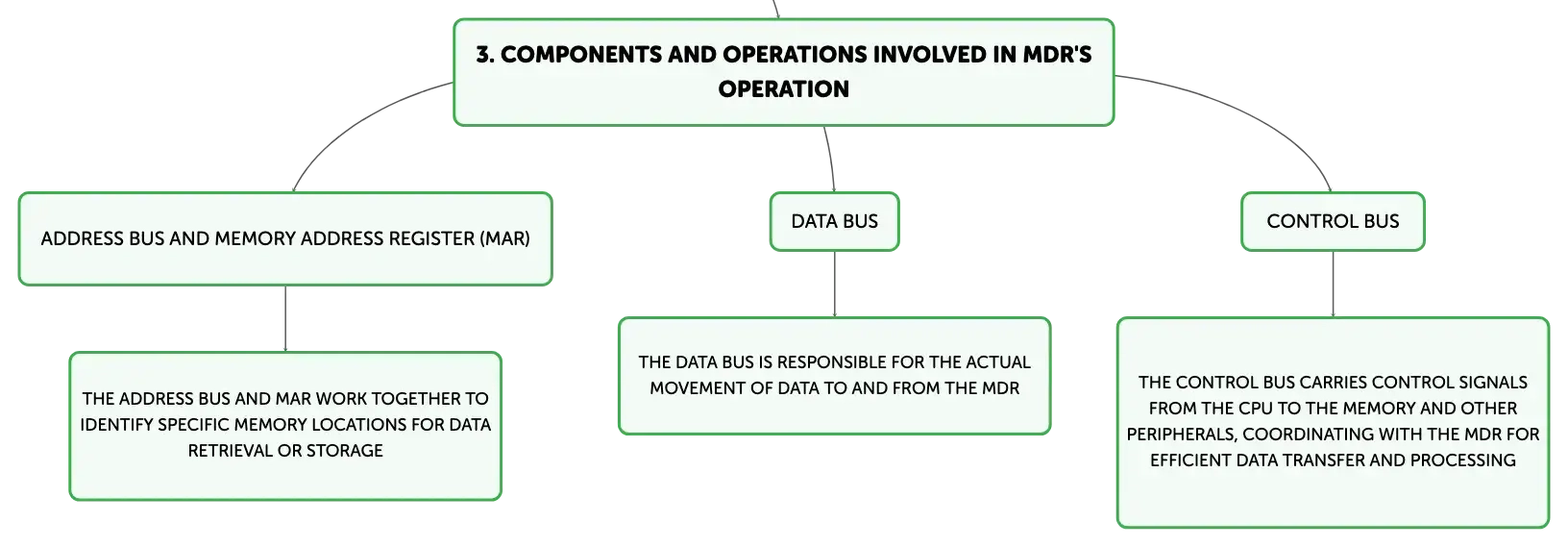

Components and Operations Involved in MDR's Operation
Address Bus and Memory Address Register (MAR)
The Address Bus and MAR work together to identify specific memory locations for data retrieval or storage
Data Bus
The Data Bus is responsible for the actual movement of data to and from the MDR
Control Bus
The Control Bus carries control signals from the CPU to the memory and other peripherals, coordinating with the MDR for efficient data transfer and processing
The Memory Data Register (MDR) and its Role in Computer Architecture
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
The ______ serves as a temporary holding spot for data during read and write operations between the CPU and main memory.
Memory Data Register (MDR)
01
Function of MAR in CPU memory access
Holds memory location address for data access; communicates with memory during read/write.
02
MDR role in CPU read operation
Receives data from memory via MAR; transfers data to CPU's internal registers.
