Exploring Medical Imaging: PET and CT Scans

Medical imaging is a critical tool in modern medicine, providing insights into the human body without the need for invasive procedures. Positron Emission Tomography (PET) and Computed Tomography (CT) scans are two such non-invasive imaging techniques. PET scans are used to observe metabolic processes in the body, while CT scans provide detailed images of the body's anatomical structures. Both methods employ the concept of tomography, which involves creating cross-sectional images, or 'slices,' of the body to construct a comprehensive three-dimensional view of internal organs and tissues.

Modern medical imaging room with white PET/CT scanner, computer station with monitor and medical professional in turquoise scrubs consulting a chart.

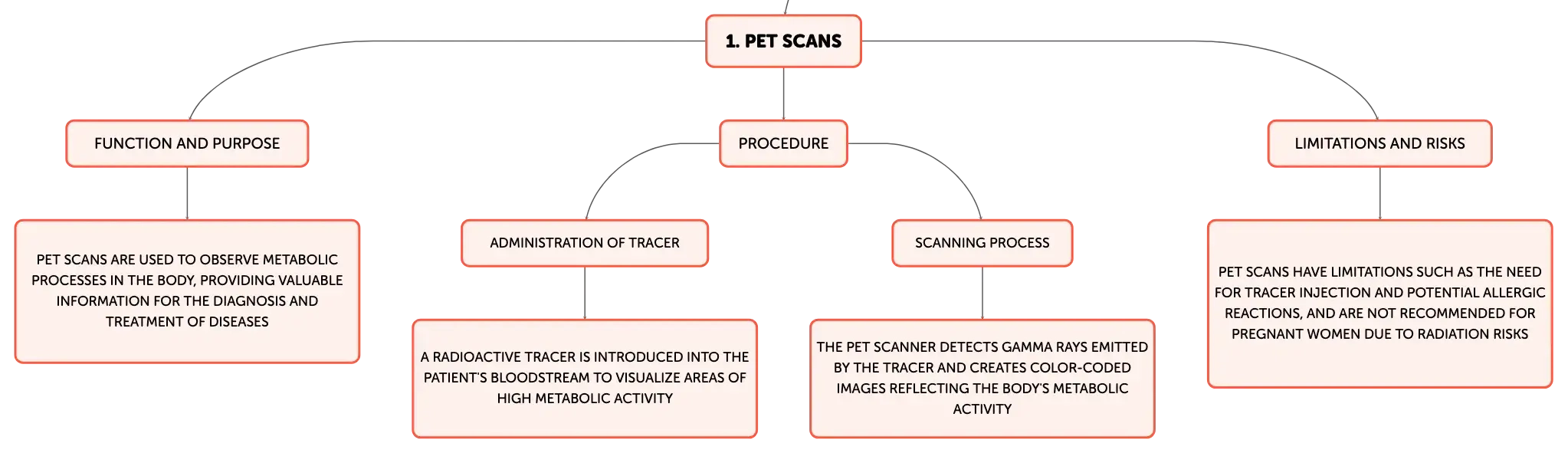

The Role of PET Scans in Medical Diagnostics

PET scans are invaluable in the assessment of cellular function and metabolism. They work by detecting gamma rays emitted from a radioactive tracer, typically a form of glucose, which is introduced into the body. As cells consume the tracer, the PET scan can visualize areas of high metabolic activity, which may indicate disease. This is particularly useful in oncology, where cancer cells often have higher metabolic rates than normal cells, and in neurology, where PET scans can reveal functional abnormalities in the brain associated with conditions such as Alzheimer's disease.

Conducting a PET Scan: Procedure and Interpretation

The PET scan procedure begins with the administration of a radioactive tracer into the patient's bloodstream. After allowing time for the tracer to distribute throughout the body, the patient is positioned within the PET scanner. The scanner detects the gamma rays emitted by the tracer and creates images that reflect the body's metabolic activity. These images are color-coded, with warmer colors indicating higher activity and cooler colors indicating lower activity, aiding in the diagnosis of various conditions by highlighting areas of abnormal metabolic activity.

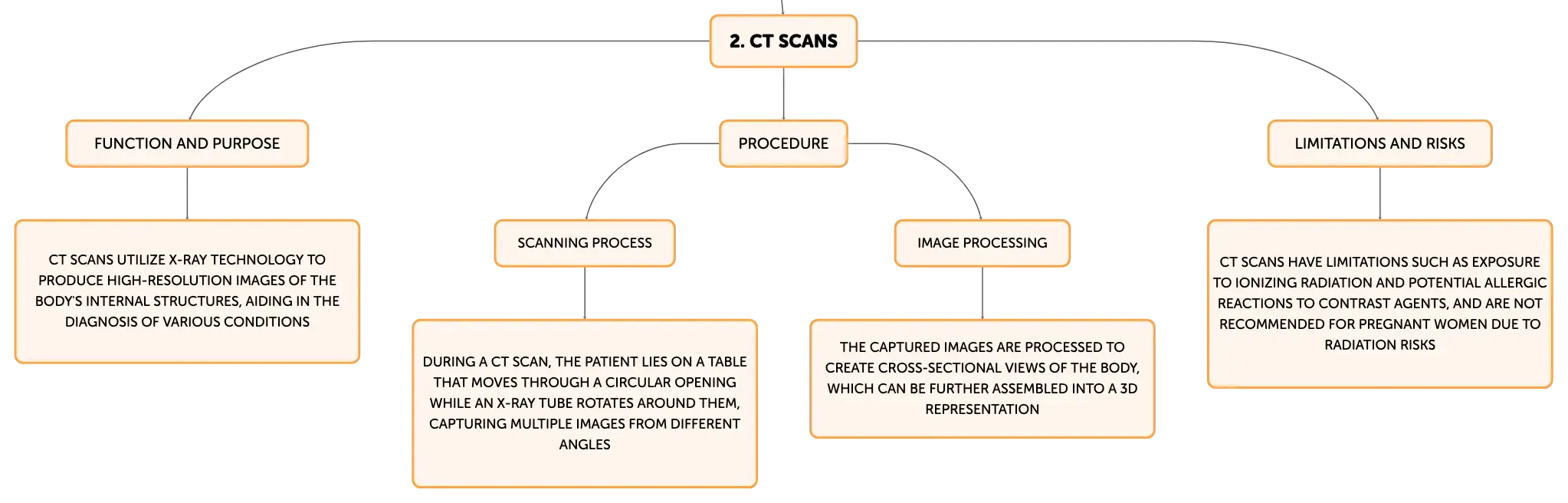

CT Scans: High-Resolution Anatomical Imaging

CT scans utilize X-ray technology to produce high-resolution images of the body's internal structures. During a CT scan, the patient lies on a table that moves through a circular opening while an X-ray tube rotates around them, capturing multiple images from different angles. These images are then processed to create cross-sectional views of the body, which can be further assembled into a 3D representation. CT scans are particularly useful for visualizing bone fractures, internal bleeding, and abnormalities in soft tissues, and can be performed quickly, often within minutes.

Distinguishing Between PET and CT Scans

PET and CT scans are distinct in their applications and the type of information they provide. PET scans are functional imaging tools that map metabolic activity, while CT scans offer detailed anatomical information. PET scans require the introduction of a radioactive tracer and have a longer duration, whereas CT scans are generally faster and involve no such tracers. Both modalities involve exposure to radiation; however, the radiation from a PET scan is from the tracer and persists for a short time in the body, while the radiation from a CT scan is only present during the imaging process.

Benefits and Limitations of PET Scans

PET scans are highly effective for early detection of diseases such as cancer and for evaluating brain and heart function. They are non-invasive and can provide crucial information that influences treatment decisions. However, PET scans have limitations, including the need for radioactive tracer injection, longer procedure times, and the potential for allergic reactions to the tracer. They may not be as effective in identifying slow-growing tumors and are contraindicated for pregnant women due to the risk of radiation exposure to the fetus.

Benefits and Limitations of CT Scans

CT scans offer rapid, high-resolution images that can distinguish between different tissue types, aiding in the diagnosis of a variety of conditions. They are less sensitive to patient movement compared to MRI scans and can be performed with or without contrast agents. The primary limitation of CT scans is the exposure to ionizing radiation, which is higher than that of standard X-rays and carries a small risk of inducing cancer. The use of contrast agents can also lead to allergic reactions in some patients, and like PET scans, CT scans are not recommended for pregnant women due to radiation risks.

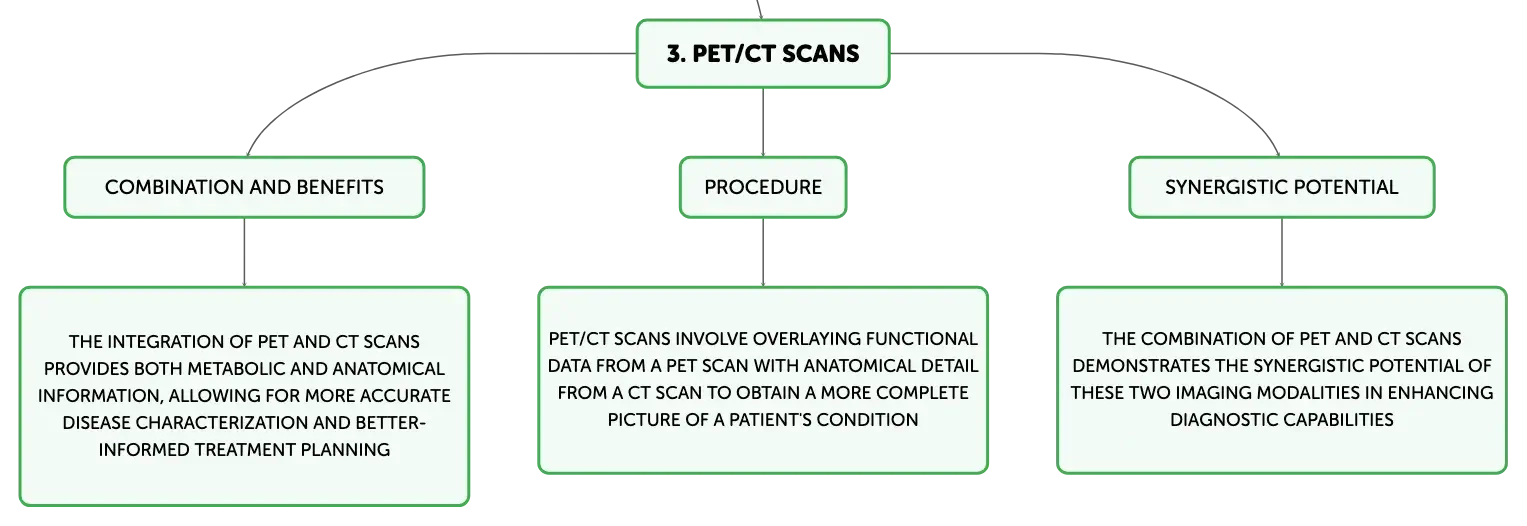

Integrating PET and CT Scans for Comprehensive Imaging

Combining PET and CT scans can enhance diagnostic capabilities by providing both metabolic and anatomical information. This integrated approach, often referred to as a PET/CT scan, allows for more accurate disease characterization and better-informed treatment planning. By overlaying the functional data from a PET scan with the anatomical detail from a CT scan, clinicians can obtain a more complete picture of a patient's condition, demonstrating the synergistic potential of these two imaging modalities.
