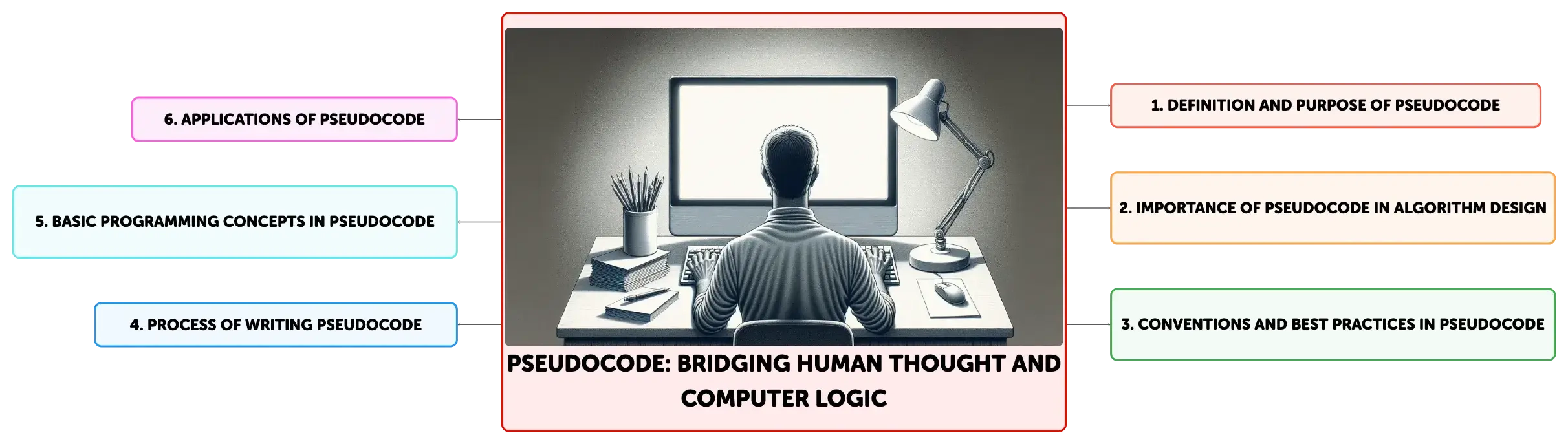

Pseudocode: Bridging Human Thought and Computer Logic

Pseudocode is a crucial tool in algorithm design, offering a language-agnostic way to visualize and solve problems logically. It bridges human thought and computer logic, using natural language and programming concepts to outline algorithms. Pseudocode's universal nature aids in communication among developers and simplifies the transition from design to coding. It includes control structures like loops and conditional statements, and is vital for explaining core computer science algorithms.

See more
Open map in editor

1

7

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Nature of Pseudocode

Click to check the answer

Combines natural language with programming concepts to outline algorithms.

2

Execution of Pseudocode

Click to check the answer

Non-executable, used for human understanding, not for computers.

3

Pseudocode's Role in Problem-Solving

Click to check the answer

Breaks complex problems into logical steps, aiding in algorithm design.

4

Pseudocode is valued in the programming community for aiding in ______ development and ______.

Click to check the answer

algorithm troubleshooting

5

Purpose of pseudocode

Click to check the answer

To represent algorithms clearly for easy translation to executable code.

6

Pseudocode control structure: IF-THEN-ELSE

Click to check the answer

Conditional logic to execute different actions based on varying conditions.

7

Pseudocode control structure: FOR, WHILE

Click to check the answer

Loops for iterating over data until a condition is met or no longer met.

8

When writing pseudocode, selecting ______ variable names and following ______ conventions are recommended best practices.

Click to check the answer

descriptive uniform

9

Key components of an algorithm in pseudocode

Click to check the answer

Identify inputs, outputs, processes, decision points.

10

Sequence and control flow in pseudocode

Click to check the answer

Define operation order, control flow through algorithm.

11

Reviewing pseudocode importance

Click to check the answer

Ensure pseudocode matches algorithm's intent, revise if needed.

12

In pseudocode, ______ determines the order in which operations are executed.

Click to check the answer

sequence

13

______, allowing for conditional paths, and ______ for repeating instructions, are key in pseudocode.

Click to check the answer

Selection iteration

14

Merge Sort Algorithm Process

Click to check the answer

Divide data, sort subdivisions, merge into sorted sequence recursively.

15

Binary Search Function

Click to check the answer

Efficient data retrieval by repeatedly dividing search interval in half.

16

Dijkstra's Algorithm Purpose

Click to check the answer

Finds shortest path in a graph using a priority queue to select the closest vertex.

17

Pseudocode is commonly utilized as an initial phase in ______ to sketch out the program's logic prior to actual coding.

Click to check the answer

software development

18

Code Syntax Requirements

Click to check the answer

Code must follow strict syntax rules of the programming language; errors prevent execution.

19

Pseudocode Purpose

Click to check the answer

Pseudocode aims to clarify algorithm logic for human understanding, not for machine execution.

20

Pseudocode Language Dependency

Click to check the answer

Pseudocode is language-independent, not bound to any programming language syntax.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Bitwise Shift Operations in Computer Science

View document

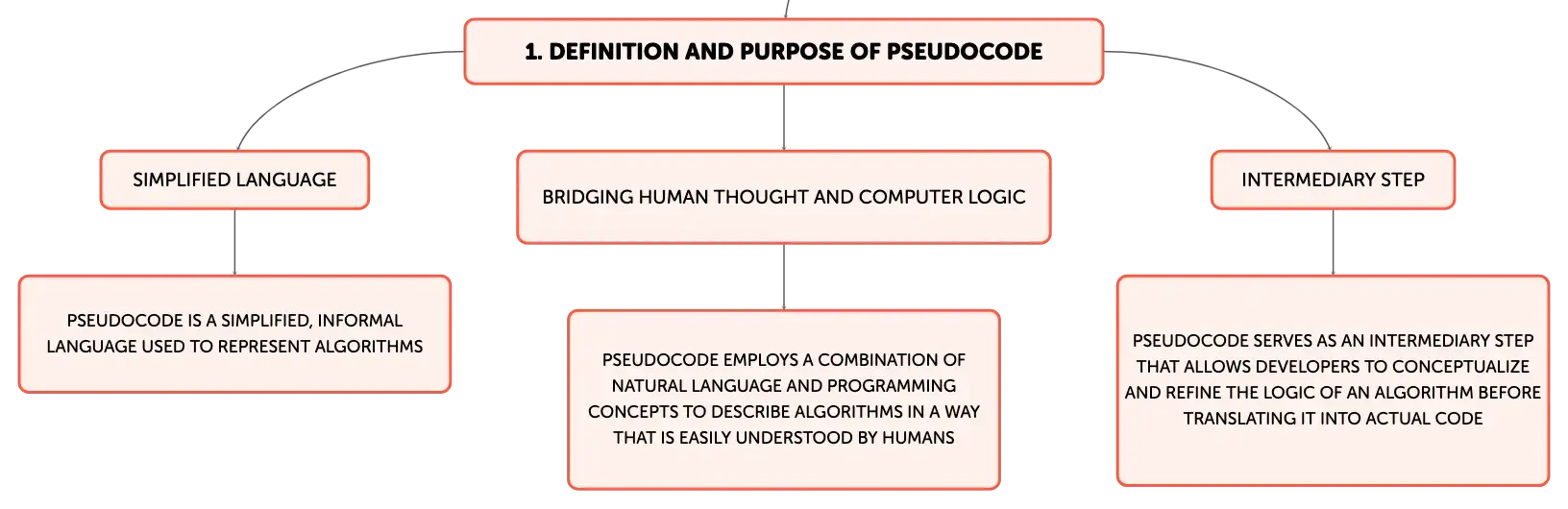

The Fundamentals of Pseudocode

Pseudocode is a simplified, informal language used to represent algorithms, bridging the gap between human thought and computer logic. It employs a combination of natural language and programming concepts to describe the steps of an algorithm in a way that is easily understood by humans. Pseudocode is not executable on a computer; rather, it serves as an intermediary step that allows developers to conceptualize and refine the logic of an algorithm before translating it into actual code. This tool is essential for algorithm design, enabling the decomposition of complex problems into a series of logical, manageable steps. Its universal nature facilitates communication among programmers and eases the transition from design to coding, regardless of the programming language used.
Person sitting at a desk in front of a turned on monitor with a blank screen, hands over a keyboard, surrounded by work objects.

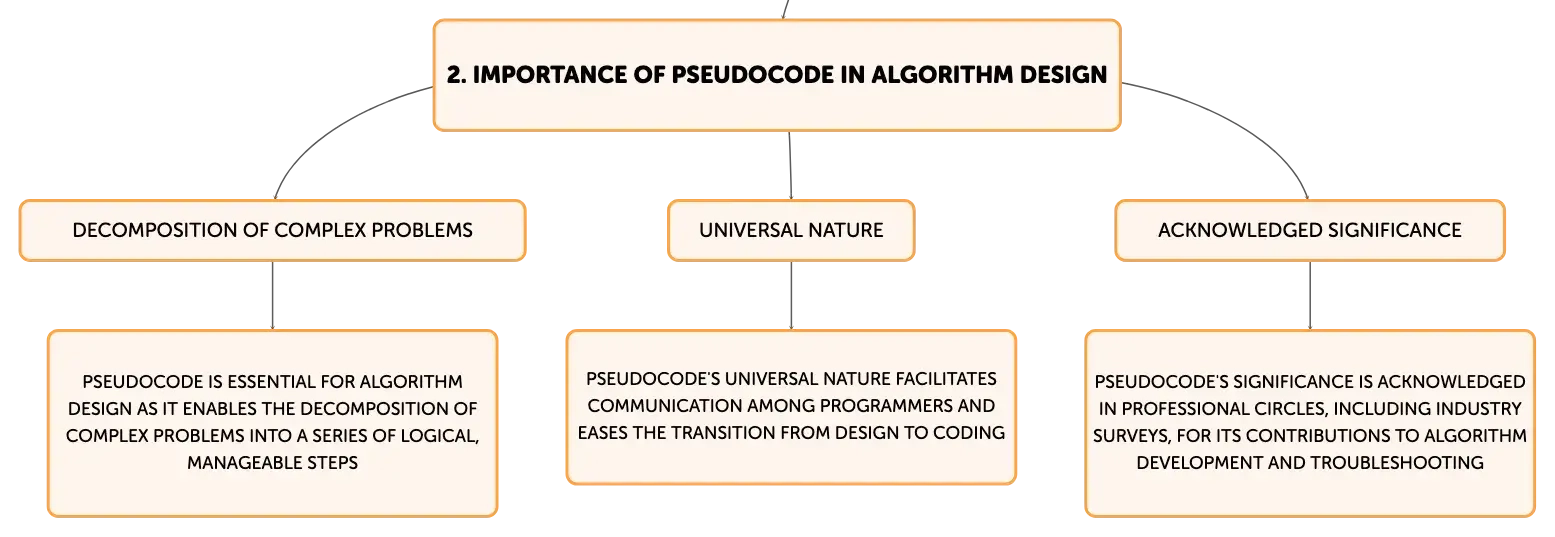

The Strategic Importance of Pseudocode in Algorithm Design

Pseudocode plays a critical role in the design and development of algorithms. It provides a clear visualization of an algorithm's structure, fostering logical thinking and effective problem-solving strategies. By being language-agnostic, pseudocode allows developers to focus on the algorithm's logic without the constraints of specific programming language syntax, making it a versatile tool for planning and debugging. Its significance is acknowledged in professional circles, including industry surveys like the StackOverflow Developer Survey, which highlights its value in the programming community for its contributions to algorithm development and troubleshooting.

Conventions and Structure in Pseudocode

While pseudocode is not bound by the rigid syntax of programming languages, it adheres to a set of conventions to maintain clarity and consistency. It typically includes control structures such as conditional statements (IF-THEN-ELSE), loops (FOR, WHILE), and commands for input (READ) and output (WRITE or PRINT). These conventions provide a structured approach to representing algorithms, ensuring that the pseudocode is coherent and can be easily translated into executable code. For instance, the bubble sort algorithm can be succinctly described in pseudocode by employing loops to traverse an array and conditional statements to exchange elements when necessary.

Best Practices in Crafting Pseudocode

To write effective pseudocode, certain best practices should be followed. These include establishing a clear logical flow, using consistent indentation to group related instructions, choosing descriptive variable names, and applying uniform conventions throughout the pseudocode. Adhering to these practices ensures that the pseudocode effectively communicates the intended logic of the algorithm, making it a valuable tool for both the developer and others who may use the pseudocode as a reference for implementation.

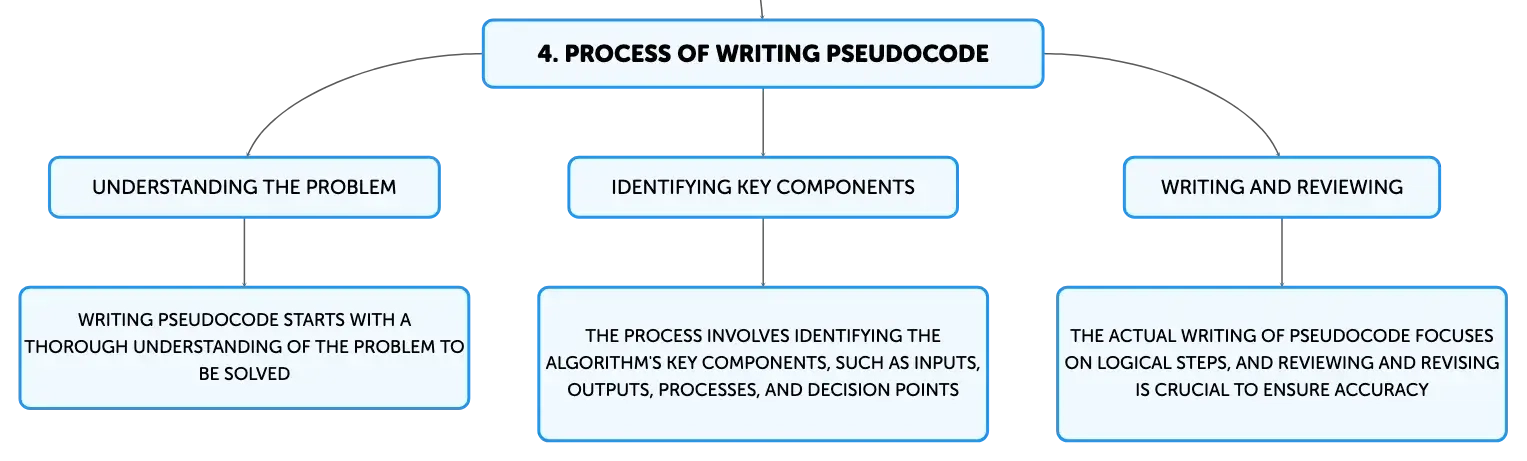

The Methodical Approach to Writing Pseudocode

Writing pseudocode is a methodical process that starts with a thorough understanding of the problem to be solved. It involves identifying the algorithm's key components, such as inputs, outputs, processes, and decision points. The next step is to define the sequence of operations and the flow of control through the algorithm. The actual writing of pseudocode focuses on these logical steps, abstracting away from specific programming syntax. Reviewing and revising the pseudocode is an important final step to ensure it accurately reflects the algorithm's intent. For example, a simple algorithm for adding two numbers would involve steps to input the numbers, compute the sum, and output the result, all expressed in clear and straightforward pseudocode.

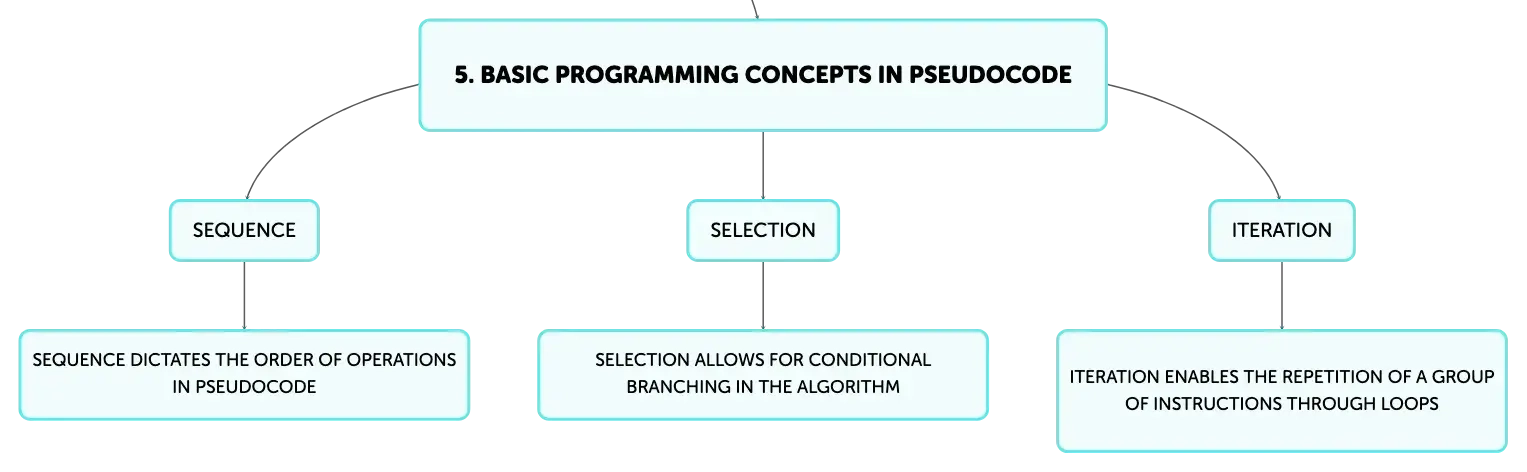

Fundamental Programming Concepts in Pseudocode

A solid grasp of basic programming concepts is essential when writing pseudocode. These concepts include sequence, which dictates the order of operations; selection, which allows for conditional branching in the algorithm; and iteration, which enables the repetition of a group of instructions through loops. Logical expressions, which evaluate to a Boolean value (true or false), are also fundamental in pseudocode for making decisions. Mastery of these concepts is crucial for developing pseudocode that accurately models the logic of an algorithm.

Illustrating Key Algorithms with Pseudocode

Pseudocode is invaluable for explaining fundamental algorithms in computer science. For instance, the Merge Sort algorithm can be depicted in pseudocode by detailing the recursive process of dividing the data set, sorting the subdivisions, and merging them into a sorted sequence. Other algorithms, such as Binary Search for efficient data retrieval and Dijkstra's Algorithm for finding the shortest path in a graph, are also commonly represented in pseudocode. These pseudocode representations are instrumental in conveying the algorithms' core principles and their practical applications.

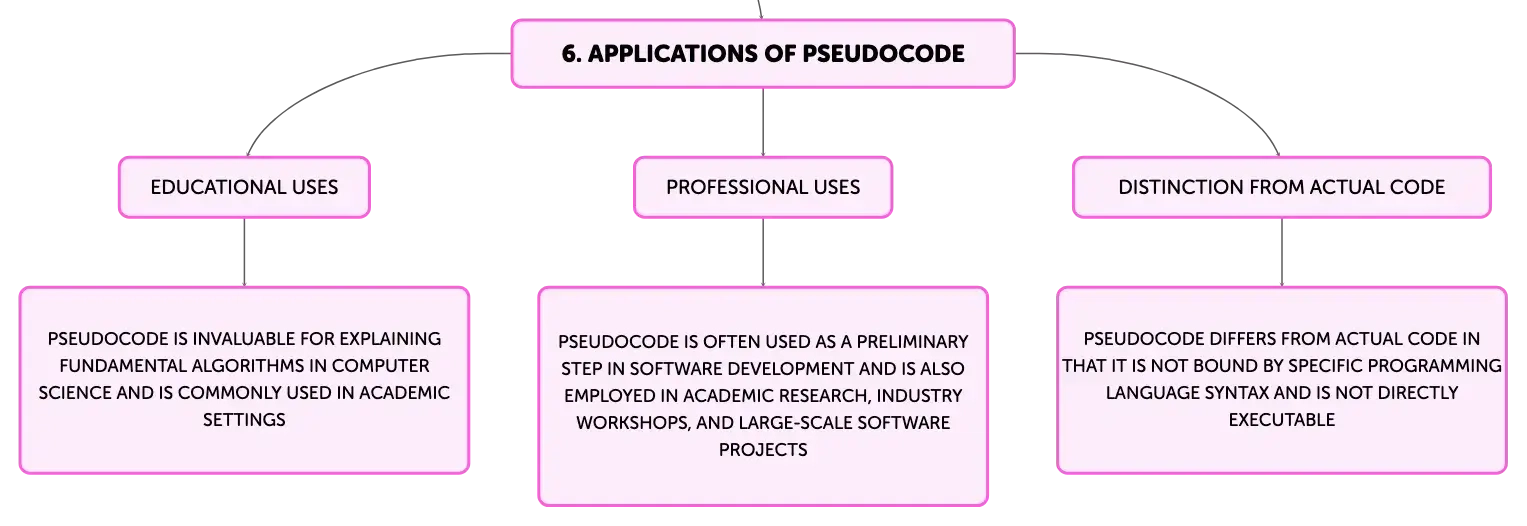

Pseudocode in Professional and Academic Contexts

Beyond its educational uses, pseudocode has practical applications in various professional domains. It is often used as a preliminary step in software development to outline a program's logic before coding begins, enhancing the development process's efficiency and clarity. Due to its simplicity and adaptability, pseudocode is also employed to communicate complex algorithms in academic research, industry workshops, and large-scale software projects. It serves as an effective intermediary between conceptual problem-solving and the technical implementation of solutions in code.

Distinguishing Pseudocode from Actual Code

It is crucial to understand the differences between pseudocode and actual code. Code is written in a specific programming language, adheres to strict syntax, and is executable by a computer. In contrast, pseudocode is language-independent, focusing on the conceptual logic of an algorithm without the intricacies of syntax, and is not directly executable. This distinction underscores pseudocode's role as a facilitator of human understanding and communication, rather than as a medium for machine execution.
