Electromagnetic Fields

The Fundamentals of Electromagnetic Fields

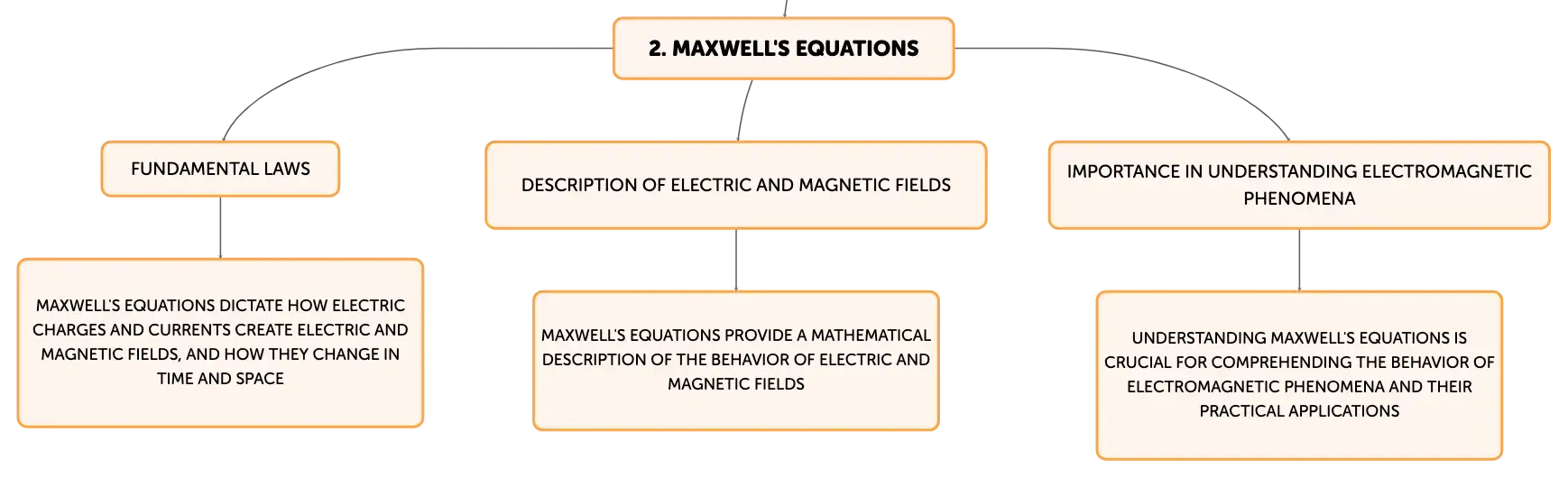

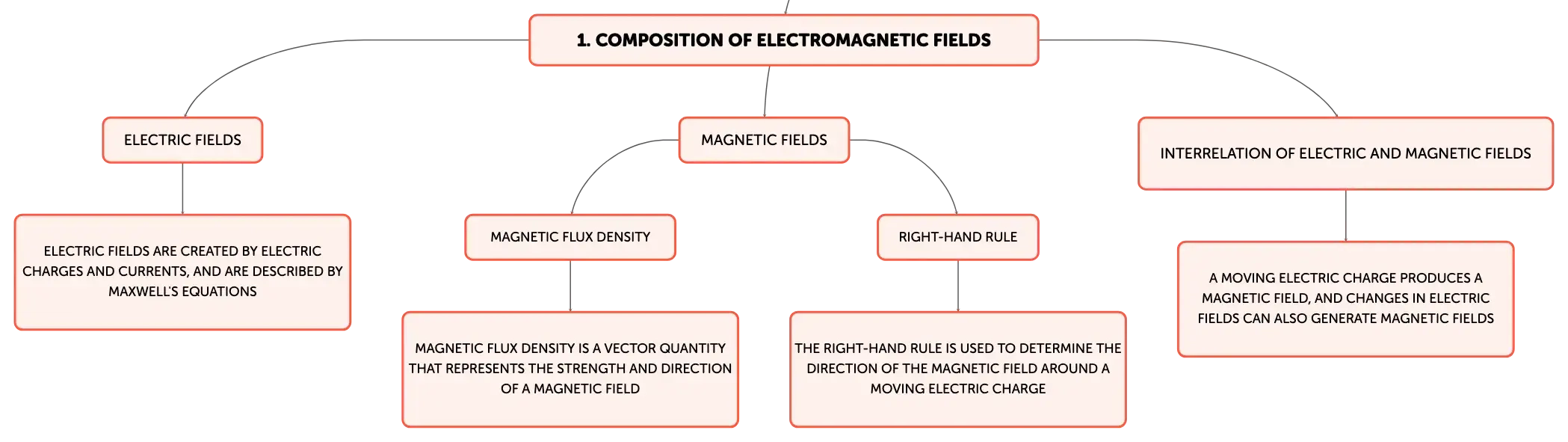

Electromagnetic fields are composed of electric fields and magnetic fields, which are two interrelated aspects of electromagnetism, a fundamental force of nature. These fields are described by Maxwell's equations, a set of four fundamental laws that dictate how electric charges and currents create electric and magnetic fields, and how they change in time and space. An important concept is that a moving electric charge, such as an electric current in a wire, produces a magnetic field around it. The strength and orientation of this magnetic field in a region of space are characterized by the magnetic flux density.

Magnetic Flux Density and Its Sources

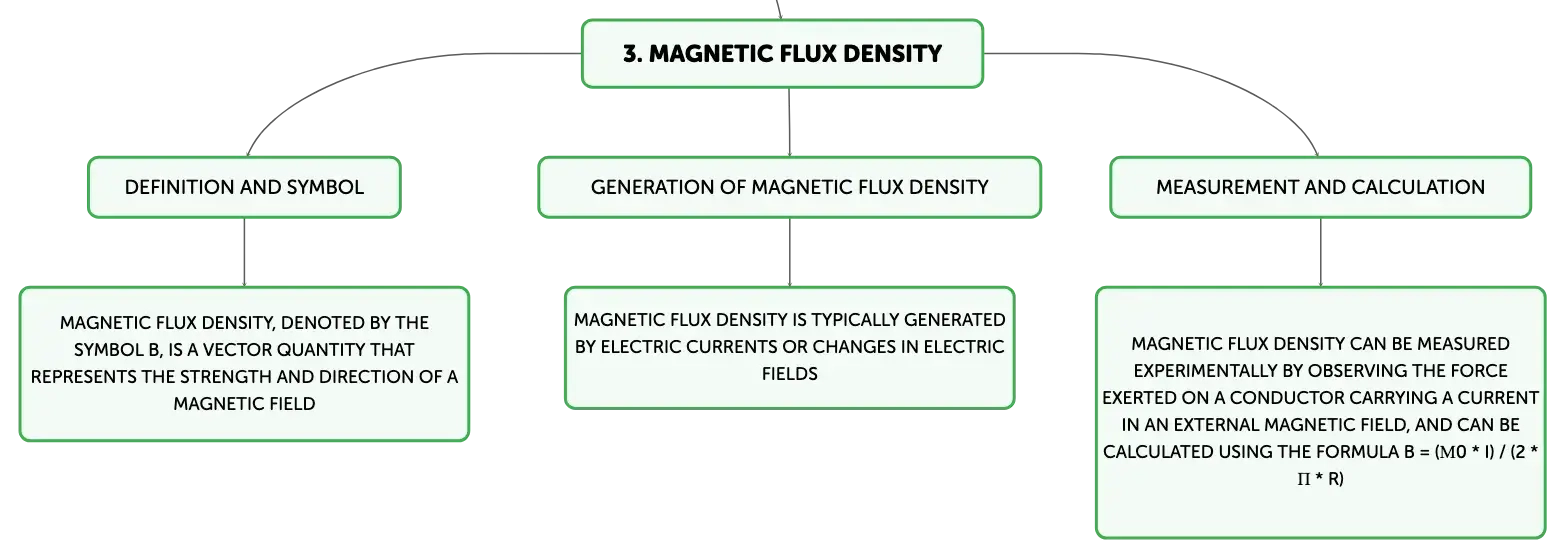

Magnetic flux density, denoted by the symbol B, is a vector quantity that represents both the strength and the direction of a magnetic field at a point in space. It is typically generated by electric currents or by changes in electric fields. For a long, straight conductor carrying a steady current I, the magnetic flux density at a distance r from the conductor is given by B = (μ0 * I) / (2 * π * r), where μ0 is the permeability of free space. The direction of B is given by the right-hand rule, which states that if you point the thumb of your right hand in the direction of the current, your fingers will curl in the direction of the magnetic field lines.

Measuring Magnetic Flux Density Experimentally

Experimentally, magnetic flux density can be measured by observing the force exerted on a conductor carrying a current I when placed in an external magnetic field. The magnitude of the force is dependent on the angle between the direction of the current and the magnetic flux density, reaching its maximum when they are perpendicular to each other. According to the Lorentz force law, the force F on a segment of wire of length L with current I in a magnetic field B is given by F = I * L x B, where x denotes the cross product, indicating that the force is directed perpendicular to both the current and the magnetic field.

Magnetic Interactions Between Parallel Conductors

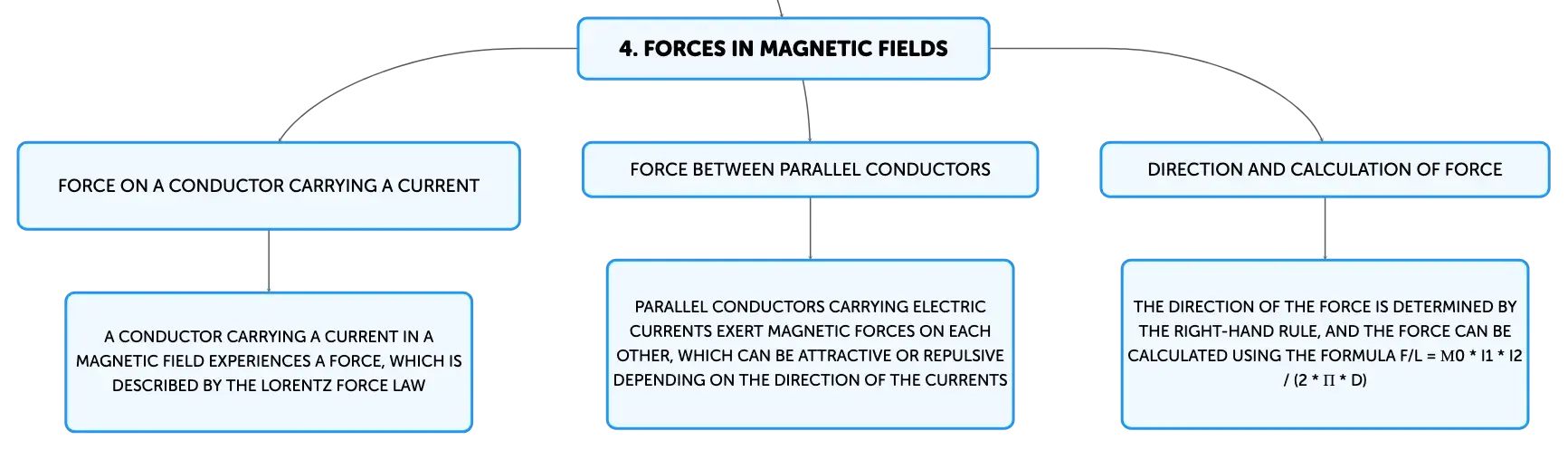

Parallel conductors carrying electric currents exert magnetic forces on each other due to the magnetic fields they create. If two parallel wires are separated by a distance and carry currents I1 and I2, respectively, the magnetic flux density B at the location of one wire due to the current in the other can be calculated using the formula for B mentioned earlier. The force per unit length on one wire due to the other is then given by F/L = μ0 * I1 * I2 / (2 * π * d), where d is the distance between the wires. The direction of the force can be determined using the right-hand rule, and the force can be attractive or repulsive depending on the direction of the currents.

Conclusions on Electromagnetic Principles

The exploration of electromagnetic fields leads to several fundamental conclusions: electric currents generate magnetic fields, and the magnetic flux density is a critical measure of the intensity of these fields. Conductors with electric currents are subject to forces when placed in magnetic fields, and these forces are described by the vector nature of the magnetic flux density. The force exerted by the magnetic field is not along the direction of the field itself but is perpendicular to both the field and the current. These principles are vital for understanding the behavior of electromagnetic phenomena and their practical applications in technology and scientific research.
