Sampling Theorem and its Applications
The Nyquist-Shannon Sampling Theorem is crucial in digital signal processing, ensuring continuous signals are accurately digitized without information loss. It requires the sampling frequency to be at least twice the highest signal frequency to avoid aliasing. This theorem is vital for high-fidelity audio, efficient data compression, and the development of anti-aliasing filters in various digital applications.
See moreUnderstanding the Sampling Theorem in Digital Signal Processing

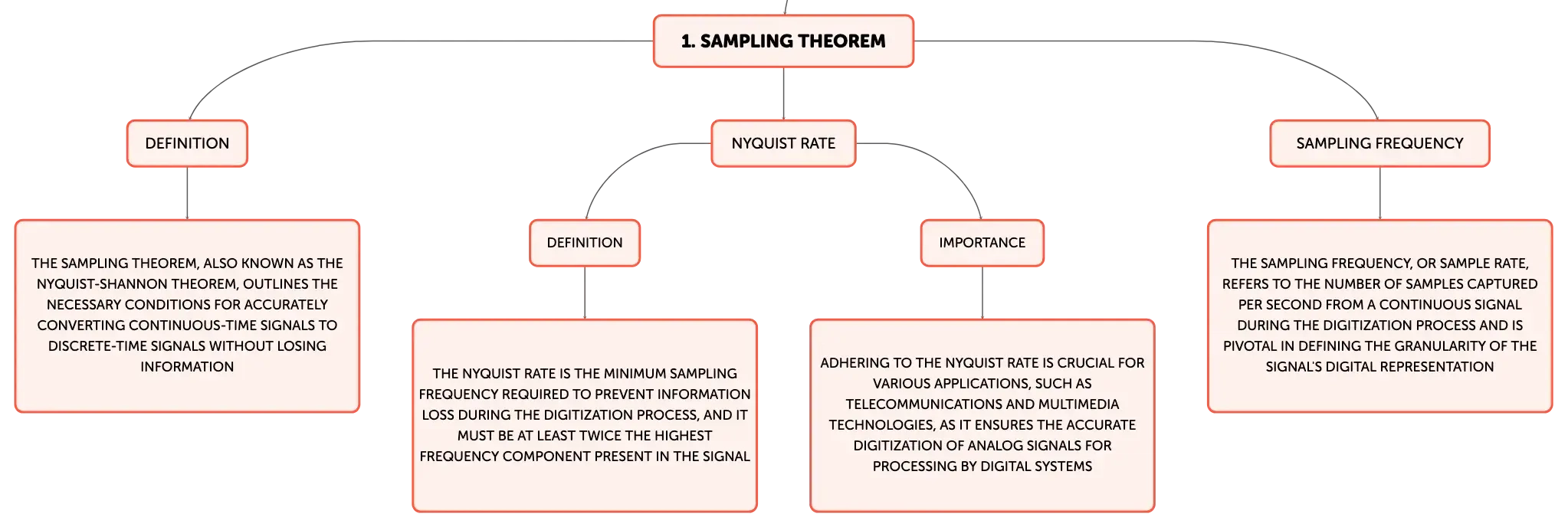

The Sampling Theorem, commonly referred to as the Nyquist-Shannon theorem, is a foundational principle in digital signal processing, an integral discipline within computer science and electrical engineering. This theorem delineates the necessary conditions for accurately converting continuous-time signals (analog) to discrete-time signals (digital) without losing information. It stipulates that the sampling frequency must be at least twice the highest frequency component present in the signal, known as the Nyquist rate. Adherence to this criterion is essential for a wide array of applications, such as telecommunications, audio and video encoding, and other multimedia technologies, as it ensures the precise digitization of analog signals for processing by digital systems.The Role of Sampling Frequency in Data Representation
Sampling frequency, or sample rate, refers to the number of samples captured per second from a continuous signal during the digitization process. This rate is pivotal in defining the granularity of the signal's digital representation. To prevent information loss and avoid aliasing—a distortion that occurs when high-frequency components are misinterpreted as lower frequencies—the sampling frequency must be greater than twice the highest frequency in the signal. For instance, to accurately capture the full spectrum of human hearing, which ranges from approximately 20 Hz to 20 kHz, a sampling frequency of at least 40 kHz is required. This ensures that the digital representation preserves the fidelity of the original analog signal.Quantisation and Its Impact on Digital Signals

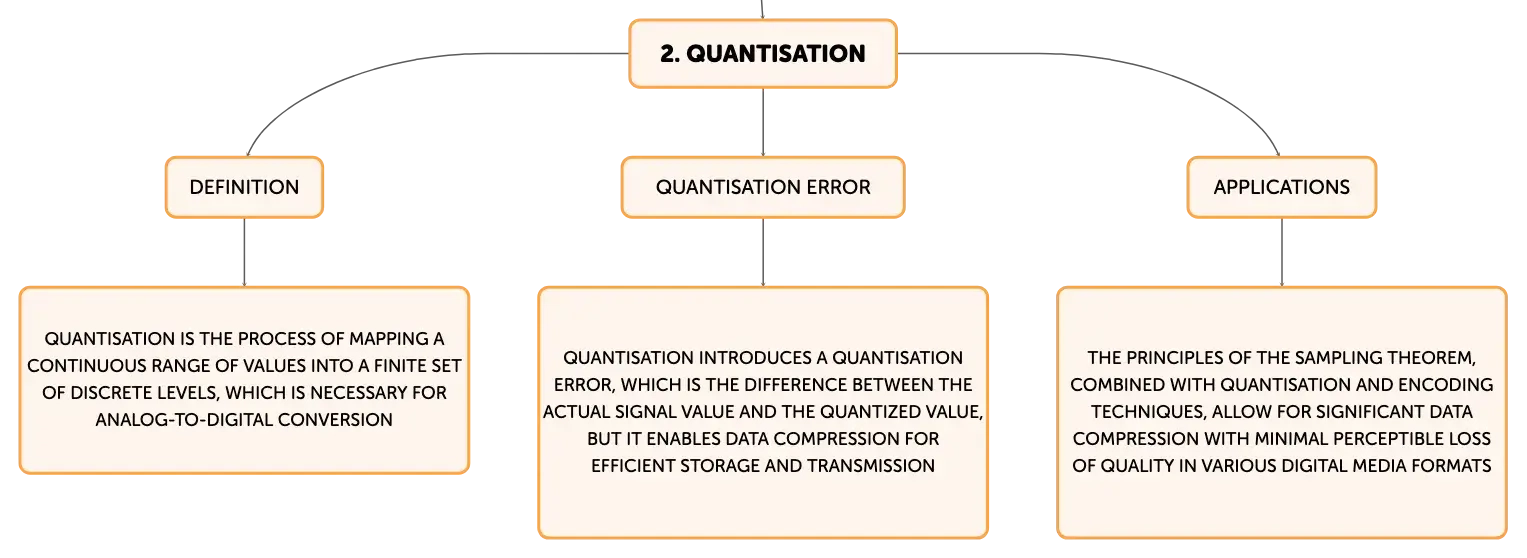

Quantisation is the process of mapping a continuous range of values into a finite set of discrete levels, which is a necessary step in the analog-to-digital conversion. This process inherently introduces a quantisation error, which is the difference between the actual signal value and the quantized value. Despite this error, quantisation is crucial for enabling data compression, which reduces file sizes for efficient storage and transmission. By combining the principles of the Sampling Theorem with quantisation and encoding techniques, substantial data compression can be achieved with minimal perceptible loss of quality, as seen in various digital media formats.Exploring the Nyquist Shannon Sampling Theorem
The Nyquist Shannon Sampling Theorem, named after pioneers Harry Nyquist and Claude Shannon, is the theoretical foundation for capturing and reconstructing continuous signals in a digital format. The theorem's formula, \(f_{s} > 2f_{m}\), where \(f_{s}\) represents the sampling frequency and \(f_{m}\) the maximum frequency component of the signal, prescribes the minimum sampling rate to prevent information loss. This principle is not merely theoretical but has practical implications in the design of digital systems, including the implementation of anti-aliasing filters and the development of efficient data compression algorithms. It is particularly critical in fields such as telecommunications, broadcasting, and medical imaging, where precise signal replication is paramount.Determining the Optimal Sampling Rate for Accurate Data Representation
The Nyquist Theorem provides a guideline for selecting the optimal sampling rate to ensure the integrity of a signal's digital representation. The choice of sampling rate must consider the signal's frequency content to strike a balance between accuracy and resource utilization. A higher sampling rate yields a more detailed representation but requires more storage space and processing power, while a lower rate may lead to the omission of significant frequency components, resulting in a lossy representation. The theorem is thus instrumental in optimizing the digital representation of continuous signals for various applications.The Mathematical Foundation of the Sampling Theorem
The mathematical foundation of the Sampling Theorem is encapsulated in the formula \(f_{s} > 2f_{m}\), which sets the minimum sampling frequency required to accurately capture the entirety of the original signal's frequency content without aliasing. This formula assumes that the signal is band-limited, meaning it has no frequency components higher than \(f_{m}\). The theorem's mathematical basis is crucial for a multitude of computer science applications, including the design of data compression schemes and anti-aliasing filters, making it a fundamental concept in the field of digital signal processing.Practical Application and Significance of the Sampling Theorem

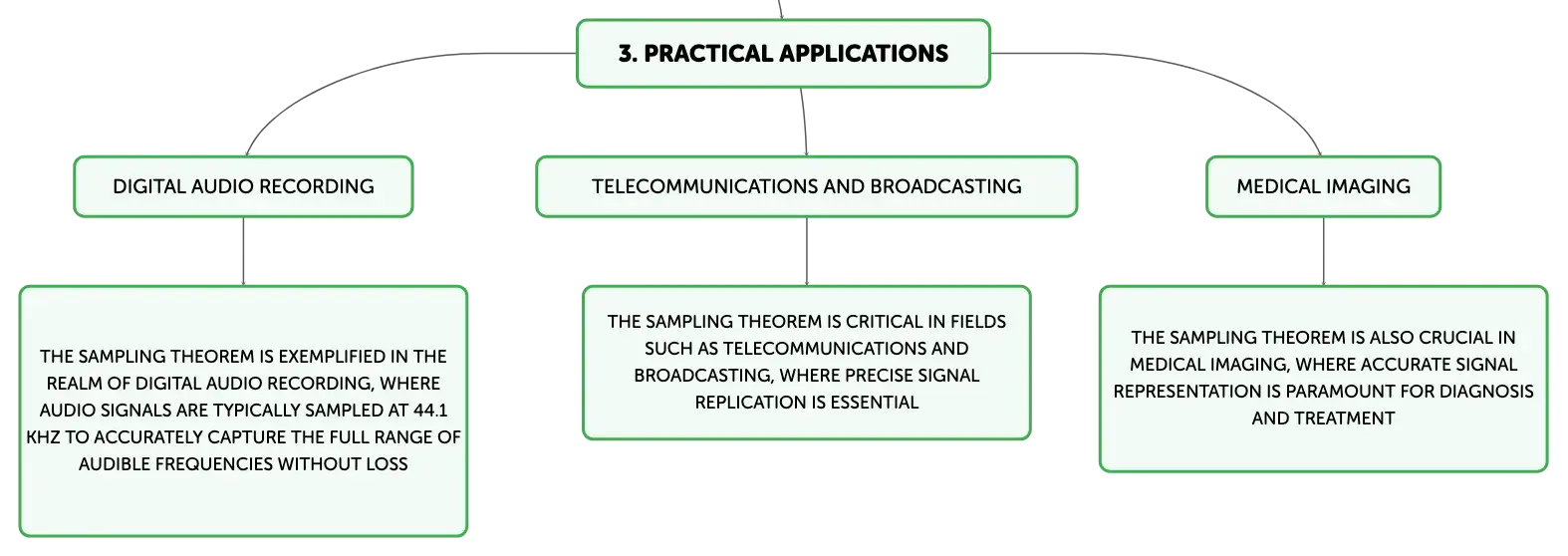

The practical application of the Sampling Theorem is exemplified in the realm of digital audio recording. To faithfully reproduce the full range of audible frequencies without loss, audio signals are typically sampled at 44.1 kHz for CDs, which exceeds twice the highest frequency of human hearing. This practice underscores the theorem's significance in ensuring high-fidelity digital audio that closely mirrors the original analog signal. The principles of the Sampling Theorem inform the determination of appropriate sampling rates and directly impact the quality, efficiency, and fidelity of digital representations across various forms of digital media.Want to create maps from your material?
