The Washer Method in Integral Calculus

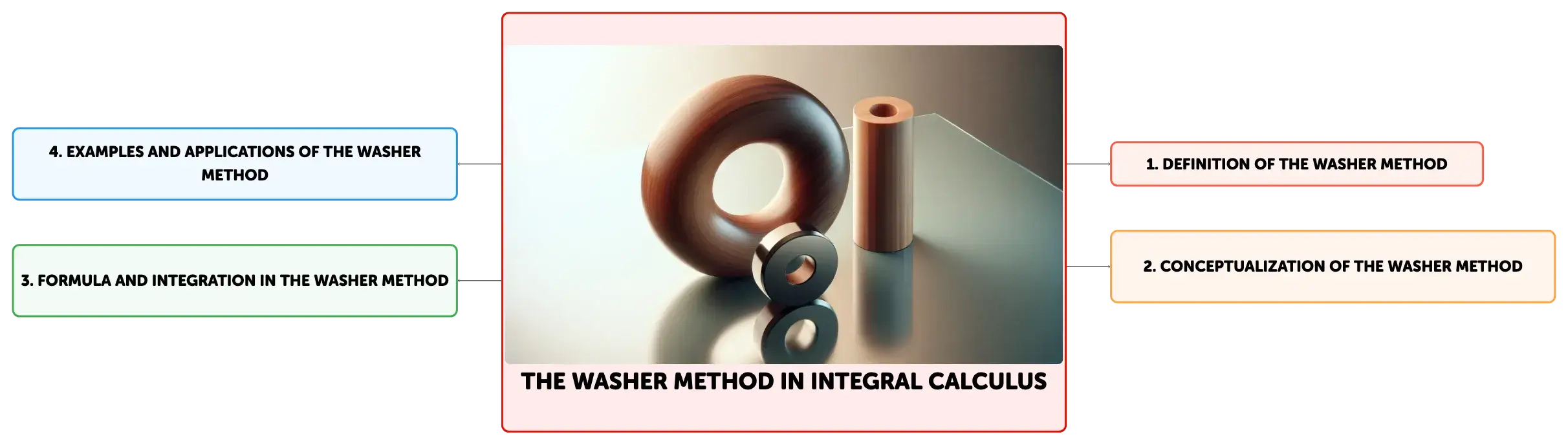

Concept Map

The washer method in integral calculus is a technique for finding the volume of solids of revolution, particularly those with hollow interiors. It involves calculating the volume of thin washers, which are disk-shaped with a central hole, by integrating the difference between the squares of two radius functions over a given interval. This method is essential for understanding the volumetric properties of three-dimensional geometric shapes.

Summary

Outline

The Washer Method in Integral Calculus

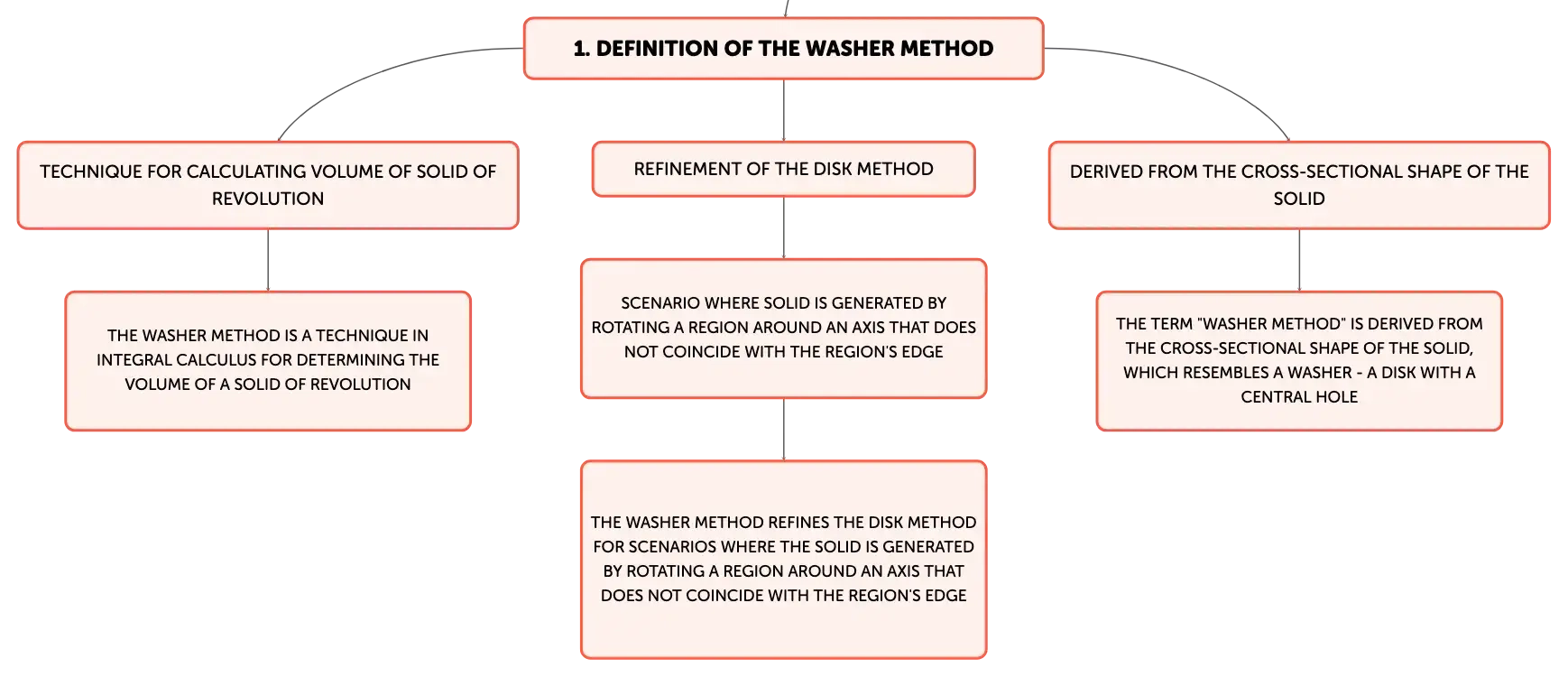

Definition of the Washer Method

Technique for calculating volume of solid of revolution

The washer method is a technique in integral calculus for determining the volume of a solid of revolution

Refinement of the disk method

Scenario where solid is generated by rotating a region around an axis that does not coincide with the region's edge

The washer method refines the disk method for scenarios where the solid is generated by rotating a region around an axis that does not coincide with the region's edge

Derived from the cross-sectional shape of the solid

The term "washer method" is derived from the cross-sectional shape of the solid, which resembles a washer - a disk with a central hole

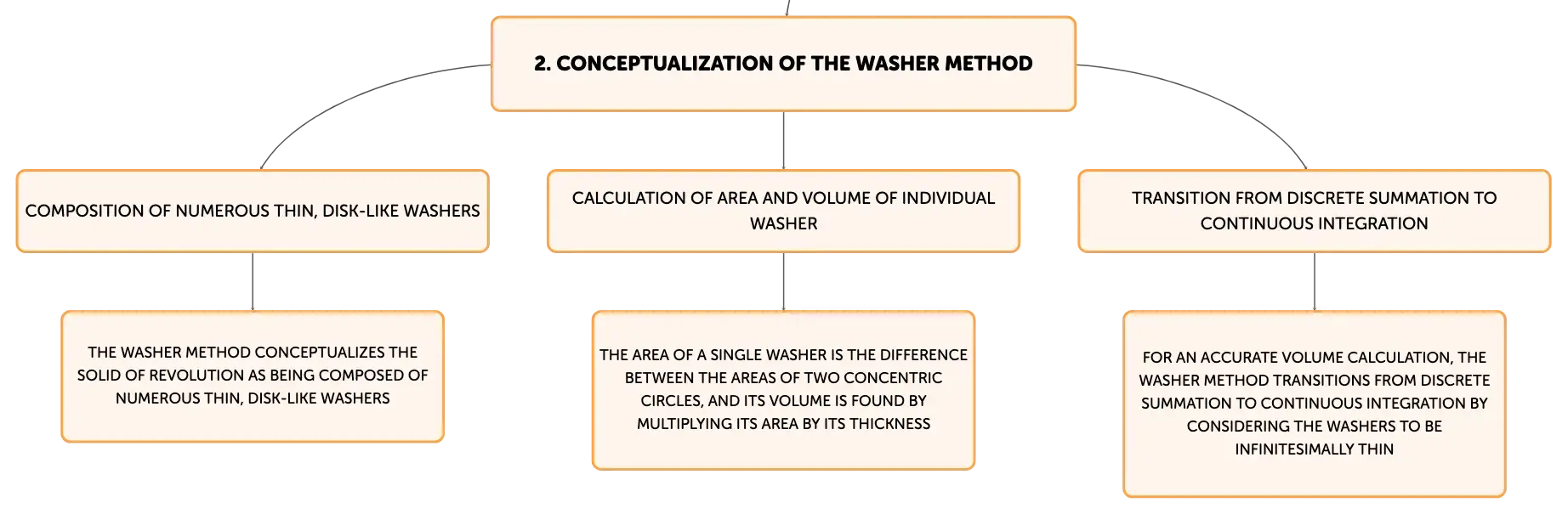

Conceptualization of the Washer Method

Composition of numerous thin, disk-like washers

The washer method conceptualizes the solid of revolution as being composed of numerous thin, disk-like washers

Calculation of area and volume of individual washer

The area of a single washer is the difference between the areas of two concentric circles, and its volume is found by multiplying its area by its thickness

Transition from discrete summation to continuous integration

For an accurate volume calculation, the washer method transitions from discrete summation to continuous integration by considering the washers to be infinitesimally thin

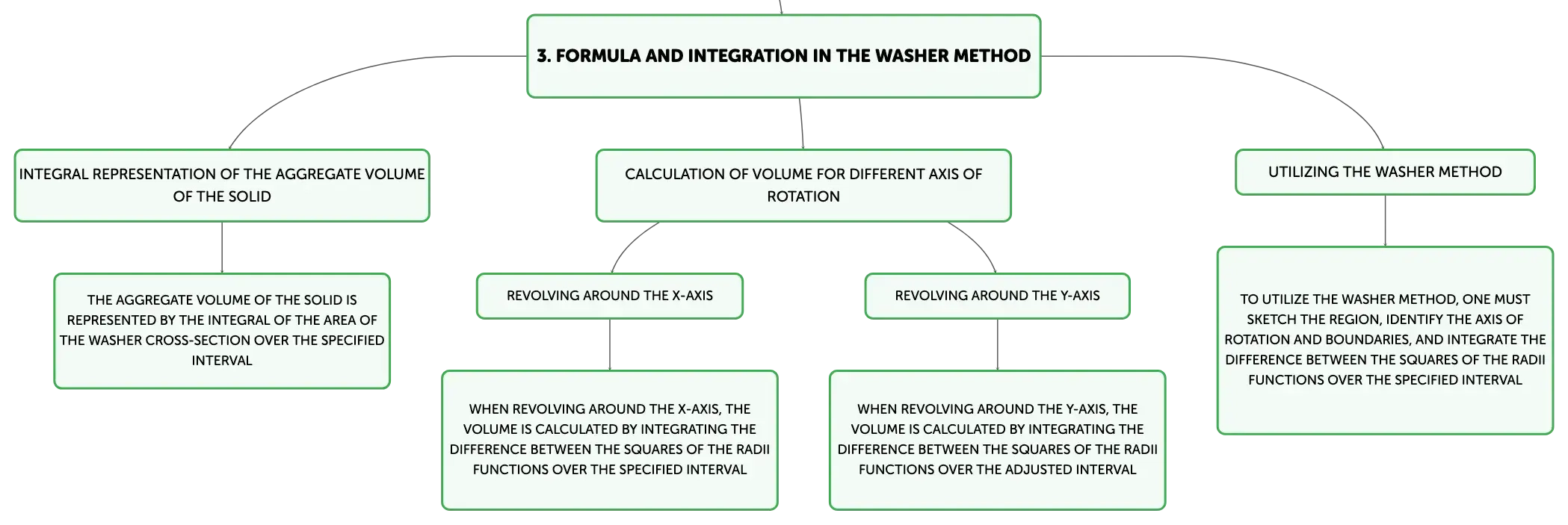

Formula and Integration in the Washer Method

Integral representation of the aggregate volume of the solid

The aggregate volume of the solid is represented by the integral of the area of the washer cross-section over the specified interval

Calculation of volume for different axis of rotation

Revolving around the x-axis

When revolving around the x-axis, the volume is calculated by integrating the difference between the squares of the radii functions over the specified interval

Revolving around the y-axis

When revolving around the y-axis, the volume is calculated by integrating the difference between the squares of the radii functions over the adjusted interval

Utilizing the Washer Method

To utilize the washer method, one must sketch the region, identify the axis of rotation and boundaries, and integrate the difference between the squares of the radii functions over the specified interval

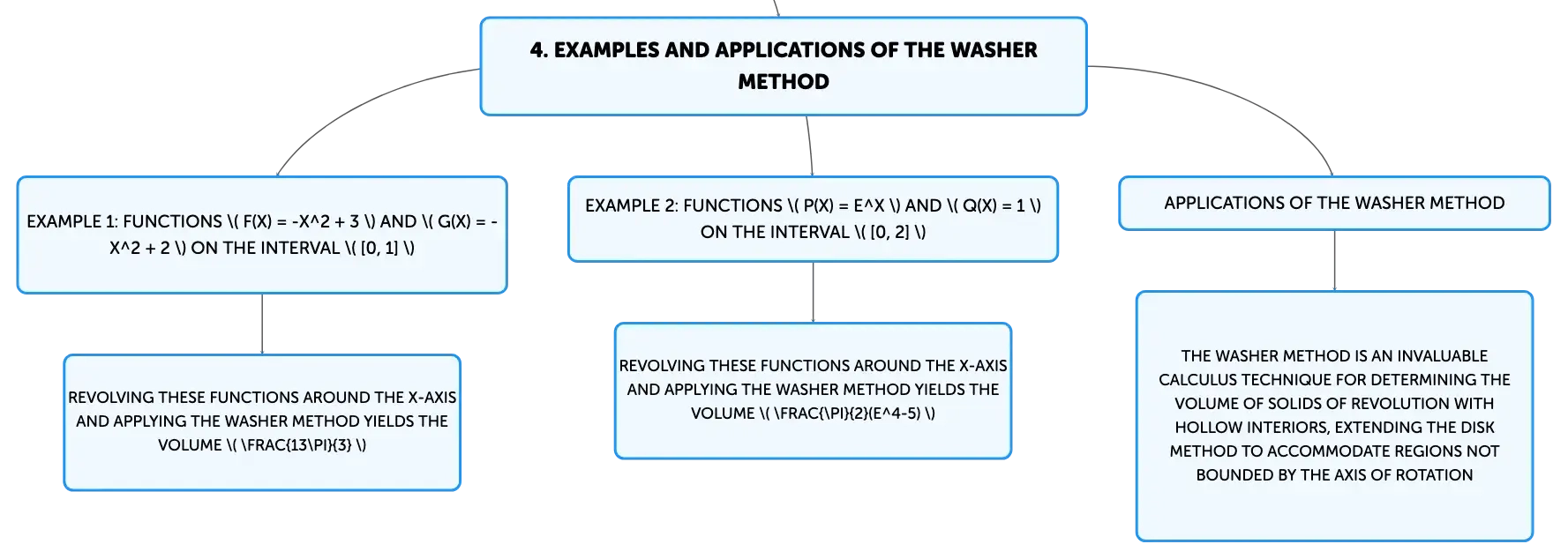

Examples and Applications of the Washer Method

Example 1: Functions \( f(x) = -x^2 + 3 \) and \( g(x) = -x^2 + 2 \) on the interval \( [0, 1] \)

Revolving these functions around the x-axis and applying the washer method yields the volume \( \frac{13\pi}{3} \)

Example 2: Functions \( p(x) = e^x \) and \( q(x) = 1 \) on the interval \( [0, 2] \)

Revolving these functions around the x-axis and applying the washer method yields the volume \( \frac{\pi}{2}(e^4-5) \)

Applications of the Washer Method

The washer method is an invaluable calculus technique for determining the volume of solids of revolution with hollow interiors, extending the disk method to accommodate regions not bounded by the axis of rotation

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

The washer method improves upon the ______ method when the axis of rotation is not the edge of the region.

disk

Washer Method: Solid of Revolution Composition

Envision solid as series of thin, disk-like washers stacked along axis of revolution.

Washer Method: Volume of Single Washer

Volume found by multiplying area of washer by thickness (Δx).

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Close-up view of a transparent blue protractor with three wooden rulers forming a scalene triangle, and a mechanical pencil in the background.

Trigonometry: Exploring Angles and Sides of Triangles

Parabolic metallic bridge with reflective surface arching over water against a clear blue sky, highlighted by sunlight at its vertex.

Understanding the Vertex in Quadratic Functions

Organized desk with grid paper featuring a network of connected dots, a transparent ruler, and a mechanical pencil on a wooden surface, near a blank blackboard.

Linear Systems: Modeling and Solving Complex Relationships

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

From Discrete Summation to Continuous Integration

For an accurate volume calculation, consider the washers to be infinitesimally thin, transitioning from discrete summation to continuous integration. The radii R and r are expressed as functions, \( f(x) \) and \( g(x) \), of the integration variable. The finite thickness \( \Delta x \) is replaced by the differential \( \mathrm{d}x \), and the summation \( \Sigma \) is substituted by the integral sign \( \int \). This integral represents the limit of the Riemann sum as the number of washers approaches infinity, providing an exact volume of the solid.

The Integral Formula for the Washer Method

The washer method formula involves integrating the area of the washer cross-section over the interval \([a, b]\). For a solid revolved around the x-axis, the volume \( V \) is calculated as \( V = \int_a^b \pi \left[ (f(x))^2 - (g(x))^2 \right] \, \mathrm{d}x \), ensuring that \( |f(x)| \geq |g(x)| \) for all \( x \) in \([a, b]\). When revolving around the y-axis, the functions \( f(x) \) and \( g(x) \) represent the distances from the y-axis, and the limits of integration are adjusted accordingly.

Implementing the Washer Method Step by Step

To utilize the washer method, begin by sketching the region to identify the axis of rotation and the boundaries of the area to be revolved. Determine which function corresponds to the outer radius and which to the inner radius, based on their distance from the axis of rotation. Then, integrate the difference between the squares of the radii functions over the specified interval, using appropriate integration techniques to solve the definite integral and obtain the volume.

Demonstrative Examples of the Washer Method

Consider the functions \( f(x) = -x^2 + 3 \) and \( g(x) = -x^2 + 2 \) on the interval \( [0, 1] \). Revolving these functions around the x-axis and applying the washer method yields the volume \( \frac{13\pi}{3} \). In another example, for the exponential function \( p(x) = e^x \) and the constant function \( q(x) = 1 \) over the interval \( [0, 2] \), the volume of the solid formed by revolution is \( \frac{\pi}{2}(e^4-5) \).

Concluding Insights on the Washer Method

The washer method is an invaluable calculus technique for determining the volume of solids of revolution with hollow interiors. It extends the disk method to accommodate regions not bounded by the axis of rotation. By integrating the difference of the squares of two radius functions, the method systematically calculates the volume, whether the solid is revolved around the x-axis or y-axis. This approach deepens our comprehension of three-dimensional geometric shapes and their volumetric properties.
