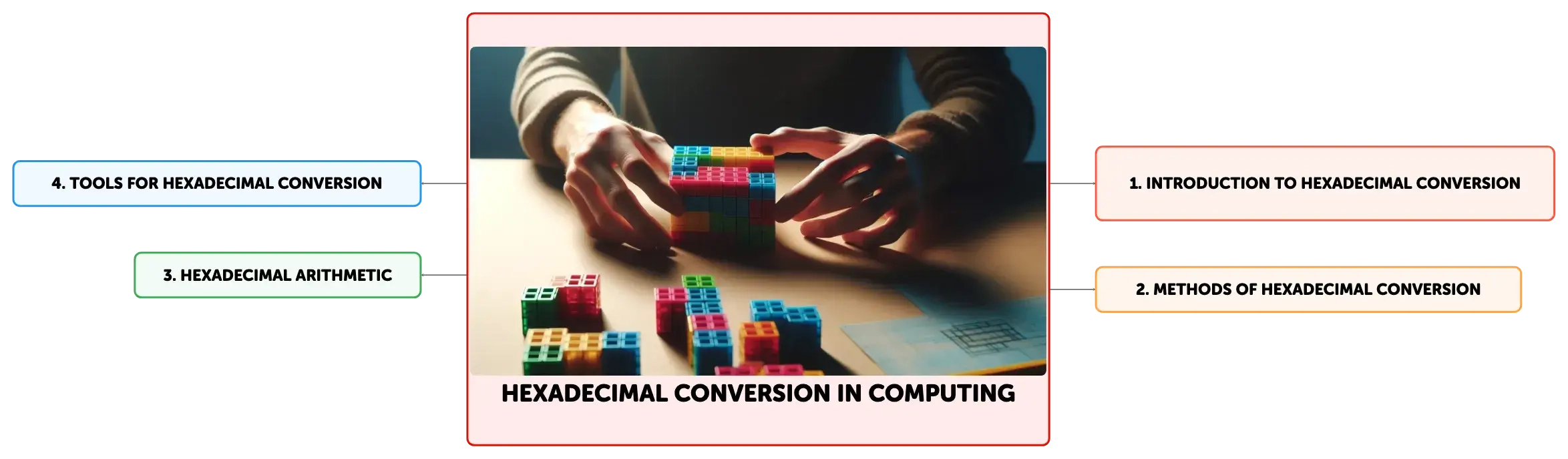

Hexadecimal Conversion in Computing
Hexadecimal conversion is crucial in computing for representing binary data compactly, aiding in memory addressing and machine code interpretation. It involves translating numbers between hexadecimal and other systems, such as binary and decimal. Techniques for conversion include direct, polynomial, and two-step processes through decimal. Proficiency in hexadecimal arithmetic is essential for data processing, and conversion charts enhance efficiency.
See more1
5

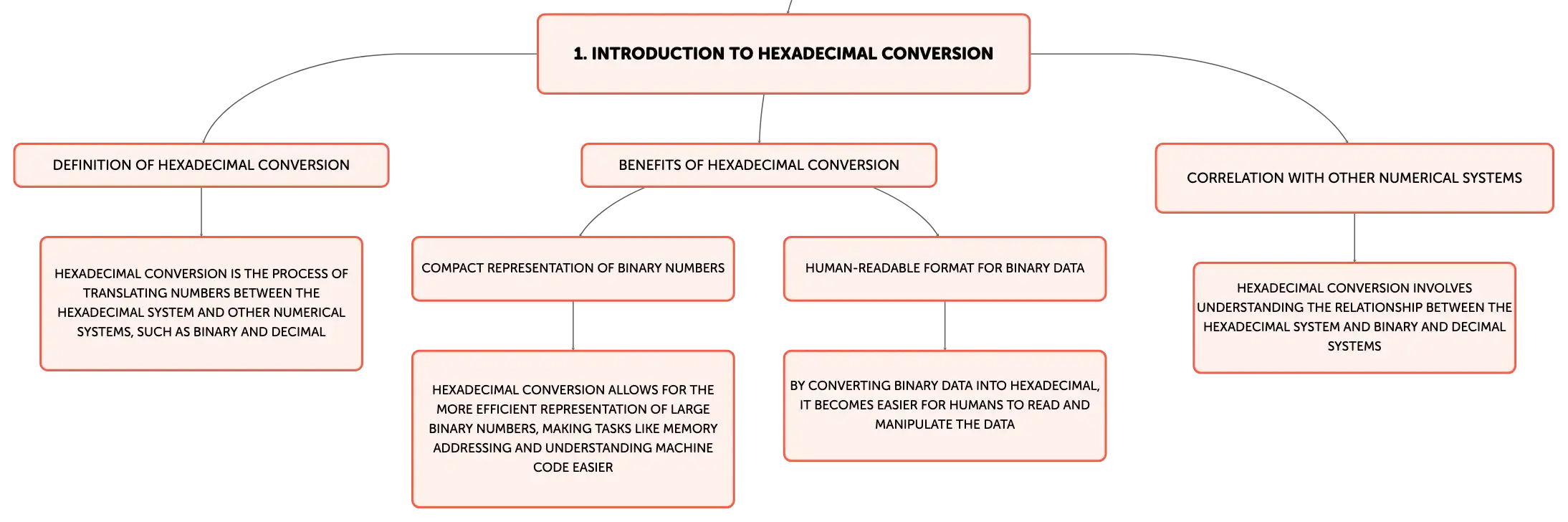

The Role of Hexadecimal Conversion in Computing
Hexadecimal conversion is an essential concept in computing that involves translating numbers between the hexadecimal system and other numerical systems, such as binary and decimal. The hexadecimal system, or base-16, employs a combination of sixteen symbols: 0-9 to represent values zero to nine, and A-F to represent values ten to fifteen. This system is particularly useful in computing for its ability to represent large binary numbers more compactly, which is beneficial for tasks like memory addressing and understanding machine code. For instance, a single byte of data, which is 8 bits in binary, can be neatly represented as two hexadecimal digits, greatly simplifying the visualization and manipulation of binary data.Fundamentals of Hexadecimal Conversion
To perform hexadecimal conversion, one must grasp the base-16 system's correlation with binary (base-2) and decimal (base-10) systems. Converting a hexadecimal number to a decimal number involves multiplying each digit by 16 raised to the power of the digit's position, counting from right to left starting at zero. For example, the hexadecimal number 'B3' is converted to decimal by calculating (11 × 16^1) + (3 × 16^0), which equals 179. This conversion process is crucial in programming and debugging, where hexadecimal is often used to represent binary data in a more human-readable format.Techniques for Hexadecimal Conversion

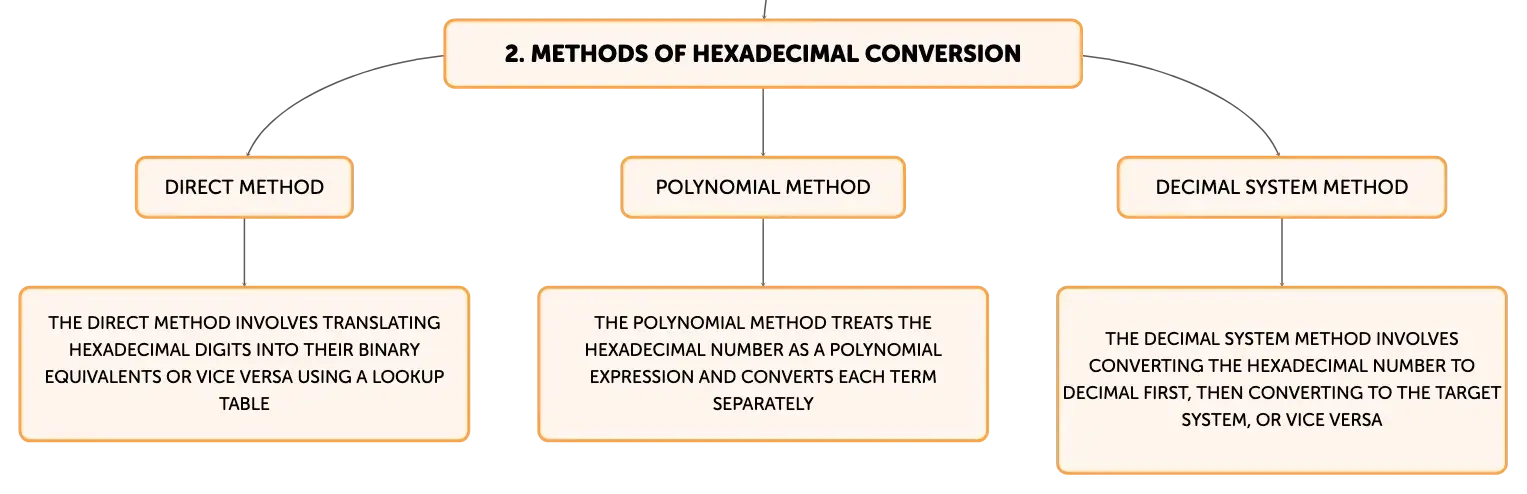

Various techniques exist for converting between hexadecimal and other numerical systems. The direct method involves translating hexadecimal digits into their binary equivalents or vice versa, using a simple lookup table. The polynomial method treats the hexadecimal number as a polynomial expression, where each term is converted separately. Conversions can also be performed through the decimal system in a two-step process: first from hexadecimal to decimal, then from decimal to the target system, or in reverse order. Employing systematic approaches, such as assigning each hexadecimal digit its four-bit binary equivalent, ensures precise and reliable conversions.Converting Hexadecimal to Binary: A Step-by-Step Guide
To convert a hexadecimal number to binary, each hexadecimal digit is replaced with its corresponding four-bit binary string. Taking the hexadecimal number '3A' as an example, it translates to the binary sequence '00111010', where '3' becomes '0011' and 'A' becomes '1010'. This conversion can be expedited by using a conversion table that pairs each hexadecimal digit with its binary counterpart, facilitating a swift and accurate conversion process.Proficiency in Hexadecimal Arithmetic for Data Processing

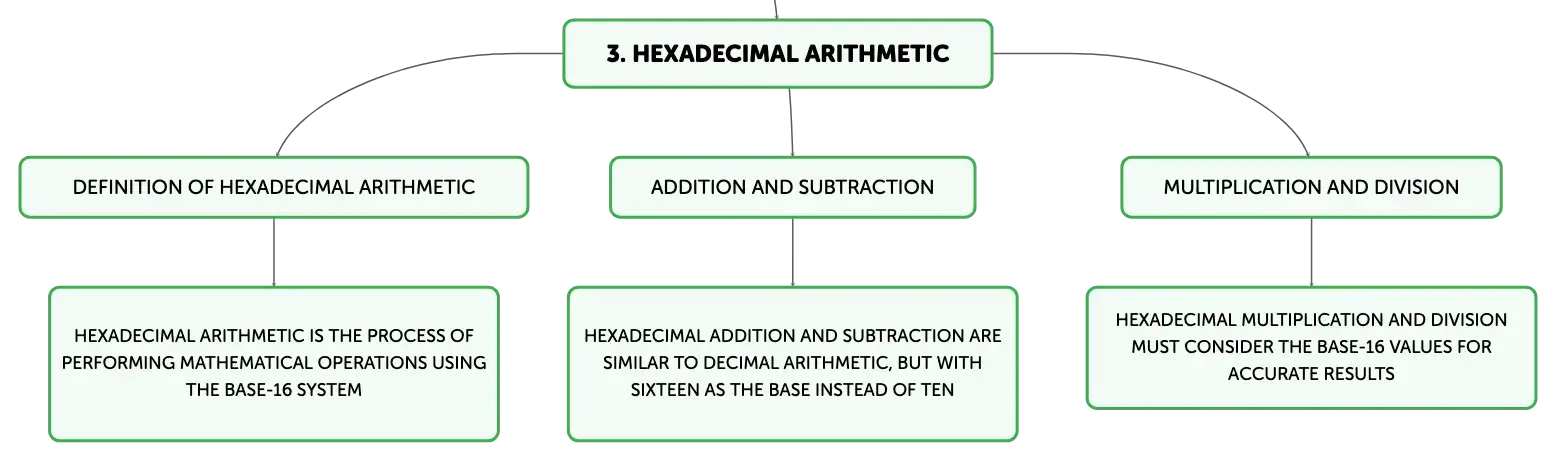

Hexadecimal arithmetic is a key component of data processing in computing, especially in areas like memory addressing and configuring network addresses. Arithmetic operations in hexadecimal are analogous to those in the decimal system but are based on sixteen rather than ten. For instance, when adding hexadecimal numbers, one may need to carry over values in the same way as in decimal arithmetic. Similarly, multiplication and division must consider the base-16 values. Proficiency in these operations is vital for effective data handling and can lead to more efficient processing and improved system performance.Employing a Hexadecimal Conversion Chart for Efficiency

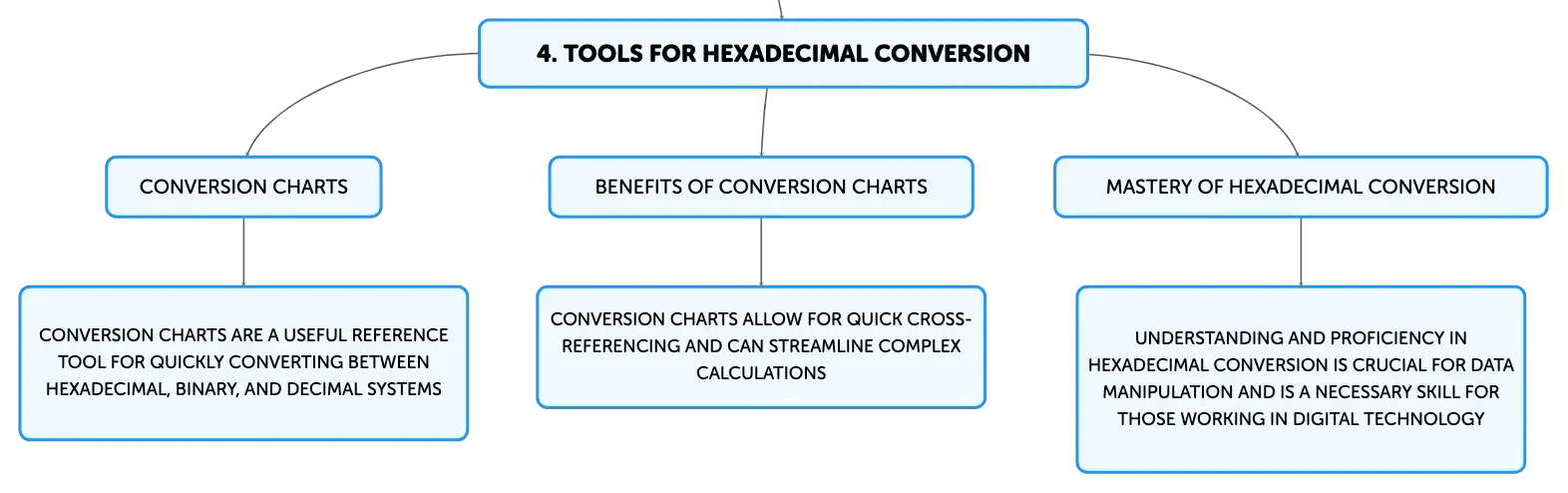

A hexadecimal conversion chart is a practical reference tool for swiftly converting between hexadecimal, binary, and decimal systems. Such charts typically display hexadecimal numbers with their corresponding decimal and binary equivalents, enabling quick cross-referencing. To utilize the chart, one simply finds the hexadecimal number of interest and reads the equivalent values in the other systems. This resource is particularly beneficial for complex calculations where manual conversion might be error-prone.Essential Insights into Hexadecimal Conversion
Hexadecimal conversion is a cornerstone of computing, facilitating the compact and efficient representation of binary data. A thorough understanding of conversion methods, including direct, polynomial, and through the decimal system, as well as techniques for conducting hexadecimal arithmetic, is imperative. The use of tools like conversion charts can significantly streamline these processes. Mastery of hexadecimal conversion is not only advantageous for data manipulation but is also a crucial competency for computer scientists, programmers, and anyone involved in digital technology.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Hexadecimal symbol range
Click to check the answer
2
Hexadecimal to binary conversion
Click to check the answer
3
Hexadecimal in memory addressing
Click to check the answer
4
In programming and debugging, hexadecimal is used to make binary data more ______ for humans.
Click to check the answer
5
Direct Method for Hex-Binary Conversion
Click to check the answer
6
Polynomial Method for Hex Conversion
Click to check the answer
7
Two-Step Conversion via Decimal System
Click to check the answer
8
For instance, the hexadecimal digit 'A' is equivalent to the binary string '______'.
Click to check the answer
9
Base used in hexadecimal arithmetic
Click to check the answer
10
Hexadecimal addition carrying
Click to check the answer
11
Hexadecimal vs. decimal multiplication/division
Click to check the answer
12
The chart is especially helpful for ______ calculations where doing the conversion by hand could lead to mistakes.
Click to check the answer
13
Hexadecimal Conversion Methods
Click to check the answer
14
Hexadecimal Arithmetic Techniques
Click to check the answer
15
Role of Conversion Charts
Click to check the answer
