Exploring the Phenomenon of Total Internal Reflection

Total Internal Reflection (TIR) is an optical phenomenon where light is completely reflected within a medium, such as glass or water, instead of passing out into a different medium. This occurs when light strikes the boundary between two media at an angle greater than the critical angle, which is specific to the pair of media involved. The critical angle is determined by the refractive indices of the two media. TIR is not merely a concept but is essential to various applications, including the transmission of light through fiber optic cables and the brilliance observed in well-cut diamonds.
Acrylic block demonstrating total internal reflection with light beam refracting, then reflecting along the curved edge on a gradient background.

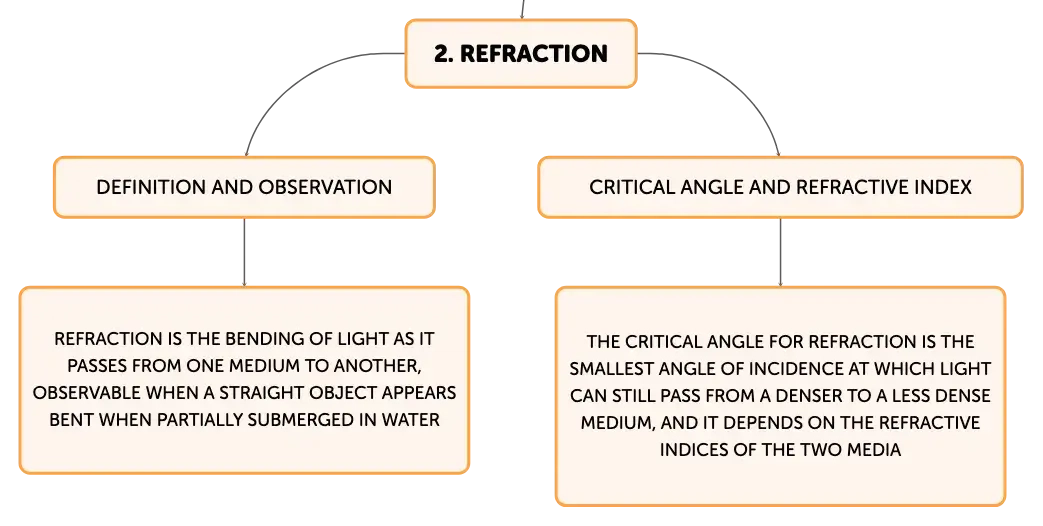

Understanding Refraction and the Critical Angle

Refraction is the bending of light as it passes from one medium to another, altering its speed and direction. This is observable when a straight object, like a pencil, appears bent when partially submerged in water. When light approaches the boundary between two media at an angle steeper than the critical angle, it undergoes Total Internal Reflection instead of refraction. The critical angle is the smallest angle of incidence at which light can still pass from the denser to the rarer medium, and it depends on the refractive indices of the two media.

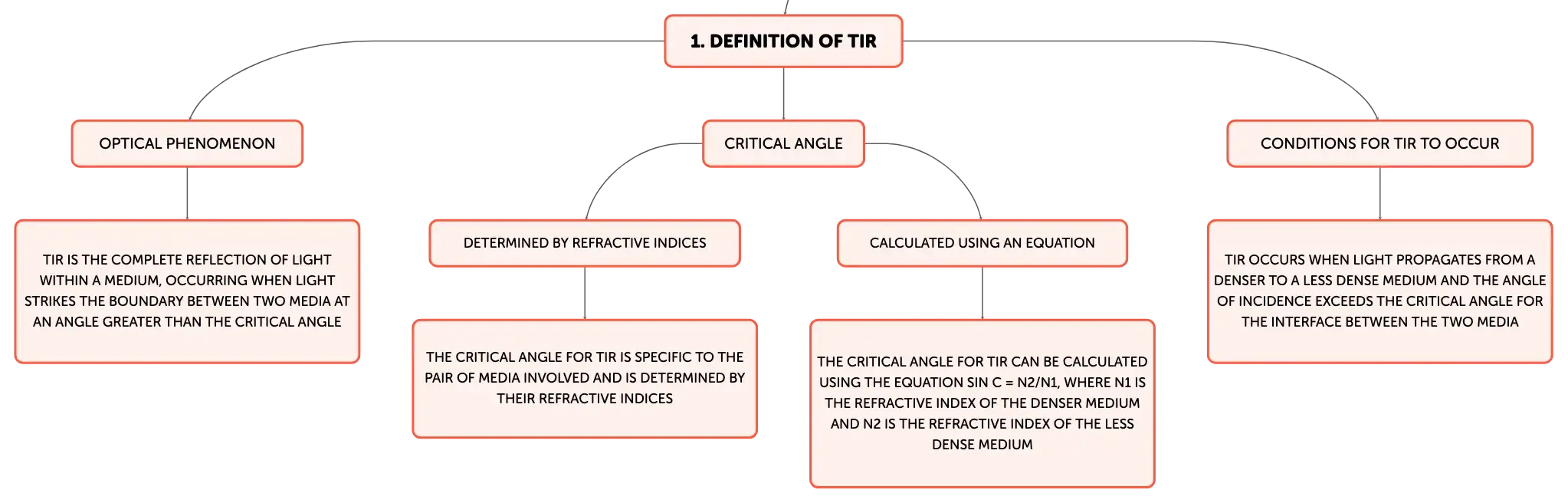

The Mathematics Behind Total Internal Reflection

The critical angle for Total Internal Reflection can be calculated using the equation \( \text{Sin} C = \frac{n_2}{n_1} \), where \( n_1 \) is the refractive index of the denser medium (from which light is coming) and \( n_2 \) is the refractive index of the less dense medium. For TIR to occur, the incident light must strike the boundary at an angle greater than this critical angle. The refractive index is a dimensionless number that indicates how much the speed of light is reduced in a medium compared to its speed in a vacuum.

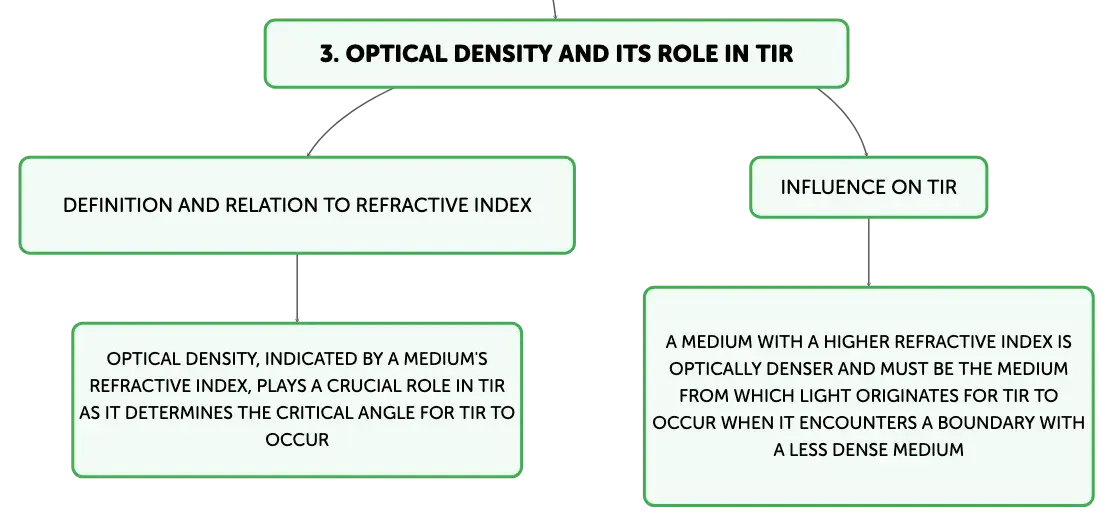

The Role of Optical Density in Total Internal Reflection

Optical density, indicated by a medium's refractive index, plays a crucial role in Total Internal Reflection. A medium with a higher refractive index is optically denser and must be the medium from which light originates for TIR to occur when it encounters a boundary with a less dense medium. For example, light traveling from water (denser) to air (less dense) can experience TIR if the angle of incidence is greater than the critical angle for the water-air interface.

Conditions Necessary for Total Internal Reflection

For Total Internal Reflection to occur, two conditions must be satisfied: the light must propagate from an optically denser medium to a less dense one, and the angle of incidence must exceed the critical angle for the interface between the two media. If either condition is not met, the light will not be totally internally reflected but will instead refract into the second medium.

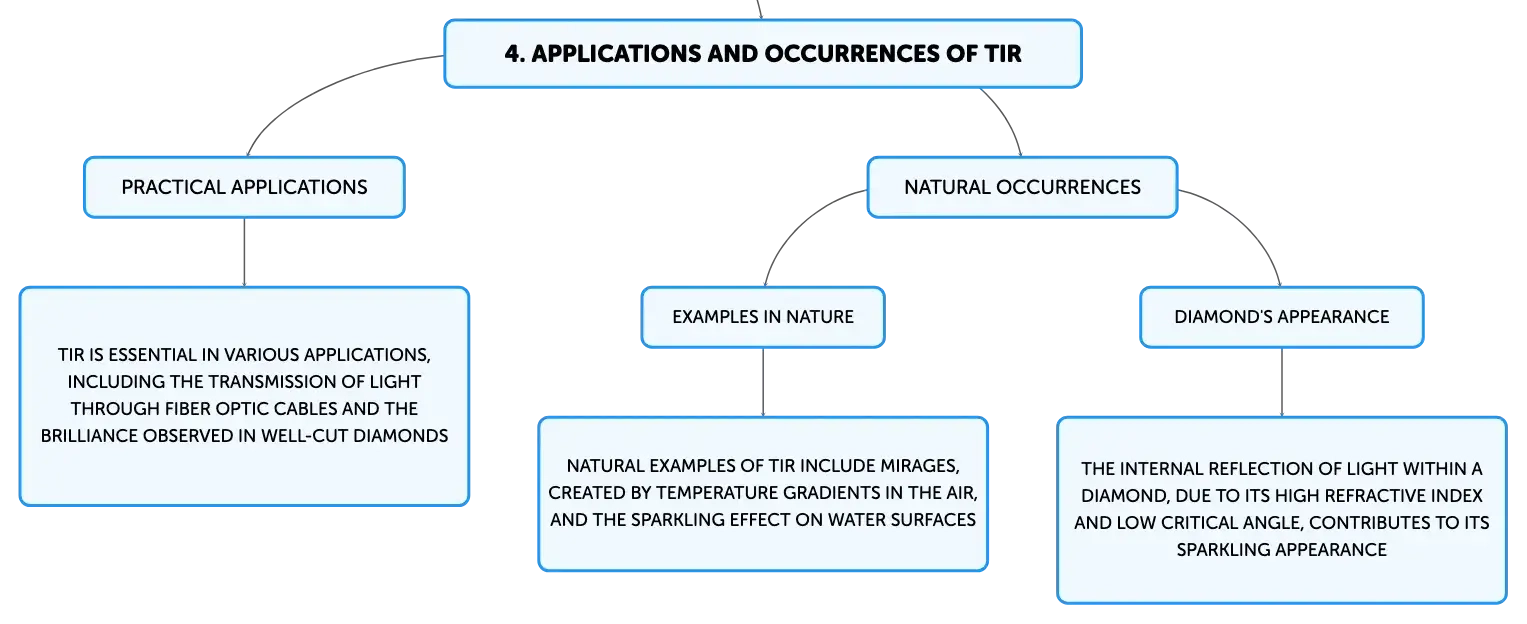

Practical Applications and Examples of Total Internal Reflection

Total Internal Reflection has numerous practical applications and natural occurrences. In fiber optic technology, TIR allows for the efficient transmission of light signals with minimal loss. Natural examples include mirages, created when light undergoes TIR due to temperature gradients in the air, and the sparkling effect on water surfaces. The internal reflection of light within a diamond, due to its high refractive index and correspondingly low critical angle, contributes to the gemstone's sparkling appearance.

Analyzing the Causes and Effects of Total Internal Reflection

Total Internal Reflection results from the relationship between the optical densities of two media and the angle at which light strikes their boundary. The refractive index quantifies optical density, while the critical angle specifies the minimum angle of incidence required for TIR. The critical angle varies between different media pairs, influencing the occurrence of TIR. This principle is vital in optical technologies, such as fiber optics, where the appropriate choice of materials ensures the repeated occurrence of Total Internal Reflection to maintain signal integrity.
