Centre of Mass and Centre of Gravity

The centre of mass is a critical concept in classical mechanics, representing the average location of mass in a system and simplifying dynamics study. It's used to predict object motion under external forces. The centre of gravity, related yet distinct, is where gravitational force acts and is vital for stability. Both are essential for understanding object behavior in various physical situations, from projectile motion to rotational dynamics.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of Centre of Mass

Click to check the answer

Point representing average location of mass in a system, balancing mass distribution in all directions.

2

Centre of Mass in Dynamics

Click to check the answer

Simplifies dynamics by allowing mass consideration at a single point for motion analysis.

3

Centre of Mass and Newton's Laws

Click to check the answer

Facilitates application of Newton's laws by predicting object motion under external forces.

4

The ______ of mass is a crucial reference point in the analysis of ______.

Click to check the answer

centre forces

5

According to ______'s second law, an object's acceleration is proportional to the net ______ force, in the absence of ______.

Click to check the answer

Newton external torque

6

Centre of mass vs. centroid in uniform objects

Click to check the answer

In uniform objects with regular shapes, centre of mass is the same as the centroid due to symmetrical mass distribution.

7

Centre of mass in a uniform rectangular plate

Click to check the answer

For a uniform rectangular plate, the centre of mass is at the intersection of the diagonals.

8

Centre of mass in solid sphere and cylinder

Click to check the answer

The centre of mass in a solid sphere or cylinder is at the geometric centre of the object.

9

The system's dynamics can be simplified by representing the motion of the entire system through the motion of the ______.

Click to check the answer

centre of mass

10

Definition of Centre of Gravity

Click to check the answer

Point where total gravitational torque is zero; gravitational force's effective action point on a body.

11

Centre of Gravity vs. Centre of Mass in Uniform Field

Click to check the answer

In a uniform gravitational field, the centre of gravity and centre of mass are at the same point.

12

Centre of Gravity in Non-Uniform Fields

Click to check the answer

In non-uniform gravitational fields, the centre of gravity may not align with the centre of mass.

13

In the absence of air resistance, the trajectory of a projectile's ______ is a ______.

Click to check the answer

centre of mass parabola

14

An object's stability is compromised as its ______ of ______ gets higher above its base of support.

Click to check the answer

centre gravity

15

Centre of Mass Definition

Click to check the answer

Average location of mass in a system, simplifies motion analysis.

16

Centre of Mass vs. Centre of Gravity

Click to check the answer

Centre of mass is constant; centre of gravity varies with gravitational field.

17

Importance of Centre of Mass/Gravity

Click to check the answer

Crucial for predicting object motion, force impact, and stability analysis.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Properties and Applications of Light Waves

Physics

Wave Equations and Their Applications

Physics

Parallel Beams in Physics

Physics

Spherical Aberration and its Effects on Optical Systems

Understanding the Centre of Mass

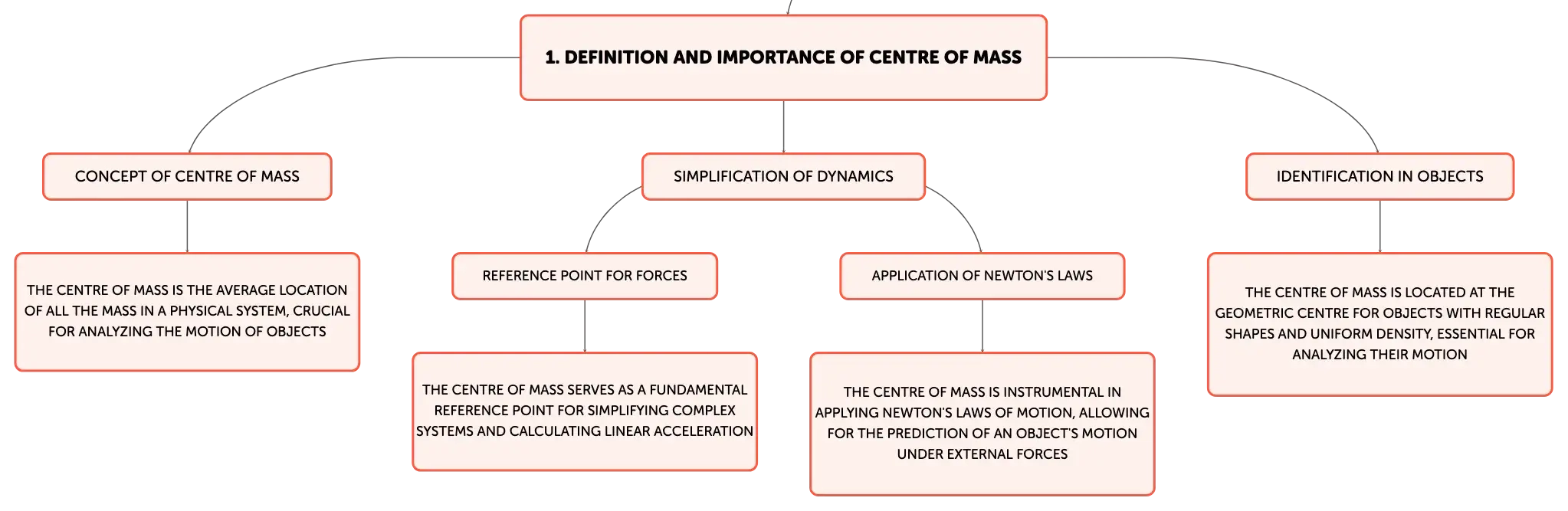

The centre of mass is a pivotal concept in classical mechanics that represents the average location of all the mass in a physical system. It is the point at which the distribution of mass is balanced in all directions, and it is crucial for analyzing the motion of objects. This concept greatly simplifies the study of dynamics by providing a single point where all the mass of an object or system can be considered to be concentrated, regardless of the object's shape or the distribution of mass within it. The centre of mass is instrumental in applying Newton's laws of motion, as it allows for the prediction of the motion of an object when subjected to external forces.
Seesaw with red seats in a park, orange tabby cat on one end, large green watermelon on the other, under a clear blue sky with trees in the background.

The Role of Centre of Mass in Force Analysis

In the analysis of forces, the centre of mass serves as a fundamental reference point. It enables physicists to simplify complex systems by considering all external forces as if they were applied at this single point. This simplification is particularly useful when calculating the linear acceleration of an object due to external forces. For instance, in the absence of torque, the acceleration of an object's centre of mass is directly proportional to the net external force acting on the object, according to Newton's second law of motion. This principle is essential for understanding the translational motion of objects.

Determining the Centre of Mass in Regular Shapes

For objects with regular geometric shapes and uniform density, the centre of mass coincides with the geometric centre, or centroid. This is because the mass is symmetrically distributed about the centroid. For example, the centre of mass of a uniform rectangular plate is located at the intersection of its diagonals. Similarly, for a solid sphere or cylinder, the centre of mass is at the geometric centre of the shape. Identifying the centre of mass in such objects is straightforward and is essential for analyzing their motion under the influence of external forces.

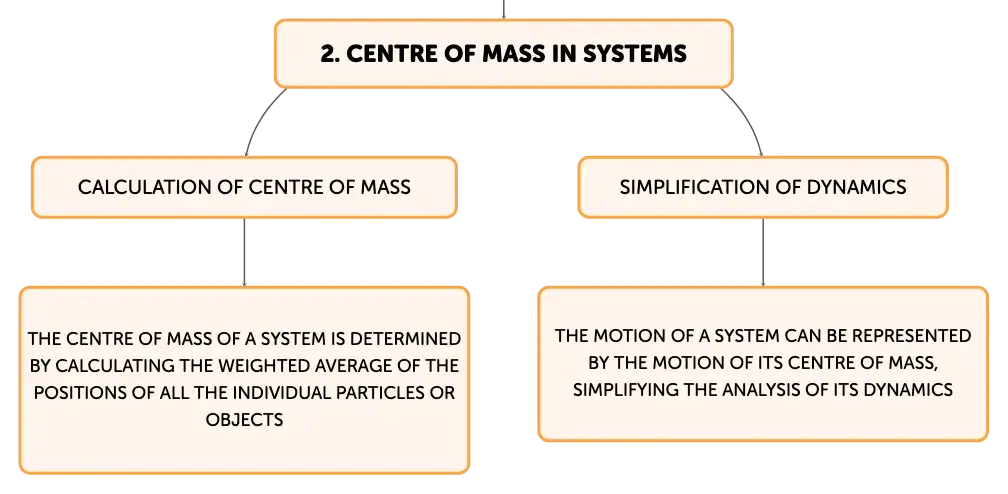

Centre of Mass in Systems of Particles

The centre of mass concept extends beyond single rigid bodies to systems of particles or multiple objects. The centre of mass of such a system is found by considering the masses and positions of all the individual particles or objects. The position of the centre of mass is determined by calculating the weighted average of the positions of the particles, with the weights being their respective masses. This allows for the simplification of the system's dynamics, as the motion of the entire system can be represented by the motion of the centre of mass.

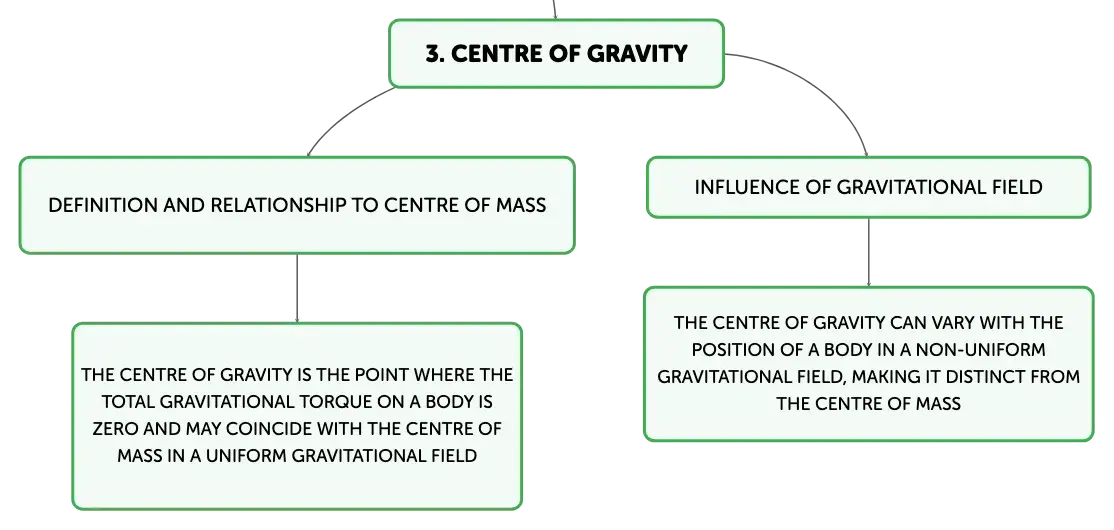

The Centre of Gravity and Its Relation to the Centre of Mass

The centre of gravity is the point at which the total gravitational torque on the body is zero. It is where the gravitational force can be considered to act on a body or system. While the centre of mass is a purely geometrical concept that depends on the distribution of mass, the centre of gravity is influenced by the gravitational field and can vary with the position of the body in the field. In a uniform gravitational field, the centre of gravity coincides with the centre of mass. However, in non-uniform gravitational fields, such as near a large celestial body, the two points may not coincide, and this distinction becomes significant.

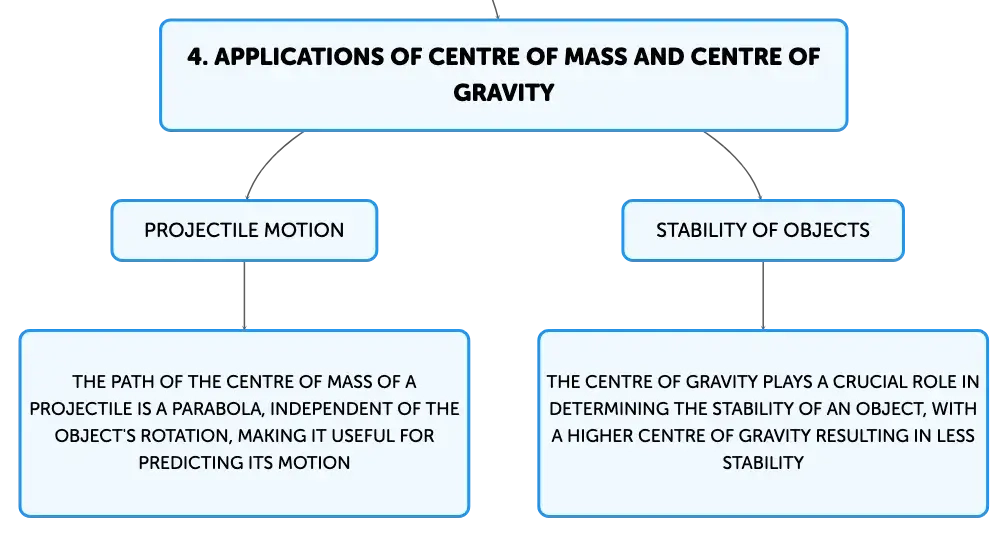

Centre of Mass and Centre of Gravity in Motion and Stability

The centre of mass is integral to the analysis of the motion of objects, particularly in understanding projectile motion and rotational dynamics. The path of the centre of mass of a projectile is a parabola in the absence of air resistance, and it is independent of the object's rotation. The centre of gravity is equally important when considering the stability of an object. An object is stable if its centre of gravity is over its base of support. The higher the centre of gravity, the less stable the object becomes. Understanding the distinction between the centre of mass and the centre of gravity is crucial for predicting the behavior of objects in motion and assessing their stability.

Key Takeaways on Centre of Mass and Centre of Gravity

The centre of mass is a fundamental concept in mechanics that simplifies the analysis of motion by representing the average location of mass in a system. It is particularly useful for predicting the motion of objects when subjected to forces. The centre of gravity, while related to the centre of mass, is the specific point where gravity acts on a body. It coincides with the centre of mass in a uniform gravitational field but may differ in a non-uniform field. A thorough understanding of both concepts is essential for accurately describing the behavior of objects in various physical situations, from simple motion to complex stability analyses.
