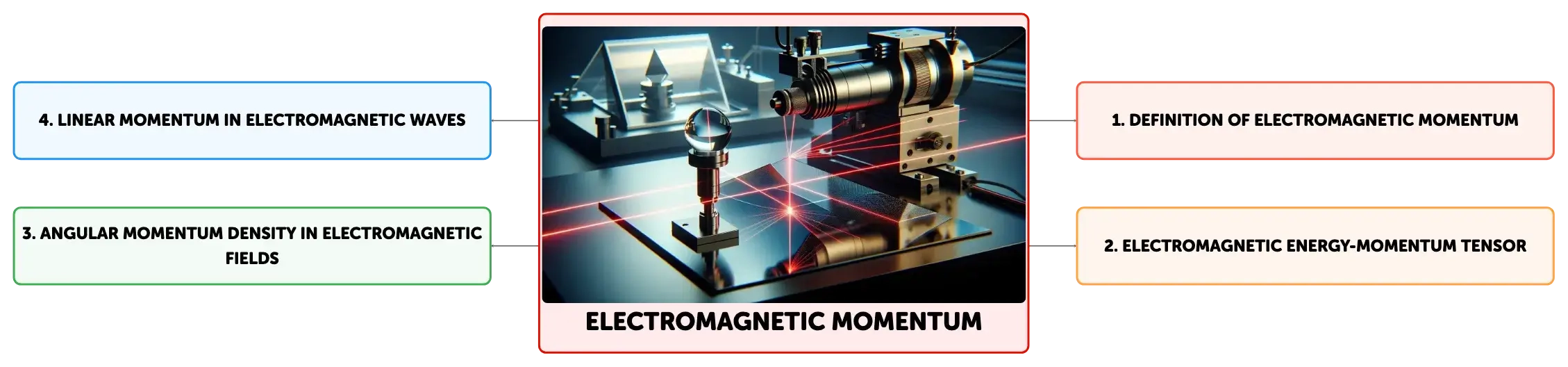

Electromagnetic Momentum

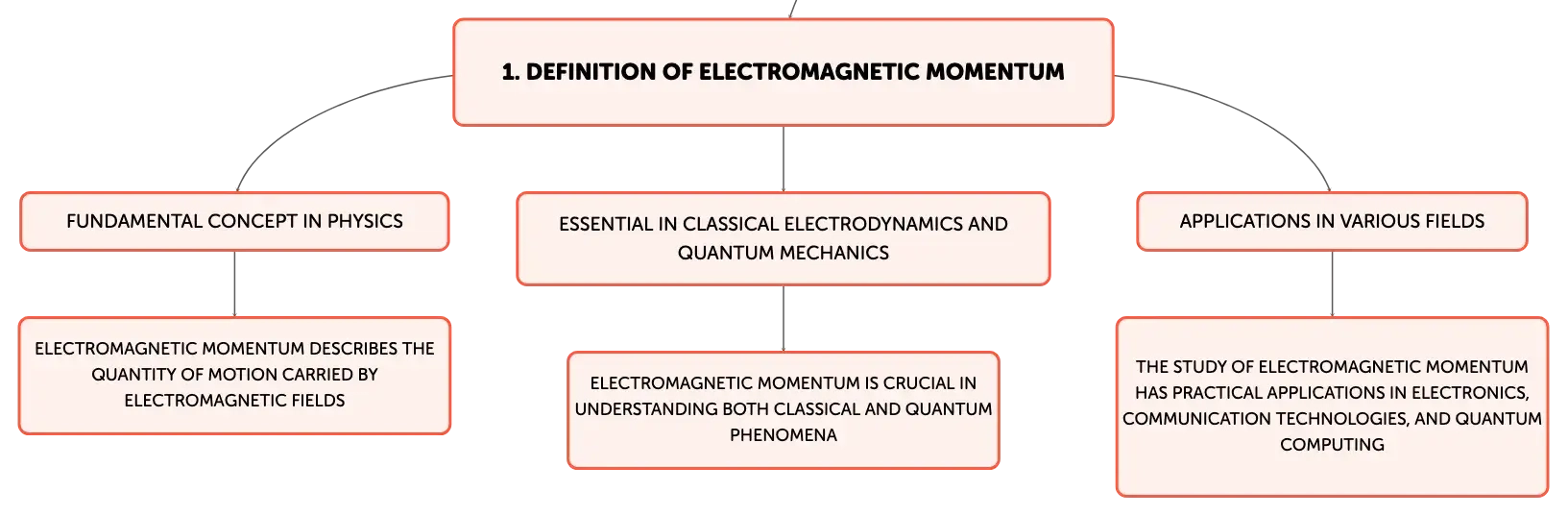

Understanding Electromagnetic Momentum

Electromagnetic momentum is a fundamental concept in physics that describes the quantity of motion carried by electromagnetic fields. This momentum results from the combined effects of electric and magnetic fields that constitute electromagnetic radiation, such as light. It is essential in both classical electrodynamics and quantum mechanics. For instance, light possesses momentum that can exert a force, which is utilized in solar sail technology to propel spacecraft. The study of electromagnetic momentum is vital for its applications in various fields, including electronics, communication technologies, and quantum computing. It also provides a deeper understanding of Einstein's theory of relativity, which links energy and momentum in a space-time context.

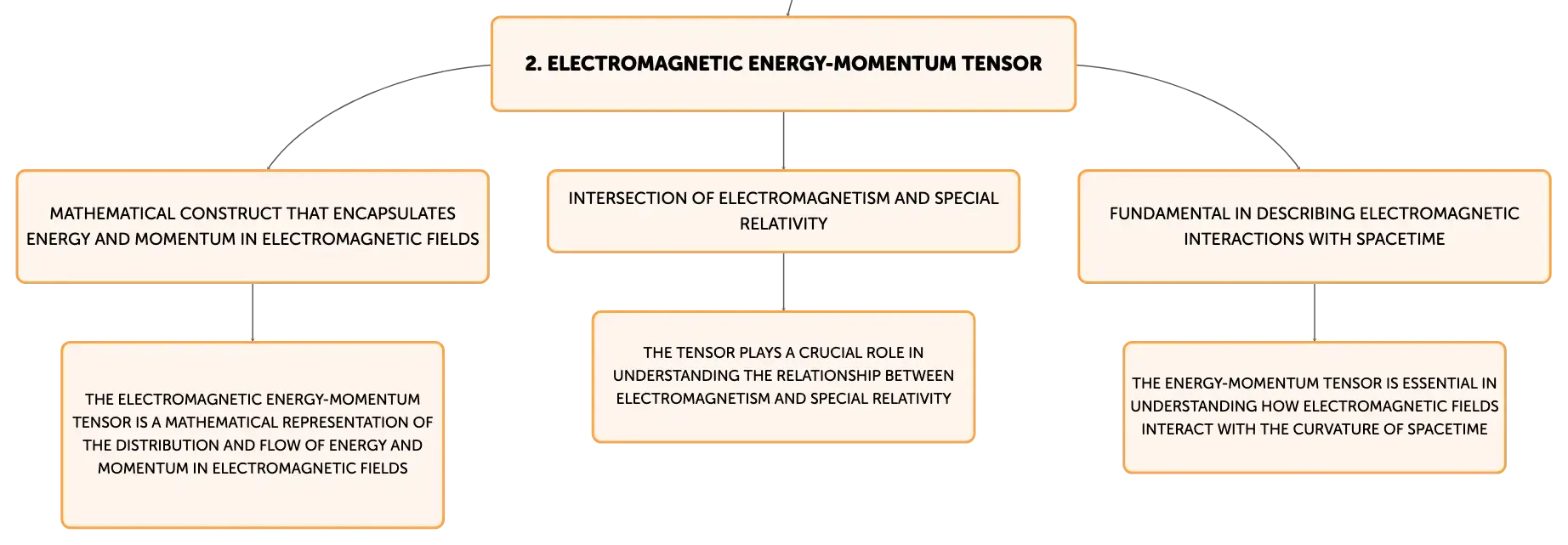

The Electromagnetic Energy-Momentum Tensor and Its Importance

The electromagnetic energy-momentum tensor, represented as \( T_{\mu\nu} \), is a mathematical construct that encapsulates the distribution and flow of energy and momentum in electromagnetic fields. It plays a crucial role in the intersection of electromagnetism and the theory of Special Relativity, as proposed by Einstein. The tensor is defined by the equation \( T_{\mu\nu} = F_{\mu\lambda}F_{\nu}^{\text{ }\lambda} - \frac{1}{4}g_{\mu\nu}F_{\lambda\sigma}F^{\lambda\sigma} \), where \( F_{\mu\nu} \) is the electromagnetic field tensor, \( g_{\mu\nu} \) is the metric tensor, and the terms represent the electric and magnetic fields. This tensor is not only fundamental in describing how electromagnetic fields interact with the curvature of spacetime in general relativity but also in understanding the behavior of light and other electromagnetic phenomena.

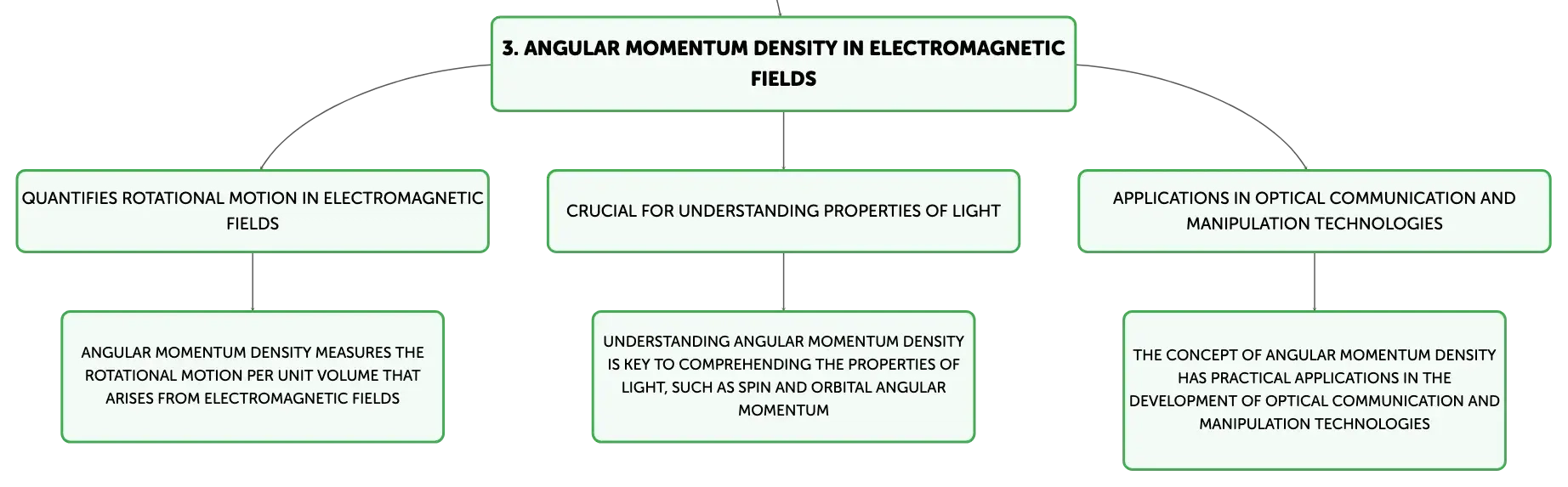

Angular Momentum Density in Electromagnetic Fields

Angular momentum density in electromagnetic fields quantifies the rotational motion per unit volume that arises from these fields. It is determined by the vector cross product of the position vector with the Poynting vector, mathematically expressed as \(\mathbf{L} = \mathbf{r} \times (\mathbf{E} \times \mathbf{B}) \), where \(\mathbf{E}\) and \(\mathbf{B}\) are the electric and magnetic fields, respectively. This concept is crucial for understanding the angular momentum of light, which includes both spin angular momentum, related to light's polarization, and orbital angular momentum, associated with the spatial distribution of the light wave. These properties of light have implications for optical communication and manipulation technologies.

Linear Momentum Transport in Electromagnetic Waves

Electromagnetic waves carry linear momentum, which is generally aligned with the direction of wave propagation. This momentum is intrinsic to the energy transported by the wave and is mathematically represented by the momentum density \( \mathbf{p} = \frac{1}{c^2}\mathbf{S}\), where \(c\) is the speed of light and \( \mathbf{S} \) is the Poynting vector that describes the energy flux of the wave. The concept of linear momentum transport is important for understanding phenomena such as radiation pressure, which is the basis for solar sail operation, and has been considered in explanations for the Pioneer anomaly, which involves unexpected changes in spacecraft trajectories. In quantum physics, this principle is manifested in the momentum of photons, which are the quantum particles of light.

Canonical Momentum in Electromagnetic Fields

Canonical momentum is a form of momentum relevant to charged particles moving within electromagnetic fields. It is defined as \( \mathbf{P} = m \mathbf{v} + q \mathbf{A} \), where \(m\) is the particle's mass, \( \mathbf{v}\) is its velocity, \(q\) is its charge, and \( \mathbf{A}\) is the magnetic vector potential. This expression of momentum includes a term that accounts for the influence of the electromagnetic field, particularly significant in magnetic fields. Canonical momentum is exemplified in the operation of a cyclotron, where the momentum of electrons changes due to variations in the vector potential, even though their kinetic energy remains constant. This concept is essential for understanding the dynamics of charged particles in fields and has applications in particle accelerators and magnetic confinement devices.

The Role of Momentum Density in Electromagnetic Waves

Momentum density in electromagnetic waves is a measure of the momentum that these waves carry per unit volume. It is derived from the Poynting vector \( \mathbf{S} \), which indicates the rate of energy transfer, and is related to the momentum density by \( \mathbf{p} = \frac{1}{c^2}\mathbf{S} \). Understanding momentum density is key to comprehending the effects of radiation pressure exerted by electromagnetic waves and the momentum associated with photons in quantum physics. It is also fundamental to the principle of momentum conservation in electrodynamics. Practical applications of momentum density include the development of solar sails for space propulsion and optical tweezers for manipulating microscopic objects with light.
