The Electromagnetic Spectrum
Concept Map
The electromagnetic spectrum encompasses a range of wavelengths and frequencies, from radio waves to gamma rays. It includes visible light, the only part detectable by the human eye, and extends to waves used in communication, medical diagnostics, and more. Understanding the spectrum's properties, such as the inverse relationship between wavelength and frequency, is crucial for leveraging its applications in various fields.
Summary
Outline
Exploring the Electromagnetic Spectrum
The electromagnetic spectrum is a broad classification of the different wavelengths and frequencies of electromagnetic radiation, which are forms of energy that propagate through space via oscillating electric and magnetic fields. This spectrum includes radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays, each with unique characteristics and interactions with matter. Visible light is the only part of the spectrum that is detectable by the human eye, while other forms, such as radio waves and X-rays, are utilized in various technological applications due to their distinct properties. The study of the electromagnetic spectrum is fundamental to understanding the diverse ways in which electromagnetic radiation affects and is used in our world.Wavelength and Frequency Fundamentals
Wavelength and frequency are key descriptors for electromagnetic waves. The wavelength, represented by the Greek letter lambda (λ), is the spatial distance between successive crests or troughs of a wave. It can range from extremely short distances, such as picometers for gamma rays, to kilometers for some radio waves. Frequency, measured in hertz (Hz), is the count of how many wave cycles pass a given point per second. There is an inverse correlation between wavelength and frequency; longer wavelengths correspond to lower frequencies, and shorter wavelengths correspond to higher frequencies. This inverse relationship is essential for understanding the propagation and energy characteristics of electromagnetic waves.The Inverse Relationship Between Wavelength and Frequency
The inverse relationship between wavelength and frequency is a cornerstone in the physics of electromagnetic waves. A shorter wavelength means that the wave cycles are more tightly packed, allowing more cycles to occur in a given time period, which translates to a higher frequency. This relationship is encapsulated in the equation c = λν, where c is the speed of light in a vacuum (approximately 299,792,458 meters per second), λ is the wavelength, and ν (nu) is the frequency. This equation is vital for predicting how electromagnetic waves will behave under various conditions and how they will interact with different materials.Energy, Wavelength, and Frequency: Planck's Relation
The energy of a photon, the fundamental particle of light, is quantitatively linked to its frequency and inversely to its wavelength, as expressed by Planck's relation: E = hν. Here, E represents the energy of the photon, h is Planck's constant (6.62607015 × 10^-34 joule seconds), and ν is the frequency. This means that photons with shorter wavelengths have higher energies and frequencies, while those with longer wavelengths have lower energies and frequencies. Planck's relation is a fundamental principle in quantum mechanics and is critical for explaining phenomena such as the photoelectric effect, where light can eject electrons from a material.Visualizing the Electromagnetic Spectrum
The electromagnetic spectrum can be depicted in a diagram that orders electromagnetic waves by increasing wavelength or decreasing frequency. Gamma rays, at one extreme, have the shortest wavelengths (less than a picometer) and the highest frequencies, while radio waves, at the other extreme, can have wavelengths as long as kilometers. The visible spectrum, which is a small portion of the entire spectrum, ranges from violet (with wavelengths around 400 nanometers) to red (around 700 nanometers). The colors we perceive are due to the differential absorption and reflection of these wavelengths by objects. Such diagrams are instrumental in teaching and understanding the broad range of electromagnetic radiation and its various properties.Applications of Electromagnetic Waves
The properties of electromagnetic waves across the spectrum make them suitable for a wide array of applications. Radio waves are essential for wireless communication systems, including broadcasting, satellite transmissions, and navigation. Microwaves are used in telecommunications, radar detection, and cooking. Infrared radiation finds applications in heating, night-vision equipment, and remote controls. Visible light is crucial for vision, photography, and illumination. Ultraviolet light has applications in sterilization and fluorescence, but excessive exposure can damage biological tissues. X-rays are pivotal in medical diagnostics and treatment, while gamma rays are used in cancer therapy and sterilizing medical equipment. The practical uses of electromagnetic waves are vast and integral to modern life, demonstrating the importance of understanding each part of the spectrum.
Show More

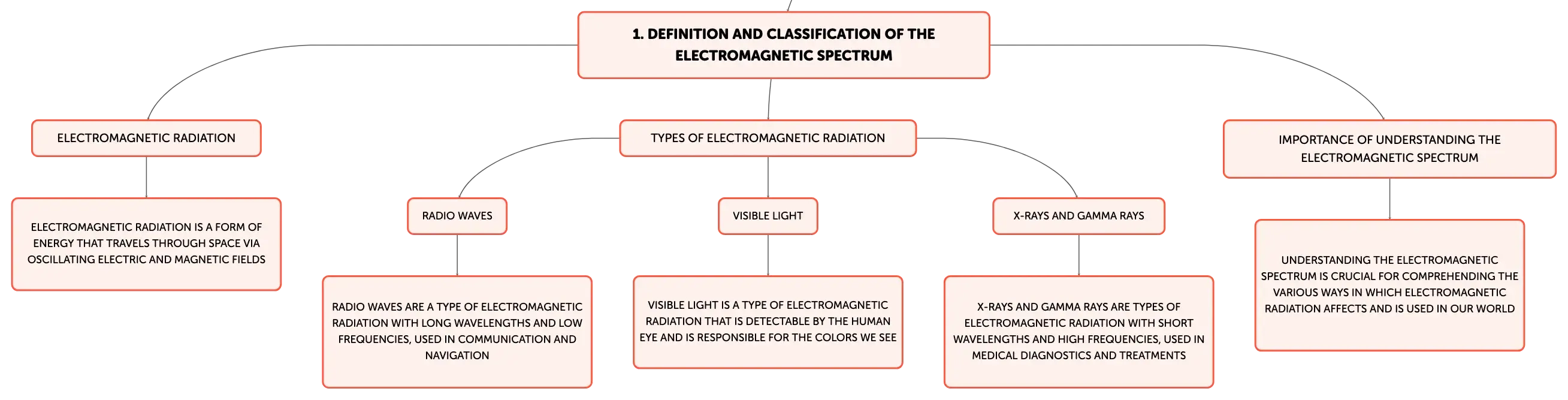

Definition and Classification of the Electromagnetic Spectrum
Electromagnetic Radiation
Electromagnetic radiation is a form of energy that travels through space via oscillating electric and magnetic fields
Types of Electromagnetic Radiation
Radio Waves
Radio waves are a type of electromagnetic radiation with long wavelengths and low frequencies, used in communication and navigation
Visible Light
Visible light is a type of electromagnetic radiation that is detectable by the human eye and is responsible for the colors we see
X-rays and Gamma Rays
X-rays and gamma rays are types of electromagnetic radiation with short wavelengths and high frequencies, used in medical diagnostics and treatments
Importance of Understanding the Electromagnetic Spectrum
Understanding the electromagnetic spectrum is crucial for comprehending the various ways in which electromagnetic radiation affects and is used in our world

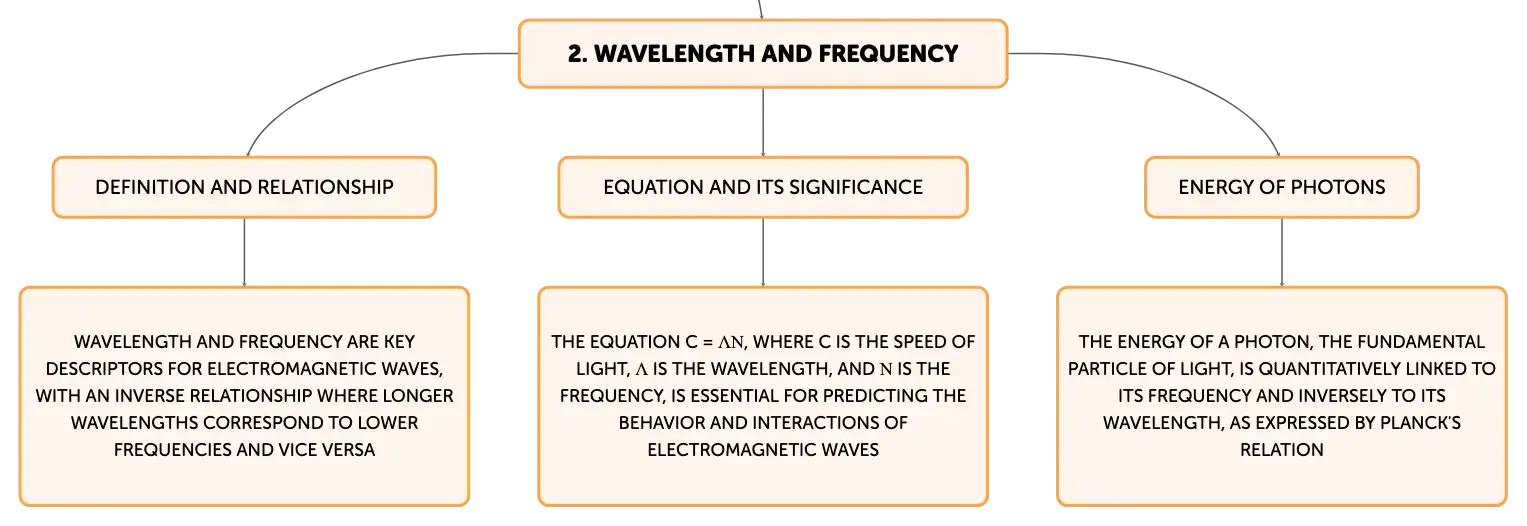

Wavelength and Frequency
Definition and Relationship
Wavelength and frequency are key descriptors for electromagnetic waves, with an inverse relationship where longer wavelengths correspond to lower frequencies and vice versa
Equation and Its Significance
The equation c = λν, where c is the speed of light, λ is the wavelength, and ν is the frequency, is essential for predicting the behavior and interactions of electromagnetic waves
Energy of Photons
The energy of a photon, the fundamental particle of light, is quantitatively linked to its frequency and inversely to its wavelength, as expressed by Planck's relation

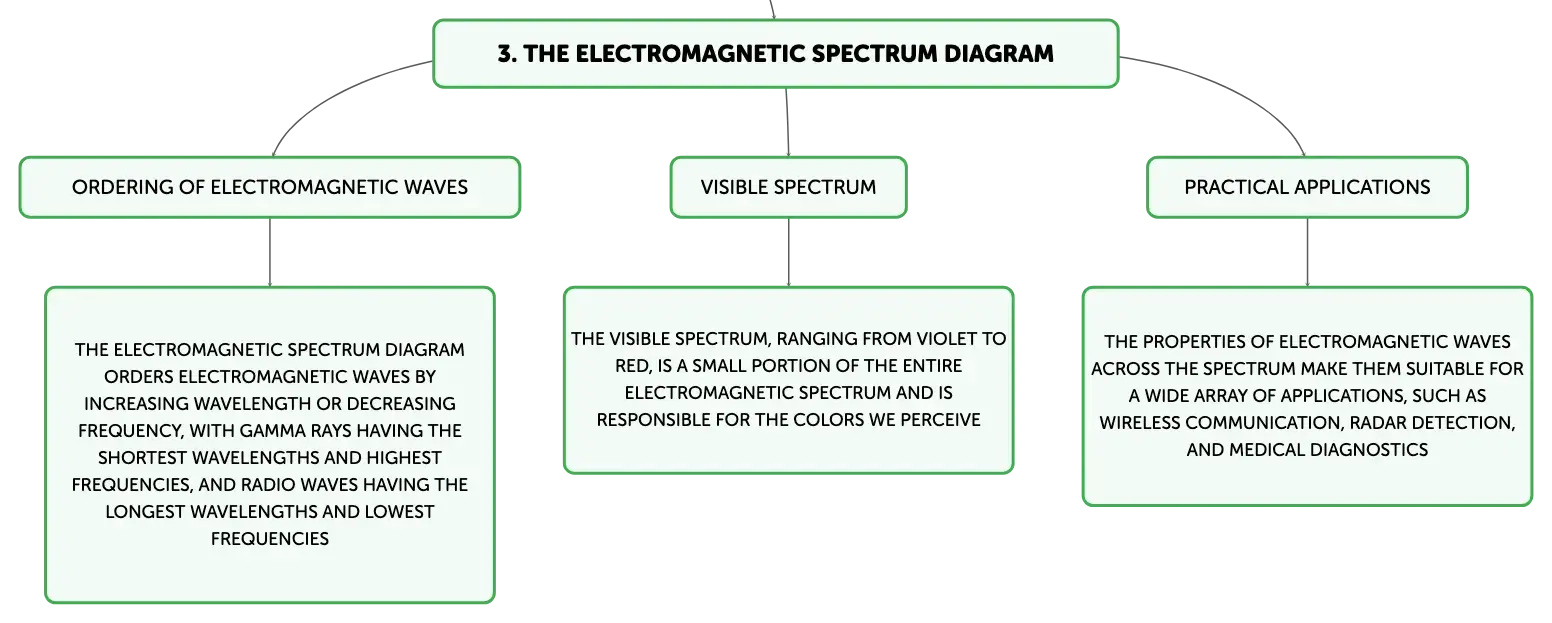

The Electromagnetic Spectrum Diagram
Ordering of Electromagnetic Waves
The electromagnetic spectrum diagram orders electromagnetic waves by increasing wavelength or decreasing frequency, with gamma rays having the shortest wavelengths and highest frequencies, and radio waves having the longest wavelengths and lowest frequencies
Visible Spectrum
The visible spectrum, ranging from violet to red, is a small portion of the entire electromagnetic spectrum and is responsible for the colors we perceive
Practical Applications
The properties of electromagnetic waves across the spectrum make them suitable for a wide array of applications, such as wireless communication, radar detection, and medical diagnostics
The Electromagnetic Spectrum
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ light is the segment of the electromagnetic spectrum that human eyes can perceive, unlike ______ or ______ which have different uses in technology.
Visible
radio waves
X-rays
01
Define wavelength in electromagnetic waves.
Wavelength is the distance between successive crests or troughs of a wave, denoted by lambda (λ).
02
What does frequency measure in electromagnetic waves?
Frequency measures the number of wave cycles passing a point per second, expressed in hertz (Hz).
