Electric Potential and Equipotential Lines

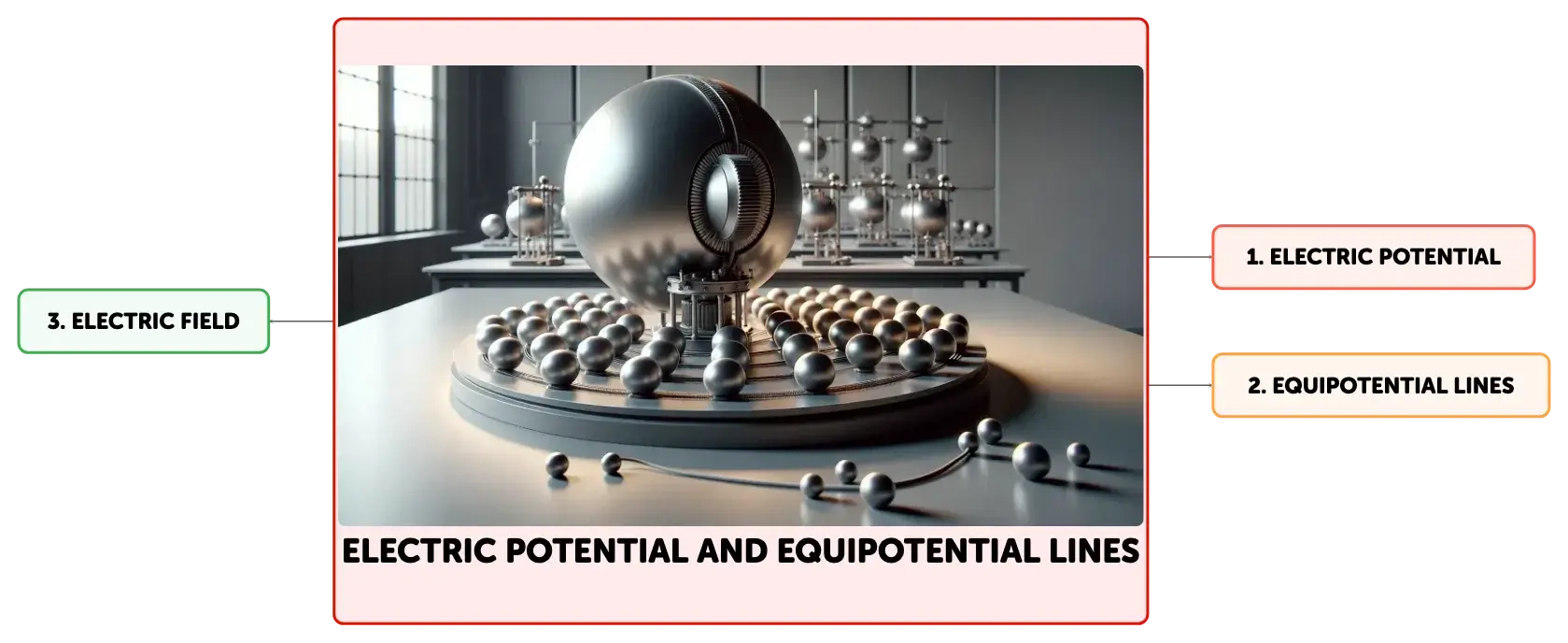

Concept Map
Electric potential is a key concept in physics, representing the potential energy per unit charge. Equipotential lines, which connect points of the same potential, are perpendicular to electric field lines and indicate field strength. Understanding these concepts is crucial for analyzing charged particle behavior and electric field dynamics in various configurations, from point charges to uniform fields.
Summary
Outline
Exploring the Concept of Electric Potential
Electric potential at a point is the electric potential energy per unit charge at that point, a scalar quantity that represents the work done to move a small positive test charge from infinity to that point without any acceleration. It is a measure of the potential energy stored in the electric field and is a fundamental concept for understanding electrical phenomena. Equipotential lines are contours that connect points of the same electric potential, indicating that no work is required to move a charge along these lines within the electric field. These lines are crucial for visualizing the potential landscape of an electric field and for simplifying complex electric field calculations.Interplay Between Equipotential Lines and Electric Field Lines
Equipotential lines and electric field lines are inherently related in an electric field. The key characteristic of equipotential lines is that they are always perpendicular to electric field lines at any given point. This orthogonality ensures that the electric field does the work only when a charge moves across different potentials, not along the same potential. The density of equipotential lines indicates the magnitude of the electric field: a high density of lines corresponds to a high electric field strength, and vice versa. This relationship is invaluable for analyzing and predicting the behavior of charged particles in various electric field configurations.Quantitative Analysis of Electric Fields and Potentials
The electric field strength can be quantitatively described as the negative gradient of the electric potential, mathematically represented by the vector equation \(\vec{E} = -\nabla V\), where \(\vec{E}\) is the electric field vector and \(V\) is the electric potential. This equation highlights the directional nature of electric fields, which point from regions of higher to lower potential. The potential difference, or voltage, between two points is the integral of the electric field along any path between these points. These mathematical principles are essential for solving problems in electrostatics and for understanding the dynamics of electric fields in various physical situations.Configurations of Equipotential Lines in Different Electric Fields
The shape of equipotential lines depends on the geometry of the electric field sources. For a single point charge, equipotential lines are spherical shells centered on the charge, reflecting the isotropic nature of the point charge's electric field. In a dipole field, equipotential lines are more complex, often resembling figure-eights or closed loops, with a plane of symmetry at zero potential bisecting the dipole. For a uniform electric field, such as that between two parallel charged plates, equipotential lines are equally spaced and parallel to the plates, indicating a constant electric field strength throughout the region. Understanding these configurations is crucial for interpreting electric fields in both theoretical and practical applications.Comprehensive Insights into Equipotential Lines and Electric Fields
Equipotential lines are a powerful conceptual and analytical tool in the study of electric fields. They provide a clear visual representation of regions where electric potential is constant and elucidate the relationship between electric potential and electric field strength. The perpendicular nature of equipotential lines to electric field lines is a fundamental aspect of electrostatics, and the spacing between these lines conveys information about the field's intensity. By examining equipotential lines in various charge distributions, students can develop a robust understanding of electric fields, which is essential for mastering concepts in physics and engineering.
Show More

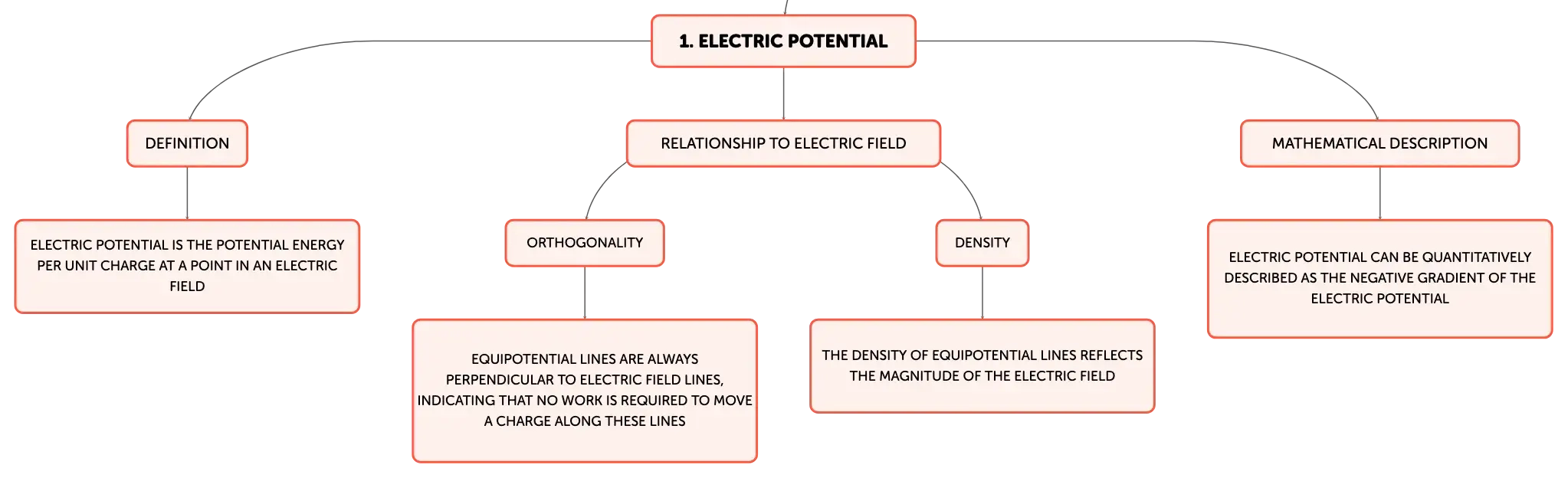

Electric Potential
Definition
Electric potential is the potential energy per unit charge at a point in an electric field
Relationship to Electric Field
Orthogonality
Equipotential lines are always perpendicular to electric field lines, indicating that no work is required to move a charge along these lines
Density
The density of equipotential lines reflects the magnitude of the electric field
Mathematical Description
Electric potential can be quantitatively described as the negative gradient of the electric potential

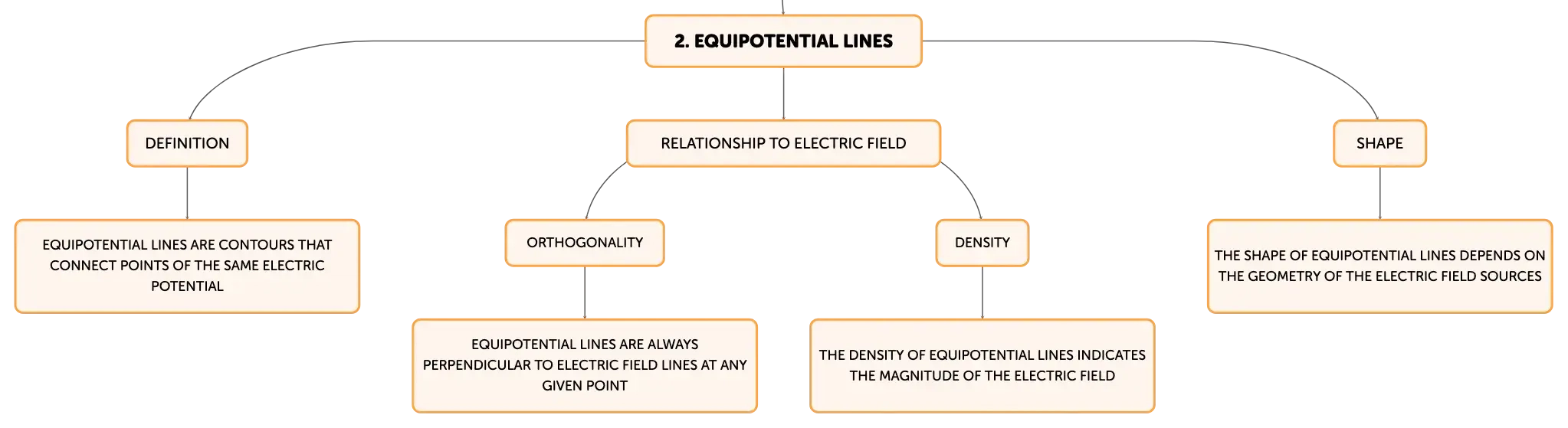

Equipotential Lines
Definition
Equipotential lines are contours that connect points of the same electric potential
Relationship to Electric Field
Orthogonality
Equipotential lines are always perpendicular to electric field lines at any given point
Density
The density of equipotential lines indicates the magnitude of the electric field
Shape
The shape of equipotential lines depends on the geometry of the electric field sources

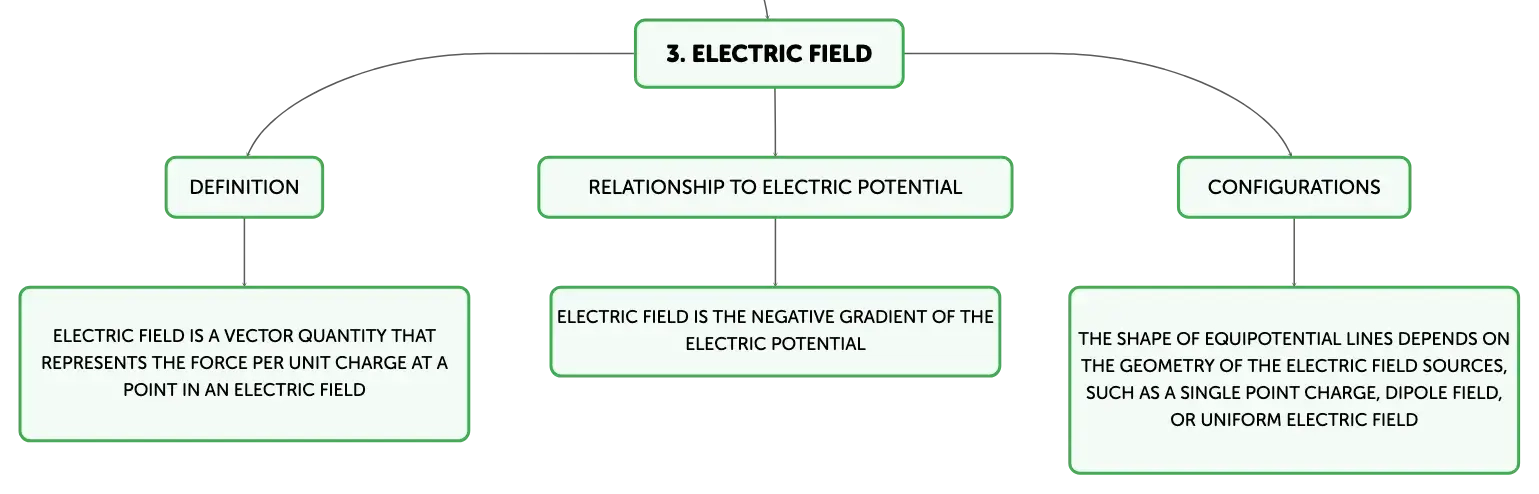

Electric Field
Definition
Electric field is a vector quantity that represents the force per unit charge at a point in an electric field
Relationship to Electric Potential
Electric field is the negative gradient of the electric potential
Configurations
The shape of equipotential lines depends on the geometry of the electric field sources, such as a single point charge, dipole field, or uniform electric field
Electric Potential and Equipotential Lines
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ at a point refers to the work done to move a small positive charge from ______ to that point without acceleration.
Electric potential
infinity
01
Characteristic of equipotential lines
Always perpendicular to electric field lines at any point, indicating direction of no work done by the field.
02
Work done by electric field
Occurs when a charge moves across different potentials, not along an equipotential line.
