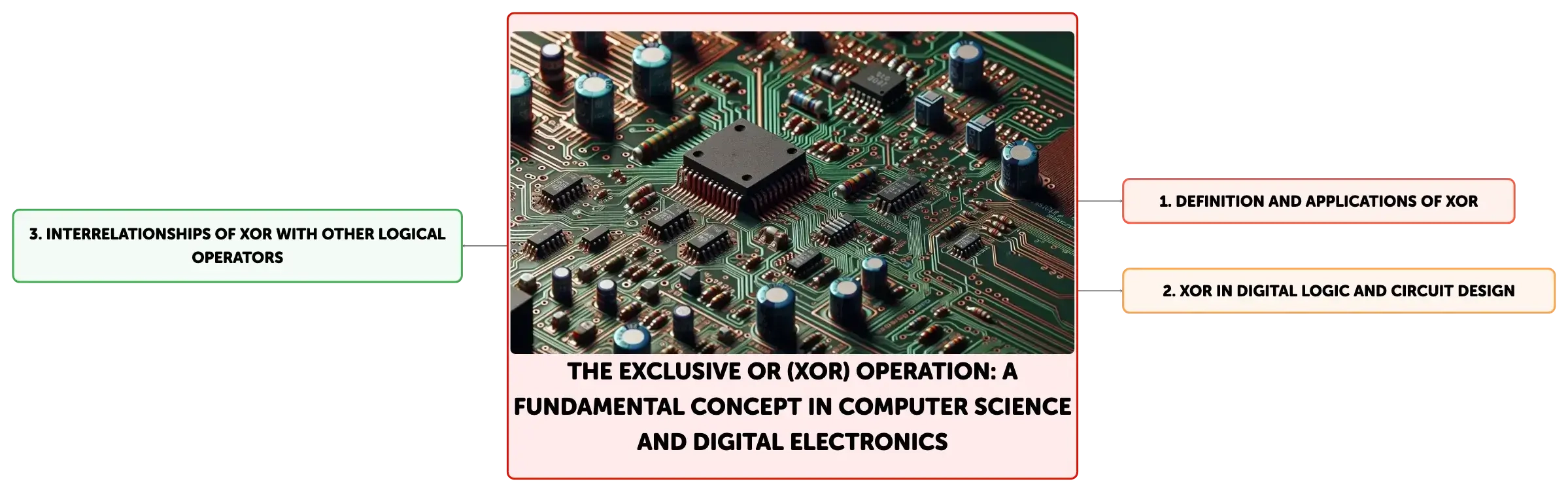

The Exclusive OR (XOR) Operation: A Fundamental Concept in Computer Science and Digital Electronics

The Exclusive OR (XOR) operation is a binary logical operator crucial in digital electronics and computer science. It outputs true only when an odd number of inputs are true, making it essential for error correction, cryptography, and arithmetic operations in computers. XOR gates can be designed using basic logic gates and have unique properties like self-inversion and identity, which are exploited in various computational tasks.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

XOR Symbol Representation

Click to check the answer

XOR is represented by the symbol ⊕.

2

XOR Output for Odd Number of True Inputs

Click to check the answer

XOR outputs true (1) when an odd number of inputs are true.

3

XOR Behavior with Even True Inputs

Click to check the answer

XOR outputs false (0) when the number of true inputs is even or zero.

4

The output of the XOR operation is only ______ when the two binary variables, A and B, are ______.

Click to check the answer

true different

5

In digital circuit design, programming, and algorithm development, the ______ pattern of the XOR operation is crucial.

Click to check the answer

logical

6

Associative and commutative properties of XOR

Click to check the answer

Order/grouping of operands in XOR doesn't change result.

7

Self-inversion property of XOR

Click to check the answer

Element XORed with itself yields zero.

8

Identity property of XOR

Click to check the answer

Element XORed with zero returns the original element.

9

The ______ operation is fundamental in cryptography and is used in the ______ pad encryption algorithm, which is theoretically unbreakable if applied properly.

Click to check the answer

XOR one-time

10

XOR unique properties

Click to check the answer

XOR outputs true only when inputs differ; false if inputs are the same.

11

XOR self-inversion for swapping

Click to check the answer

XOR can swap values: x^=y; y^=x; x^=y; no extra variable needed.

12

XOR in checksums

Click to check the answer

XOR used in checksums to ensure data integrity during transmission.

13

The ______ gate is utilized in various ______ ______, such as ______, ______, and ______, with the design choice influenced by circuit complexity, speed, power usage, and ______ ______.

Click to check the answer

XOR logic families TTL CMOS ECL application requirements

14

XOR construction using basic gates

Click to check the answer

XOR built with AND, OR, NOT gates; essential for logic circuit design.

15

XOR vs XNOR

Click to check the answer

XOR outputs true when inputs differ; XNOR is true when inputs are the same.

16

XOR's role in optimization

Click to check the answer

Boolean algebra, De Morgan's Laws simplify XOR expressions; optimizes computation.

17

The XOR gate's properties, like ______, ______, ______, and self-inversion, are key in computational processes.

Click to check the answer

commutativity associativity identity

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Computer Memory

View document

Computer Science

Understanding Processor Cores

View document

Exploring the Exclusive OR (XOR) Logical Operation

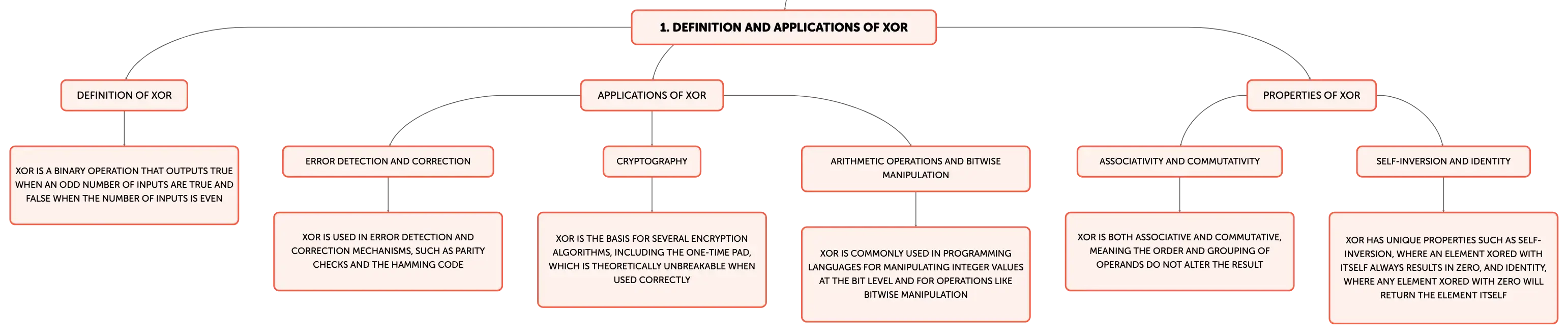

The Exclusive OR (XOR) logical operation is a fundamental concept in computer science, digital electronics, and mathematical logic. Represented by the symbol ⊕, XOR is a binary operation that outputs true (or 1) exclusively when an odd number of its inputs are true. Conversely, it outputs false (or 0) when the number of true inputs is even, including when all inputs are false. This characteristic makes XOR particularly useful in fields such as error detection and correction, cryptography, and arithmetic operations within computers. The operation typically involves two inputs and produces a single output, with its behavior clearly defined by a truth table that shows all possible input combinations and their respective outputs.

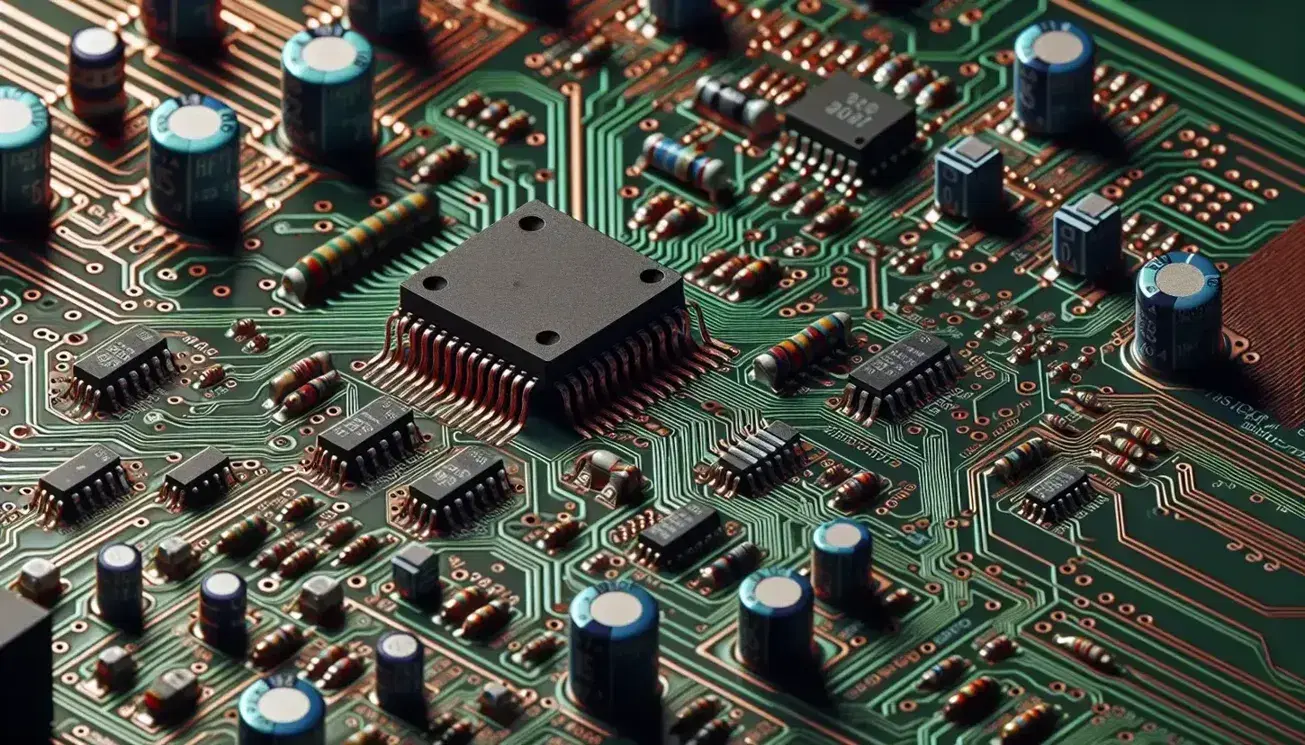

Close-up of a green printed circuit board with copper lines, integrated circuits, colored resistors, metal capacitors and diodes.

The XOR Truth Table and Its Logical Implications

The XOR truth table is a concise representation that defines the output of the XOR operation for every possible pair of binary inputs. It consists of four rows, each corresponding to a unique combination of two binary variables, A and B. The table demonstrates that the XOR output is true only when A and B differ; it is false when A and B are the same. This logical pattern is not only fundamental to understanding the XOR operation but also forms the basis for its applications in programming, digital circuit design, and algorithm development.

Implementing XOR in Digital Logic Systems

XOR functions can be realized in digital logic systems using various configurations of basic logic gates such as AND, OR, and NOT, or by using a dedicated XOR gate. The XOR operation is both associative and commutative, which means that the order and grouping of operands do not alter the result. XOR also has unique properties such as self-inversion, where an element XORed with itself always results in zero, and identity, where any element XORed with zero will return the element itself. These properties are particularly useful in digital logic for operations like bitwise manipulation and in error correction algorithms, including the Hamming code.

The Role of XOR in Computing and Data Security

XOR is a versatile operation with a wide range of applications in computing. It is integral to error detection and correction mechanisms, such as parity checks and the Hamming code. In cryptography, XOR is the basis for several encryption algorithms, including the one-time pad, which is theoretically unbreakable when used correctly. Additionally, XOR is used in the generation of random and pseudo-random sequences and is a key component in data structures like XOR linked lists, which optimize memory usage by encoding two addresses in one.

XOR in Programming: Practical Use Cases

Programmers frequently utilize XOR for its unique properties and logical behavior. Bitwise XOR operations are common in programming languages such as C, C++, Java, and Python, particularly for manipulating integer values at the bit level. The self-inversion property of XOR is cleverly used to swap values without requiring an additional variable, and it is also employed in checksum calculations to verify data integrity during transmission. These practical applications underscore the importance of XOR in developing efficient and reliable software.

Designing XOR Gates for Electronic Circuits

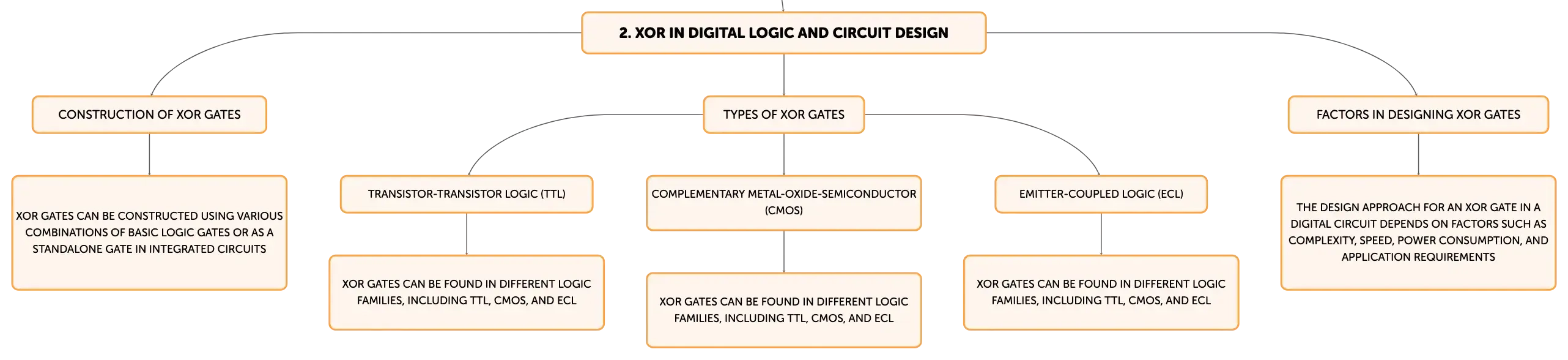

In electronic circuit design, the XOR gate is an essential component that can be constructed using various combinations of simpler logic gates, such as NAND or NOR gates, or as a standalone gate in integrated circuits. XOR gates are found in different logic families, including Transistor-Transistor Logic (TTL), Complementary Metal-Oxide-Semiconductor (CMOS), and Emitter-Coupled Logic (ECL). The choice of design approach for an XOR gate in a digital circuit depends on factors such as the complexity of the circuit, the desired speed of operation, power consumption, and the specific application requirements.

XOR's Interplay with Other Logical Operators

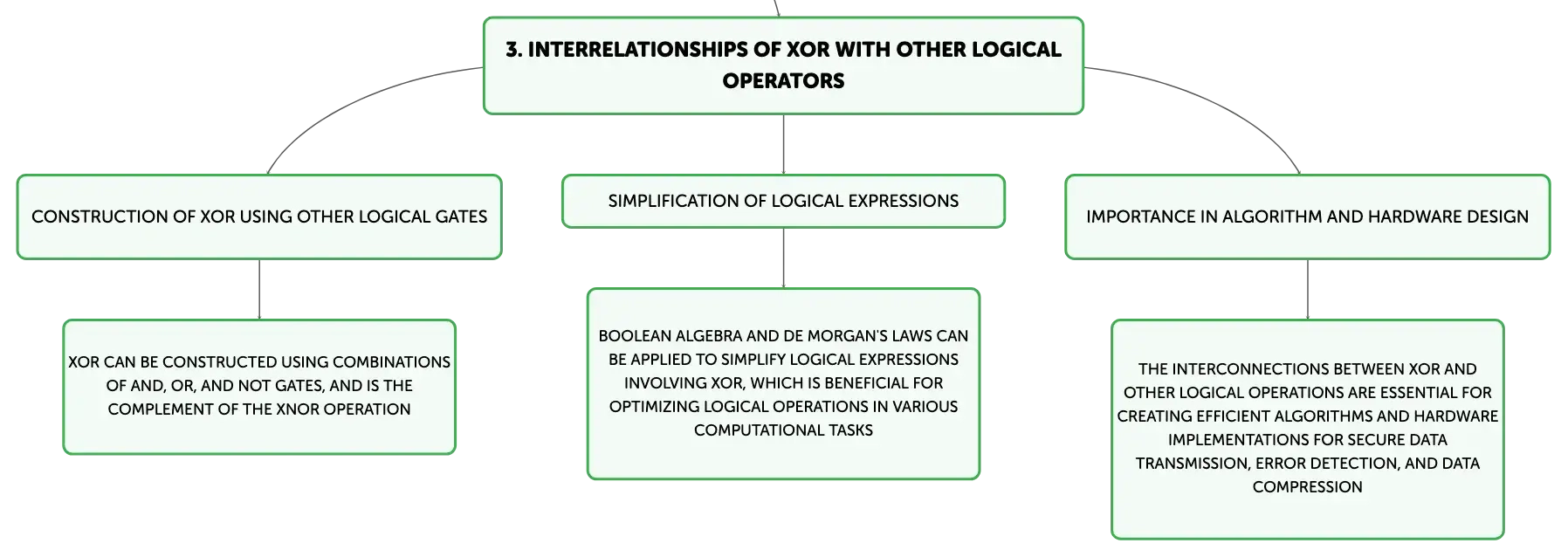

XOR's functionality can be understood in the context of its relationship with other logical operators. It can be constructed using combinations of AND, OR, and NOT gates, and is the complement of the XNOR (exclusive NOR) operation. Boolean algebra and De Morgan's Laws can be applied to simplify logical expressions involving XOR, which is beneficial for optimizing logical operations in various computational tasks. These interrelationships are essential for programmers and engineers to create efficient algorithms and hardware implementations for secure data transmission, error detection, and data compression.

Concluding Insights on the Exclusive OR Operation

The Exclusive OR (XOR) operation is a binary logical operator that is indispensable in the realm of computer science and digital electronics. Its unique output behavior, as depicted in the XOR truth table, is critical for understanding its role in digital logic, programming, and algorithmic design. The XOR gate is a fundamental element in digital circuitry, and the operation's properties, such as commutativity, associativity, identity, and self-inversion, are pivotal in various computational processes. The interconnections between XOR and other logical operations, including XNOR, AND, OR, and NAND, are vital for the development of efficient and sophisticated algorithms and circuit designs, underscoring XOR's importance in technology and information sciences.
