The Role of Telescopes in Astronomy

Telescopes are fundamental instruments in the field of astronomy, crucial for the observation and study of celestial bodies and phenomena that are otherwise invisible to the naked eye. These devices work by collecting electromagnetic radiation, such as visible light, and magnifying it to produce an image. The size of a telescope's main optical component, whether a lens or a mirror, known as the aperture, determines its light-gathering capacity and resolution. A larger aperture allows a telescope to collect more light, which is essential for viewing dim and distant objects in the universe. The principles of optics, including the lens-maker's formula, are central to understanding and designing telescopes, making them indispensable tools for amateur astronomers and professionals alike.

Professional astronomical telescope on equatorial mount with observers under a star-filled sky, highlighting human exploration of the cosmos.

Understanding the Telescope Lens Formula

The lens-maker's formula is a fundamental equation in optical physics that relates the focal length of a lens to the radii of curvature of its two surfaces and the refractive index of the material from which the lens is made. The formula is given by 1/f = (n - 1)(1/R1 - 1/R2), where f is the focal length, n is the refractive index, R1 is the radius of curvature of the first surface, and R2 is that of the second surface. This formula is crucial for designing telescopes with lenses, known as refractors, as it allows for the calculation of the lens's focusing ability. A proper understanding of this formula is essential for optimizing the performance of telescopes and achieving clear, sharp images of distant celestial objects.

Varieties of Telescope Designs

There are several types of telescopes, each designed to meet specific observational requirements. Refracting telescopes use lenses to form images and are commonly used for both terrestrial viewing and basic astronomical observations. Reflecting telescopes, which utilize mirrors to gather and focus light, are preferred for observing faint objects in the deep sky. Catadioptric telescopes combine the features of refractors and reflectors, using both lenses and mirrors to correct optical aberrations and provide versatile imaging capabilities. The choice of telescope design depends on the observer's objectives, such as casual skywatching, astrophotography, or professional astronomical research.

Telescopes in Astrophysical Research

Telescopes are essential tools in astrophysics, enabling researchers to explore and understand the universe. Both ground-based and space-based telescopes have contributed significantly to our knowledge of space. The Hubble Space Telescope, for instance, has been operational since 1990 and has provided invaluable insights by observing the universe in the ultraviolet, visible, and near-infrared spectra. It has played a key role in the study of distant galaxies, the expansion of the universe, and the discovery of exoplanets. The absence of atmospheric distortion allows space telescopes like Hubble to capture high-resolution images, providing data of exceptional quality for astronomers.

The James Webb Space Telescope: Advancing Astronomical Observations

The James Webb Space Telescope (JWST) is set to usher in a new era of astronomical discovery. As the most powerful space telescope ever built, it will primarily observe in the infrared spectrum, enabling it to look further back in time to the formation of the first galaxies and stars. The JWST features a significantly larger primary mirror than its predecessor, the Hubble Space Telescope, and is equipped with state-of-the-art instruments for cutting-edge scientific research. Its advanced capabilities are expected to provide deeper insights into the origins and evolution of the universe, including the formation of stars, planets, and the conditions for life.

The Educational Value of Telescopes

Telescopes are not only scientific instruments but also powerful educational tools that inspire curiosity and learning about the universe. They provide students with practical experiences that can spark an interest in science and help them understand complex concepts in physics and astronomy. Observing celestial events and bodies through a telescope allows students to apply theoretical knowledge in a tangible way, enhancing their comprehension of topics such as light, the electromagnetic spectrum, and optics. Consequently, telescopes are invaluable in the educational process, helping to bridge the gap between abstract concepts and observable reality.

Hands-On Learning with Telescopes

The use of telescopes in education extends to hands-on learning, which can significantly increase student engagement and understanding. Activities such as constructing simple telescopes or visiting astronomical observatories provide immersive experiences that reinforce classroom instruction. These practical exercises can motivate students to pursue further education in science, technology, engineering, and mathematics (STEM) fields. By directly observing phenomena like the phases of the moon or the movement of planets, students can gain a more concrete understanding of astronomical principles and the vast scale of the cosmos.

Conclusion: The Comprehensive Impact of Telescopes

Telescopes serve as both gateways to the cosmos and essential educational resources. They enable the detailed observation and study of distant celestial objects, leading to significant discoveries in astrophysics and enhancing our comprehension of the universe. In the realm of education, telescopes provide experiential learning opportunities that foster scientific literacy and inspire the next generation of researchers. The continuous advancements in telescope technology, as exemplified by the James Webb Space Telescope, promise to extend our exploration of the universe and perpetuate the legacy of these extraordinary instruments of discovery.

Telescopes: Instruments of Discovery and Education

Concept Map

Summary

Outline

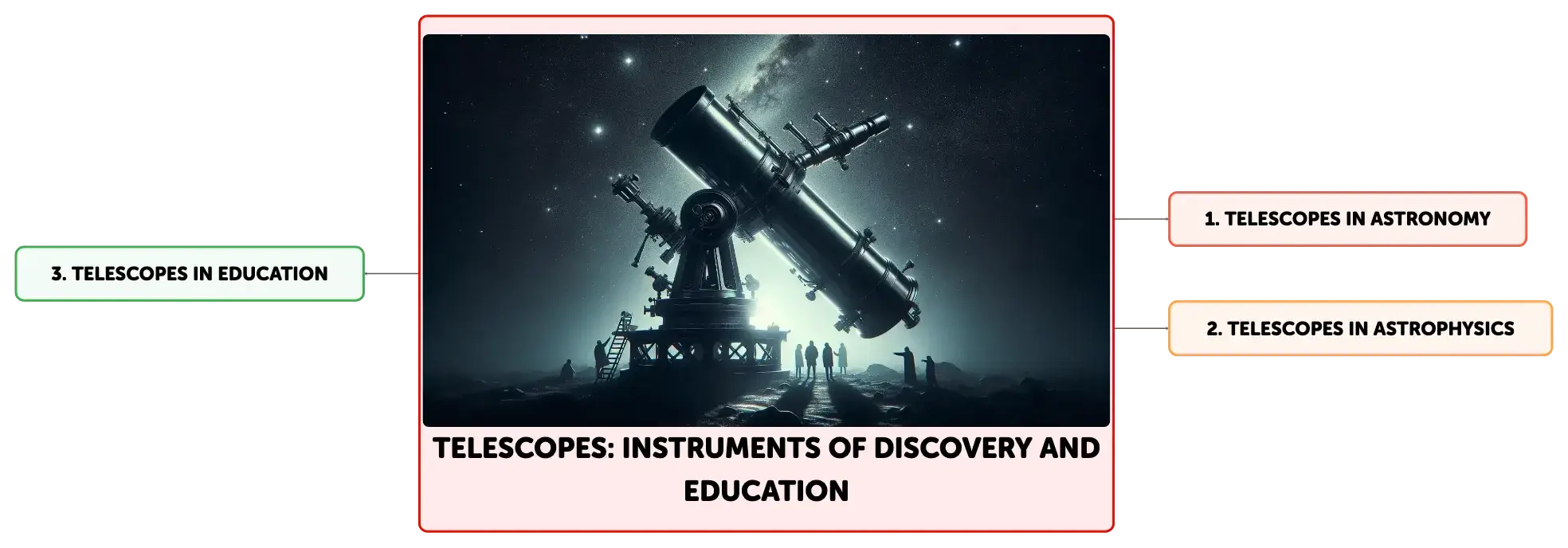

Telescopes: Instruments of Discovery and Education

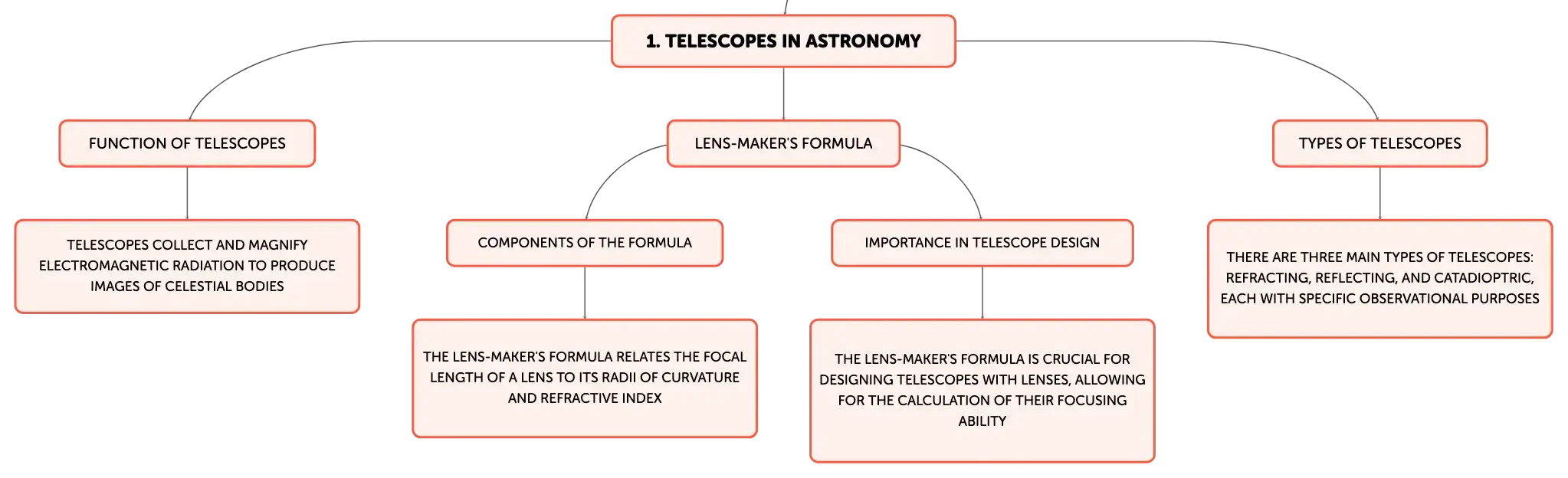

Telescopes in Astronomy

Function of Telescopes

Lens-Maker's Formula

Types of Telescopes

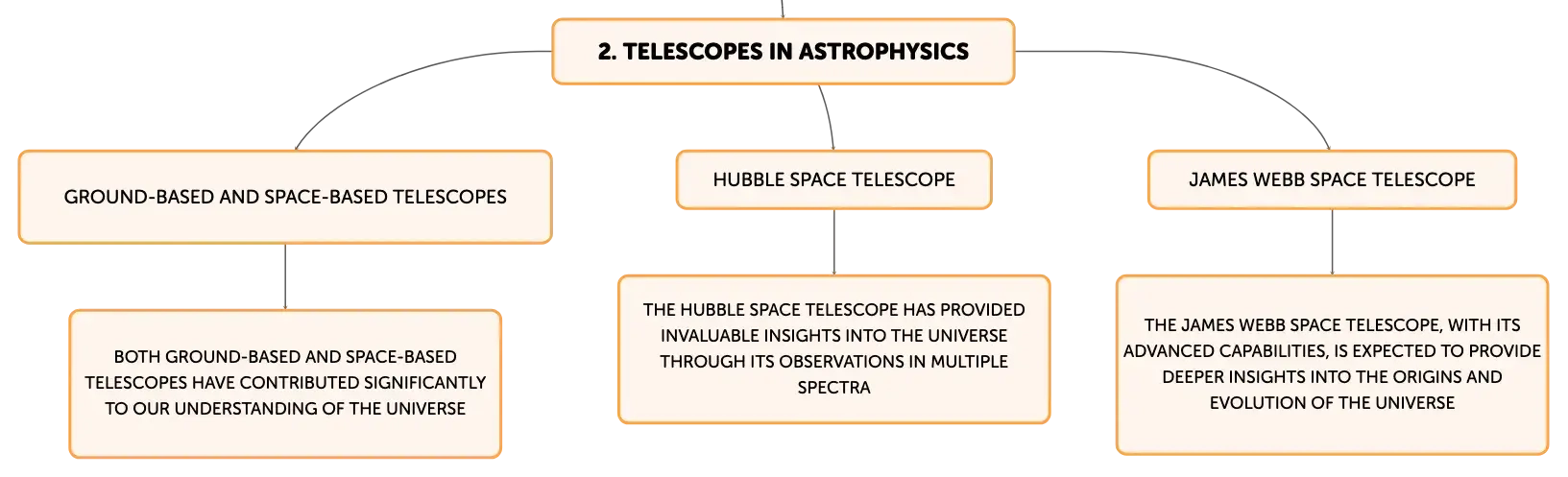

Telescopes in Astrophysics

Ground-based and Space-based Telescopes

Hubble Space Telescope

James Webb Space Telescope

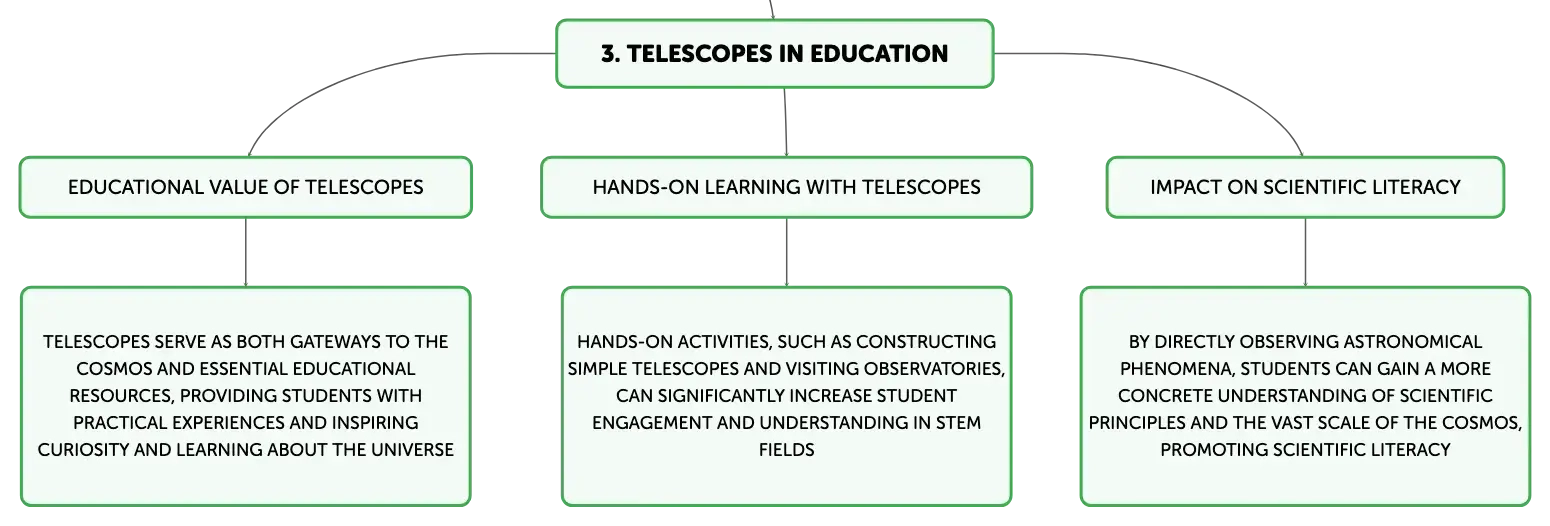

Telescopes in Education
