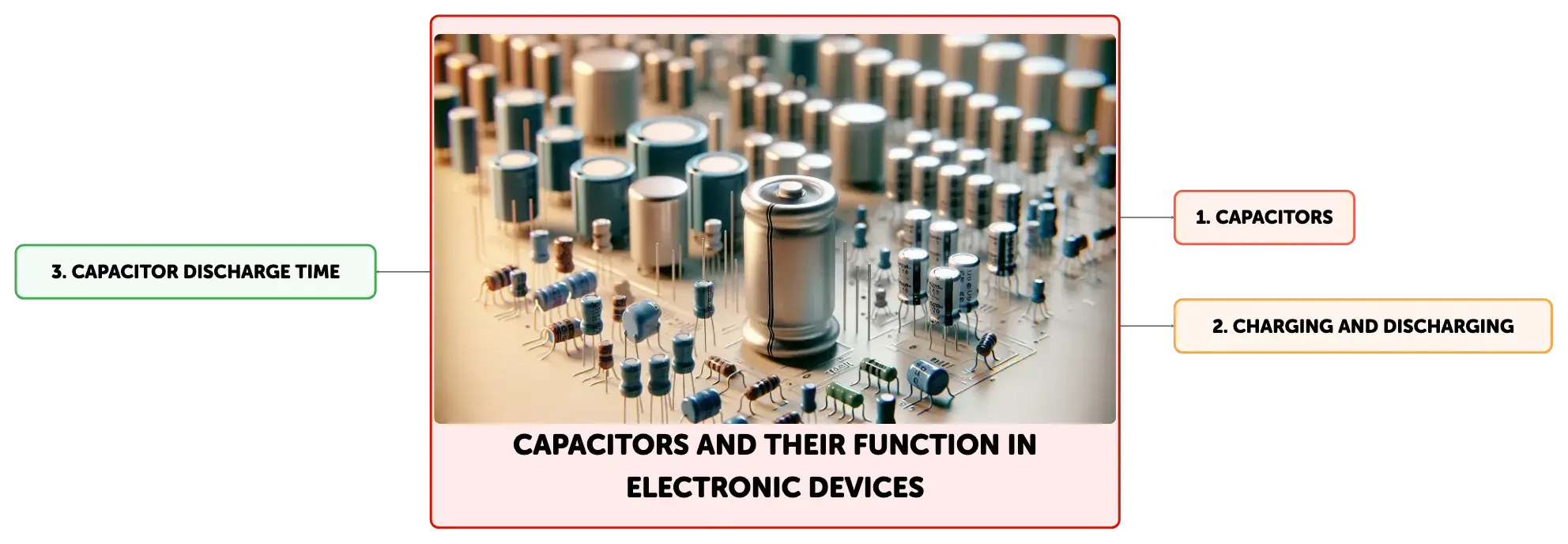

Capacitors and their Function in Electronic Devices

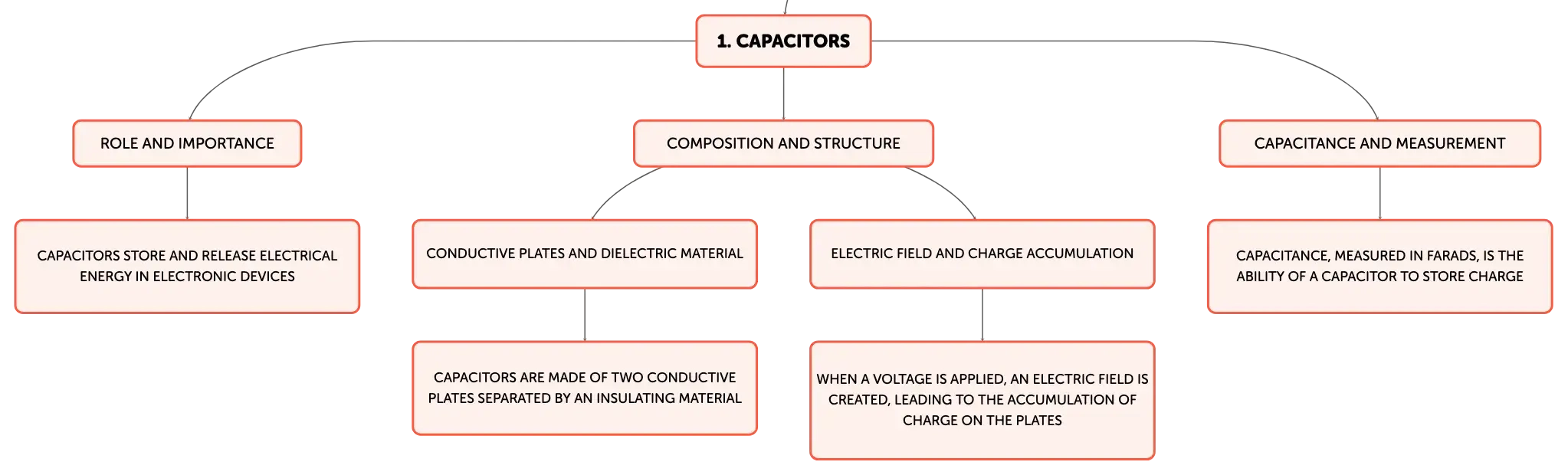

Fundamentals of Capacitor Function and Capacitance

Capacitors are essential components in a wide array of electronic devices, including but not limited to pacemakers, mobile phones, and computers. Their primary role is to store electrical energy and release it when the circuit requires it. Capacitance, the measure of a capacitor's ability to store charge, is expressed in farads (F). A typical capacitor is composed of two conductive plates separated by a dielectric material, which is an insulator. When a voltage is applied across the plates, an electric field is created, leading to the accumulation of negative charge on one plate and an equivalent positive charge on the other, thus storing energy in the electric field.

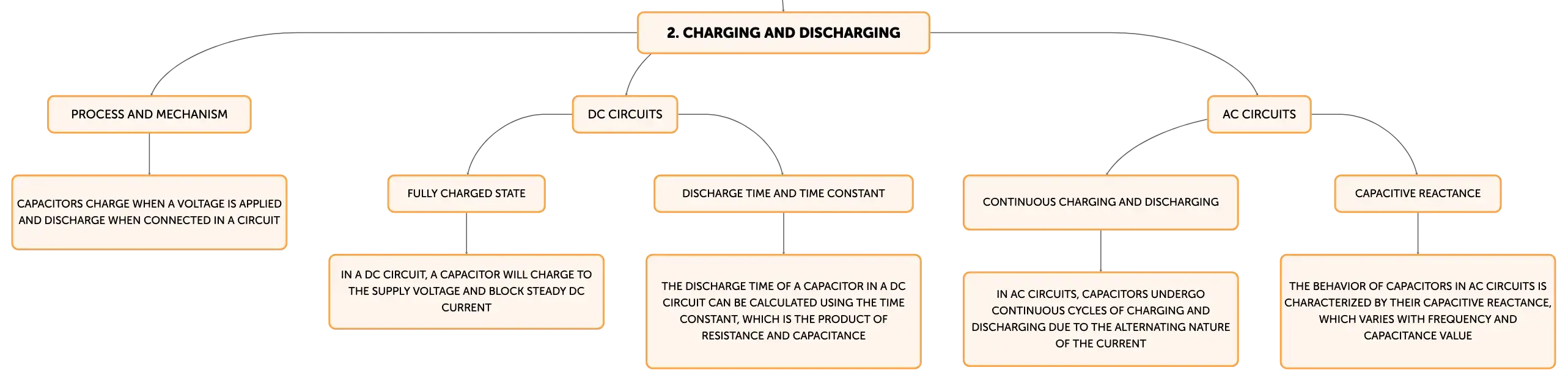

Dynamics of Capacitor Charging and Discharging

The charging of a capacitor occurs when a voltage is applied, causing a potential difference to develop across the plates. This potential difference leads to the accumulation of charge, with one plate holding an excess of electrons (negative charge) and the other plate having a deficit (positive charge). Discharging happens when the capacitor is connected in a circuit, allowing the stored charge to flow from the negatively charged plate to the positively charged plate, thus providing current to the circuit. The discharge continues until the potential difference is neutralized, indicating that the capacitor has released its stored energy.

Capacitor Behavior in Direct Current (DC) Circuits

In a DC circuit, a capacitor will charge to the supply voltage and then maintain that charge, effectively blocking any steady DC current. Over time, the voltage across the capacitor will match the supply voltage, and the current flow will cease, indicating a fully charged state. If the circuit is then opened or the capacitor is connected to a load, it will discharge. The presence of a resistor in series with the capacitor will affect the rate of charging and discharging, described by an exponential curve. The time constant (τ), which defines the rate at which the voltage changes, is the product of the resistance (R) and the capacitance (C) in the circuit.

Capacitor Function in Alternating Current (AC) Circuits

In AC circuits, capacitors exhibit a continuous cycle of charging and discharging due to the alternating nature of the current. The current leads the voltage by 90 degrees in phase, which means that the current reaches its peak one-quarter cycle before the voltage does. This phase shift causes the capacitor to charge during one half of the AC cycle and discharge during the other half. The capacitor's behavior in an AC circuit is characterized by its capacitive reactance, which varies inversely with the frequency of the AC signal and the capacitance value.

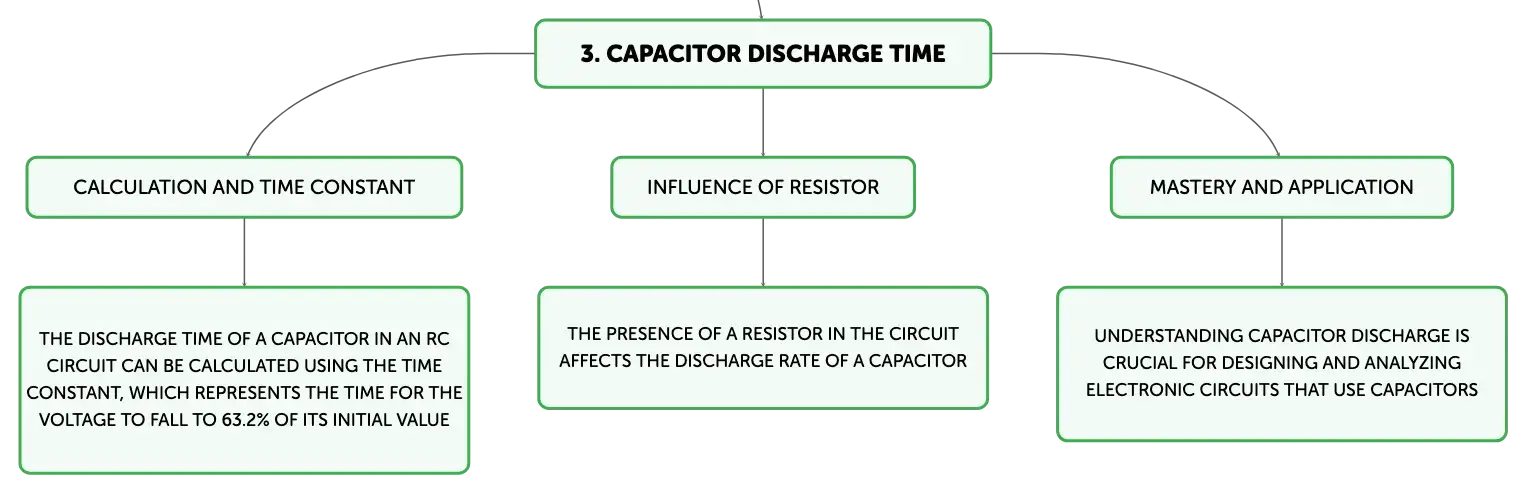

Calculating Capacitor Discharge Time in RC Circuits

The discharge time of a capacitor in a circuit with a resistor (an RC circuit) can be calculated using the time constant τ = R * C. The time constant represents the time required for the voltage across the capacitor to fall to approximately 63.2% of its initial value. The discharge time to near zero voltage is often approximated as five times the time constant (5τ). For instance, with a 100-ohm resistor and a 0.02-farad capacitor, the time constant is 2 seconds, and the capacitor would discharge to near zero voltage in about 10 seconds.

Key Insights into Capacitor Discharge

Understanding capacitor discharge is crucial for grasping their function in both DC and AC circuits. In DC circuits, the capacitor transitions from a charged state to a steady discharged state, blocking steady-state current. In AC circuits, capacitors undergo continuous charging and discharging cycles, with a phase difference between current and voltage. The inclusion of a resistor in the circuit influences the discharge rate, making the calculation of discharge time possible. Mastery of these concepts is essential for the effective design and analysis of electronic circuits that incorporate capacitors.
