JavaScript Bitwise Operators

JavaScript Bitwise Operators are essential for manipulating 32-bit integers at the bit level. They include logical operators like AND, OR, XOR, and NOT, as well as shift operators such as the Left Shift and Right Shift. These tools are crucial for tasks requiring binary manipulation, including systems programming and cryptographic functions. Understanding their syntax and binary arithmetic is key to leveraging their capabilities for optimized code performance.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Bitwise operations in JavaScript, like AND (&), OR (|), and XOR (^), act on ______-bit integers.

Click to check the answer

32

2

Binary Arithmetic Basics

Click to check the answer

Understanding binary arithmetic is crucial for using Bitwise Operators; involves operations on 0s and 1s.

3

Bitwise AND Operator (&) Function

Click to check the answer

Compares each bit of two numbers; sets result bit to 1 if both compared bits are 1.

4

Bitwise OR Operator (|) Usage

Click to check the answer

Compares each bit of two numbers; sets result bit to 1 if at least one compared bit is 1.

5

The Bitwise Right Shift Operator () and Zero-Fill Right Shift Operator () are used for ______, ______, and efficient arithmetic operations.

Click to check the answer

bit masks flags

6

Bitwise AND example

Click to check the answer

a & b
applies Bitwise AND to variables
a
and
b
, performing binary AND on each bit pair.

7

Binary representation of negative numbers

Click to check the answer

Negative numbers are stored in two's complement format, inverting all bits and adding one to the result.

8

Effect of Bitwise NOT Operator

Click to check the answer

Bitwise NOT (

~
) inverts all bits, including the sign bit, which can turn positive numbers to negative and vice versa.

9

The ______ Operator in JavaScript can greatly alter a number's value by shifting its binary representation.

Click to check the answer

Bitwise Left Shift

10

Using the ______ Operator on a positive number in JavaScript can result in a negative number.

Click to check the answer

Bitwise NOT

11

JavaScript Logical Bitwise Operators

Click to check the answer

AND (&), OR (|), NOT (~) - perform Boolean algebra on 32-bit integers' bits.

12

JavaScript Shift Bitwise Operators

Click to check the answer

Left Shift (<<) - shifts bits to the left, changing the integer's value.

13

Implications of Bitwise Operations

Click to check the answer

Binary representation understanding is vital; operations can alter integers' sign and magnitude.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Understanding Processor Cores

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

The Importance of Bits in the Digital World

View document

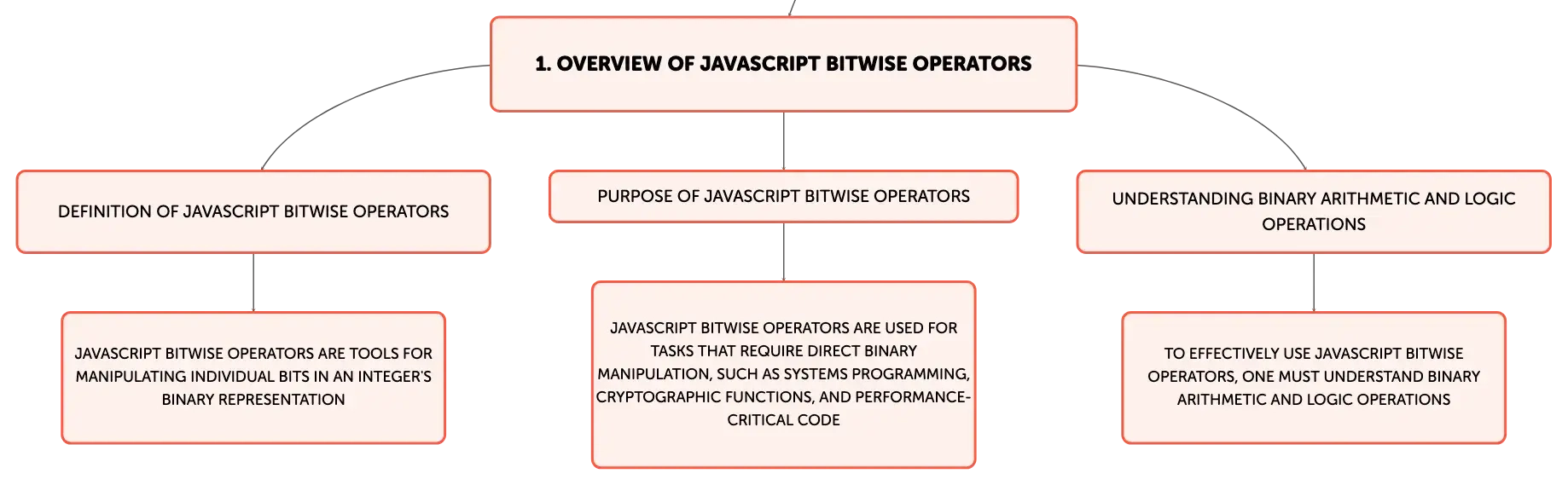

Exploring JavaScript Bitwise Operators

JavaScript Bitwise Operators are a set of tools that allow manipulation of individual bits within an integer's binary representation. These operators, which include AND (&), OR (|), XOR (^), and NOT (~), perform logical operations on 32-bit integers at the bit level. While their use is less common in high-level JavaScript programming, they are crucial for tasks that require direct binary manipulation, such as systems programming, cryptographic functions, and performance-critical code where arithmetic operations can be optimized through bit-level logic.
Close-up of modern laptop keyboard in QWERTY layout, matte black keys on light wooden desk, emphasis on texture and minimalist design.

Fundamentals of Bitwise Operators in JavaScript

To effectively utilize JavaScript Bitwise Operators, one must understand binary arithmetic and logic operations. These operators interpret their operands as a sequence of 32 bits, regardless of whether the input is a number, string, or other data types, and always return a numerical result. For instance, the Bitwise AND Operator (&) compares each corresponding bit of two numbers and sets the resulting bit to 1 if both bits are 1. The Bitwise OR Operator (|) sets the bit to 1 if at least one of the bits is 1. The Bitwise NOT Operator (~) inverts each bit, turning 0s into 1s and vice versa.

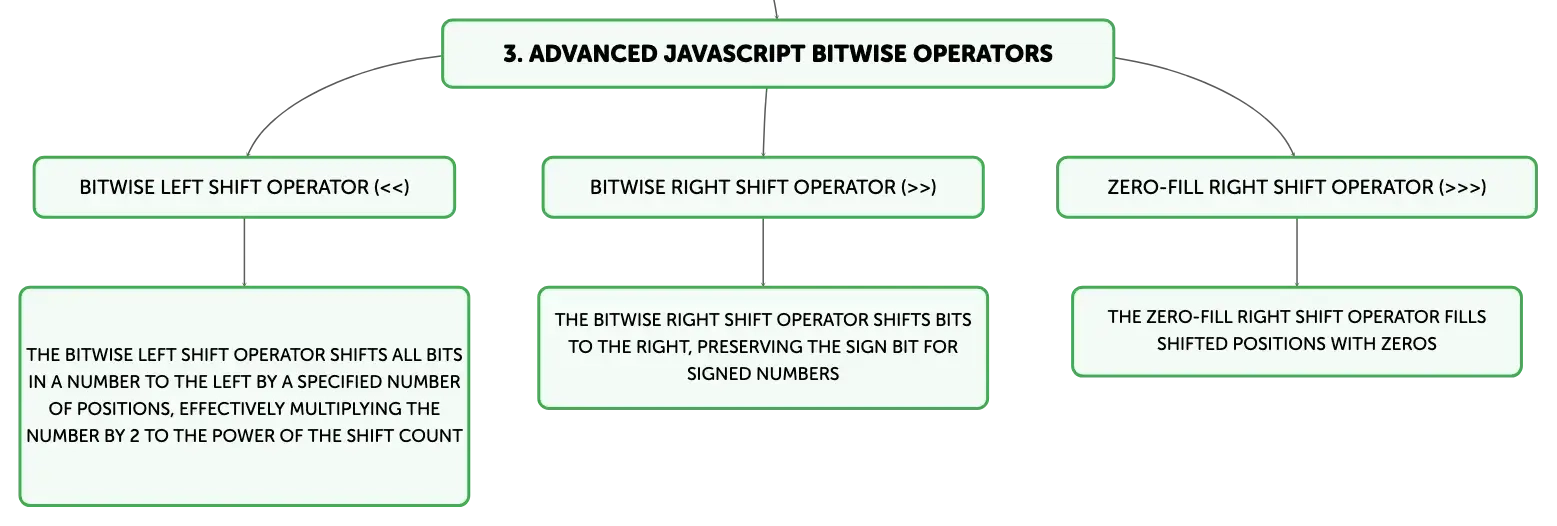

Advanced Bitwise Operators and Their Applications

Beyond the basic operators, JavaScript provides advanced bitwise operators such as the Bitwise Left Shift Operator (<

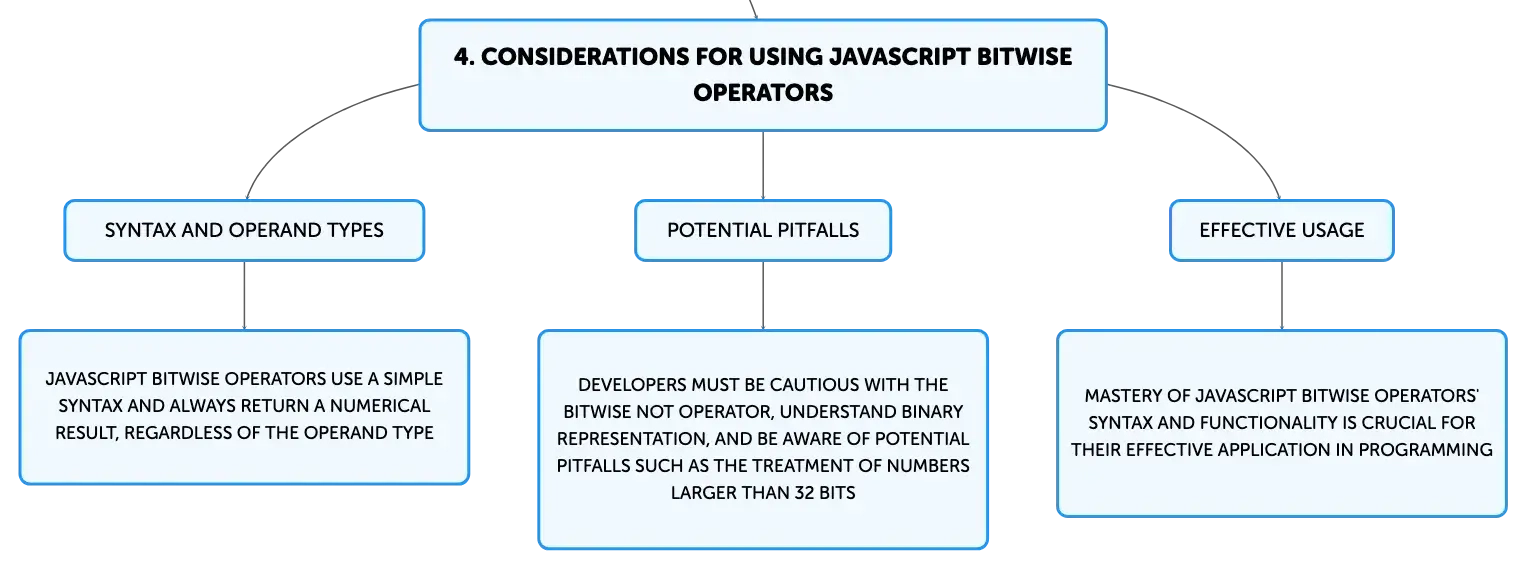

Syntax and Guidelines for Using Bitwise Operators

The syntax for using JavaScript Bitwise Operators is simple, involving an operator and one or two operands. For example, the expression `a & b` applies the Bitwise AND to the variables `a` and `b`. It is important to understand the binary representation of the operands, especially when dealing with negative numbers, which are stored in two's complement format. Developers must also be cautious with the Bitwise NOT Operator, which can yield negative numbers due to the inversion of the sign bit. Proper usage of these operators is essential to avoid unexpected results and to ensure that the code is readable and maintainable.

Navigating the Challenges of Bitwise Operations

While powerful, JavaScript Bitwise Operators can be challenging due to their operation at the binary level. For example, the Bitwise Left Shift Operator can significantly change a number's value, and the Bitwise NOT Operator can convert a positive number to a negative one. To use these operators effectively, developers should have a thorough understanding of binary arithmetic and be aware of potential pitfalls, such as the JavaScript engine's treatment of numbers larger than 32 bits and the effects of shifting bits beyond the size of the integer. Careful consideration and testing are advised to ensure that bitwise operations behave as intended.

Key Insights on JavaScript Bitwise Operators

In conclusion, JavaScript Bitwise Operators are categorized into logical, shift, and unary operators, each serving a specific purpose in manipulating 32-bit integers at the bit level. Logical operators like AND (&) and OR (|) perform Boolean algebra, while the NOT (~) operator inverts bits, affecting the sign of the number. Shift operators, including the Left Shift (<
