Drag Force and its Applications

Concept Map

Exploring drag force in fluid dynamics reveals its crucial role in resisting the motion of objects through fluids. This force is influenced by velocity, fluid density, viscosity, and object shape. It's vital in aerospace and automotive engineering for designing vehicles and structures to optimize performance and energy efficiency. The text delves into aviation drag categories, everyday examples, and the mathematical equations used to calculate drag, including the drag equation and Stokes's Law.

Summary

Outline

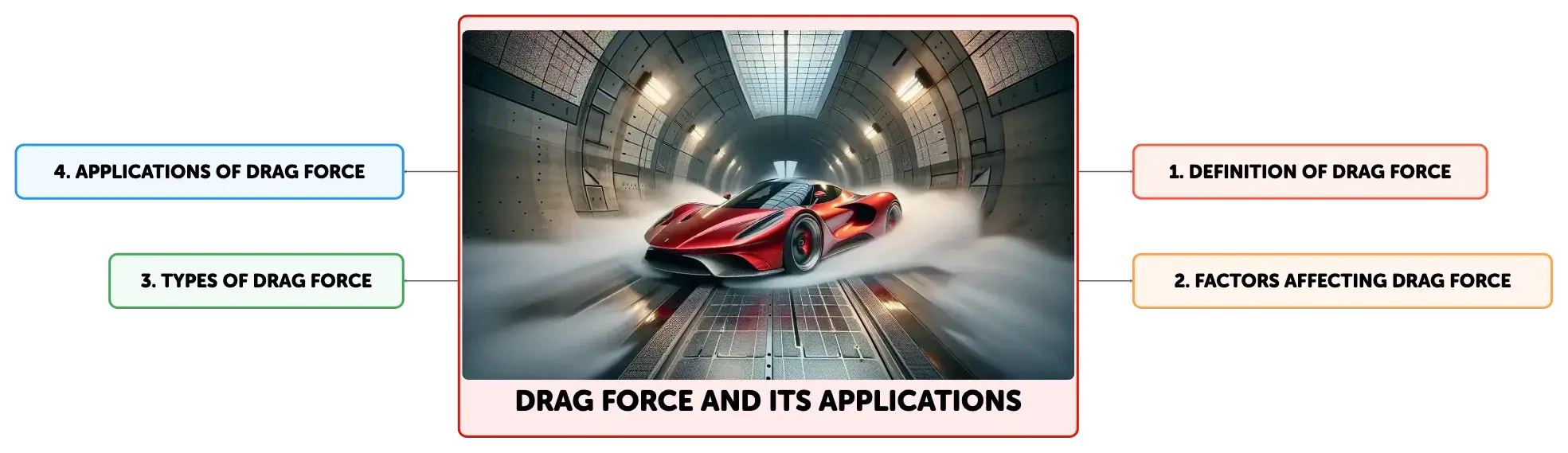

Drag Force and its Applications

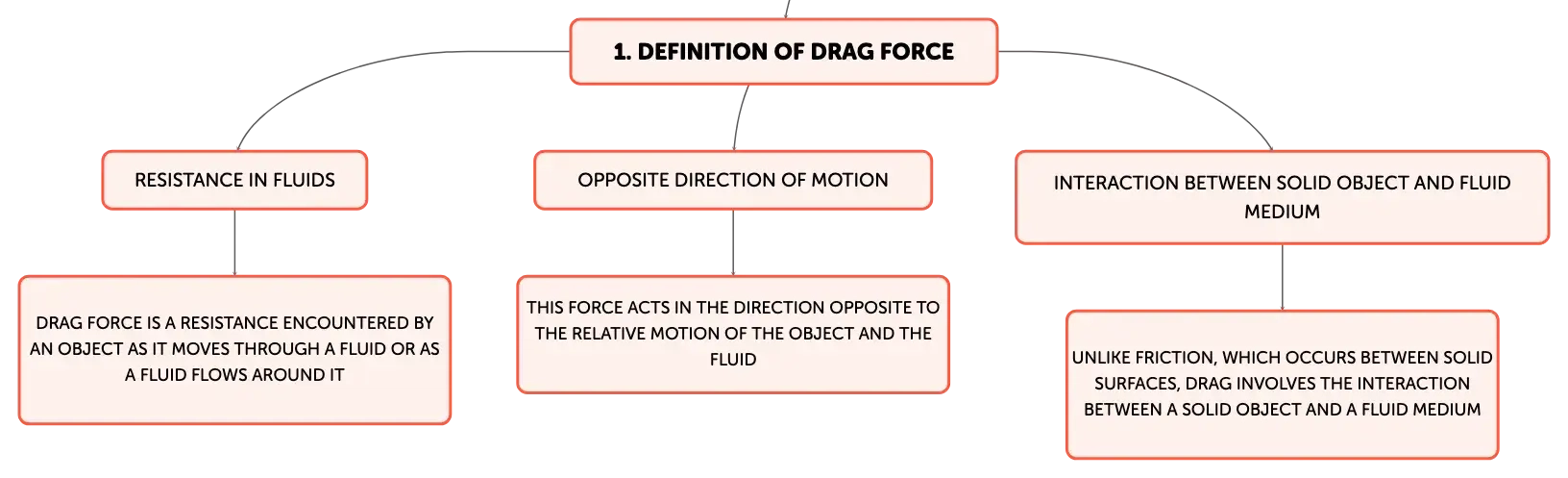

Definition of Drag Force

Resistance in Fluids

Drag force is a resistance encountered by an object as it moves through a fluid or as a fluid flows around it

Opposite Direction of Motion

This force acts in the direction opposite to the relative motion of the object and the fluid

Interaction between Solid Object and Fluid Medium

Unlike friction, which occurs between solid surfaces, drag involves the interaction between a solid object and a fluid medium

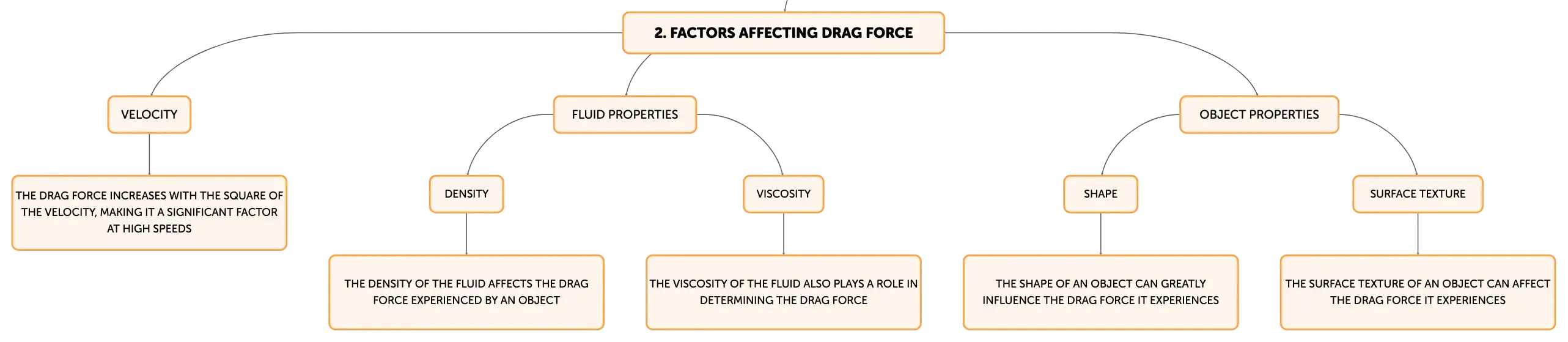

Factors Affecting Drag Force

Velocity

The drag force increases with the square of the velocity, making it a significant factor at high speeds

Fluid Properties

Density

The density of the fluid affects the drag force experienced by an object

Viscosity

The viscosity of the fluid also plays a role in determining the drag force

Object Properties

Shape

The shape of an object can greatly influence the drag force it experiences

Surface Texture

The surface texture of an object can affect the drag force it experiences

Types of Drag Force

Parasitic Drag

Parasitic drag is caused by the shape and texture of the aircraft

Induced Drag

Induced drag is related to the generation of lift and increases with a higher angle of attack

Interference Drag

Interference drag occurs when varying airstreams interact

Wave Drag

Wave drag arises at speeds approaching or exceeding the speed of sound

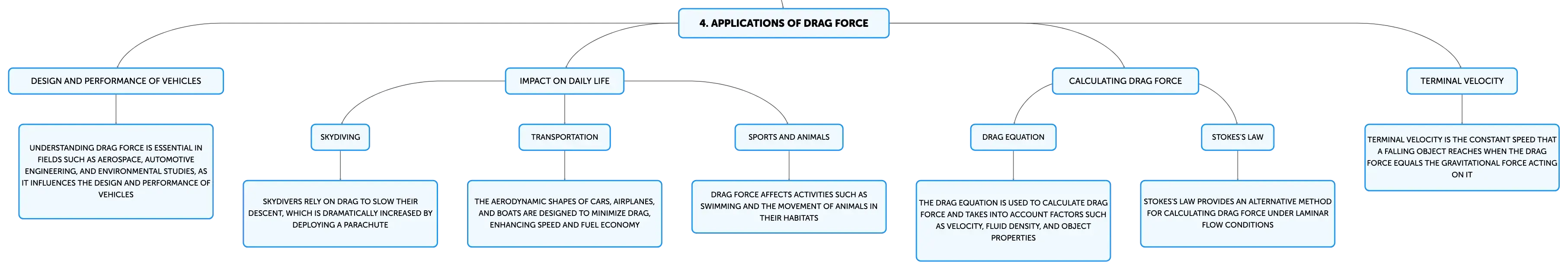

Applications of Drag Force

Design and Performance of Vehicles

Understanding drag force is essential in fields such as aerospace, automotive engineering, and environmental studies, as it influences the design and performance of vehicles

Impact on Daily Life

Skydiving

Skydivers rely on drag to slow their descent, which is dramatically increased by deploying a parachute

Transportation

The aerodynamic shapes of cars, airplanes, and boats are designed to minimize drag, enhancing speed and fuel economy

Sports and Animals

Drag force affects activities such as swimming and the movement of animals in their habitats

Calculating Drag Force

Drag Equation

The drag equation is used to calculate drag force and takes into account factors such as velocity, fluid density, and object properties

Stokes's Law

Stokes's Law provides an alternative method for calculating drag force under laminar flow conditions

Terminal Velocity

Terminal velocity is the constant speed that a falling object reaches when the drag force equals the gravitational force acting on it

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In fields like ______, ______, and ______, comprehending drag force is crucial because it impacts the design and efficiency of various structures and vehicles.

aerospace

automotive engineering

environmental studies

Direction of drag force

Opposite to relative motion of object through fluid

Velocity's effect on drag force

Increases with square of velocity, significant at high speeds

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Laboratory laser apparatus with red coherent beam passing through multiple transparent lenses, demonstrating parallel light propagation in a scientific setting.

Parallel Beams in Physics

$Optical bench setup with a large convex lens and a concave mirror demonstrating light refraction and reflection in a physics lab.$

Optical Aberrations

Modern laboratory with high-precision scale and reflective surface under a bright light, scientist with clipboard in background, and assorted scientific equipment.

Radiation Pressure

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Categories of Drag Force in Aviation

In aviation, drag force is categorized into several types, each affecting aircraft performance differently. Parasitic drag, which includes form drag and skin friction drag, is caused by the shape and texture of the aircraft. Induced drag is related to the generation of lift and increases with a higher angle of attack. Interference drag occurs when varying airstreams interact, and wave drag arises at speeds approaching or exceeding the speed of sound. Understanding these types of drag is crucial for the aerodynamic design of aircraft to achieve optimal performance and fuel efficiency.

Everyday Encounters with Drag Force

Drag force is a part of daily life, influencing activities and designs across various domains. Skydivers rely on drag to slow their descent, which is dramatically increased by deploying a parachute. The aerodynamic shapes of cars, airplanes, and boats are designed to minimize drag, enhancing speed and fuel economy. Swimmers experience drag in water, and techniques to reduce it include streamlined body positions and specialized swimsuits. Animals, such as flying squirrels, utilize drag to glide through the air, and kites depend on drag for stability and lift. These examples underscore the pervasive impact of drag force on motion in fluids.

Calculating Drag Force: The Drag Equation

The drag force experienced by an object moving through a fluid can be calculated using the drag equation: $D = \frac{1}{2} C_d \rho A v^2$, where $D$ is the drag force, $C_d$ is the drag coefficient, $\rho$ is the fluid density, $A$ is the reference area (projected area of the object), and $v$ is the relative velocity between the object and the fluid. The drag coefficient is a dimensionless number that encapsulates the effects of shape, surface roughness, and flow conditions. Accurate application of this equation requires careful consideration of these variables and their appropriate units.

Stokes's Law for Laminar Flow Conditions

Stokes's Law provides an alternative method for calculating drag force under laminar flow conditions, typically applicable to small objects or low velocities. The law is given by $F_d = 6\pi \mu r v$, where $F_d$ is the drag force, $\mu$ is the dynamic viscosity of the fluid, $r$ is the radius of the spherical object, and $v$ is the velocity of the object relative to the fluid. This linear relationship between drag force and velocity contrasts with the quadratic relationship found in the drag equation for turbulent flow, highlighting the importance of flow regime in determining drag.

Terminal Velocity: The Balance of Forces

Terminal velocity is the constant speed that a falling object reaches when the drag force equals the gravitational force acting on it. As an object falls, it accelerates until the increasing drag force counteracts the acceleration due to gravity. At terminal velocity, the net force is zero, and the object descends at a steady rate. This concept is vital for understanding the behavior of falling objects and is considered in the design of parachutes and other devices intended to control descent.

Practical Application of the Drag Force Equation

Applying the drag force equation to real-world scenarios requires an understanding of the involved variables. For instance, calculating the drag on a falling box involves determining its effective cross-sectional area, the air density, and the drag coefficient. By substituting these values into the drag equation, one can compute the drag force in newtons. This practical application demonstrates how the principles of drag force are integral to predicting and analyzing the motion of objects through fluids, providing valuable insights for design and engineering.
