Spherical Mirrors

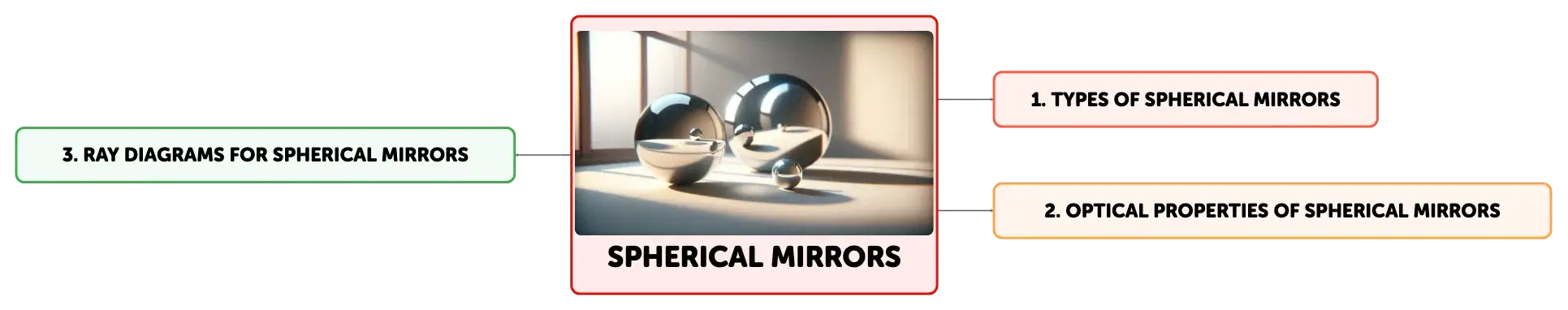

Concept Map
Spherical mirrors, integral to optics, come in concave and convex forms, each with distinct functions. Concave mirrors focus light to create real or virtual images, useful in telescopes and magnifying tools. Convex mirrors diverge light, providing a wider field of view for safety in vehicles and public spaces. Understanding their properties is crucial for designing optical systems and predicting image formation.
Summary
Outline
Exploring the Fundamentals of Spherical Mirrors
Spherical mirrors are a fundamental topic in optics, consisting of mirrors with surfaces that form part of a sphere. These mirrors come in two types: concave, which have a reflective surface that curves inward like a cave, and convex, with a surface that bulges outward. Concave mirrors, also known as converging mirrors, can focus parallel rays of light to a point known as the focal point. In contrast, convex mirrors, or diverging mirrors, cause parallel rays to spread apart as if they are emanating from a point behind the mirror, providing an expanded field of view. The principles governing these mirrors are encapsulated in the spherical mirror equation, which relates the focal length (f), the object distance (d_o), and the image distance (d_i). This equation is vital for predicting how images are formed by spherical mirrors.Diverse Functions of Concave and Convex Spherical Mirrors
The distinct optical properties of concave and convex spherical mirrors lead to their varied applications. Concave mirrors can produce real images, where light actually converges, or virtual images, which appear to be located behind the mirror when the object is within the focal length. These mirrors are often used in applications that require magnified views, such as in shaving or makeup mirrors, and in scientific apparatus like reflecting telescopes. Convex mirrors, which always create virtual, reduced, and upright images, are ideal for situations where a larger field of vision is beneficial, such as in vehicle side mirrors and security cameras. A thorough understanding of each mirror type's optical behavior is essential for their effective use in these and other applications.The Spherical Mirror Equation and Its Role in Image Prediction
The spherical mirror equation is a critical component of optical science, formulated as 1/f = 1/d_o + 1/d_i, where f represents the focal length, d_o the object distance, and d_i the image distance. This relationship is instrumental in determining the characteristics of the image produced by a spherical mirror. Sign conventions are important when applying this equation: distances measured in the direction of incoming light (towards the mirror) are positive, while those measured in the direction of reflected light (away from the mirror) are negative. Mastery of this equation is necessary for the design and analysis of optical systems, as it allows for precise calculations of focal lengths and the nature of the images formed.Ray Diagrams: Visualizing the Path of Light
Ray diagrams are invaluable graphical tools that depict the path of light as it reflects off spherical mirrors, illustrating the formation of images. These diagrams include the principal axis, the focal point, and characteristic rays such as the parallel ray (which reflects through the focal point), the focal ray (which reflects parallel to the principal axis), and the center ray (which reflects back on itself). By systematically drawing these rays, one can deduce the position, size, and orientation of the image relative to the object. Ray diagrams are indispensable for students and professionals alike, as they provide a clear visual representation of the principles of reflection and the behavior of light in optical systems.The Wide-Ranging Applications of Spherical Mirrors
Spherical mirrors are utilized in a multitude of practical applications due to their unique light-manipulating capabilities. Concave mirrors are employed in optical instruments that require the convergence of light, such as in searchlights and solar furnaces, or where magnified images are needed, like in ophthalmoscopes and head mirrors used by ENT doctors. Convex mirrors are used to provide an expansive field of vision in public spaces for safety and surveillance, as well as in hallways and driveways to avoid collisions. The principles governing spherical mirrors are not only academically significant but also have practical implications in engineering, medicine, and safety, among other fields.Concluding Insights on Spherical Mirrors
To conclude, spherical mirrors are classified into concave and convex types, each with their own set of optical characteristics and practical uses. Concave mirrors focus light, whereas convex mirrors diverge it. The spherical mirror equation is a cornerstone of optical science, enabling the calculation of focal lengths and the prediction of image characteristics. Ray diagrams provide a visual framework for understanding light reflection and interaction with mirrors. The study of spherical mirrors is a foundational aspect of physics and is integral to a wide array of practical applications in diverse industries.
Show More

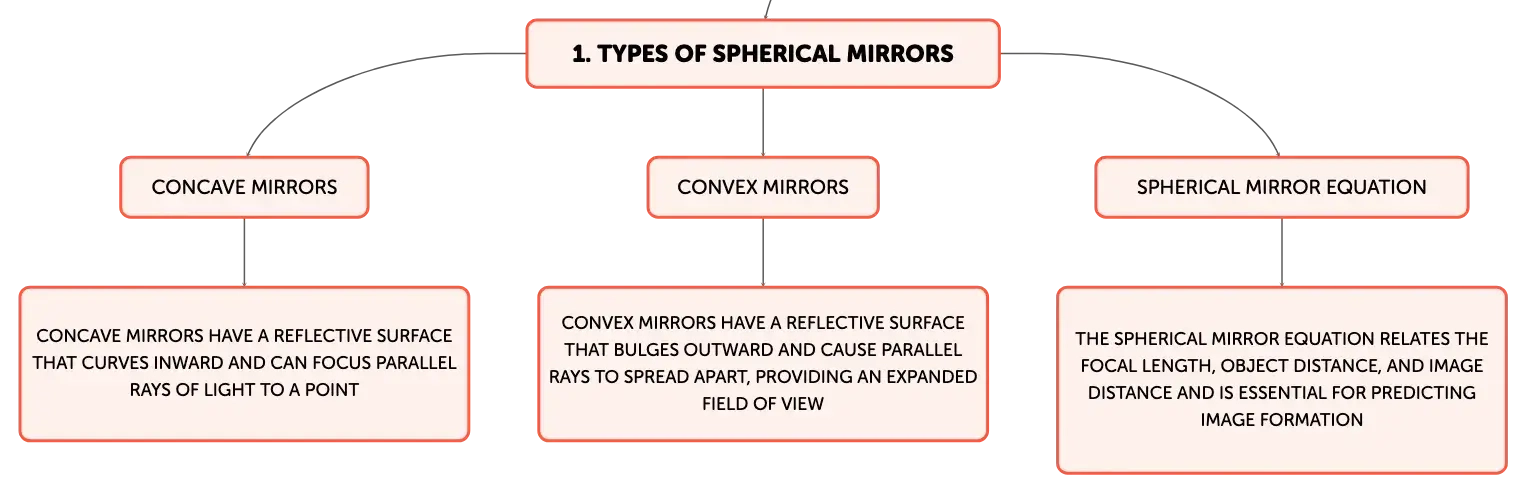

Types of Spherical Mirrors
Concave Mirrors
Concave mirrors have a reflective surface that curves inward and can focus parallel rays of light to a point
Convex Mirrors
Convex mirrors have a reflective surface that bulges outward and cause parallel rays to spread apart, providing an expanded field of view
Spherical Mirror Equation
The spherical mirror equation relates the focal length, object distance, and image distance and is essential for predicting image formation

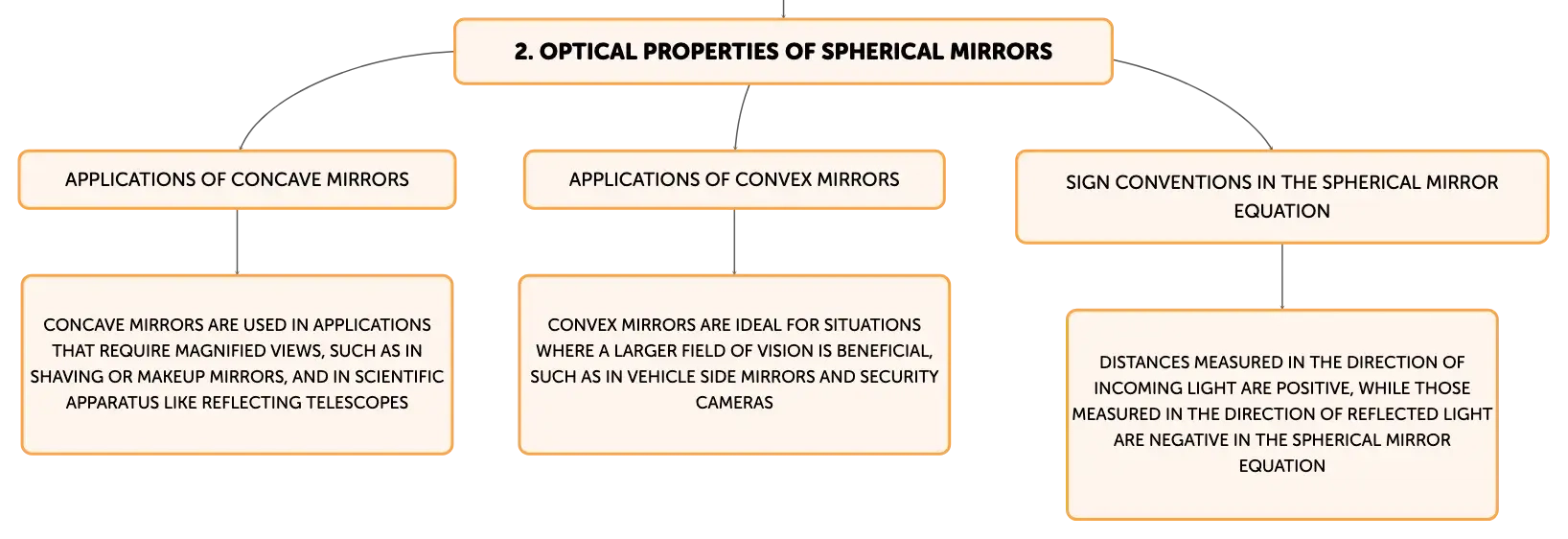

Optical Properties of Spherical Mirrors
Applications of Concave Mirrors
Concave mirrors are used in applications that require magnified views, such as in shaving or makeup mirrors, and in scientific apparatus like reflecting telescopes
Applications of Convex Mirrors
Convex mirrors are ideal for situations where a larger field of vision is beneficial, such as in vehicle side mirrors and security cameras
Sign Conventions in the Spherical Mirror Equation
Distances measured in the direction of incoming light are positive, while those measured in the direction of reflected light are negative in the spherical mirror equation

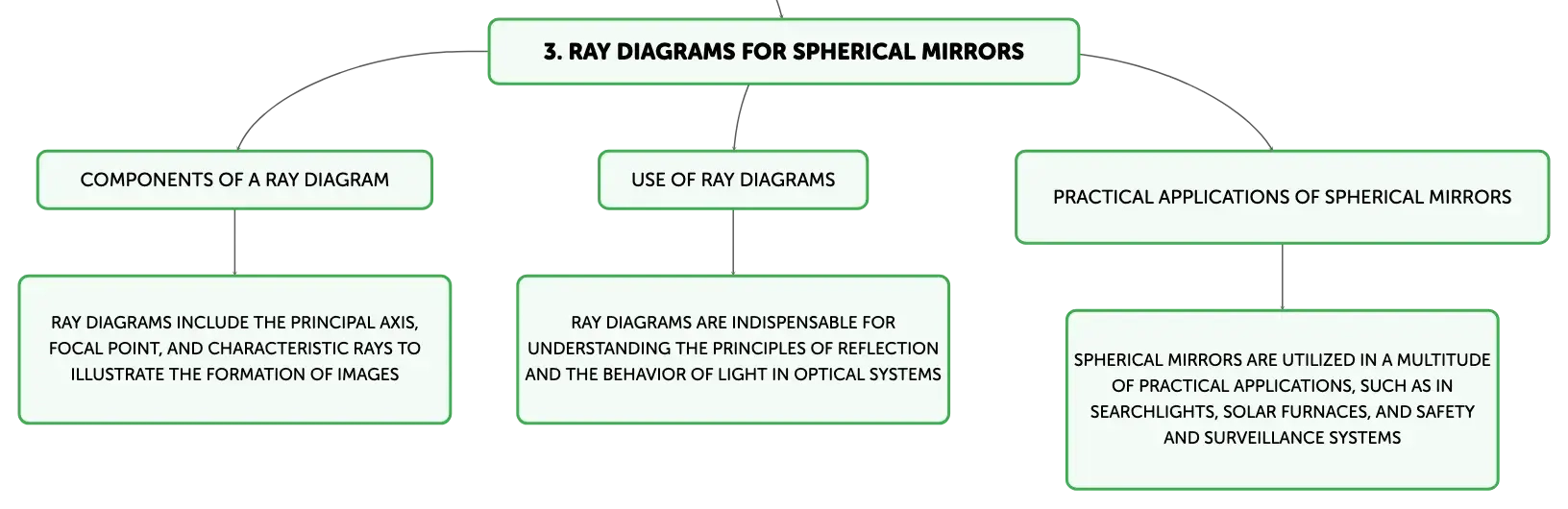

Ray Diagrams for Spherical Mirrors
Components of a Ray Diagram
Ray diagrams include the principal axis, focal point, and characteristic rays to illustrate the formation of images
Use of Ray Diagrams
Ray diagrams are indispensable for understanding the principles of reflection and the behavior of light in optical systems
Practical Applications of Spherical Mirrors
Spherical mirrors are utilized in a multitude of practical applications, such as in searchlights, solar furnaces, and safety and surveillance systems
Spherical Mirrors
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In the study of ______, spherical mirrors are essential, featuring surfaces that are segments of a sphere.
optics
01
The ______ mirror equation is crucial for forecasting image formation and connects the focal length (f), object distance (d_o), and image distance (d_i).
spherical
02
Concave mirror real image conditions
Produces real images when object is beyond focal length; light converges.
