The XNOR Gate: A Fundamental Element in Digital Electronics and Computer Science

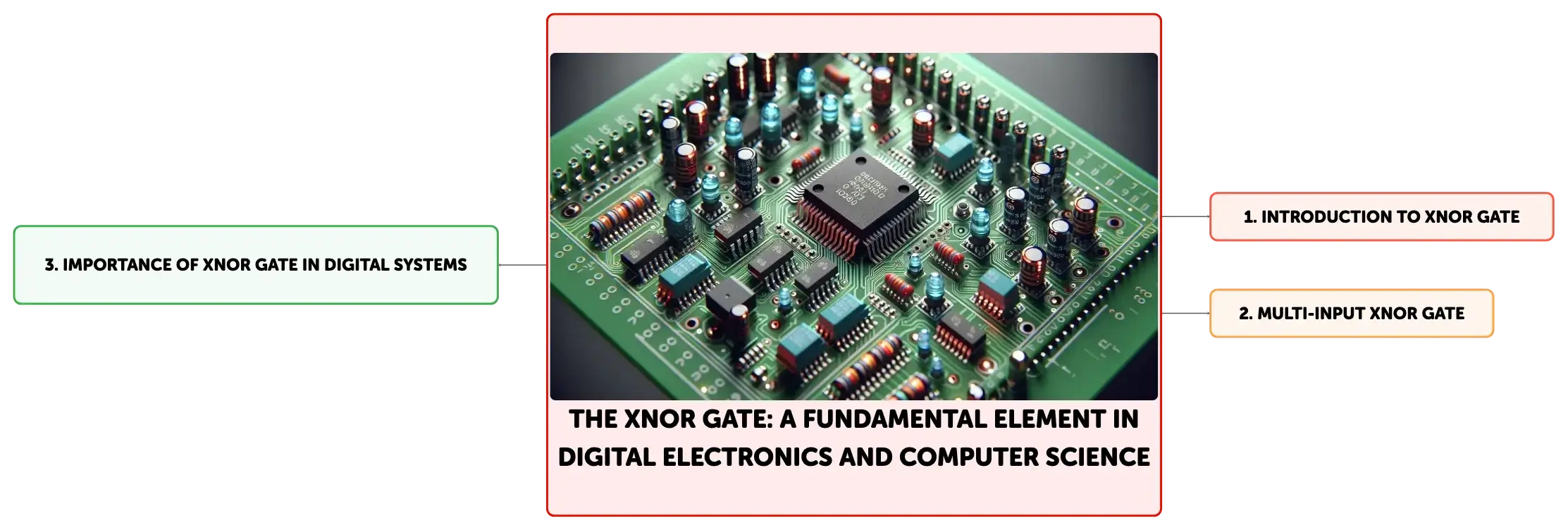

Concept Map
The XNOR gate, also known as the exclusive NOR or equivalence gate, is a digital logic gate that outputs '1' when inputs are equal. It is crucial for parity checking and data comparison in digital circuits. The gate's operation is defined by the Boolean expression A·B + ¬A·¬B, integrating NOT, AND, and OR operations. Its truth table and applications in digital systems highlight its importance in computing and digital logic design.
Summary
Outline
Exploring the Fundamentals of the XNOR Gate
The XNOR gate, often referred to as the exclusive NOR or equivalence gate, is a fundamental element in digital electronics and computer science. It is a type of digital logic gate that outputs a high level, or '1', when the inputs are equal, meaning either all true or all false. This behavior sets the XNOR gate apart from other logic gates. The name 'XNOR' is derived from the XOR (exclusive OR) gate, with the 'N' signifying negation, indicating that the XNOR gate's output is the complement of the XOR gate's output. The XNOR gate is essential in digital circuits that perform functions such as parity checking and data comparison, underscoring its significance in digital systems.Operational Mechanics of the XNOR Gate
The operation of the XNOR gate can be understood through its Boolean expression \( \overline{A \oplus B} \) or \( A \cdot B + \overline{A} \cdot \overline{B} \), where \( A \) and \( B \) are the inputs, \( \overline{A} \) and \( \overline{B} \) are their negations, \( \cdot \) denotes the AND operation, and \( + \) represents the OR operation. The truth table for the XNOR gate reveals that the output is high ('1') when both inputs are the same, which can be either both 0 or both 1. In programming terms, the output is '1' if the inputs A and B are equal, and '0' if they are not, reflecting the gate's equivalence function.Analyzing the XNOR Gate Truth Table
The truth table is an indispensable tool for analyzing the behavior of logic gates, including the XNOR gate. It enumerates all possible input combinations and their corresponding outputs. For the XNOR gate, the truth table shows that the output is high ('1') when the inputs match. This property affirms the gate's role as an equivalence function, outputting '1' when the inputs are equal, whether both are high ('1') or both are low ('0').Expanding to Multi-Input XNOR Gates
While the standard discussion focuses on a 2-input XNOR gate, the concept can be extended to gates with multiple inputs, such as a 3-input XNOR gate. The underlying rule remains that the output is high ('1') when there is an even number of high inputs. The truth table for a 3-input XNOR gate illustrates this principle, showing that the output is '1' when there are zero or two '1' inputs, which maintains the requirement for an even number of true values for a high output.Practical Uses of the XNOR Gate in Digital Systems
XNOR gates play a critical role in digital systems, particularly in the design of parity generators and checkers, which are vital for error detection in data transmission and storage. They are also employed in digital circuits that require comparison and equality operations. For example, an XNOR gate can be used to determine if there is an even number of TRUE values in a set of boolean variables, similar to parity checking. This application exemplifies the XNOR gate's practicality in computing, where it serves as a basic yet essential component in various digital processes.Concluding Insights on the XNOR Gate
In conclusion, the XNOR gate is a key concept in digital logic, acting as a foundational element for more complex electronic systems and circuits. It is distinctive in that it produces a true output only when the inputs are equal, and its function is the inverse of the XOR gate. The gate's behavior is captured by the Boolean expression \( A \cdot B + \overline{A} \cdot \overline{B} \), which integrates NOT, AND, and OR operations. The truth table for the XNOR gate confirms its identity as an equivalence function, and its applications are extensive, from parity checking to comparison operations in digital systems. Mastery of the XNOR gate is crucial for those studying computer science and digital logic design.
Show More
Introduction to XNOR Gate
Definition of XNOR Gate
The XNOR gate is a type of digital logic gate that outputs a high level when the inputs are equal
Distinction from Other Logic Gates
Comparison to XOR Gate
The XNOR gate's output is the complement of the XOR gate's output
Significance in Digital Systems
The XNOR gate is essential in digital circuits that perform functions such as parity checking and data comparison
Boolean Expression and Truth Table
The operation of the XNOR gate can be understood through its Boolean expression and truth table, which show its behavior as an equivalence function

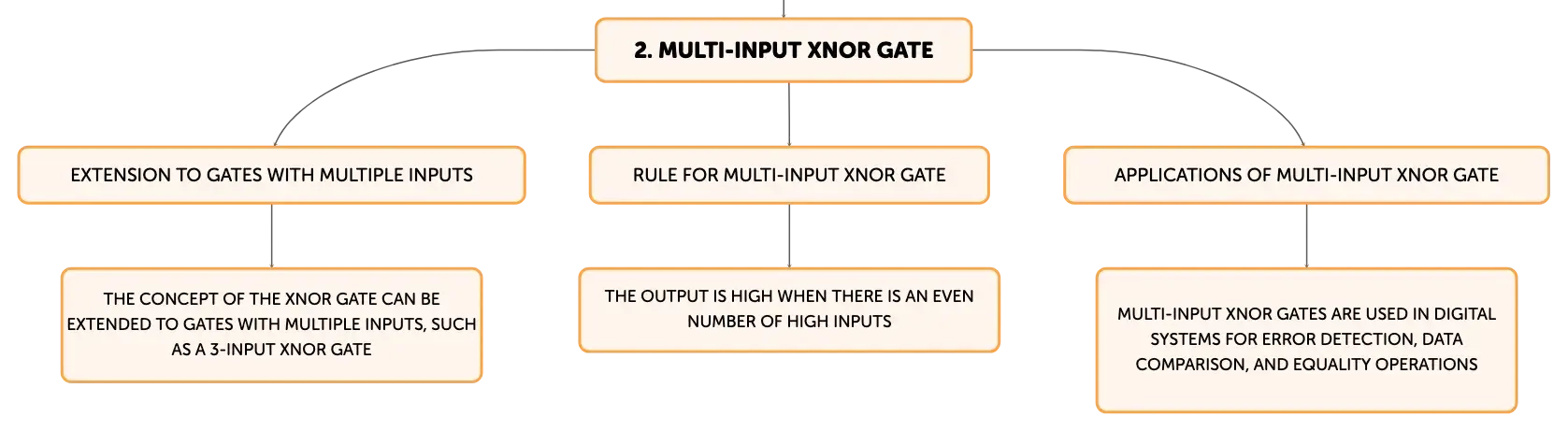

Multi-Input XNOR Gate
Extension to Gates with Multiple Inputs
The concept of the XNOR gate can be extended to gates with multiple inputs, such as a 3-input XNOR gate
Rule for Multi-Input XNOR Gate
The output is high when there is an even number of high inputs
Applications of Multi-Input XNOR Gate
Multi-Input XNOR gates are used in digital systems for error detection, data comparison, and equality operations

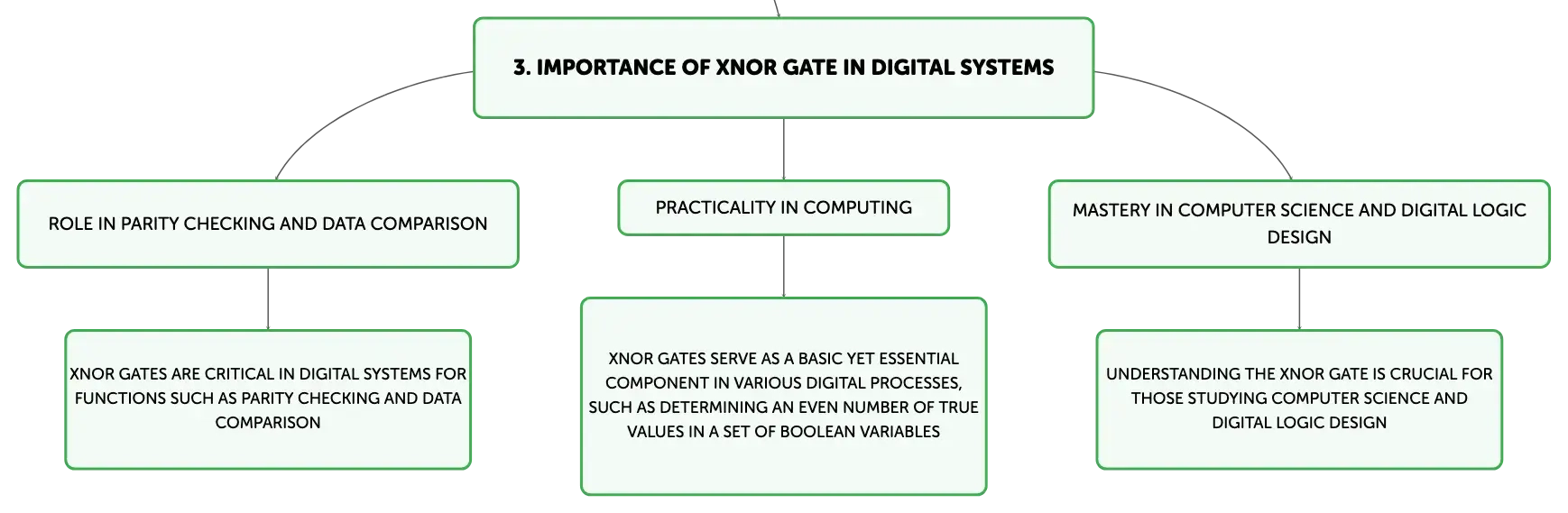

Importance of XNOR Gate in Digital Systems
Role in Parity Checking and Data Comparison
XNOR gates are critical in digital systems for functions such as parity checking and data comparison
Practicality in Computing
XNOR gates serve as a basic yet essential component in various digital processes, such as determining an even number of TRUE values in a set of boolean variables
Mastery in Computer Science and Digital Logic Design
Understanding the XNOR gate is crucial for those studying computer science and digital logic design
The XNOR Gate: A Fundamental Element in Digital Electronics and Computer Science
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
XNOR gate output when inputs are equal
Outputs high level ('1') if inputs are both true or both false.
01
Origin of 'XNOR' name
Derived from XOR gate; 'N' signifies negation, indicating complement of XOR output.
02
Applications of XNOR gate
Used in parity checking and data comparison in digital circuits.
