Suffix Trees: Advanced Data Structures for String Processing
Concept Map
Suffix trees are powerful data structures essential for string processing, enabling efficient pattern matching and data retrieval. They store all suffixes of a string, optimizing space with edge compression. Advanced algorithms like Ukkonen's allow for linear-time construction. Suffix trees are compared with tries and suffix arrays, highlighting their unique advantages in various computational applications, including bioinformatics and text indexing.
Summary
Outline
Introduction to Suffix Trees
Suffix trees are advanced data structures that play a crucial role in various computational fields, including text processing, data compression, and bioinformatics. A suffix tree is a modified trie that contains all the suffixes of a particular text as its elements, with each leaf node representing a unique suffix. Peter Weiner introduced the concept in 1973, and it has since become a fundamental tool for string-related operations, such as pattern matching and substring enumeration. The structure of a suffix tree includes a root, internal nodes, leaves, and edges, with each path from the root to a leaf encoding a suffix of the string. Suffix trees are more space-efficient than standard tries due to their edge compression technique, which merges nodes with single children, thus representing common prefixes with fewer edges.Constructing Suffix Trees
The construction of a suffix tree is a meticulous process that starts with an input string. All possible suffixes of the string are generated and inserted into the tree. The insertion begins at the root, with new nodes being created for characters that do not match any existing child node. When a match is found, the insertion continues deeper into the tree, with new nodes being added as needed until all suffixes are integrated. This ensures that each leaf node uniquely corresponds to a suffix of the input string, facilitating efficient data storage and retrieval. The construction can be performed in linear time using advanced algorithms such as Ukkonen's algorithm.Comparing Suffix Trees and Tries
Suffix trees and tries are both hierarchical data structures used for managing strings, but they serve different purposes. A trie, also known as a prefix tree, organizes a collection of strings by their common prefixes, with each node representing a character sequence. In contrast, a suffix tree is built for a single string and stores all its suffixes. Suffix trees are generally more space-efficient than tries because they compress consecutive nodes with a single child. Both structures support search operations in \(O(m)\) time complexity, where \(m\) is the length of the string to be searched, but suffix trees are particularly efficient after an initial preprocessing phase.Suffix Trees in Python
Python's expressive syntax and robust libraries make it an ideal language for implementing suffix trees. A suffix tree in Python can be constructed by defining a Node class and initializing the tree with a unique end-of-string character. The tree is then built by iteratively processing each suffix of the string. This approach in Python allows for efficient storage and rapid retrieval of suffixes, which is beneficial for various string processing tasks. The object-oriented design of the implementation promotes clarity, modularity, and reusability of code.Advanced Suffix Tree Concepts
Advanced concepts in suffix trees unlock their potential for addressing complex computational challenges. Space-efficient algorithms, such as Ukkonen's algorithm, enable the construction of suffix trees in linear time and space complexity, which is particularly advantageous for processing large texts. Compressed suffix trees optimize space usage without sacrificing search efficiency, making them suitable for handling extensive data sets. Generalized suffix trees, which can accommodate multiple strings, are instrumental in applications like comparative genomics and text mining, where the analysis of multiple sequences is required.Suffix Arrays and Suffix Trees: A Comparison
Suffix arrays and suffix trees are both pivotal for string processing tasks, yet they have distinct advantages and trade-offs. Suffix arrays are more space-efficient and are preferred for large-scale string matching and text indexing applications. On the other hand, suffix trees, while more space-consuming, offer quicker search capabilities and can handle a broader range of complex string operations. The decision to use one over the other depends on the specific needs of the application, such as the balance between memory usage and the speed of search operations.The Importance of Suffix Trees in String Processing
Suffix trees are invaluable in the field of string processing, providing a space-efficient means to store all suffixes of a string and enabling rapid search operations. Their application spans diverse areas, from genetic sequence analysis to text compression and pattern searching. A thorough understanding of suffix trees, including their construction, applications, and differences from related data structures like tries and suffix arrays, is essential for computer scientists and software developers dealing with complex string data.
Show More

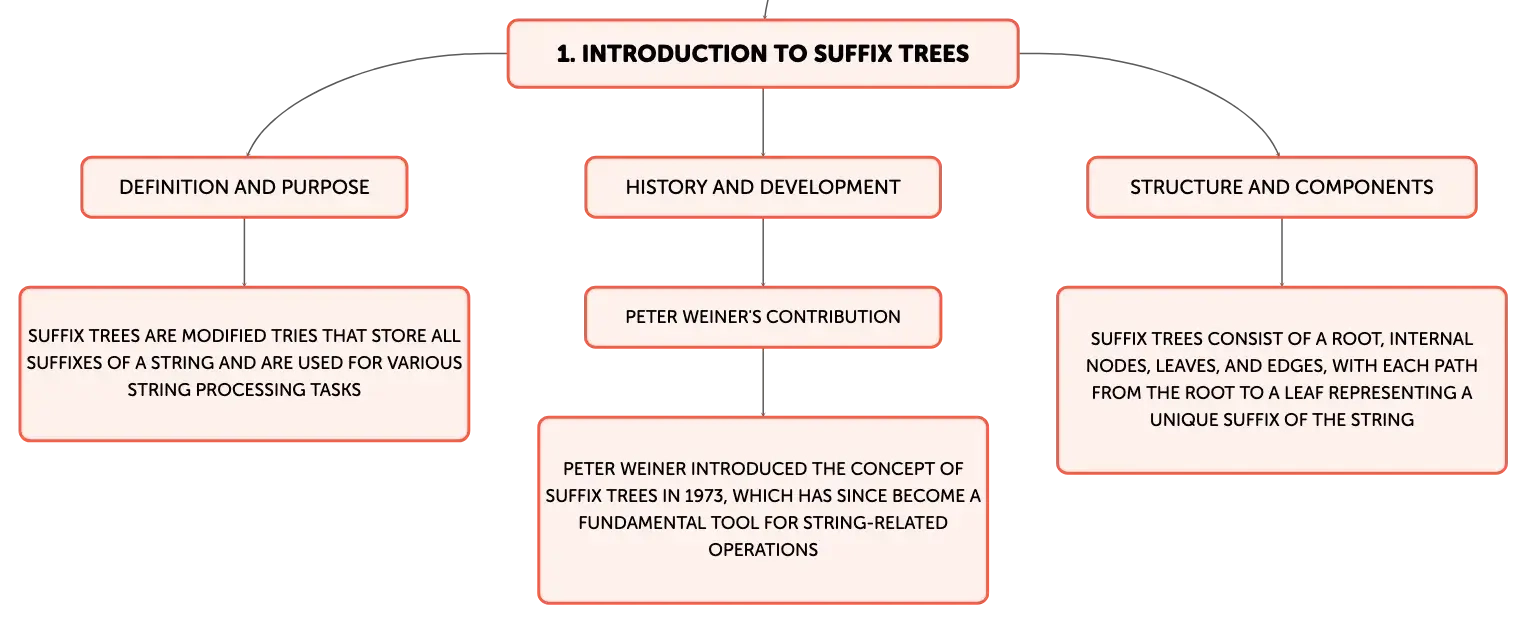

Introduction to Suffix Trees
Definition and Purpose
Suffix trees are modified tries that store all suffixes of a string and are used for various string processing tasks
History and Development
Peter Weiner's Contribution
Peter Weiner introduced the concept of suffix trees in 1973, which has since become a fundamental tool for string-related operations
Structure and Components
Suffix trees consist of a root, internal nodes, leaves, and edges, with each path from the root to a leaf representing a unique suffix of the string

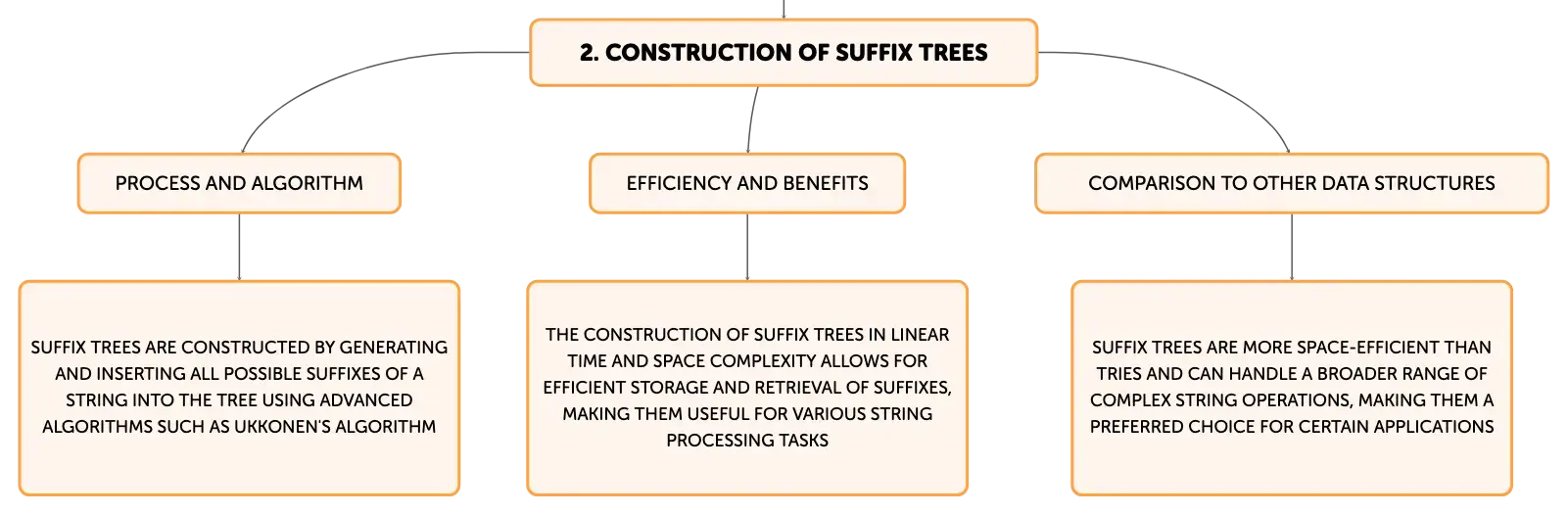

Construction of Suffix Trees
Process and Algorithm
Suffix trees are constructed by generating and inserting all possible suffixes of a string into the tree using advanced algorithms such as Ukkonen's algorithm
Efficiency and Benefits
The construction of suffix trees in linear time and space complexity allows for efficient storage and retrieval of suffixes, making them useful for various string processing tasks
Comparison to Other Data Structures
Suffix trees are more space-efficient than tries and can handle a broader range of complex string operations, making them a preferred choice for certain applications

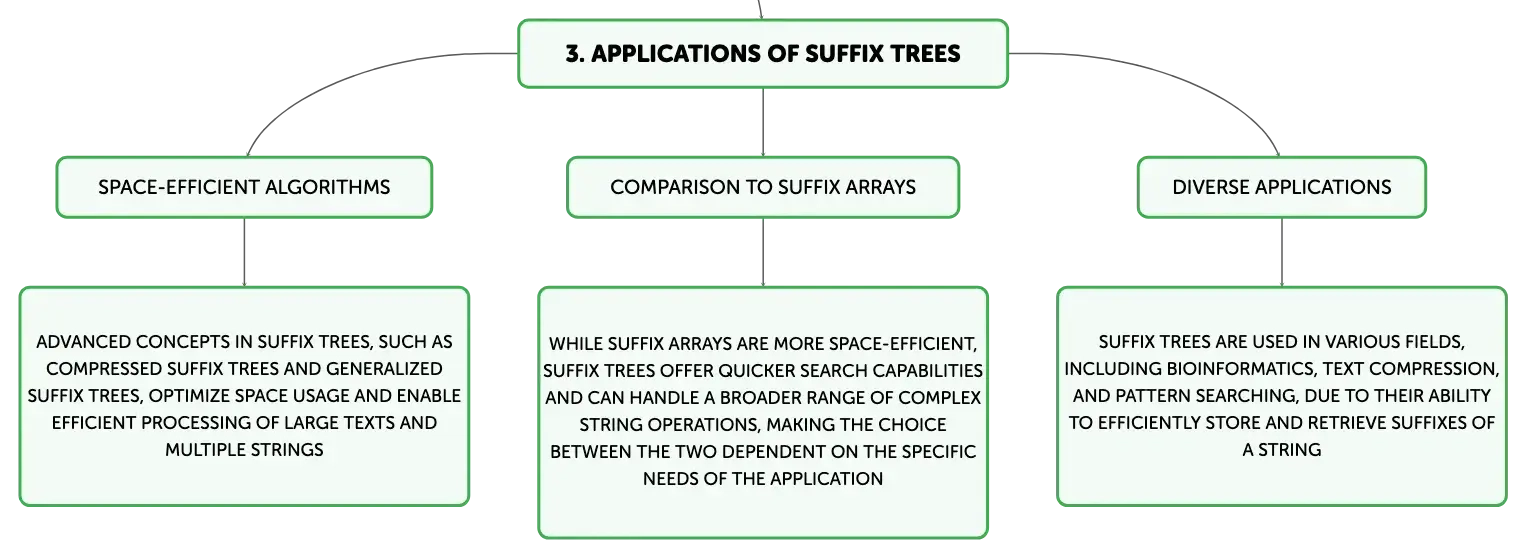

Applications of Suffix Trees
Space-Efficient Algorithms
Advanced concepts in suffix trees, such as compressed suffix trees and generalized suffix trees, optimize space usage and enable efficient processing of large texts and multiple strings
Comparison to Suffix Arrays
While suffix arrays are more space-efficient, suffix trees offer quicker search capabilities and can handle a broader range of complex string operations, making the choice between the two dependent on the specific needs of the application
Diverse Applications
Suffix trees are used in various fields, including bioinformatics, text compression, and pattern searching, due to their ability to efficiently store and retrieve suffixes of a string
Suffix Trees: Advanced Data Structures for String Processing
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ trees are vital in text processing, data compression, and bioinformatics, containing all suffixes of a text.
Suffix
01
In a suffix tree, paths from the root to a leaf represent a ______ and the tree structure is made more efficient through ______ ______.
suffix
edge
compression
02
Suffix Tree Node Creation
New nodes created for unmatched characters; existing nodes expanded for matches.
