Uniform Electric Fields

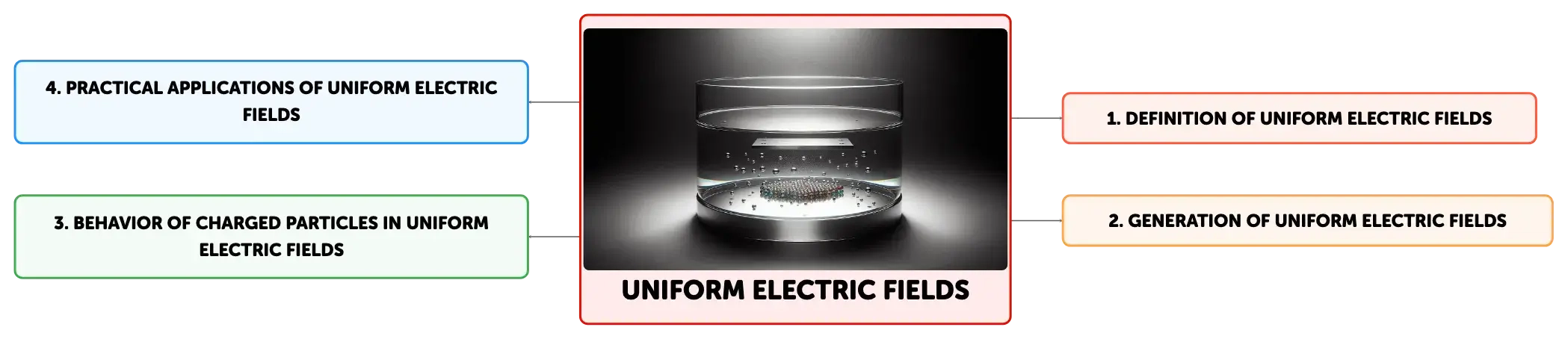

Concept Map
Exploring uniform electric fields, this content delves into their constant strength and direction, essential in electromagnetism. It covers the creation of these fields using parallel plates, the linear relationship between electric potential and field strength, and the predictable motion of charged particles within. Applications include electronic device design and particle accelerators.
Summary
Outline
Exploring the Characteristics of Uniform Electric Fields
Uniform electric fields are an essential concept in electromagnetism, distinguished by a constant electric field strength at every point within the field. This is in contrast to non-uniform fields, such as those produced by isolated point charges, which vary in strength according to the inverse square law. Uniform fields are particularly important in the study of capacitors, where they enable the storage of electrical energy. The visual representation of a uniform electric field is marked by equidistant, parallel field lines, signifying equal field strength and direction across the entire region between the plates.Creating Uniform Electric Fields
To generate a uniform electric field, two large, parallel conducting plates are used, each bearing an equal but opposite charge distribution. The superposition of the electric fields from these charges results in the cancellation of the lateral components of the field, leaving a net field that is perpendicular to the plates and uniform in strength. The magnitude of the electric field \(E\) in this configuration is given by the equation \(E=\frac{\sigma}{\epsilon_0}\), where \(\sigma\) is the surface charge density on the plates, and \(\epsilon_0\) is the vacuum permittivity, a fundamental physical constant that characterizes the ability of a vacuum to permit electric field lines.Electric Potential and Uniform Electric Fields
Within a uniform electric field, the electric potential decreases linearly from the positive to the negative plate. The relationship between the electric field \(E\), the potential difference \(V\), and the plate separation \(d\) is described by the equation \(E=\frac{V}{d}\). Equipotential surfaces, which are always perpendicular to the electric field lines, are spaced equally apart in a uniform field, indicating a constant rate of potential change with distance. This linear potential gradient simplifies the calculation of work done by or against the field when moving charges between two points.Dynamics of Charged Particles in Uniform Electric Fields
A charged particle introduced into a uniform electric field is subject to a constant electrostatic force, quantified by Coulomb's law as \(F=qE\), where \(q\) is the charge of the particle. This force acts in the direction of the field for positive charges and opposite to the field for negative charges. The resulting motion of the particle is directly influenced by this force; for instance, an electron will be drawn toward the positively charged plate with a force that remains constant as long as it remains within the uniform field.Kinematics of Charged Particles in Uniform Fields
The kinematic behavior of charged particles in uniform electric fields can be analyzed using the principles of classical mechanics. A particle with no initial velocity will accelerate uniformly in the direction of the force. If the particle has an initial velocity component perpendicular to the field, it will undergo motion that is a combination of uniform acceleration due to the electric force and uniform motion due to its initial velocity, resulting in a parabolic trajectory. The acceleration \(a\) of the particle is given by \(a=\frac{F}{m}=\frac{qE}{m}\), where \(m\) is the mass of the particle.Work-Energy Principles in Uniform Electric Fields
The work-energy principle relates the work done on a charged particle by a uniform electric field to the change in its kinetic energy. The work \(W\) done by the electric field when moving a charge \(q\) through a potential difference \(\Delta V\) is \(W=q\Delta V\). This work is manifested as a change in the kinetic energy of the particle, allowing for the calculation of the particle's speed after traversing a known potential difference within the field.Applications and Problem-Solving in Uniform Electric Fields
The principles governing uniform electric fields have numerous practical applications, including the design of electronic devices and the analysis of particle trajectories in accelerators. Problem-solving in this domain often involves applying the equations for electric field strength, potential difference, and force to determine unknown parameters. For example, to prevent a proton from striking a charged plate, one might calculate the minimum initial velocity required for it to pass through the entire length of the uniform field. This involves a two-dimensional motion analysis, utilizing kinematic equations to solve for the time of flight and the necessary velocity components.Concluding Insights on Uniform Electric Fields
Uniform electric fields are a cornerstone of electromagnetism, with wide-ranging implications from theoretical physics to practical engineering applications. These fields are defined by their constant strength and direction, as exemplified by the parallel field lines between charged plates. The behavior of charged particles within these fields is predictable and governed by the laws of motion and energy. Mastery of the concepts associated with uniform electric fields is fundamental to understanding more complex electric field interactions and their influence on charged particles.
Show More

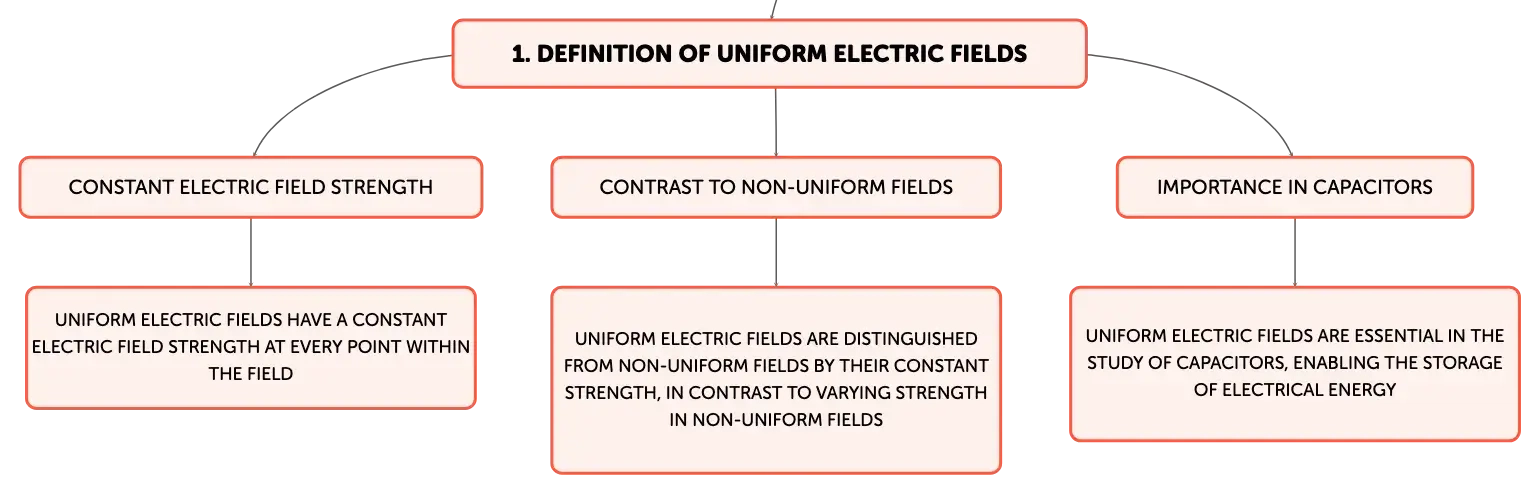

Definition of Uniform Electric Fields
Constant electric field strength
Uniform electric fields have a constant electric field strength at every point within the field
Contrast to non-uniform fields
Uniform electric fields are distinguished from non-uniform fields by their constant strength, in contrast to varying strength in non-uniform fields
Importance in capacitors
Uniform electric fields are essential in the study of capacitors, enabling the storage of electrical energy

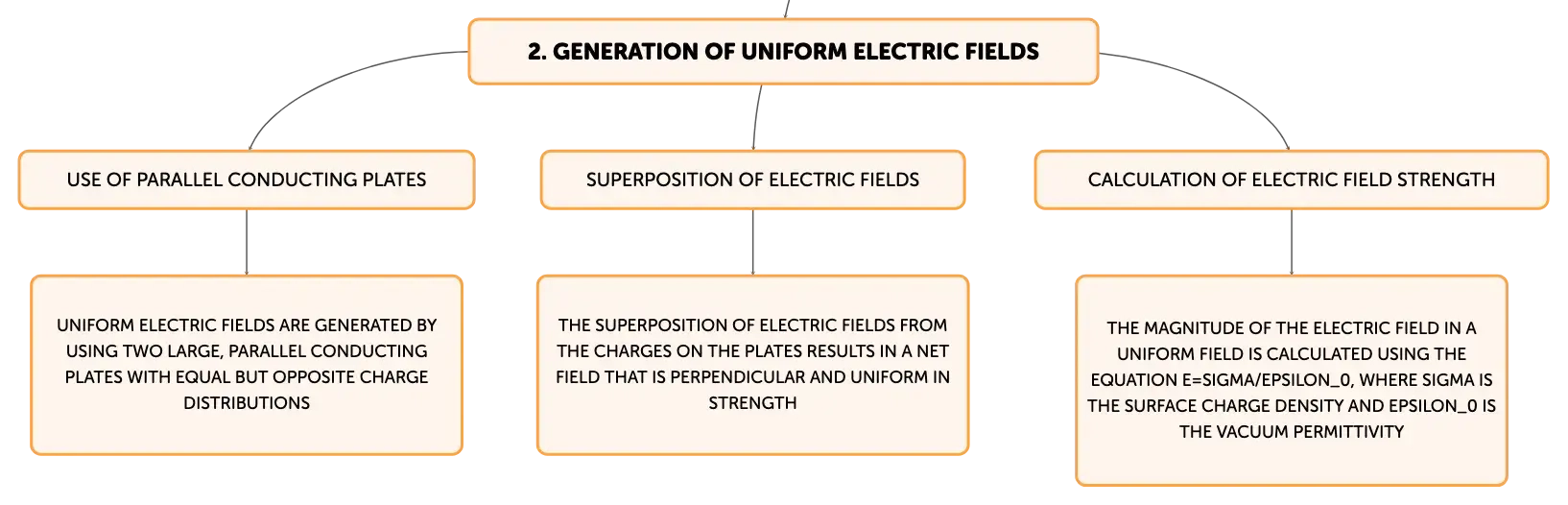

Generation of Uniform Electric Fields
Use of parallel conducting plates
Uniform electric fields are generated by using two large, parallel conducting plates with equal but opposite charge distributions
Superposition of electric fields
The superposition of electric fields from the charges on the plates results in a net field that is perpendicular and uniform in strength
Calculation of electric field strength
The magnitude of the electric field in a uniform field is calculated using the equation E=sigma/epsilon_0, where sigma is the surface charge density and epsilon_0 is the vacuum permittivity

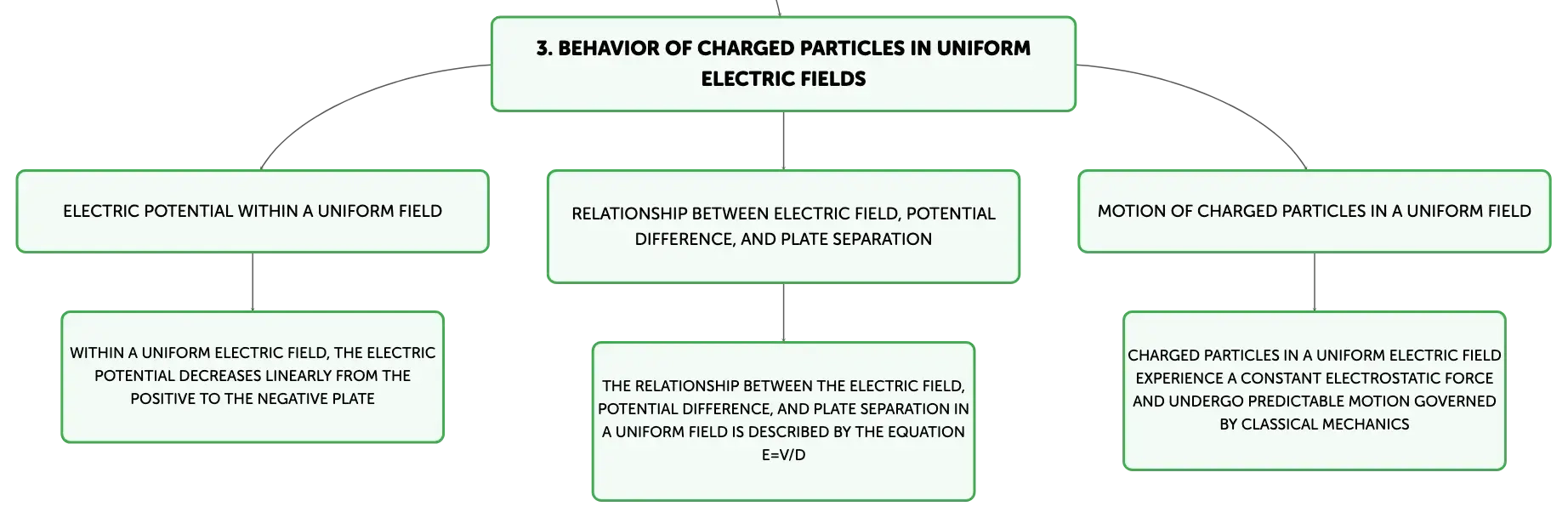

Behavior of Charged Particles in Uniform Electric Fields
Electric potential within a uniform field
Within a uniform electric field, the electric potential decreases linearly from the positive to the negative plate
Relationship between electric field, potential difference, and plate separation
The relationship between the electric field, potential difference, and plate separation in a uniform field is described by the equation E=V/d
Motion of charged particles in a uniform field
Charged particles in a uniform electric field experience a constant electrostatic force and undergo predictable motion governed by classical mechanics

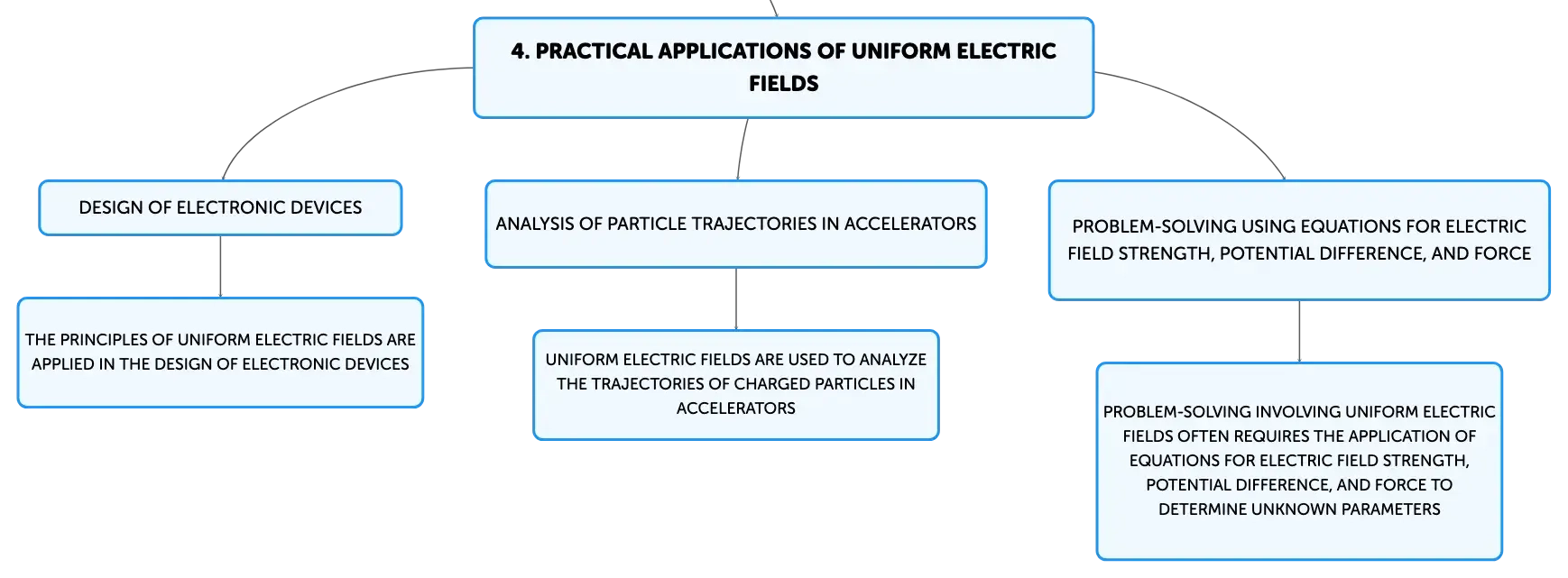

Practical Applications of Uniform Electric Fields
