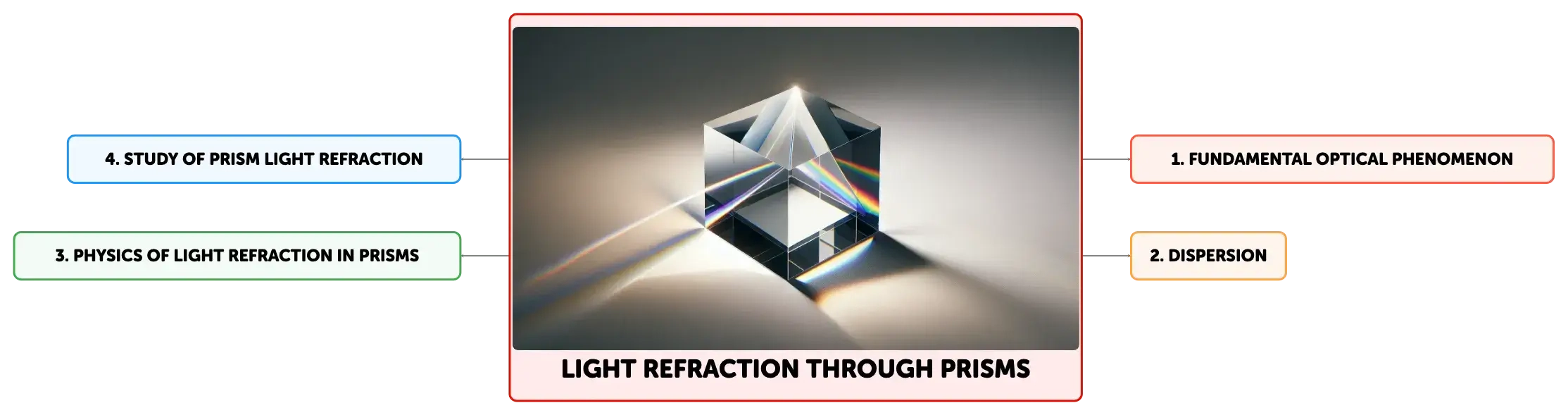

Light Refraction through Prisms

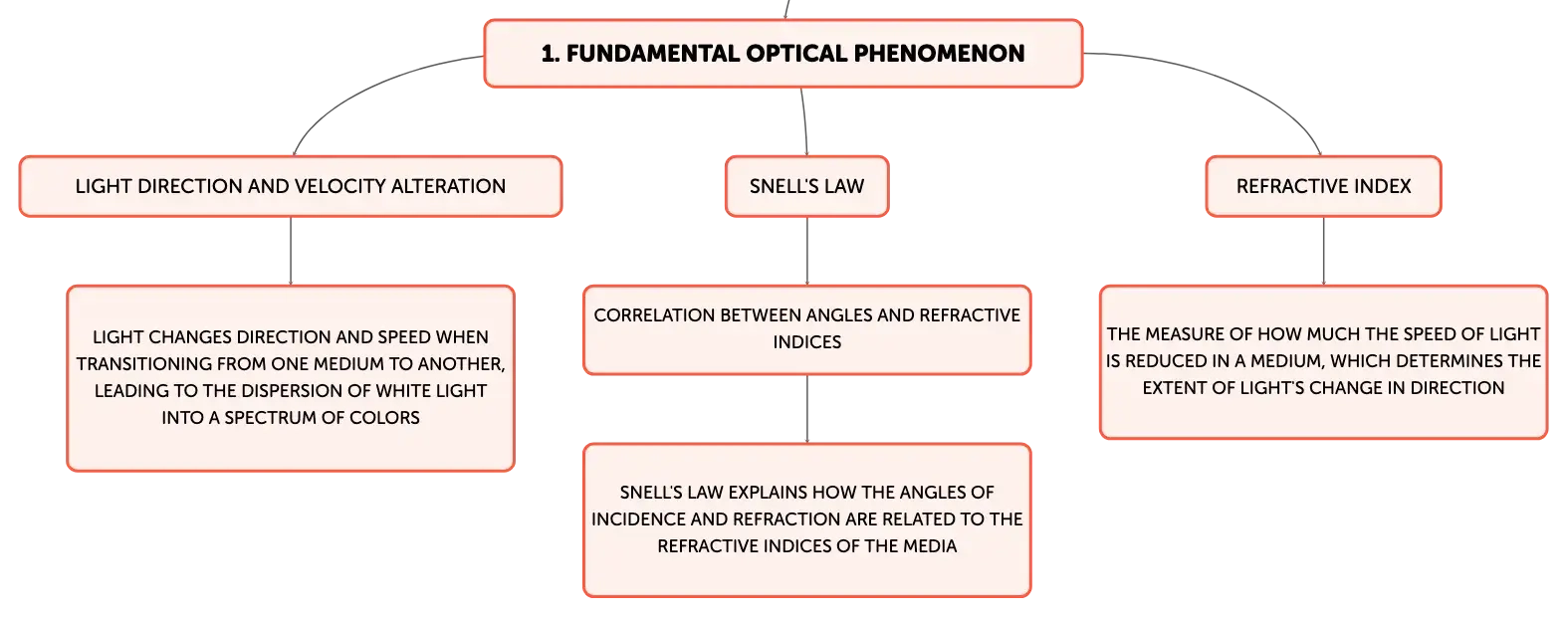

Understanding the Basics of Light Refraction Through a Prism

Light refraction through a prism is a fundamental optical phenomenon where light alters its direction and velocity when transitioning from one medium, such as air, into a denser medium like glass. This process leads to the dispersion of white light into a spectrum of colors. The behavior of light during refraction is described by Snell's Law, which correlates the angles of incidence and refraction to the refractive indices of the respective media. The refractive index, a measure of how much the speed of light is reduced in a medium, is pivotal in determining the extent of light's change in direction, with higher indices in denser media resulting in greater refraction.

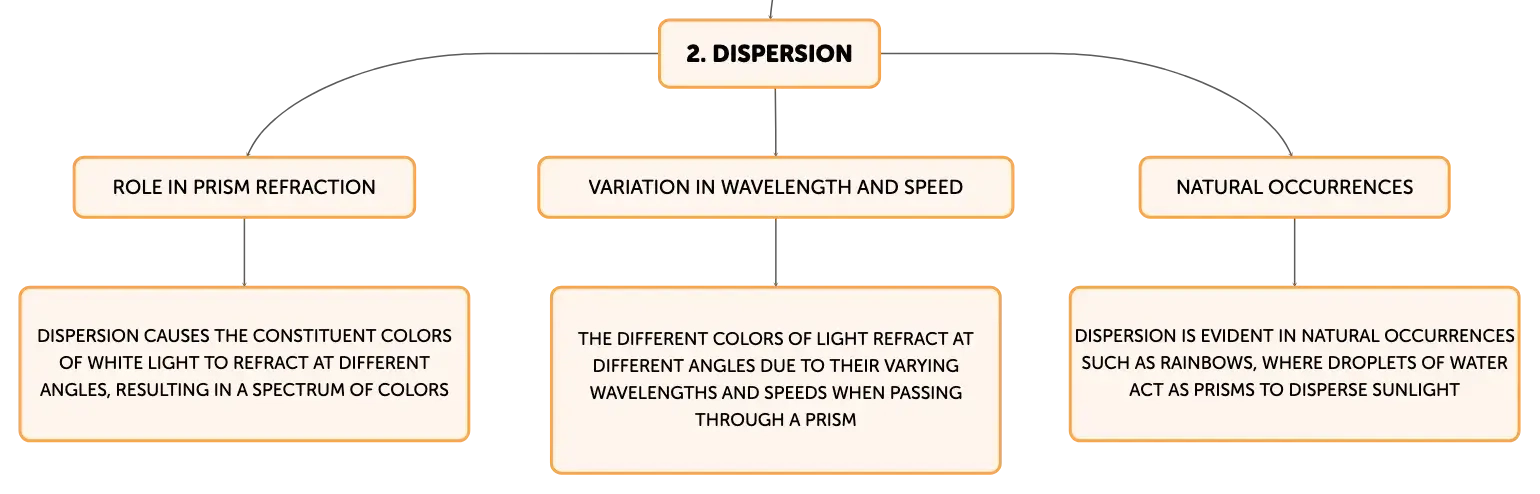

The Significance of Dispersion in Light Refraction by Prisms

Dispersion plays a crucial role in the refraction of light by a prism, as it causes the constituent colors of white light to refract at different angles. This is due to the variation in wavelength and speed of the different colors when they pass through the prism. The spectrum that results from this process ranges from red light, which has the longest wavelength and therefore bends the least, to violet light, which has the shortest wavelength and bends the most. This phenomenon is not only demonstrated in controlled experiments but is also evident in natural occurrences such as rainbows, where droplets of water act as prisms to disperse sunlight.

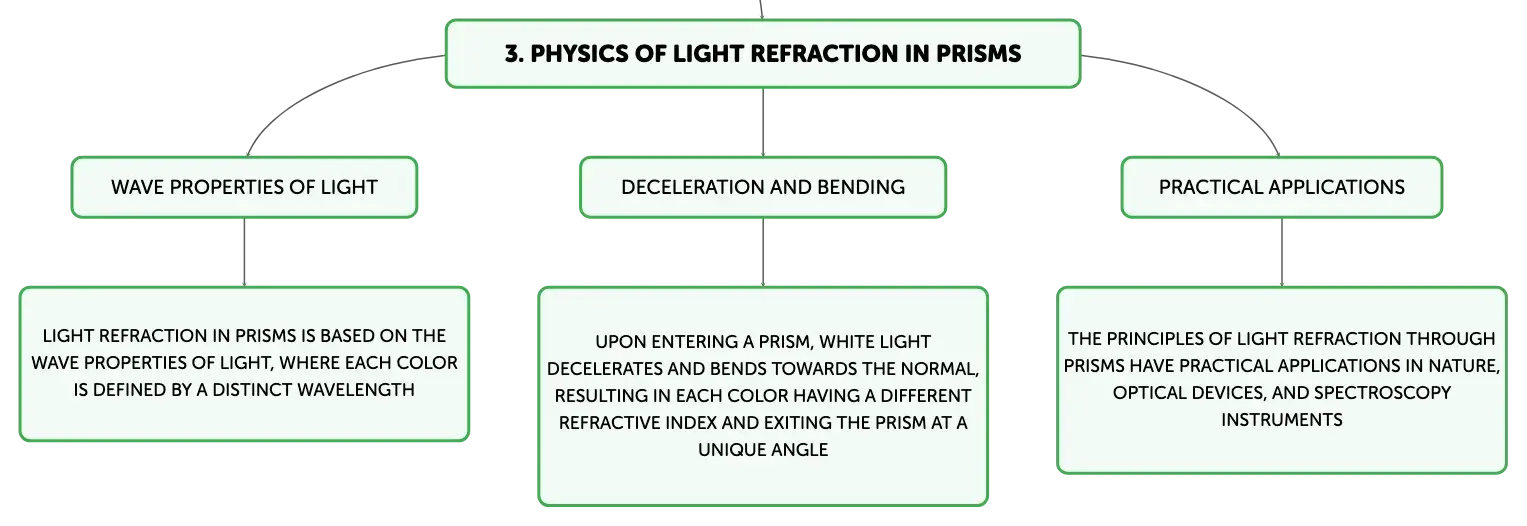

Delving into the Physics of Light Refraction in Prisms

The physics underlying light refraction in prisms is based on the wave properties of light, where each color is defined by a distinct wavelength. Upon entering a prism, white light decelerates due to the higher density of the glass, causing the light to bend towards the normal, an imaginary line perpendicular to the surface at the point of incidence. The degree of bending, or refraction, is wavelength-dependent, resulting in each color having a different refractive index within the prism. Consequently, each color exits the prism at a unique angle, forming a spectrum.

Practical Uses of Prism-Induced Light Refraction

The refraction of light by prisms has a wide array of practical applications. In nature, the formation of rainbows is a beautiful example of this optical effect, with sunlight undergoing refraction and internal reflection within raindrops. Optical devices such as telescopes, microscopes, and cameras utilize lenses and prisms to direct light and create images. Spectroscopy instruments employ prisms to dissect light into its spectral components, which is essential for analyzing the composition of materials and characteristics of light sources. The principles of light refraction through prisms are also integral to the creation of lifelike lighting effects in digital imaging and three-dimensional animations.

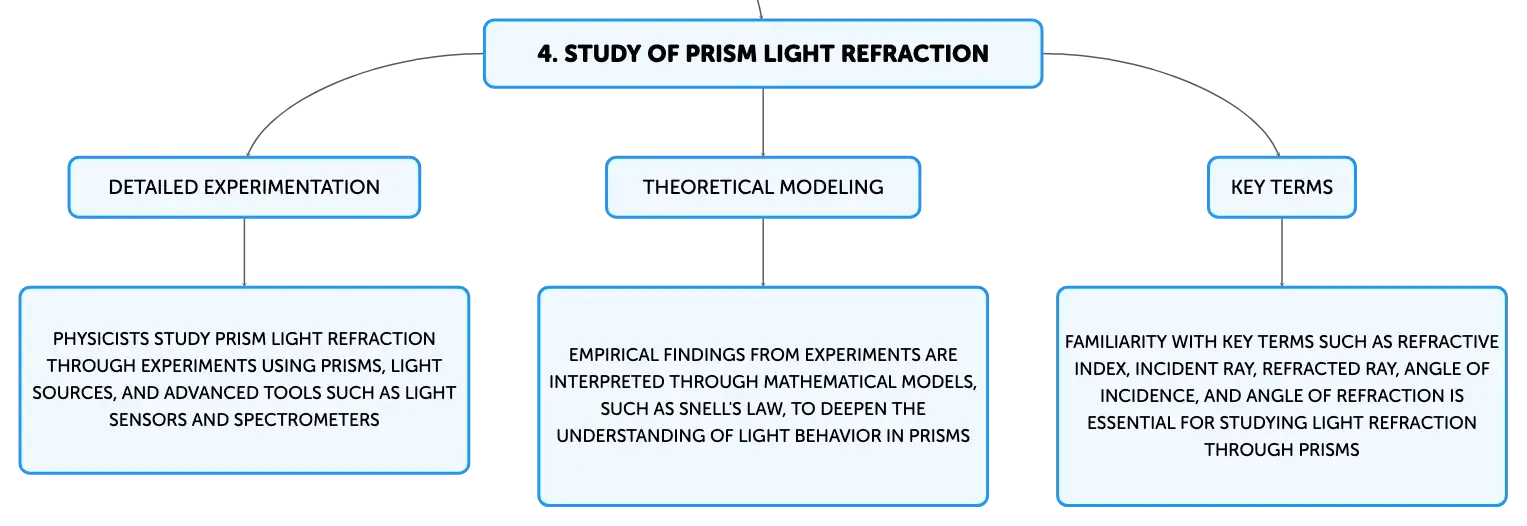

A Physicist's Perspective on Analyzing Light Refraction Through Prisms

Physicists study prism light refraction through detailed experimentation and theoretical modeling. Experiments are conducted using prisms, light sources, and projection screens to measure the refraction angles and the dispersion of colors. Advanced tools such as light sensors and spectrometers are employed for accurate data collection. These empirical findings are then interpreted through mathematical models, especially Snell's Law, to elucidate the interaction of light with the prism's atomic structure and the differential velocity changes experienced by various colors. This analytical approach deepens the understanding of photon interactions and the principles of light behavior across different media.

Essential Terminology in the Study of Light Refraction Through Prisms

A comprehensive understanding of light refraction through prisms necessitates familiarity with key terms including refractive index, incident ray, refracted ray, angle of incidence, and angle of refraction. The refractive index quantifies the reduction in light's speed within a medium. The incident ray is the light beam that impinges on the prism, while the refracted ray is the beam that has been deflected within the prism. The angle of incidence is the angle between the incident ray and the normal, and the angle of refraction is the angle between the refracted ray and the normal. Mastery of these terms is essential for the study of optics and for accurately predicting light's behavior when it encounters different media.
