Vector-Valued Functions

Concept Map

Vector-valued functions are essential in mathematics and physics for describing object trajectories and dynamics in space. They differ from scalar functions by providing vectors with magnitude and direction as outputs. These functions can represent geometric paths, compute arc lengths, and analyze object kinematics through derivatives indicating velocity and acceleration.

Summary

Outline

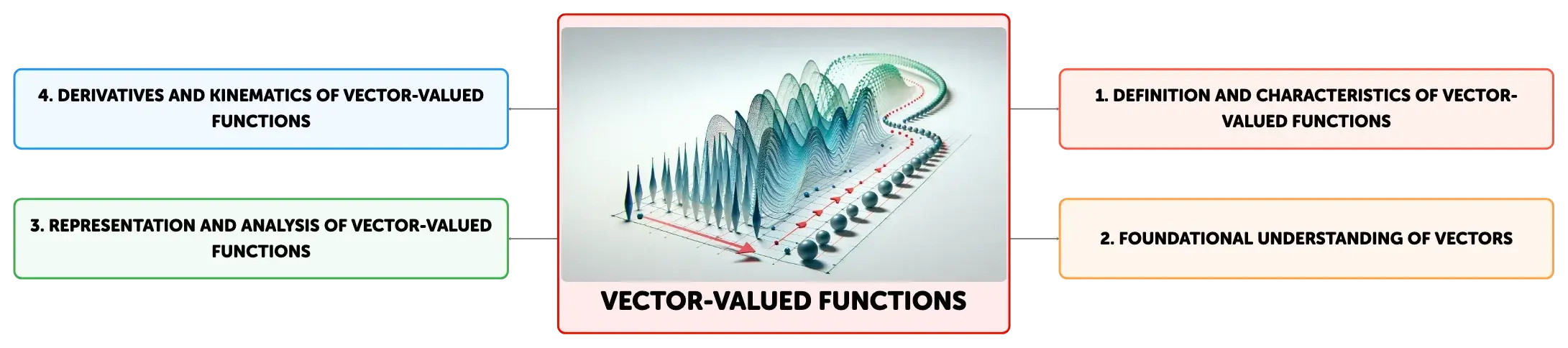

Vector-Valued Functions

Definition and Characteristics of Vector-Valued Functions

Role in Mathematics and Physics

Vector-valued functions describe the trajectory and dynamics of objects in space

Difference from Scalar Functions

Vector-valued functions yield vectors as outputs, possessing both magnitude and direction

Incorporation of Temporal Evolution

Vector-valued functions integrate temporal evolution directly into their parameterization

Foundational Understanding of Vectors

Definition and Representation of Vectors

Vectors are mathematical objects defined by magnitude and direction, typically represented graphically as arrows

Notation and Operations of Vectors

Vectors can be denoted in various forms and operations include addition, subtraction, and multiplication by a scalar

Magnitude and Direction of Vectors

The magnitude of a vector is determined by the square root of the sum of its components squared, and its direction can be described by angles relative to the coordinate axes

Representation and Analysis of Vector-Valued Functions

Definition and Domain/Range of Vector-Valued Functions

Vector-valued functions take scalar inputs and produce vector outputs, with the domain being a subset of the real numbers and the range being a subset of the vector space

Geometric Paths and Shapes

Vector-valued functions can represent a variety of geometric paths and shapes, such as straight lines, circular and elliptical paths, and spirals

Graphing Techniques and Arc Length Computations

Vector-valued functions can be graphed by plotting the resulting vectors and can be used to compute the arc length of a curve by integrating the magnitude of the derivative of the function

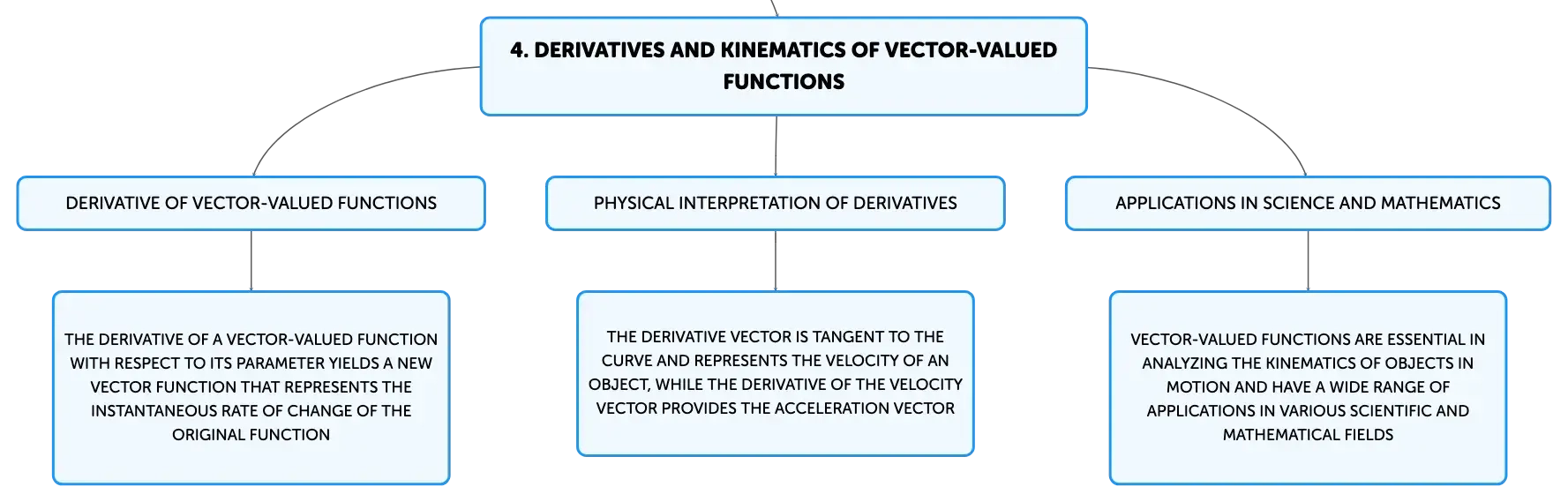

Derivatives and Kinematics of Vector-Valued Functions

Derivative of Vector-Valued Functions

The derivative of a vector-valued function with respect to its parameter yields a new vector function that represents the instantaneous rate of change of the original function

Physical Interpretation of Derivatives

The derivative vector is tangent to the curve and represents the velocity of an object, while the derivative of the velocity vector provides the acceleration vector

Applications in Science and Mathematics

Vector-valued functions are essential in analyzing the kinematics of objects in motion and have a wide range of applications in various scientific and mathematical fields

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Difference between vector-valued and scalar functions

Vector-valued functions output vectors with magnitude and direction; scalar functions output only magnitude.

Role of variable in vector-valued functions

Variable often represents time, integrating temporal change into the function's description of motion.

Application of vector-valued functions to object motion

They describe object trajectories and dynamics in space, capturing motion along a path in 2D or 3D.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Close-up view of a whiteboard with colorful geometric shapes, including a blue parabolic curve with red dots, a green circle with a yellow cross, and assorted 3D figures.

Parametric Equations and Integration

Close-up view of a transparent blue protractor with three wooden rulers forming a scalene triangle, and a mechanical pencil in the background.

Trigonometry: Exploring Angles and Sides of Triangles

Organized desk with grid paper featuring a network of connected dots, a transparent ruler, and a mechanical pencil on a wooden surface, near a blank blackboard.

Linear Systems: Modeling and Solving Complex Relationships

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring Vector-Valued Functions in Mathematics and Physics

Vector-valued functions play a pivotal role in mathematics and physics by providing a means to describe the trajectory and dynamics of objects in space. These functions differ from scalar functions in that they yield vectors as outputs, which inherently possess both magnitude and direction. This characteristic enables vector-valued functions to encapsulate the motion of objects along a path in a plane or three-dimensional space, with the variable often representing time, thus integrating temporal evolution directly into the function's parameterization.

Translucent blue arrows form a flowing path with gradient green spheres alongside, and a bold red vector points upwards in a 3D space.

Fundamentals of Vectors and Vector Operations

A foundational understanding of vectors is essential to comprehend vector-valued functions. A vector is a mathematical object defined by its magnitude and direction, typically represented graphically as an arrow. Vectors can be denoted in various forms, such as column vectors or as combinations of unit vectors \( \vec{i} \), \( \vec{j} \), and \( \vec{k} \) for three-dimensional space. Vector operations include addition, subtraction, and multiplication by a scalar. These operations can be executed algebraically by manipulating vector components or geometrically by arranging vectors in a head-to-tail fashion. The magnitude of a vector \( \vec{v} \) is determined by the square root of the sum of its components squared, and its direction can be described by angles relative to the coordinate axes, calculated using trigonometric functions.

Defining Vector-Valued Functions: Domain and Range

Vector-valued functions are defined as functions that take scalar inputs and produce vector outputs. For instance, in two dimensions, such a function can be expressed as \( \vec{r}(t) = f(t) \vec{i} + g(t) \vec{j} \), where \( f(t) \) and \( g(t) \) are scalar functions representing the x and y components, respectively. The domain of vector-valued functions is typically a subset of the real numbers \( \mathbb{R} \), and the range is a subset of the vector space \( \mathbb{R}^n \), where \( n \) corresponds to the dimension of the space in which the vectors reside. This indicates that the function can reach a specific set of points within the given vector space.

Illustrative Examples of Vector-Valued Functions

Vector-valued functions can describe a variety of geometric paths and shapes. A simple example is a straight line, which can be modeled by a position vector plus a scalar multiple of a direction vector. Circular and elliptical paths can be represented using trigonometric functions, with coefficients corresponding to the radius or semi-axes. Spirals and other complex curves can be constructed by incorporating the parameter \( t \) into the trigonometric functions, demonstrating the flexibility of vector-valued functions in mapping intricate trajectories.

Graphical Representation of Vector-Valued Functions

To graph vector-valued functions, one can create a table of values for the parameter \( t \) and calculate the corresponding vector components. This method is similar to plotting functions in Cartesian coordinates by evaluating the function at various points. By plotting the resulting vectors, the geometric representation of the curve or path defined by the vector-valued function becomes apparent, whether it be a parabola, helix, or another complex form.

Computing Arc Length with Vector-Valued Functions

Vector-valued functions are instrumental in computing the arc length of a curve. The arc length is determined by integrating the magnitude of the derivative of the vector-valued function with respect to the parameter \( t \) over the interval of interest. This integral accounts for the length of the curve traced by the function, analogous to the length of a flexible string that conforms to the curve's shape.

Derivatives of Vector-Valued Functions and Physical Implications

The derivative of a vector-valued function with respect to its parameter yields a new vector function that represents the instantaneous rate of change of the original function. This derivative vector is tangent to the curve at any given point and, in physical terms, corresponds to the velocity of an object moving along the path. The magnitude of this vector indicates the object's speed. Taking the derivative of the velocity vector provides the acceleration vector, which signifies the object's changing velocity over time. These derivatives are fundamental in analyzing the kinematics of objects in motion.

Concluding Insights on Vector-Valued Functions

Vector-valued functions are indispensable in the representation and analysis of paths and motion in multidimensional spaces. They offer a more comprehensive perspective than scalar functions by incorporating both magnitude and direction. The domain and range of these functions are confined to specific subsets of real number spaces, and they can characterize a broad spectrum of geometric and dynamic phenomena. Mastery of vector operations, graphing techniques, arc length computations, and understanding derivatives is crucial for effectively utilizing vector-valued functions in various scientific and mathematical applications.
