The bitwise AND operator in C programming is a tool for bit-level manipulation of integers, enabling tasks like bit masking and hardware control. It compares bits of two operands, returning 1 if both are 1, and 0 otherwise. This operator is distinct from logical operators and is vital in systems programming, encryption, and error detection. Understanding its correct use is crucial for developers working with low-level data manipulation.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Bitwise AND operator symbol in C

Represented by ampersand (&)

Bitwise AND operation on bits

Compares two bits, returns 1 if both are 1, else 0

Primary use cases for bitwise AND in C

Setting/clearing bits, systems programming, hardware manipulation

Q&A

Here's a list of frequently asked questions on this topic

The Bitwise AND Operator in C Programming

Concept Map

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Bitwise AND operator symbol in C

Represented by ampersand (&)

Bitwise AND operation on bits

Compares two bits, returns 1 if both are 1, else 0

Primary use cases for bitwise AND in C

Setting/clearing bits, systems programming, hardware manipulation

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Close-up of a silicon microchip with intricate circuitry reflecting metallic colors, highlighting the complex network of electrical pathways.

The Importance of Bits in the Digital World

Secondary storage devices on wooden surface, including silver external hard drive, colorful USB sticks and black SSD, with blurry books background.

Secondary Storage in Computer Systems

Close-up of a silicon microprocessor showing a complex lattice of metallic circuits on a bluish-gray background, with no text or symbols.

Understanding Processor Cores

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

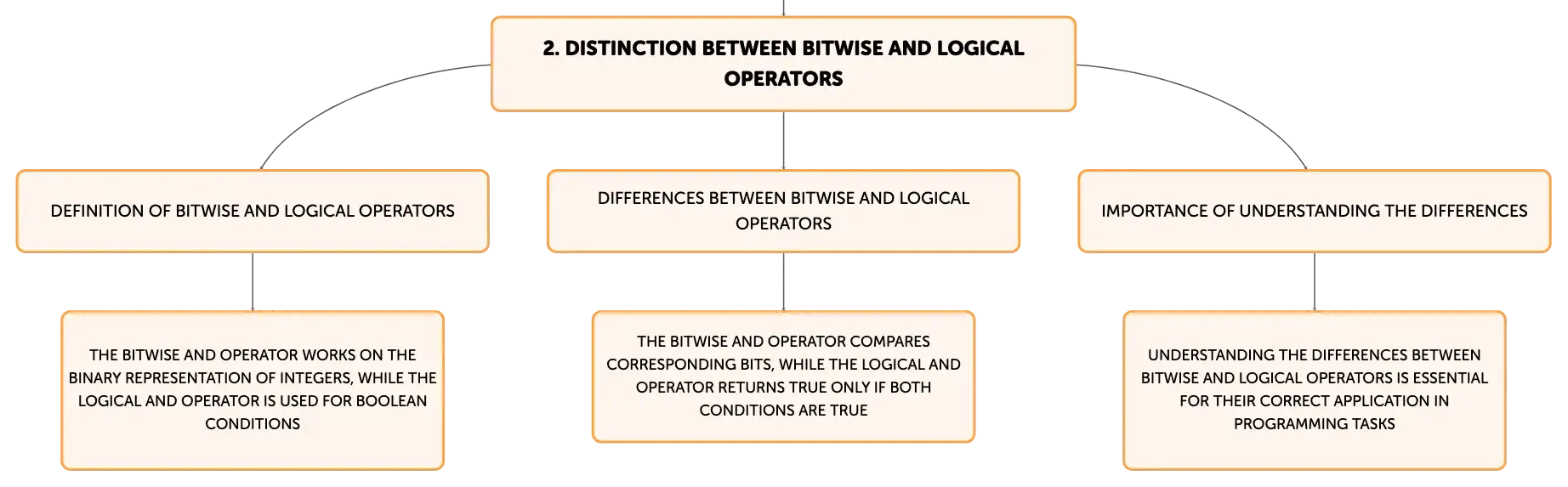

Distinguishing Between Bitwise and Logical Operators

The C programming language distinguishes between bitwise operators and logical operators. While the bitwise AND operator (&) works on the binary representation of integers, the logical AND operator (&&) is used for boolean conditions and returns true only if both conditions are true. Similarly, the bitwise OR operator (|) sets a bit to 1 if either bit is 1, and the bitwise NOT operator (~) inverts all the bits of its operand. Understanding the differences between these operators is essential for their correct application in programming tasks.

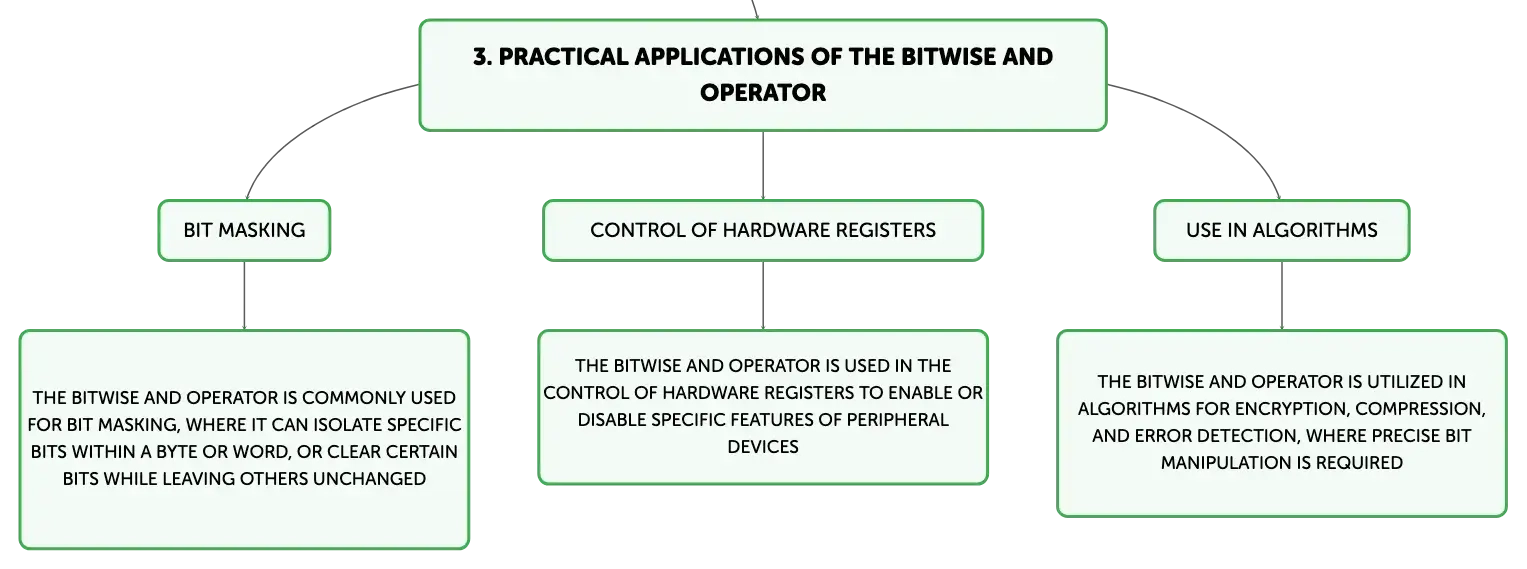

Practical Uses of the Bitwise AND Operator

The bitwise AND operator has a variety of practical applications in C programming. It is commonly used for bit masking, where it can isolate specific bits within a byte or word, or clear certain bits while leaving others unchanged. It is also used in the control of hardware registers, where setting or clearing bits can enable or disable specific features of peripheral devices. Furthermore, the bitwise AND operator is utilized in algorithms for encryption, compression, and error detection, where precise bit manipulation is required.

Examples and Demonstrations of the Bitwise AND Operator

To illustrate the use of the bitwise AND operator, consider a program that needs to determine whether a particular bit is set in an integer. By ANDing the number with a bitmask that has a 1 only in the position of interest, the result will reveal the status of that bit. For example, to check if the third bit of the integer 12 (binary 1100) is set, one can AND it with the bitmask 4 (binary 0100), resulting in 4 (binary 0100), which indicates that the third bit is indeed set.

Best Practices and Avoiding Common Mistakes with the Bitwise AND Operator

When employing the bitwise AND operator in C programming, it is important to adhere to best practices to ensure code clarity and correctness. This includes using explicit parentheses to enforce the desired order of operations, understanding the difference between bitwise and logical operators to prevent logical errors, and being mindful of integer promotions that can affect the outcome of bitwise operations. Programmers should also thoroughly test and debug their code to avoid common pitfalls such as incorrect bitmasking or assumptions about the size and representation of data types. By following these guidelines, developers can leverage the full potential of the bitwise AND operator in their C programs.

The Bitwise AND Operator in C Programming

Concept Map

Summary

Outline

The Bitwise AND Operator in C Programming

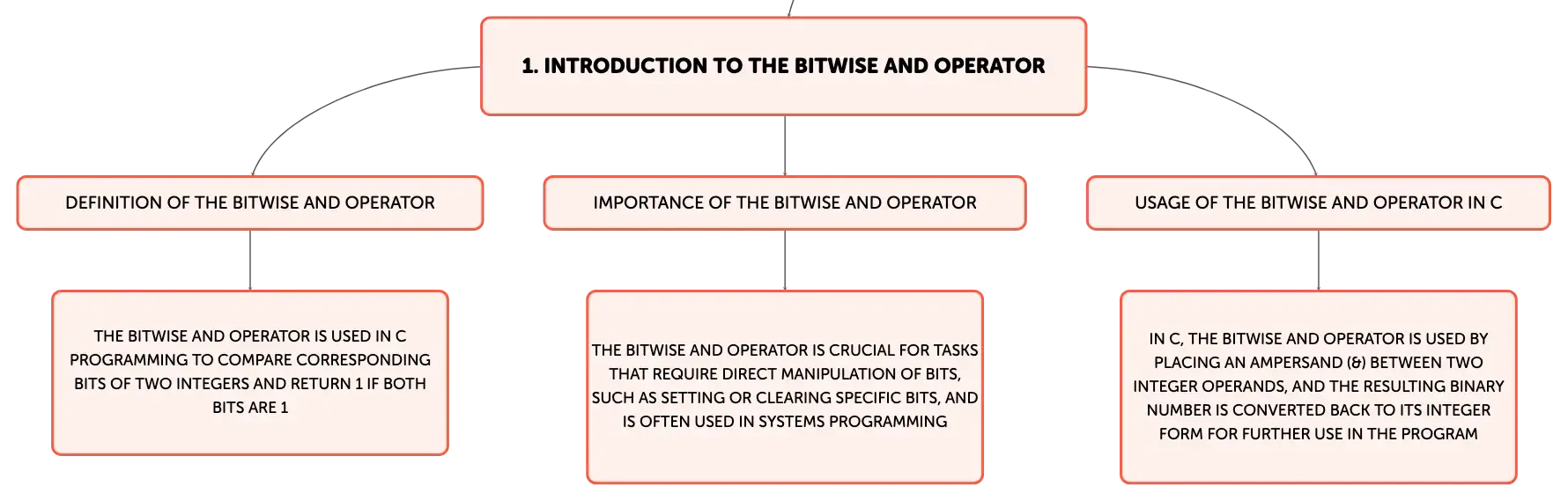

Introduction to the Bitwise AND Operator

Definition of the Bitwise AND Operator

Importance of the Bitwise AND Operator

Usage of the Bitwise AND Operator in C

Distinction between Bitwise and Logical Operators

Definition of Bitwise and Logical Operators

Differences between Bitwise and Logical Operators

Importance of Understanding the Differences

Practical Applications of the Bitwise AND Operator

Bit Masking

Control of Hardware Registers

Use in Algorithms

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What is the function of the bitwise AND operator in C, and why is it significant?

How is the bitwise AND operator applied in C, and what would be the result of the operation (10 & 5)?

How does the bitwise AND operator differ from the logical AND operator in C?

Can you name some practical applications of the bitwise AND operator in C programming?

How can the bitwise AND operator be used to check if a specific bit is set in an integer?

What are some best practices for using the bitwise AND operator in C programming to avoid errors?

Similar Contents

Explore other maps on similar topics

The Bitwise AND Operator in C Programming

Concept Map

Summary

Outline

The Bitwise AND Operator in C Programming

Introduction to the Bitwise AND Operator

Definition of the Bitwise AND Operator

Importance of the Bitwise AND Operator

Usage of the Bitwise AND Operator in C

Distinction between Bitwise and Logical Operators

Definition of Bitwise and Logical Operators

Differences between Bitwise and Logical Operators

Importance of Understanding the Differences

Practical Applications of the Bitwise AND Operator

Bit Masking

Control of Hardware Registers

Use in Algorithms

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What is the function of the bitwise AND operator in C, and why is it significant?

How is the bitwise AND operator applied in C, and what would be the result of the operation (10 & 5)?

How does the bitwise AND operator differ from the logical AND operator in C?

Can you name some practical applications of the bitwise AND operator in C programming?

How can the bitwise AND operator be used to check if a specific bit is set in an integer?

What are some best practices for using the bitwise AND operator in C programming to avoid errors?

Similar Contents

Explore other maps on similar topics

Exploring the Bitwise AND Operator in C Programming

Syntax and Usage of the Bitwise AND Operator

Distinguishing Between Bitwise and Logical Operators

Practical Uses of the Bitwise AND Operator

Examples and Demonstrations of the Bitwise AND Operator

Best Practices and Avoiding Common Mistakes with the Bitwise AND Operator
