Distortion in Physics

Concept Map

Algorino

Edit available

Distortion in physics refers to changes in an object's shape, size, or position due to external forces or conditions. It includes elastic and plastic deformation, thermal expansion, gravitational lensing, and light distortion through refraction. In optics, lens distortions like chromatic aberration and pincushion effect impact image quality, necessitating correction techniques for precision in applications such as photography and engineering.

Summary

Outline

Understanding Distortion in Physics

Distortion in physics is the change in an object's shape, size, or position resulting from the application of external forces or exposure to different conditions. This concept is integral to the study of material response to stress, strain, and force. Stress is the force per unit area within materials that arises from externally applied forces, while strain is the measure of deformation representing the displacement between particles in the material body relative to a reference length. Force is the external cause of deformation. Distortion can be elastic, where the object returns to its original state after the removal of the force, or plastic, where the change is permanent. Understanding the principles of distortion is crucial for the design and analysis of structures and materials in engineering and construction.
Biconvex glass lens on white background with grid lines showing magnification and distortion through the lens, no text or symbols present.

Examples of Distortion in Everyday Life

Everyday examples of distortion help illustrate this concept in a tangible way. Thermal expansion is a common type of distortion where materials change in size due to temperature variations, such as metal tracks expanding in the heat. Gravitational lensing is a cosmic form of distortion where the gravity of a massive object, like a galaxy, warps the space around it and bends the path of light passing nearby. Mechanical distortion is seen when materials like rubber bands are stretched, altering their length and shape. These instances demonstrate how distortion can occur under different conditions and are governed by the laws of thermodynamics, general relativity, and classical mechanics.

The Phenomenon of Light Distortion

Light distortion occurs when the path of a light beam is altered by changes in the optical properties of the medium through which it travels or by gravitational fields. Refraction is the change in direction of light as it passes from one medium to another with a different refractive index, described by Snell's Law, which relates the angle of incidence to the angle of refraction and the indices of refraction of the two media. Gravitational lensing, predicted by Einstein's Theory of General Relativity, occurs when light bends around a massive object due to the curvature of space-time. These effects are critical in fields such as astronomy, optics, and various engineering applications.

Observing Light Distortion in Nature

Light distortion is readily observed in nature and can be experienced in daily life. The twinkling of stars, known as stellar scintillation, is caused by the refraction of starlight through the turbulent atmosphere of Earth. Mirages are optical phenomena where light bends due to temperature gradients in the air, creating the illusion of water on the road. In the cosmos, gravitational lensing can create striking images such as the Einstein Ring, where light from a distant galaxy is bent into a circle around a foreground galaxy. These examples highlight the pervasive nature of light distortion in our visual experiences.

Distinguishing Between Aberration and Distortion in Optical Lenses

In the field of optics, aberration and distortion are two distinct phenomena that affect the quality of images produced by lenses. Aberrations result in a blurred or imperfect image due to imperfections in the lens or the wave nature of light, with chromatic and spherical aberrations being common types. Chromatic aberration occurs when different wavelengths of light are focused at different points due to the dispersion of the lens material, while spherical aberration is caused by the spherical shape of lenses, which fails to focus light to a single point. Distortion, on the other hand, refers to the warping of images, where straight lines appear curved, with barrel and pincushion distortions being typical examples. Understanding these effects is essential for the design and use of optical systems.

Correcting Lens Distortion in Optics and Photography

Correcting lens distortion is a significant concern in optics and photography, and several methods have been developed to address it. Software correction involves the use of digital algorithms to rectify distorted images during post-processing. Hardware correction entails the design and manufacture of lenses with special elements, such as aspherical lenses, to minimize distortion. Hybrid approaches combine these methods, optimizing lens design for easier software correction later. These correction techniques are vital for ensuring the fidelity of images in precision-dependent fields like surveying, architectural photography, and medical imaging.

The Influence of Distortion on Lens Quality

Lens distortion has a profound impact on the quality and utility of photographic and optical images. Barrel distortion can create a sense of expanded space, which may be desirable in certain types of photography but can distort measurements in technical applications. Pincushion distortion alters the proportions of objects, which can be unflattering in portrait photography. Chromatic aberration can cause color fringing and reduce the sharpness of images, especially at the periphery. Recognizing and compensating for these distortions are critical for optimizing lens performance, selecting the appropriate lens for a given task, and developing effective correction strategies.

Concluding Insights on Distortion in Physics

Distortion is a multifaceted concept in physics that encompasses the alteration of an object's shape, size, or position under external influences. It is evident in various forms, including thermal, gravitational, and mechanical distortion, and plays a significant role in the study of light behavior, such as refraction and gravitational lensing. In optics, understanding the differences between aberration and distortion is crucial for maintaining image quality. Techniques for correcting lens distortion are essential for producing clear, accurate images, and knowledge of how distortion affects lens performance is indispensable for precision-critical applications.

Show More

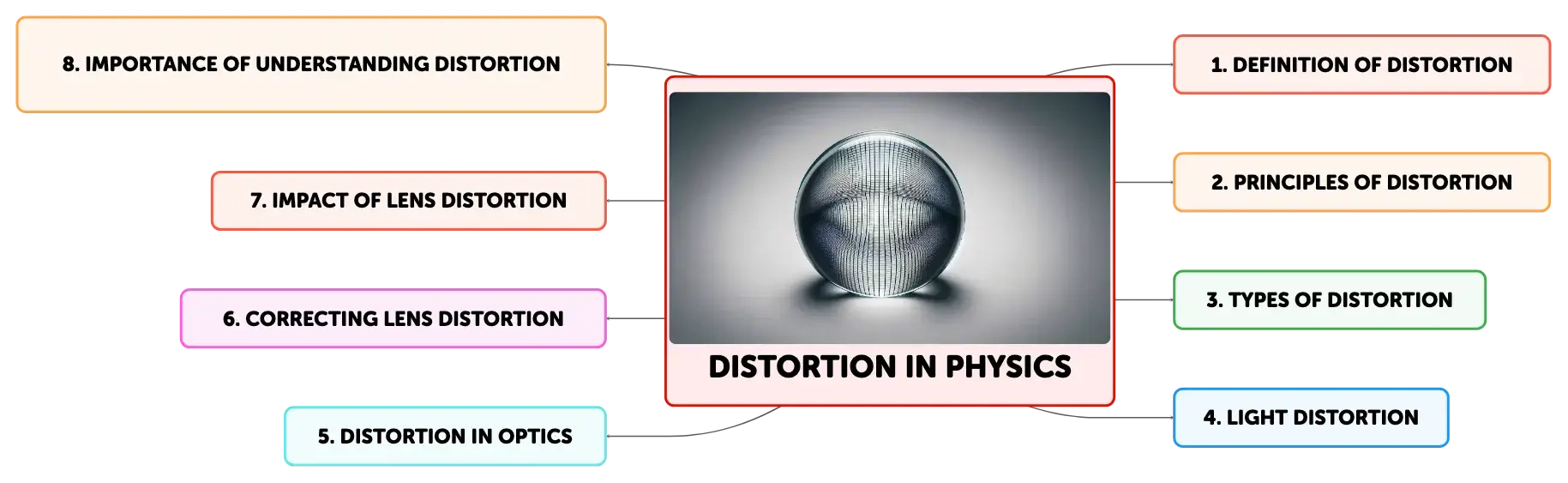

    Distortion in Physics

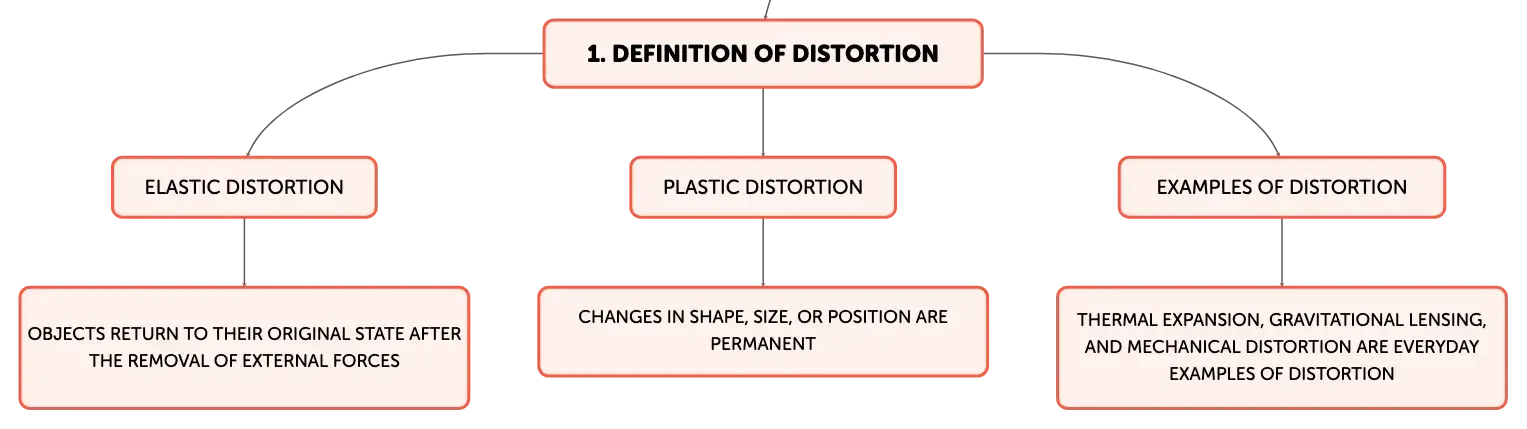

  • Definition of Distortion

  • Elastic Distortion

  • Objects return to their original state after the removal of external forces

  • Plastic Distortion

  • Changes in shape, size, or position are permanent

  • Examples of Distortion

  • Thermal expansion, gravitational lensing, and mechanical distortion are everyday examples of distortion

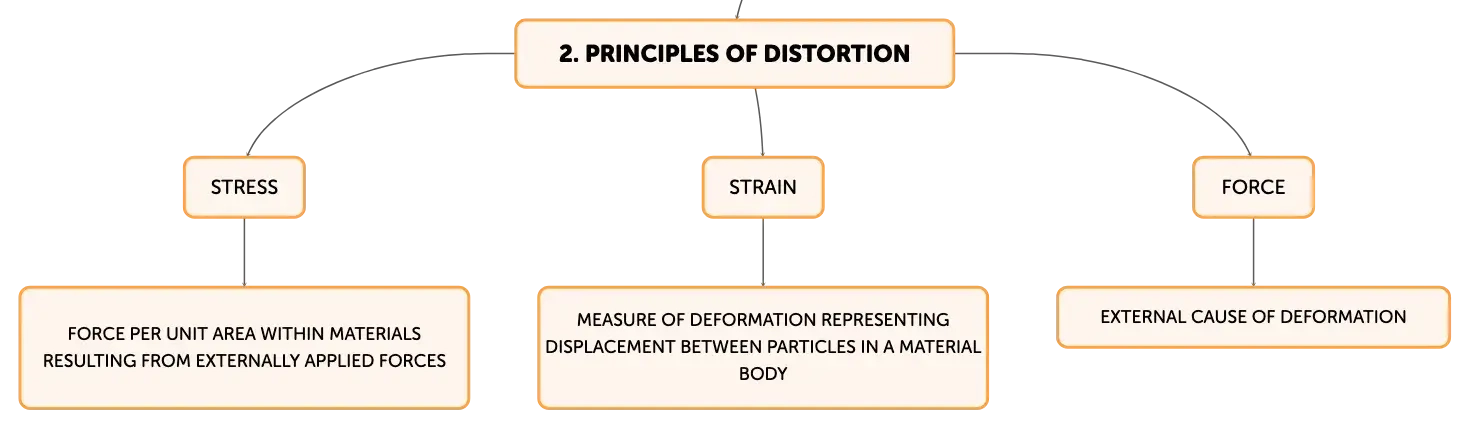

  • Principles of Distortion

  • Stress

  • Force per unit area within materials resulting from externally applied forces

  • Strain

  • Measure of deformation representing displacement between particles in a material body

  • Force

  • External cause of deformation

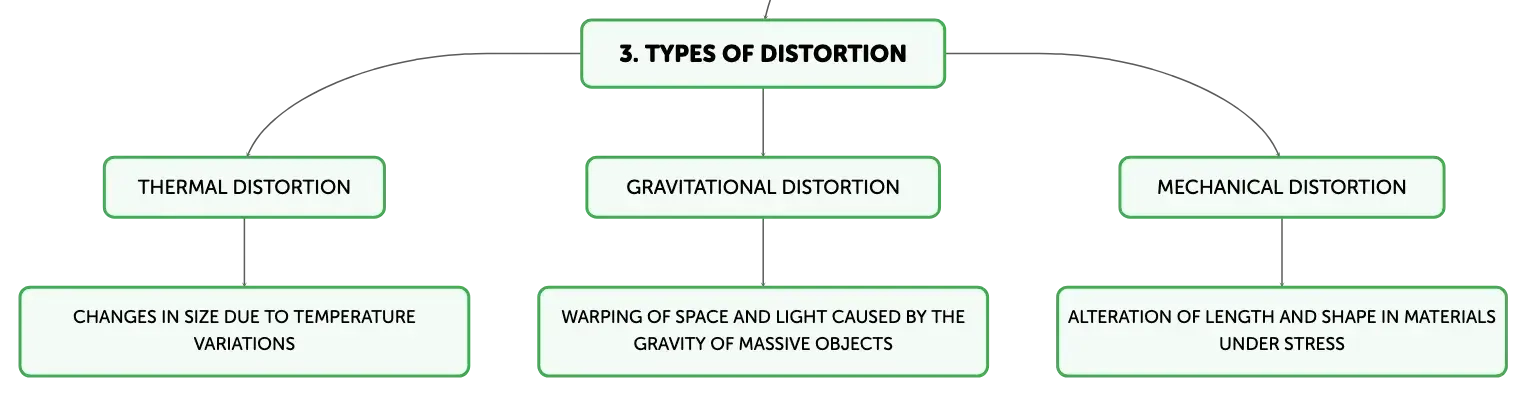

  • Types of Distortion

  • Thermal Distortion

  • Changes in size due to temperature variations

  • Gravitational Distortion

  • Warping of space and light caused by the gravity of massive objects

  • Mechanical Distortion

  • Alteration of length and shape in materials under stress

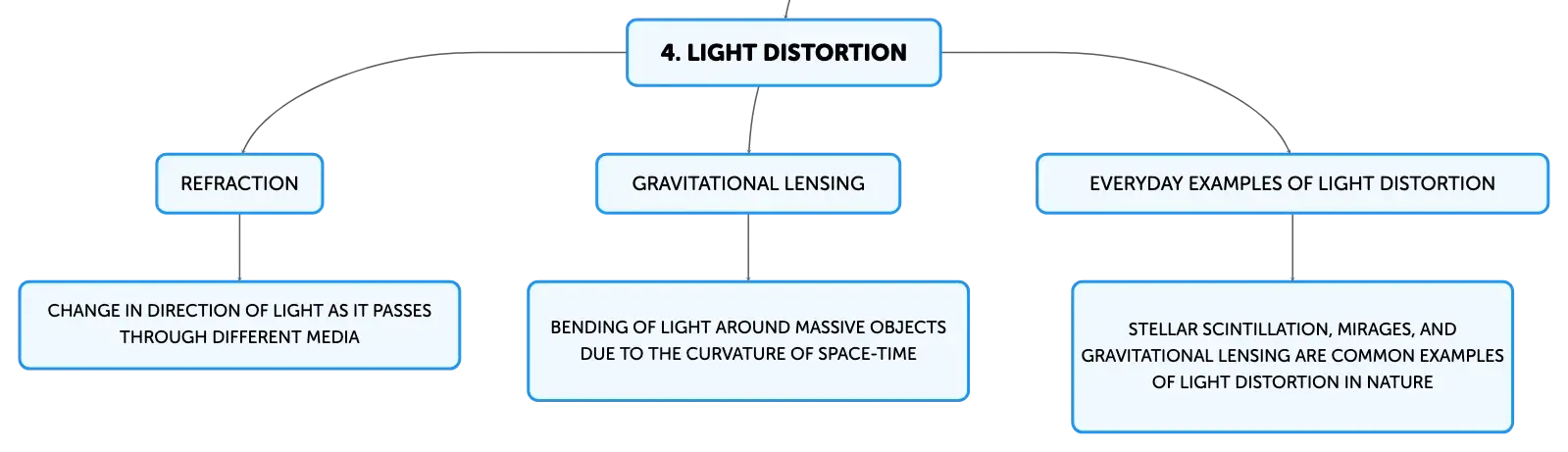

  • Light Distortion

  • Refraction

  • Change in direction of light as it passes through different media

  • Gravitational Lensing

  • Bending of light around massive objects due to the curvature of space-time

  • Everyday Examples of Light Distortion

  • Stellar scintillation, mirages, and gravitational lensing are common examples of light distortion in nature

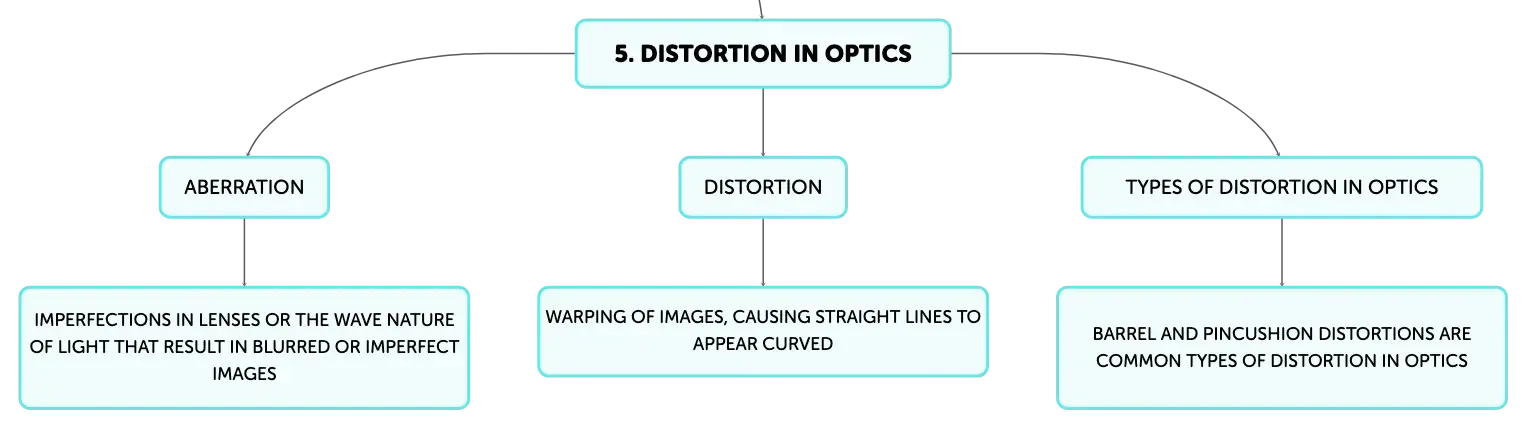

  • Distortion in Optics

  • Aberration

  • Imperfections in lenses or the wave nature of light that result in blurred or imperfect images

  • Distortion

  • Warping of images, causing straight lines to appear curved

  • Types of Distortion in Optics

  • Barrel and pincushion distortions are common types of distortion in optics

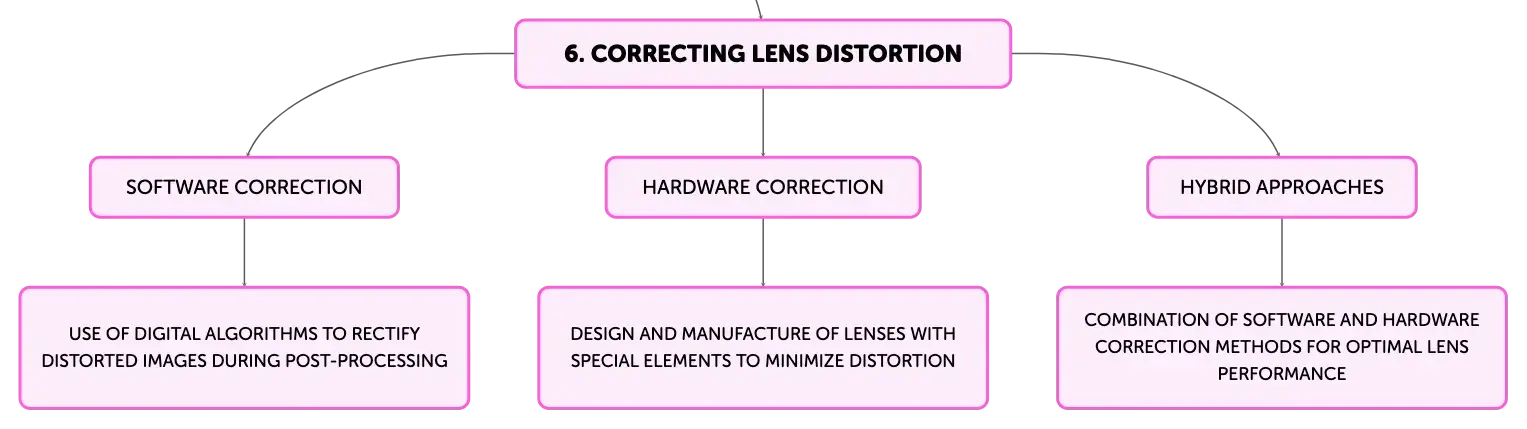

  • Correcting Lens Distortion

  • Software Correction

  • Use of digital algorithms to rectify distorted images during post-processing

  • Hardware Correction

  • Design and manufacture of lenses with special elements to minimize distortion

  • Hybrid Approaches

  • Combination of software and hardware correction methods for optimal lens performance

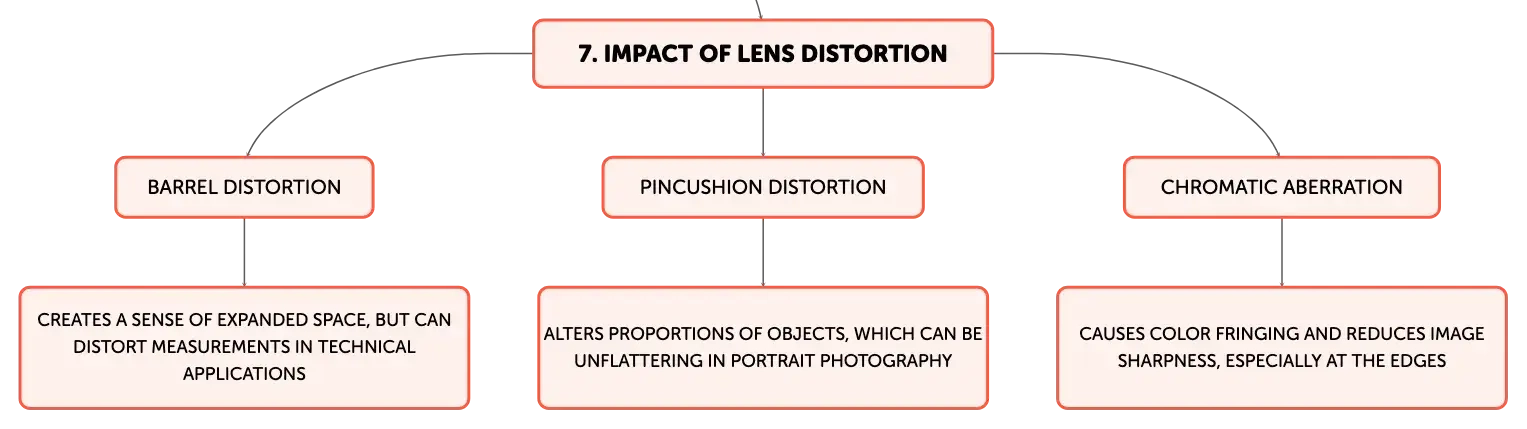

  • Impact of Lens Distortion

  • Barrel Distortion

  • Creates a sense of expanded space, but can distort measurements in technical applications

  • Pincushion Distortion

  • Alters proportions of objects, which can be unflattering in portrait photography

  • Chromatic Aberration

  • Causes color fringing and reduces image sharpness, especially at the edges

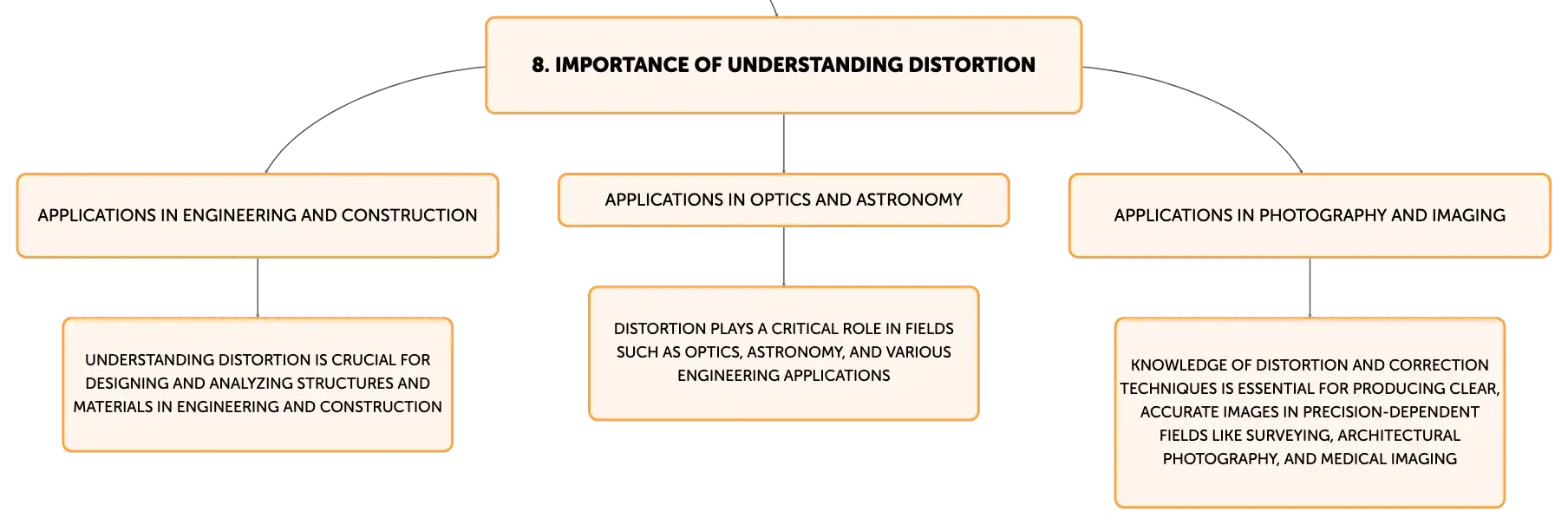

  • Importance of Understanding Distortion

  • Applications in Engineering and Construction

  • Understanding distortion is crucial for designing and analyzing structures and materials in engineering and construction

  • Applications in Optics and Astronomy

  • Distortion plays a critical role in fields such as optics, astronomy, and various engineering applications

  • Applications in Photography and Imaging

  • Knowledge of distortion and correction techniques is essential for producing clear, accurate images in precision-dependent fields like surveying, architectural photography, and medical imaging

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Distortion in Physics

Change in shape, size, or position of an object due to external forces or conditions.

01

Stress vs. Strain

Stress: force per unit area within materials. Strain: measure of deformation relative to a reference length.

02

Force as a Cause of Deformation

External cause leading to an object's distortion, affecting its structure and integrity.

03

______ causes materials to alter in size because of temperature changes, like metal tracks widening in hot weather.

Thermal expansion

04

In the universe, ______ is a phenomenon where a massive object's gravity, such as that of a ______, distorts space and affects the trajectory of light.

Gravitational lensing

galaxy

05

Refraction definition

Bending of light when passing between mediums with different refractive indices.

06

Snell's Law relationship

Connects angle of incidence with angle of refraction and refractive indices.

07

Gravitational lensing cause

Light bends around massive objects due to space-time curvature.

08

The phenomenon of stars appearing to ______, called ______, occurs due to Earth's turbulent atmosphere.

twinkle

stellar scintillation

09

In the universe, ______ can cause the light from a distant galaxy to form a circular ______ around another galaxy.

gravitational lensing

Einstein Ring

10

Types of aberration in optics

Chromatic: different wavelengths focus differently. Spherical: light fails to converge at one point.

11

Chromatic aberration cause

Caused by lens dispersion, making colors focus at various distances.

12

Distortion examples in lenses

Barrel: straight lines bow outward. Pincushion: lines bend inward.

13

To reduce distortion, ______ correction involves creating lenses with special elements, while hybrid approaches optimize lenses for easier ______ correction.

hardware

software

14

Barrel Distortion Impact

Creates expanded space effect; desirable in some photos, distorts technical measurements.

15

Pincushion Distortion Effect

Alters object proportions; can be unflattering in portraits, affects image accuracy.

16

Chromatic Aberration Consequences

Causes color fringing; reduces image sharpness, especially at edges.

17

In physics, ______ refers to the change in an object's shape, size, or location due to outside forces.

Distortion

18

In the field of ______, distinguishing between aberration and ______ is vital to preserve the quality of images.

optics

distortion
