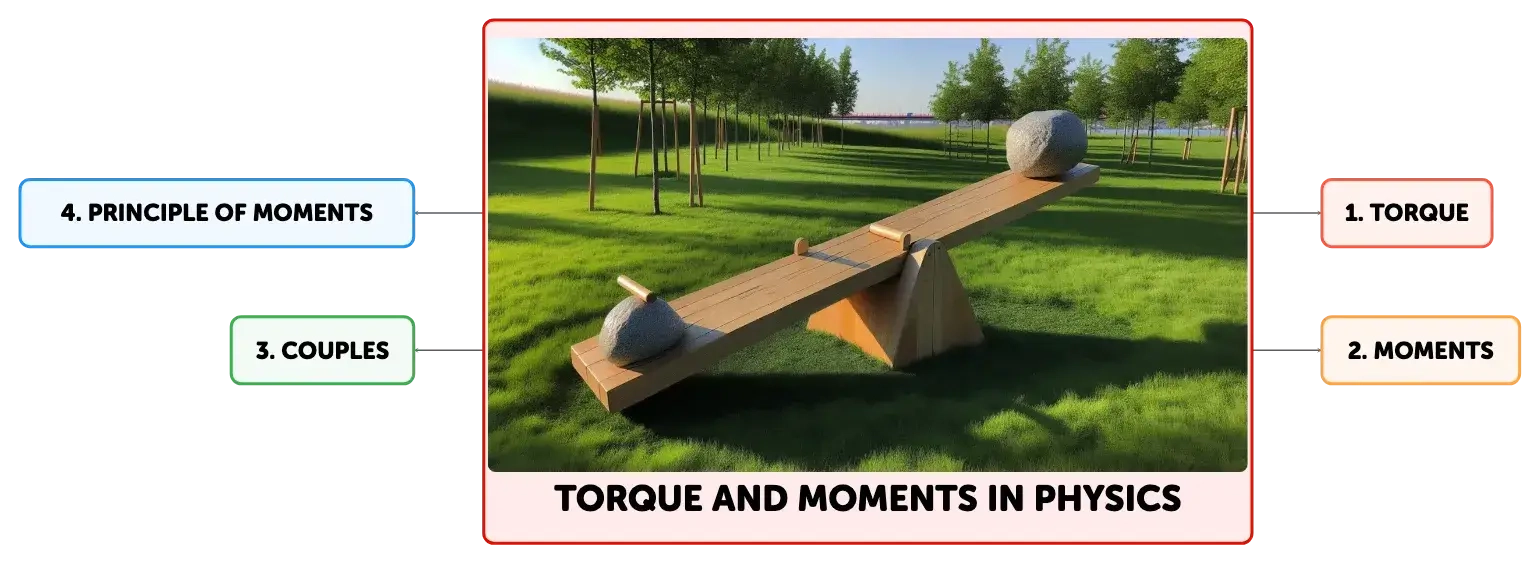

Torque and Moments in Physics
Torque plays a crucial role in the mechanics of door handles, illustrating the importance of handle placement for ease of use. This concept extends to static equilibrium, where torque ensures balance despite forces. Moments, or torque, are essential in engineering for calculating the rotational potential of forces, and the principle of moments is key for mechanical equilibrium. Couples, generating pure rotation, are also discussed, highlighting their application in everyday mechanics.
See moreThe Role of Torque in Door Handle Mechanics

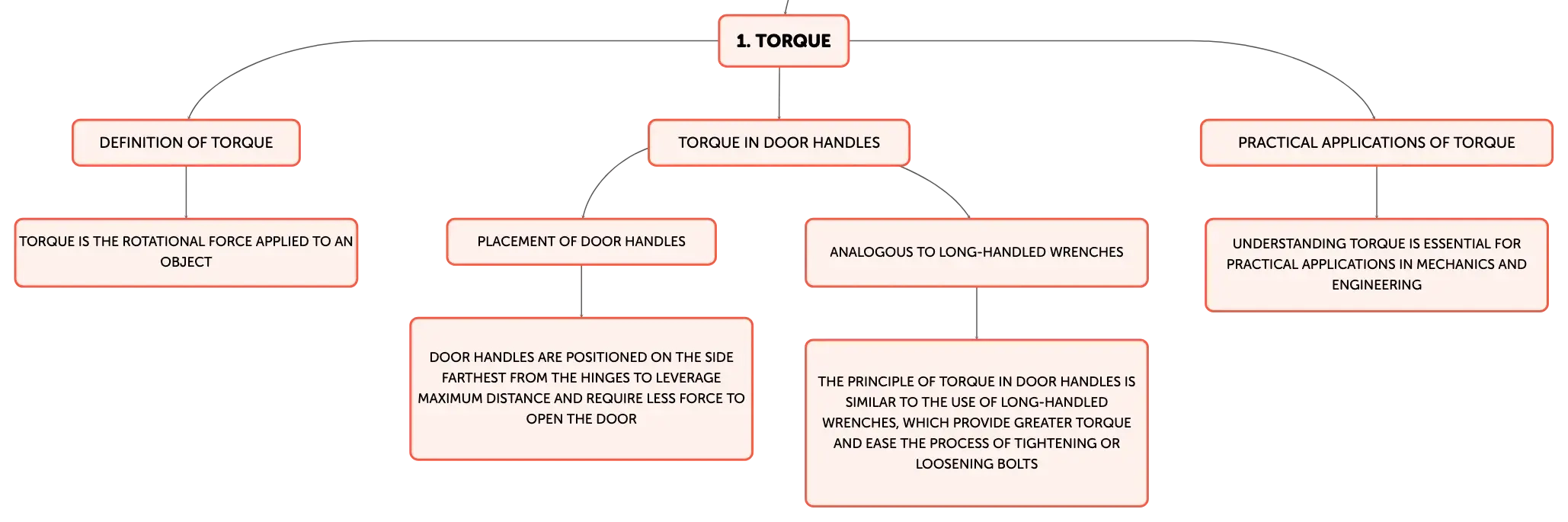

Torque, a fundamental concept in physics, refers to the rotational force applied to an object. In the context of door handles, torque illustrates why handles are positioned on the side farthest from the hinges. This placement leverages the maximum distance from the pivot point (the hinges), thereby requiring less force to open the door due to the increased torque. This principle is analogous to the use of long-handled wrenches, which provide greater torque and ease the process of tightening or loosening bolts. Understanding torque is essential for practical applications in mechanics and engineering.Static Equilibrium and the Role of Torque
Static equilibrium occurs when an object is at rest with no net force acting upon it, and all forces are balanced. However, equilibrium does not negate the presence of torque. Forces applied at different points on an object can still produce torque, causing rotation. For instance, two forces of equal magnitude acting in opposite directions will not result in motion if applied at the same point, but if applied at different points, they create a rotational effect. This demonstrates that torque is a product of both force magnitude and the distance from the pivot, which is crucial in the design and analysis of static structures.Calculating Moments for Engineering Applications
The moment of a force, also known as torque, quantifies the potential for rotation and is calculated by multiplying the force by the perpendicular distance from the pivot point. Expressed in Newton-meters (Nm), moments are vital in engineering calculations. For example, a 100kg mass at a distance of 30m from a pivot experiences a gravitational force of approximately 981 Newtons (assuming standard gravity of 9.81 m/s²), resulting in a moment of 29,430 Nm. This calculation is integral to the design of mechanical systems and structures, ensuring they can withstand rotational forces.The Concept of Couples in Rotational Dynamics

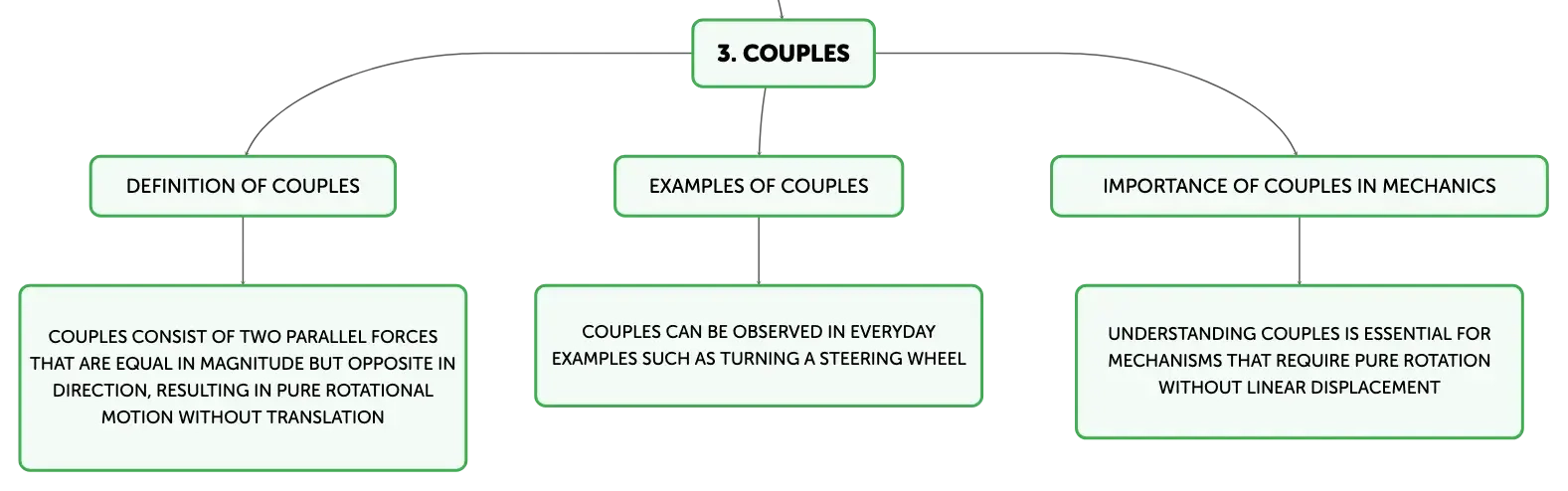

A couple consists of two parallel forces that are equal in magnitude but opposite in direction, separated by a distance, resulting in pure rotational motion without translation. The moment of a couple is the product of one of the forces and the distance between them. An everyday example is the turning of a steering wheel, which involves a couple. If a force of 15 Newtons is applied at both ends of a 1-meter diameter wheel, the resulting couple is 15 Nm. Understanding couples is essential for mechanisms that require pure rotation without linear displacement.Mechanical Equilibrium and the Principle of Moments

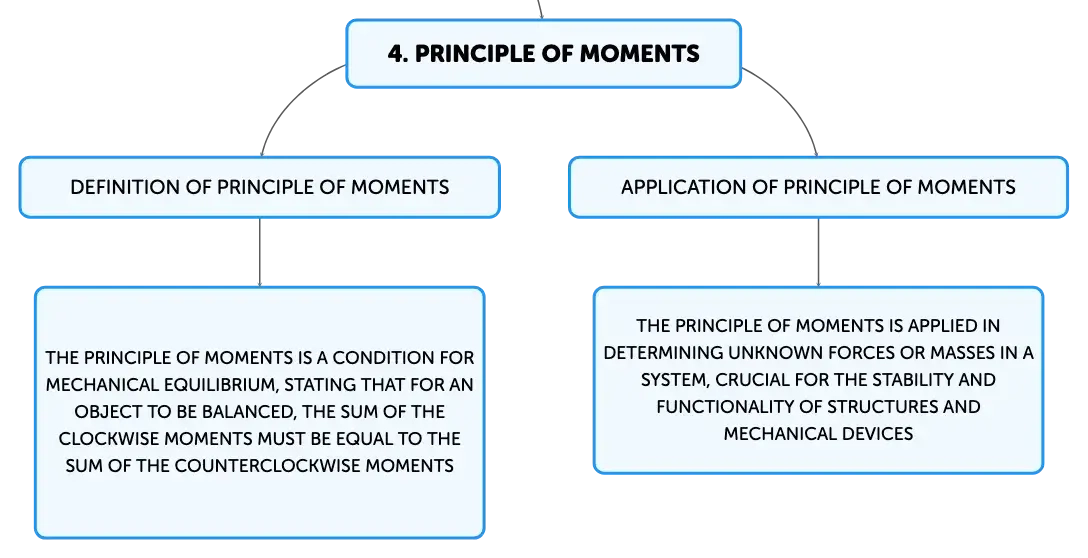

The principle of moments is a condition for mechanical equilibrium, stating that for an object to be balanced, the sum of the clockwise moments must be equal to the sum of the counterclockwise moments. This principle is observable in a seesaw where the moments due to the weights of individuals on either side must be equal for the seesaw to remain horizontal. Applying this principle allows for the determination of unknown forces or masses in a system, which is crucial for the stability and functionality of structures and mechanical devices.Comprehensive Insights into Moments and Torque
To summarize, a moment, or torque, is the measure of the rotational effect of a force, calculated as the product of the force and its distance from the pivot point. A couple is a moment that induces rotation without a net linear force. The principle of moments is a cornerstone of statics, ensuring that an object is in equilibrium when the clockwise and counterclockwise moments are balanced. These concepts are indispensable for the design and analysis of balanced systems and controlled movements, as seen in architecture, machinery, and everyday implements like doors and hand tools.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In physics, ______ is the term for the rotational force exerted on an object.
Click to check the answer
2
Definition of Static Equilibrium
Click to check the answer
3
Effect of Forces at Same Point
Click to check the answer
4
Torque and Force Distance Relationship
Click to check the answer
5
A mass of ______ at a distance of ______ from a pivot, under standard gravity, would have a moment of approximately ______ due to gravitational force.
Click to check the answer
6
Characteristics of forces in a couple
Click to check the answer
7
Resultant force of a couple
Click to check the answer
8
Real-world example of a couple
Click to check the answer
9
The ______ of moments is essential for calculating unknown ______ or ______ in a system, impacting the stability of structures and devices.
Click to check the answer
10
Define moment or torque.
Click to check the answer
11
What is a couple in physics?
Click to check the answer
12
Explain the principle of moments.
Click to check the answer
