Principles of Diffraction Gratings and Spectral Dispersion

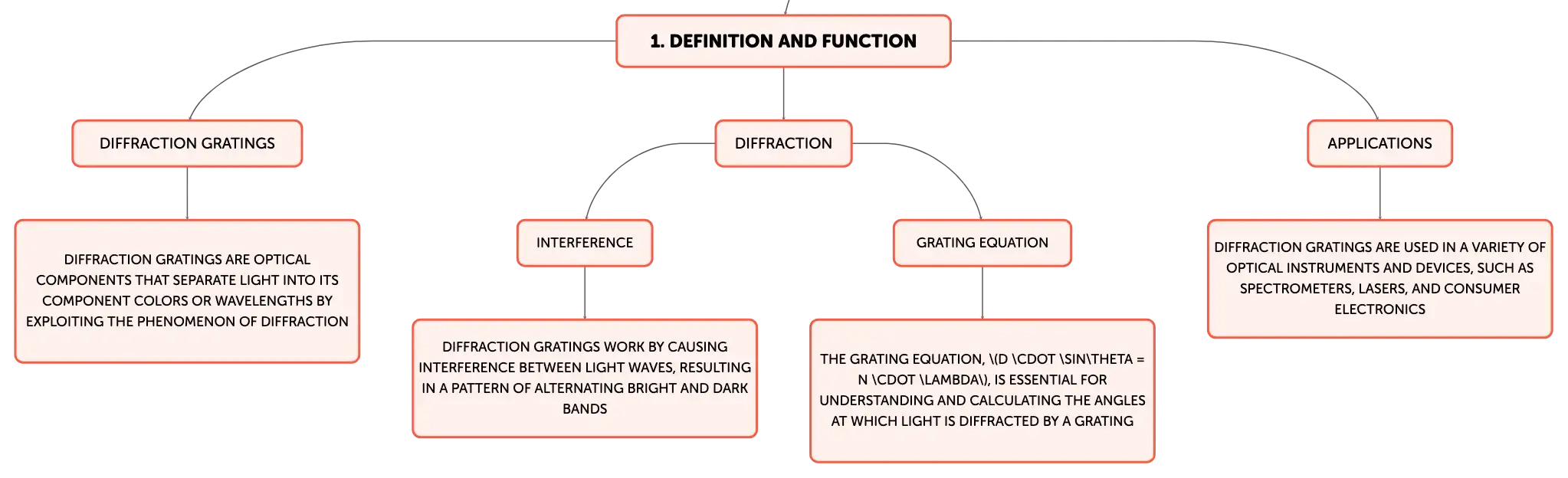

Diffraction gratings are pivotal optical components that separate light into its component colors or wavelengths by exploiting the phenomenon of diffraction. This effect arises when light waves encounter a series of obstacles or apertures that are on the order of the light's wavelength. A typical diffraction grating is composed of a substrate with numerous parallel lines or slits, spaced at regular intervals. As light passes through these openings, it spreads out and the waves interfere with each other. This interference can be constructive, where wave crests coincide to intensify the light, or destructive, where crests and troughs align to diminish it. The resulting pattern of alternating bright and dark bands is known as an interference pattern, which is central to the operation of diffraction gratings.

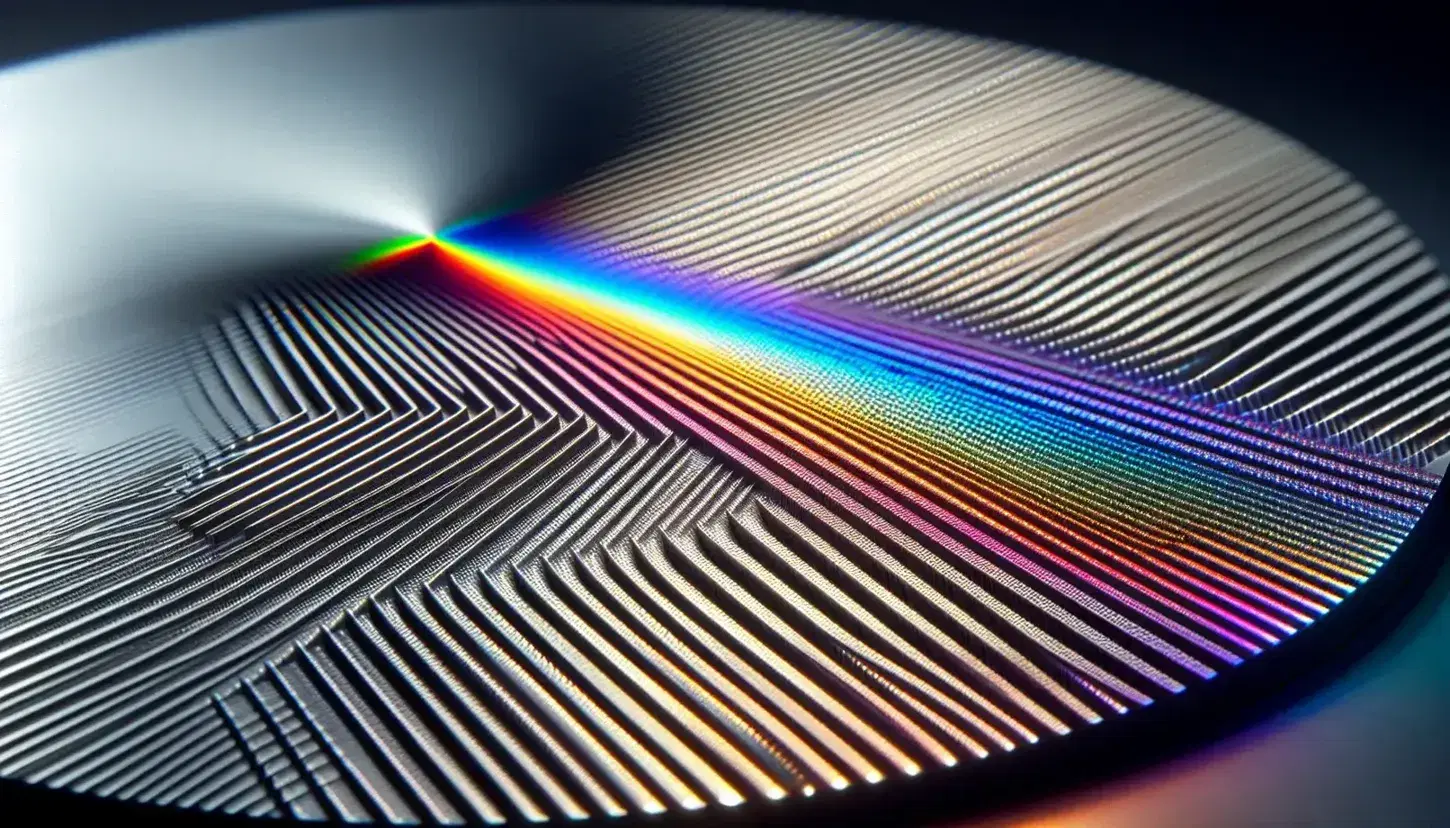

$Close-up view of a diffraction grating displaying a vivid spectrum of colors, from violet to red, due to light diffraction on its finely etched surface.$

Generation of Interference Patterns by Diffraction Gratings

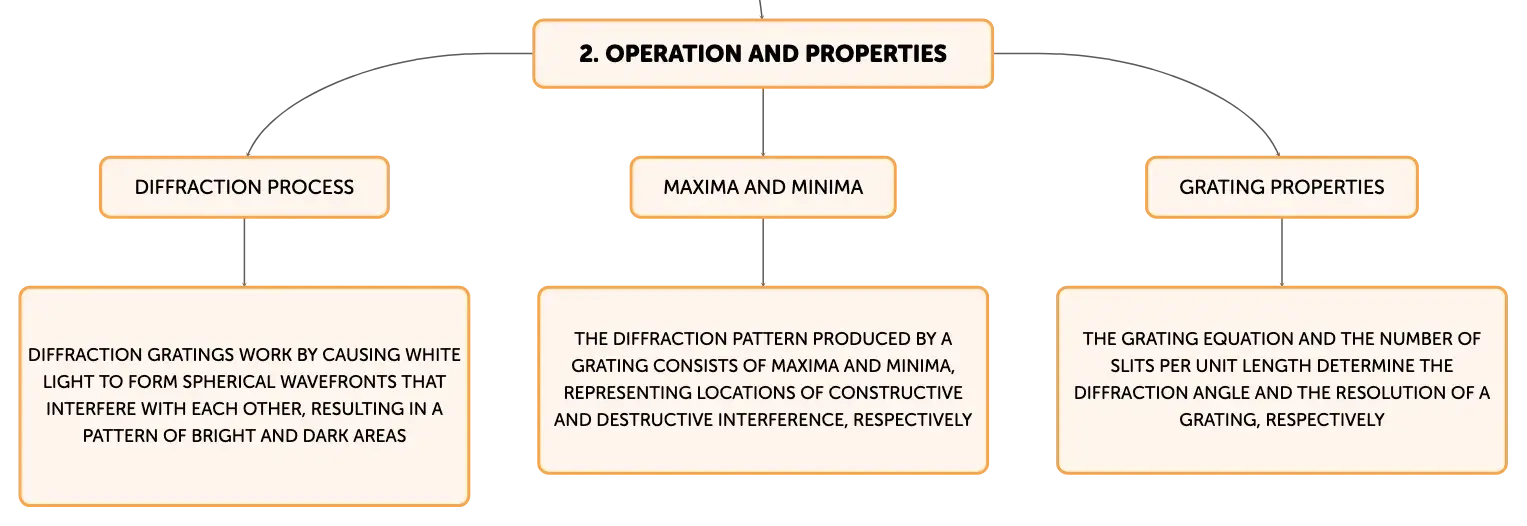

The process of diffraction through a grating causes white light, which contains a spectrum of colors with different wavelengths, to form spherical wavefronts emanating from each slit. These wavefronts overlap and interfere to produce a series of bright and dark areas, termed maxima and minima, respectively. The brightest of these, the zero-order maximum, appears at the center, with successive first-order, second-order, and higher-order maxima on either side. The maxima represent locations of constructive interference where the path difference between light from adjacent slits is an integer multiple of the wavelength. The angle at which each maximum occurs can be precisely calculated using the grating equation, which takes into account the spacing between the slits, the wavelength of light, and the order of the maximum observed.

Determining Diffraction Angles Using the Grating Equation

The grating equation, $d \cdot \sin\theta = n \cdot \lambda$, is essential for understanding and calculating the angles at which light is diffracted by a grating. In this equation, $d$ represents the grating spacing, $\theta$ the angle of diffraction relative to the normal, $n$ the order of the maximum, and $\lambda$ the wavelength of light. This relationship indicates that the diffraction angle is dependent on the wavelength; thus, light of longer wavelengths, like red, will diffract at larger angles compared to shorter wavelengths, such as blue. The equation also implies that the resolution of the grating, or its ability to distinguish between close wavelengths, improves with an increased number of slits per unit length.

Visual Representation of Diffraction Patterns

The pattern produced by a diffraction grating can be visualized on a screen as an array of multicolored dots, each corresponding to a different wavelength of light. At the central, zero-order maximum, all wavelengths constructively interfere to recreate white light. Progressing outward, the first-order maxima will display shorter wavelengths, like blue, closer to the center, and longer wavelengths, like red, further out, due to their respective diffraction angles. This sequence is repeated for higher-order maxima. The angular separation between these maxima, denoted by $\theta$, can be quantified by applying the grating equation for a given order $n$.

Practical Experimentation with Diffraction Gratings

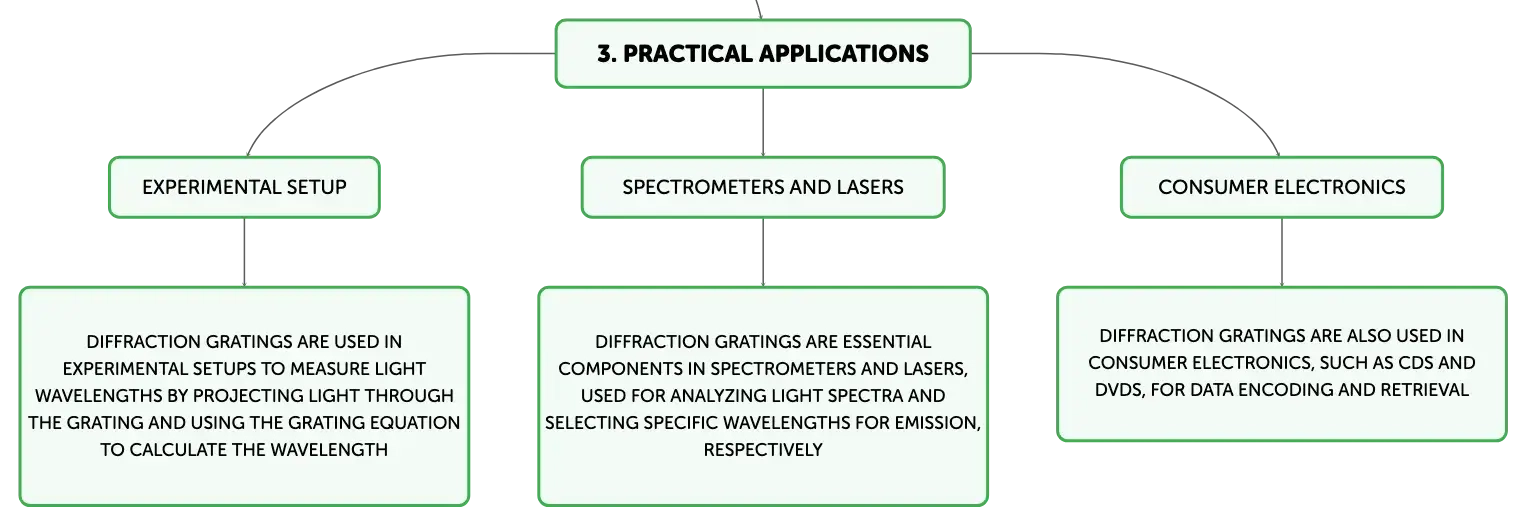

Diffraction gratings are not only theoretical tools but are also widely used in experimental setups to measure light wavelengths. An experiment might involve a diffraction grating, a coherent light source such as a laser, and a measurement device like a ruler or a screen. Projecting the laser light through the grating onto a screen produces a pattern from which the wavelength can be deduced. This is done by measuring the distance from the grating to the screen (D) and the fringe spacing (h), and then using the grating equation in conjunction with trigonometric relationships, specifically $\tan \theta = \frac{h}{D}$, to solve for $\lambda$.

Applications of Diffraction Gratings in Modern Technology

Diffraction gratings are integral to a variety of optical instruments and devices. Spectrometers, which analyze the spectral content of light, rely on gratings for their functionality. In laser technology, gratings are used to select specific wavelengths for emission. Consumer electronics such as CDs and DVDs utilize the microscopic gratings etched onto their surfaces for data encoding and retrieval. Additionally, monochromators, which filter out all but a single wavelength of light, and devices designed for optical pulse compression, which alter the temporal profile of light pulses, also depend on the unique properties of diffraction gratings. These diverse applications underscore the critical role of diffraction gratings in the field of optics and photonics.
