Transverse waves are mechanical waves with particle displacement perpendicular to wave propagation. Key properties include amplitude, wavelength, frequency, and period. They differ from longitudinal waves and are vital in phenomena like light, seismic activity, and communication technologies. Mathematical models predict their behavior, crucial in physics and engineering.

Summary

Outline

Exploring the Nature of Transverse Waves

Transverse waves are a type of mechanical wave where the displacement of the medium is perpendicular to the direction of wave propagation. These waves can be observed in various physical settings, such as the ripples on a water surface or the vibrations of a guitar string. In a transverse wave, the particles of the medium move up and down or side to side, which is orthogonal to the direction in which the wave travels. This motion creates alternating high points, called crests, and low points, called troughs. The transverse wave is one of the two primary types of mechanical waves, the other being longitudinal waves.

Close-up of a glossy mahogany guitar body with six strings, a visible sound hole with a rosette design, and soft background lighting.

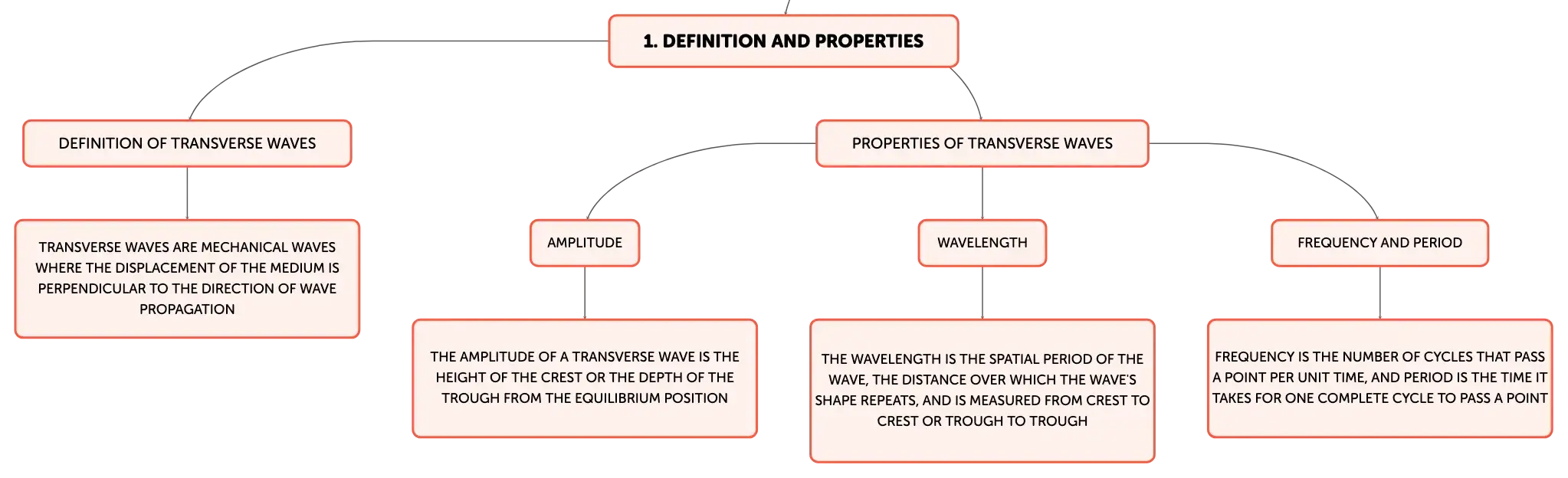

Characteristics of Transverse Waves

Transverse waves are defined by several distinct properties that govern their behavior. The amplitude of a transverse wave is the height of the crest or the depth of the trough from the equilibrium position. The wavelength is the spatial period of the wave, the distance over which the wave's shape repeats, and is measured from crest to crest or trough to trough. The frequency, expressed in hertz (Hz), is the number of cycles that pass a point per unit time, and the period is the time it takes for one complete cycle to pass a point. These properties are interconnected; for example, the wave's speed is the product of its frequency and wavelength. Understanding these characteristics is essential for analyzing wave behavior and interactions.

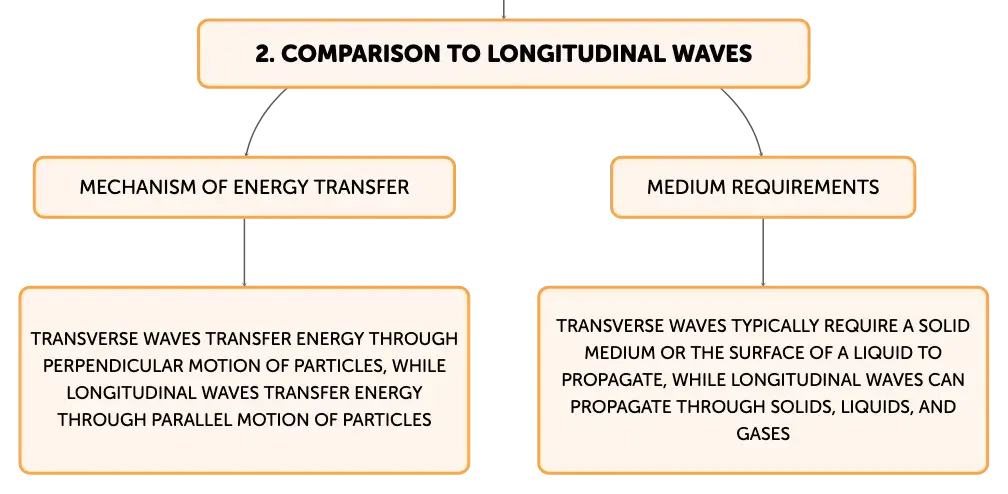

Distinguishing Transverse and Longitudinal Waves

Transverse waves are distinct from longitudinal waves in their mechanism of energy transfer. In longitudinal waves, the particles of the medium oscillate parallel to the wave's direction of travel, creating regions of compression and rarefaction. Longitudinal waves can propagate through solids, liquids, and gases, whereas transverse waves typically require a solid medium or the surface of a liquid to propagate. This is because the shear stress necessary for the perpendicular motion of particles is not supported in fluids (gases and liquids) except at the surface due to surface tension. Recognizing the differences between these two types of waves is fundamental to the study of wave mechanics and the behavior of waves in various media.

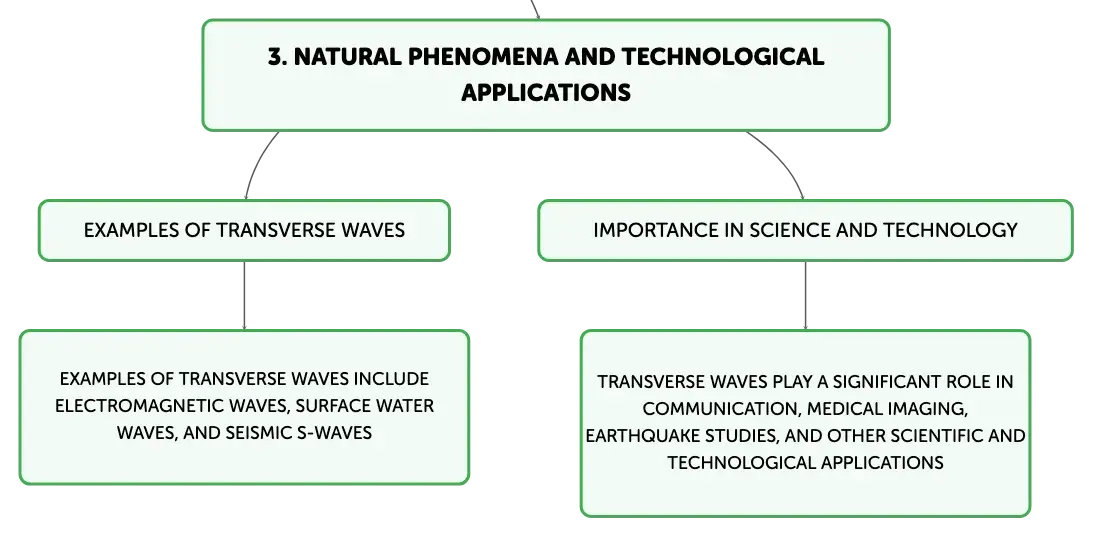

Practical Applications of Transverse Waves

Transverse waves play a significant role in many natural phenomena and technological applications. Electromagnetic waves, which include light, radio waves, X-rays, and gamma rays, are transverse waves that can propagate through a vacuum and are essential for communication, medical imaging, and many other technologies. Surface water waves are another example, where the disturbance occurs at the interface between water and air. Seismic S-waves, or secondary waves, are transverse waves that travel through the Earth's interior and are a key focus in the study of earthquakes. These waves can cause significant damage during seismic events as they move the ground perpendicular to the direction of wave propagation.

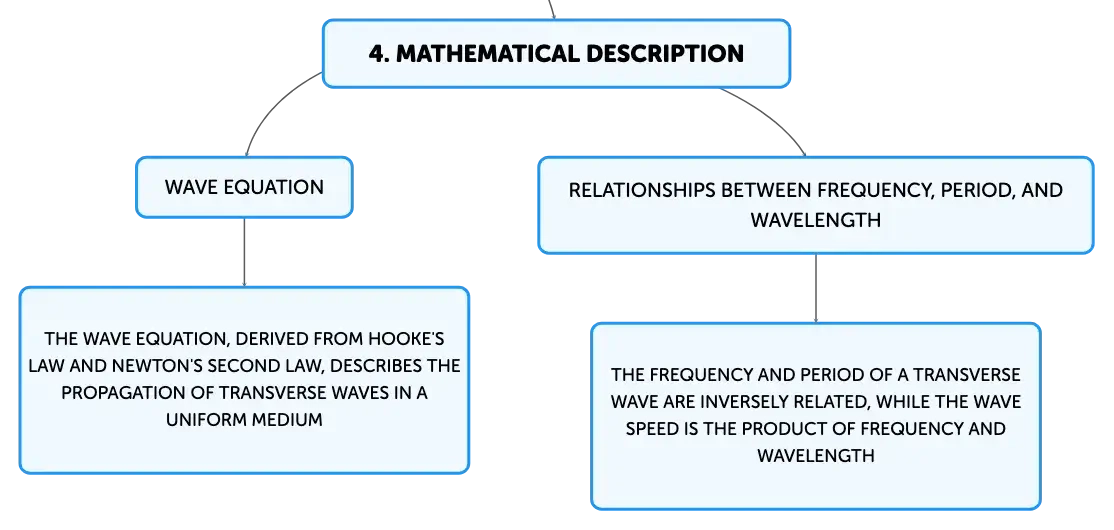

Mathematical Modeling of Transverse Waves

The mathematical description of transverse waves involves equations that relate their fundamental properties. The wave equation, which is derived from Hooke's law and Newton's second law, describes the propagation of transverse waves in a uniform medium. The relationship between frequency (f) and period (T) is given by f = 1/T, and the wave speed (v) can be calculated using the equation v = fλ, where λ is the wavelength. These relationships allow for the determination of a wave's characteristics, such as its speed, given its frequency and wavelength. For instance, a transverse wave with a frequency of 2 Hz and a wavelength of 1 meter would travel at 2 meters per second. These mathematical models are crucial for predicting wave behavior in various scientific and engineering contexts.

Summary of Transverse Wave Concepts

Transverse waves are characterized by the perpendicular motion of particles relative to the wave's direction of travel, with key properties including amplitude, wavelength, frequency, and period. They are distinct from longitudinal waves in their oscillation direction and the media through which they can propagate. Transverse waves are observable in many forms, from the light we see to the seismic waves that shake the ground. Mathematical equations provide a framework for understanding and predicting the behavior of transverse waves, making them a vital concept in physics and engineering disciplines.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

In ______ waves, the medium's displacement is at right angles to the direction of the wave's ______.

Transverse

propagation

01

The high and low points in a transverse wave are known as ______ and ______, respectively.

crests

troughs

02

Transverse Wave Amplitude

Height from equilibrium to crest or depth from equilibrium to trough.
