Möbius Transformations and their Applications in Complex Analysis

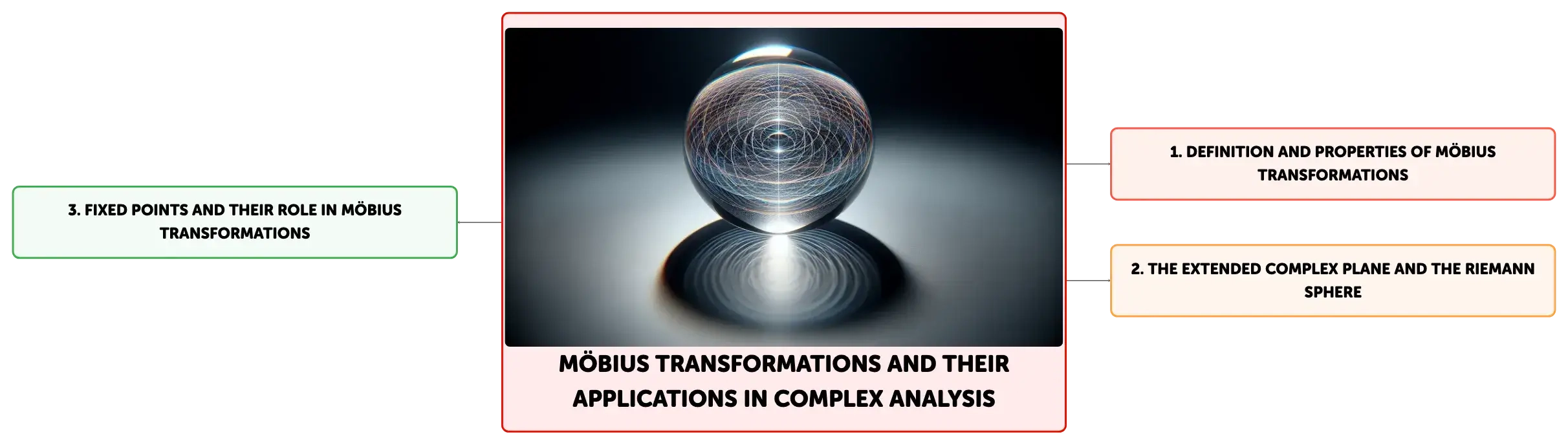

Möbius transformations are pivotal in complex analysis, mapping the complex plane with functions like f(z) = (az + b)/(cz + d). They preserve angles, circles, and lines, and maintain cross ratios, making them essential in fields like physics and engineering. The extended complex plane and Riemann sphere concepts are also discussed, highlighting the importance of fixed points in understanding these transformations.
See more1
4
Exploring Möbius Transformations in Complex Analysis
Möbius transformations are fundamental to complex analysis, providing a means to map the complex plane onto itself with invertible transformations. These transformations are defined by the function \(f(z) = \frac{az + b}{cz + d}\), where \(a\), \(b\), \(c\), and \(d\) are complex numbers satisfying \(ad - bc \neq 0\) to ensure invertibility. Möbius transformations encompass a range of operations such as rotations, translations, dilations, and inversions, and are characterized by their conformality, which means they preserve the angles at which curves intersect.The Concept of the Extended Complex Plane and the Riemann Sphere

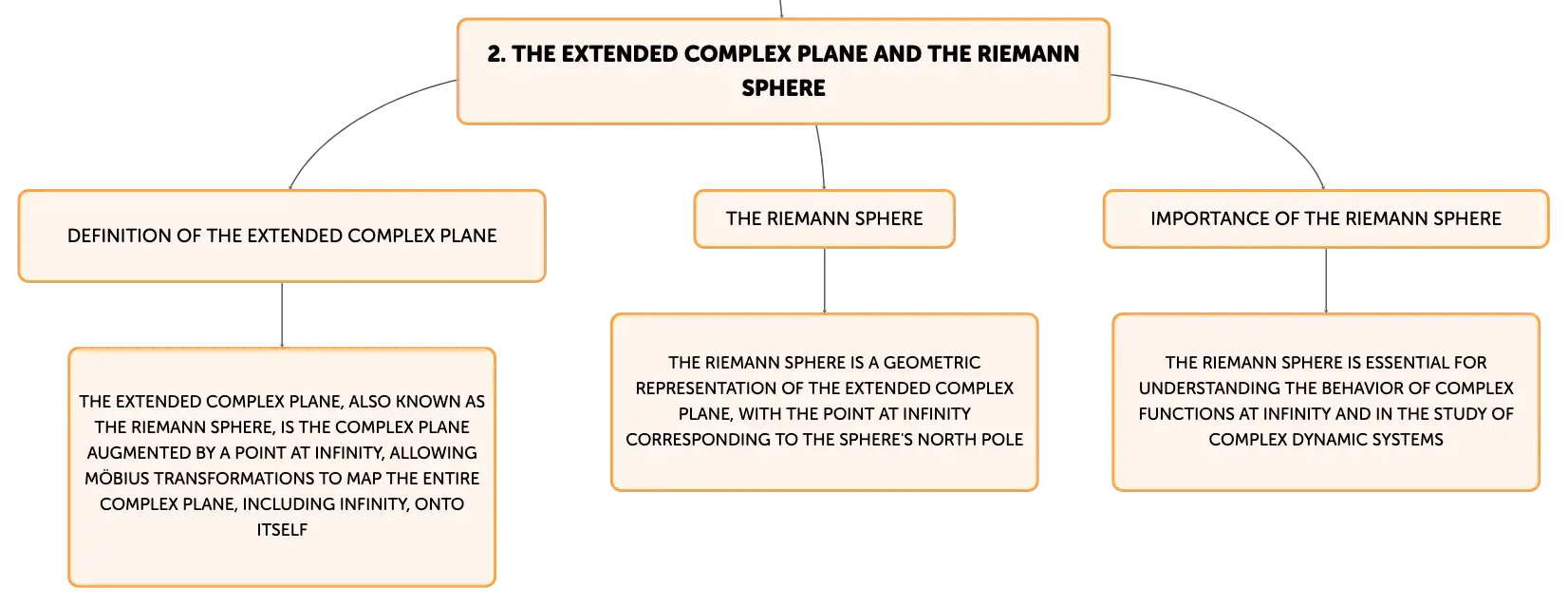

The extended complex plane, also known as the Riemann sphere, is an essential concept for understanding Möbius transformations. It is the complex plane augmented by a point at infinity, allowing Möbius transformations to map the entire complex plane, including infinity, onto itself. This concept is vital for the study of complex functions' behavior at infinity and complex dynamic systems. The Riemann sphere is depicted as the complex plane enveloped around a sphere, with the point at infinity corresponding to the sphere's North Pole, thus elegantly incorporating infinity into the realm of complex analysis.Distinctive Features of Möbius Transformations
Möbius transformations are distinguished by several key properties that render them invaluable in various mathematical and practical contexts. They are conformal, preserving the angles between intersecting curves, and bijective, establishing a one-to-one mapping between points in the complex plane and their images. Furthermore, they preserve circles and lines, transforming them into other circles or lines. These attributes make Möbius transformations instrumental in physics, engineering, and the study of complex dynamical systems, facilitating the geometric interpretation of complex functions and streamlining complex calculations in areas such as fluid dynamics and electromagnetism.Invariance of Cross Ratios and Circle Preservation
One of the most intriguing properties of Möbius transformations is their ability to preserve the cross ratios of four points and map circles and lines to other circles or lines. The cross ratio for points \(z_1, z_2, z_3, z_4\) is defined as \(\frac{(z_1 - z_3)(z_2 - z_4)}{(z_1 - z_4)(z_2 - z_3)}\) and remains unchanged under a Möbius transformation. This invariance underpins the transformation's capability to maintain the geometric structure of figures in the complex plane, rendering Möbius transformations a potent tool for geometric analysis in complex analysis.The Significance of Fixed Points in Möbius Transformations

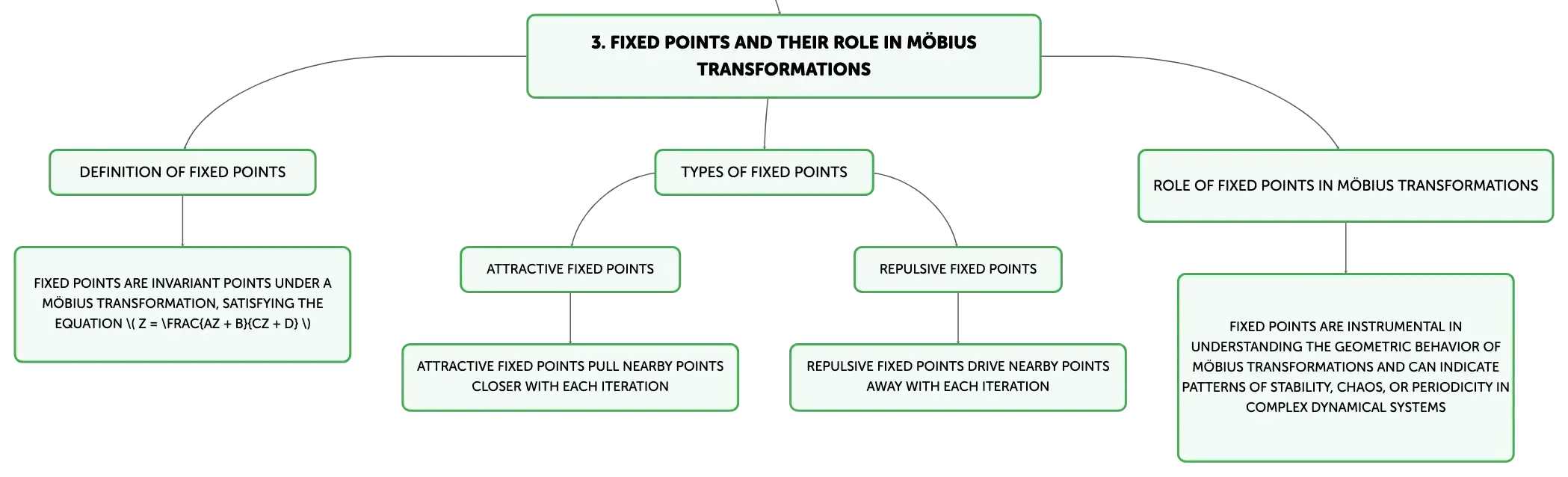

Fixed points play a crucial role in the analysis of Möbius transformations, serving as invariant points under the transformation. These points, which satisfy the equation \( z = \frac{az + b}{cz + d} \), are central to comprehending the transformation's effects on the complex plane. Fixed points can be either attractive, pulling nearby points closer with each iteration, or repulsive, driving them away. They are instrumental in classifying Möbius transformations and provide insight into their geometric behavior. In the study of complex dynamical systems and fractals, fixed points can indicate patterns of stability, chaos, or periodicity, underscoring the profound impact of Möbius transformations in the field of mathematics.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Extended complex plane definition
Click to check the answer
2
Riemann sphere depiction
Click to check the answer
3
Importance of infinity in complex analysis
Click to check the answer
4
In fields like physics and engineering, ______ transformations aid in simplifying complex calculations and interpreting geometrically complex functions.
Click to check the answer
5
Möbius transformations mapping property
Click to check the answer
6
Invariance of geometric structure
Click to check the answer
7
Role in complex analysis
Click to check the answer
8
Fixed points in Möbius transformations can be ______, drawing points nearer, or ______, pushing them further with each iteration.
Click to check the answer
