Focal Length in Optics

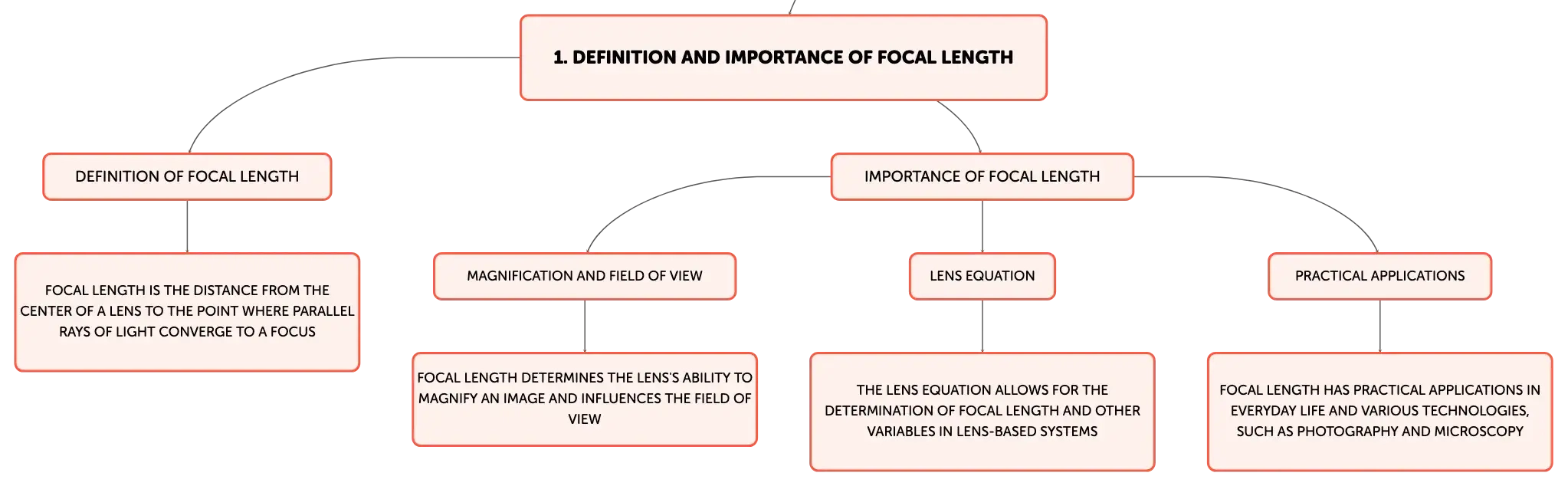

The Fundamentals of Focal Length in Optical Systems

Focal length is a critical parameter in optical systems, representing the distance from the center of a lens to the point where parallel rays of light converge to a focus. This distance determines the lens's ability to magnify an image and influences the field of view. The focal length is determined by the curvature of the lens surfaces and the refractive index of the lens material. In practical terms, it affects the size and clarity of the images produced by cameras, microscopes, telescopes, and other optical instruments. A thorough understanding of focal length is essential for the effective use and design of these devices.

The Lens Equation and Focal Length Calculation

The lens equation, which is fundamental to optical science, relates the focal length (f) of a lens to the distances from the object (d_o) to the lens and from the lens to the image (d_i). It is given by \( 1/f = 1/d_o + 1/d_i \). This equation allows for the determination of any one of these three variables when the other two are known. It is a vital tool for optical engineers and scientists in the design and analysis of lens-based systems, enabling precise control over image formation.

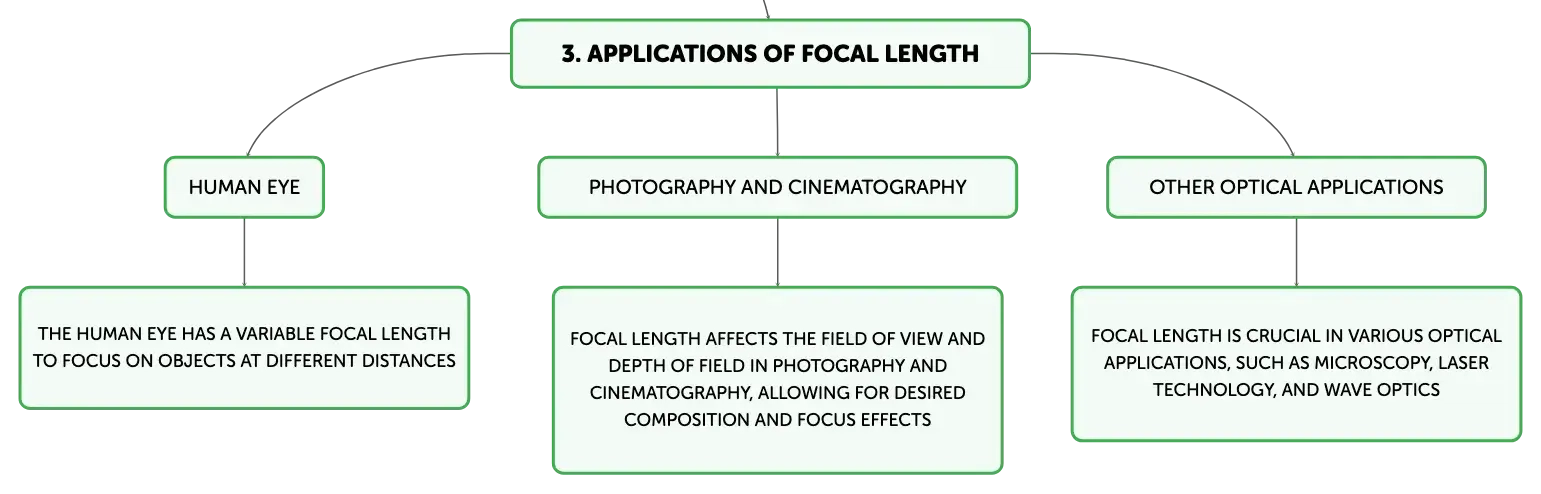

Focal Length in Everyday Life and Technology

Focal length has practical applications in everyday life and various technologies. For instance, the human eye has a variable focal length to focus on objects at different distances, typically adjusting to provide a focal length of about 22mm. In photography, focal length affects the field of view and depth of field; shorter focal lengths yield a wider angle of view and a larger depth of field, while longer focal lengths provide a narrower view and a shallower depth of field. This knowledge is crucial for photographers and cinematographers to create the desired composition and focus effects in their images.

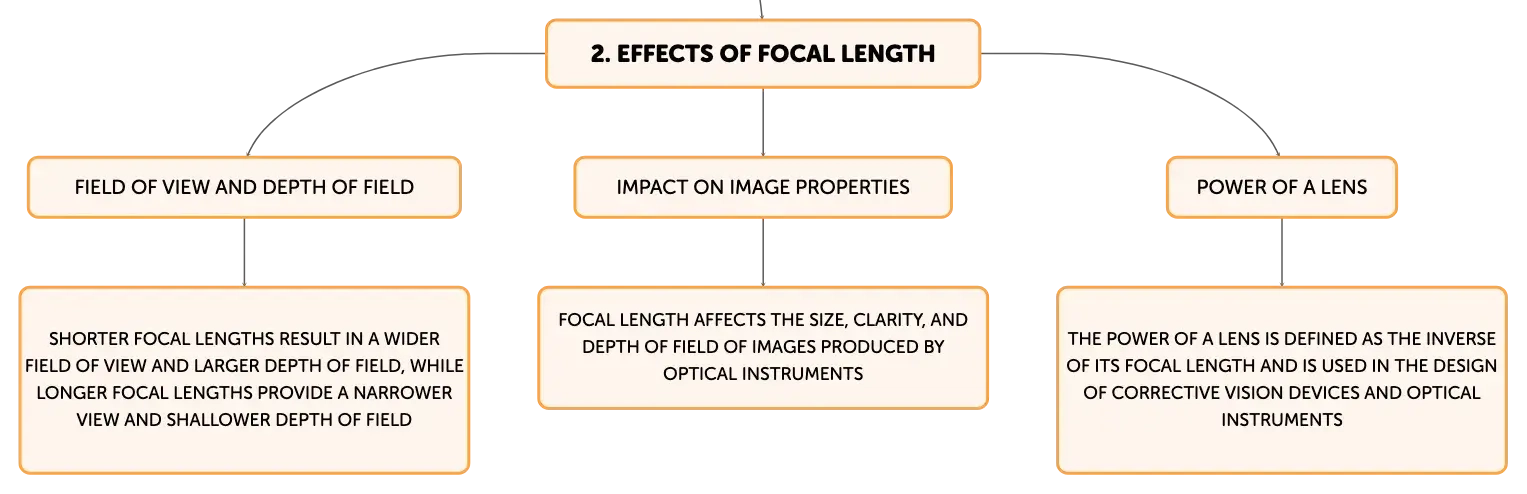

Influence of Focal Length on Image Properties

The focal length of a lens has a profound impact on the properties of the image it produces. Short focal lengths result in a wide field of view, making them suitable for panoramic or landscape photography. Conversely, long focal lengths offer a narrow field of view with greater magnification, ideal for capturing distant subjects. The focal length also affects the depth of field, with longer focal lengths producing a more pronounced bokeh effect, where the background appears blurred, drawing attention to the subject in focus. Understanding these effects is crucial for the effective use of lenses in various optical applications.

Lens Power and Focal Length in Optical Design

In optical design, the power of a lens is defined as the inverse of its focal length, with the equation \( P = 1/f \), where \( P \) is the lens power in diopters and \( f \) is the focal length in meters. This relationship is fundamental in determining how strongly a lens converges or diverges light. It is used extensively in the design of eyeglasses, contact lenses, and other corrective vision devices, as well as in the creation of lenses for cameras, microscopes, and telescopes.

Focal Length's Role in Advanced Optical Phenomena

Beyond geometric optics, focal length is also significant in wave optics, which deals with the wave nature of light. It influences diffraction patterns and the resolution of optical instruments. In microscopy, the focal length of the objective lens is a key factor in determining the system's magnification power. In laser technology, the focal length of the focusing lens is critical for achieving the desired precision in cutting and engraving materials. These examples highlight the importance of focal length in a wide range of optical applications and its relevance to both fundamental research and practical engineering.

The Connection Between Focal Length and Curvature

The focal length of a lens is intrinsically linked to its radius of curvature, particularly in spherical lenses and mirrors. According to the lens-maker's formula, the focal length is dependent on the radii of curvature of the lens surfaces and the refractive index of the lens material. A larger radius of curvature results in a longer focal length and a less powerful lens, while a smaller radius leads to a shorter focal length and a more powerful lens. This relationship is critical in the design and manufacturing of optical components, ensuring that they meet the specific requirements of various imaging and vision correction applications.

Comprehensive Overview of Focal Length

In conclusion, focal length is a fundamental concept in the field of optics, essential for the creation and understanding of images. It is defined as the distance at which parallel rays of light are brought to a focus by a lens or mirror. The focal length determines the magnification, field of view, and depth of field of an optical system, and is calculated using the lens equation. Its applications are diverse, ranging from photography and filmmaking to scientific research and medical diagnostics. The relationship between focal length and the radius of curvature is also a key consideration in optical design. Mastery of the concept of focal length is therefore indispensable for students, professionals, and enthusiasts in the realms of optics and photography.
