The Role of Full Adders in Digital Electronics
The Full Adder circuit is a key component in digital electronics, enabling the addition of three one-bit numbers and facilitating complex arithmetic operations. It is constructed using two Half Adders and an OR gate, with outputs that are crucial for arithmetic logic units in CPUs. Full Adders are also foundational for creating parallel adders and are used in various digital devices, playing a significant role in modern computing and binary arithmetic.
See moreExploring the Full Adder Circuit in Digital Electronics
The Full Adder circuit is an indispensable component in digital electronics, playing a pivotal role in the execution of arithmetic operations. Unlike the Half Adder, which can only add two binary digits, the Full Adder is capable of adding three one-bit numbers: two operand bits and one carry bit from a preceding addition. This capability is crucial for constructing more complex arithmetic circuits. The Full Adder's output includes a 'sum' bit and a 'carry out' bit, both of which are integral to the arithmetic logic units (ALUs) in computer processors for performing binary calculations.Composition and Operation of the Full Adder Circuit
The Full Adder circuit is ingeniously constructed using two Half Adders and an OR gate. The Half Adder itself is a simple combinational logic circuit that computes the sum and carry of two binary digits. In the Full Adder, the OR gate is employed to merge the carry outputs from the Half Adders, yielding the final carry out. The logical expressions that define the Full Adder's functionality are: sum = A XOR B XOR C_in and C_out = (A AND B) OR (B AND C_in) OR (A AND C_in), where XOR represents the exclusive OR operation, and AND and OR are standard logic operations.Full Adders in Advanced Digital Computations
Full Adders are instrumental beyond simple addition, as they are the building blocks for creating parallel adders that enable the addition of multi-bit binary numbers. These adders are essential for complex arithmetic operations such as subtraction, multiplication, and division in digital circuits. For subtraction, Full Adders are part of circuits that implement the two's complement method. In multiplication and division, they are arranged in specific patterns to form Multipliers and Dividers, which are arrays of Full Adders and Half Adders working in concert.The Importance of 1-Bit Full Adders in Binary Arithmetic
The 1-bit Full Adder is a fundamental digital circuit that adds two single-bit binary numbers and an additional carry input. By chaining multiple 1-bit Full Adders together, it is possible to add binary numbers of any size, facilitating complex computations in digital systems. This scalability is essential for the arithmetic operations in modern computing, where calculations are not limited to single bits but involve extensive binary numbers.Real-World Applications of Full Adders
Full Adders are ubiquitous in the realm of digital technology, finding applications in devices such as electronic calculators, computers, and digital clocks. They are responsible for performing arithmetic operations and managing the flow of binary data. In the context of computer programming, simulating Full Adders helps in understanding the manipulation of binary data. For example, implementing a Full Adder in a high-level programming language like Python can provide insights into the logic and functionality of the circuit in a software environment.Analyzing Full Adders with Truth Tables and Logical Equations

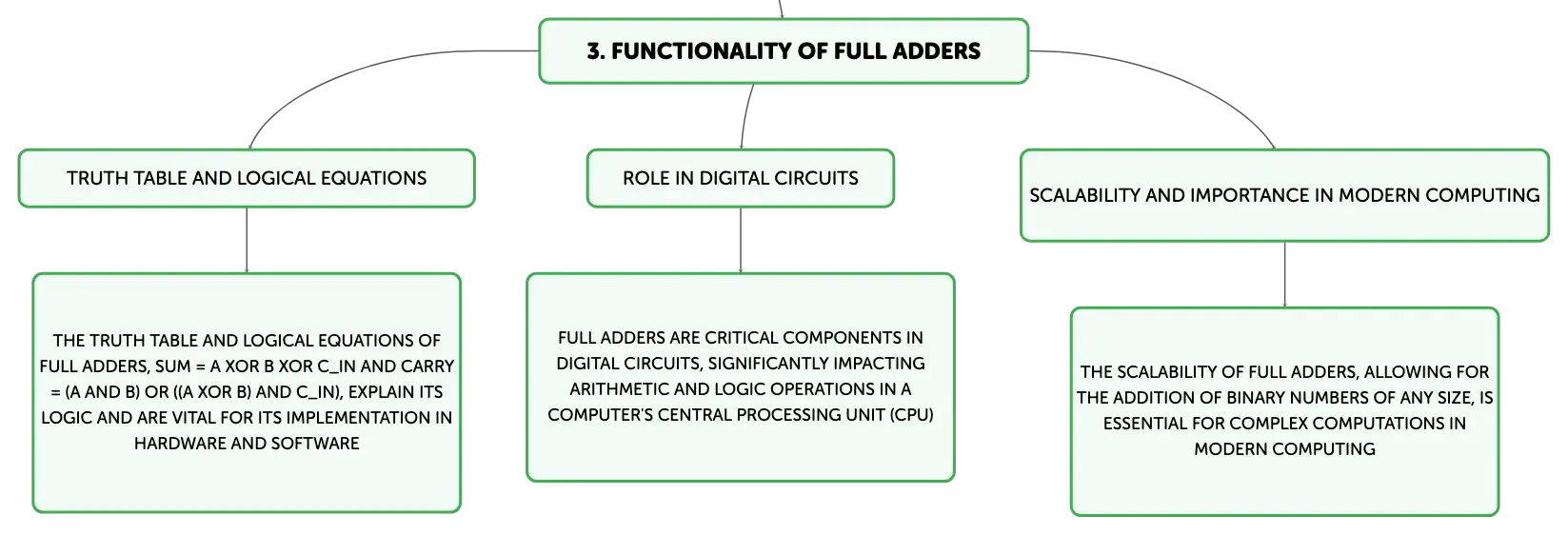

To fully grasp the Full Adder's functionality, one must examine its truth table and logical equations. The truth table enumerates all possible input combinations and their respective outputs, elucidating the Full Adder's logic. The logical equations, sum = A XOR B XOR C_in and Carry = (A AND B) OR ((A XOR B) AND C_in), utilize XOR, AND, and OR operations to determine the sum and carry outputs. These foundational equations are vital for understanding the necessary logic gates for constructing a Full Adder and are fundamental to its implementation in both hardware and software.Concluding Insights on Full Adders in Digital Circuitry
In conclusion, Full Adders are critical to the functionality of digital circuits, significantly impacting the arithmetic and logic operations within a computer's central processing unit (CPU). The Full Adder, with its combination of Half Adders and an OR gate, facilitates the addition of three binary inputs, which is essential for executing complex arithmetic operations and constructing parallel adders. Through practical examples, truth table analysis, and logical equations, the significance of Full Adders in digital electronics and programming is underscored, highlighting their role in advancing computing technology.Want to create maps from your material?
