The Principle of Superposition in Wave Mechanics

The principle of superposition in wave mechanics is pivotal for analyzing how waves interact when they meet. It explains the resultant wave displacement as the sum of individual displacements, leading to phenomena like constructive and destructive interference. This principle is crucial in fields such as acoustics, optics, and quantum mechanics, influencing practical applications like noise-cancelling technology and quantum computing.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Types of waves following superposition principle

Click to check the answer

Sound, light, water waves all adhere to superposition, summing displacements when intersecting.

2

Applications of superposition principle

Click to check the answer

Used in acoustics, optics, quantum mechanics to predict wave interactions and phenomena.

3

The ______ of a wave is defined as the distance from its average position to its peak, while ______ is how many times the wave oscillates in a given time period.

Click to check the answer

amplitude frequency

4

When waves overlap, they can either amplify or diminish each other, a phenomenon known as ______ or ______ interference, influenced by their ______ alignment.

Click to check the answer

constructive destructive phase

5

Constructive Interference Resultant Amplitude

Click to check the answer

Sum of individual amplitudes when waves are in phase.

6

Destructive Interference Resultant Amplitude

Click to check the answer

Difference between individual amplitudes when waves are 180 degrees out of phase.

7

Phase Difference Role in Interference

Click to check the answer

Determines whether interference is constructive or destructive by affecting resultant amplitude.

8

The formula to calculate the resultant amplitude is A = √(A1^2 + A2^2 + 2A1A2cos(______)), where φ represents the ______.

Click to check the answer

φ phase difference

9

Definition of nodes in standing waves

Click to check the answer

Nodes: Points of zero amplitude in a standing wave due to destructive interference.

10

Definition of antinodes in standing waves

Click to check the answer

Antinodes: Points of maximum amplitude in a standing wave due to constructive interference.

11

Role of frequency and amplitude in standing wave formation

Click to check the answer

Equal frequency and amplitude in opposing waves are necessary for standing wave creation.

12

Noise-cancelling headphones produce sound waves that ______ with ambient noise, causing ______ interference that diminishes noise.

Click to check the answer

superpose destructive

13

In music, the pleasant mixture of sounds from various instruments is due to wave ______, while the phenomenon of ______ is utilized in tuning instruments.

Click to check the answer

superposition beats

14

Implications of quantum superposition for computing

Click to check the answer

Enables quantum computers to process vast amounts of data simultaneously, revolutionizing speed and security in computing.

15

Probabilistic interpretation of quantum phenomena

Click to check the answer

Quantum states are not deterministic; they provide probabilities for the outcomes of measurements, contrasting classical certainty.

16

Quantum superposition vs classical intuition

Click to check the answer

Quantum superposition defies classical logic by allowing particles to exist in multiple states at once, challenging our perception of reality.

17

The principle of superposition extends beyond ______ physics and is a crucial aspect of ______ mechanics.

Click to check the answer

classical quantum

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Radiation Pressure

Physics

Optical Aberrations

Physics

Parallel Beams in Physics

Physics

Properties and Applications of Light Waves

The Principle of Superposition in Wave Mechanics

The principle of superposition is a cornerstone of wave mechanics, providing insight into the behavior of overlapping waves. This principle states that when two or more waves meet at a point in space, the resultant wave displacement is the sum of the individual wave displacements. This holds true for all types of waves, including sound, light, and water waves, and is essential for understanding phenomena in various fields such as acoustics, optics, and quantum mechanics.
Double-slit experiment demonstrating wave interference, with a red laser beam creating an alternating pattern of bright and dark bands on a white screen.

Defining Characteristics of Waves and Superposition Effects

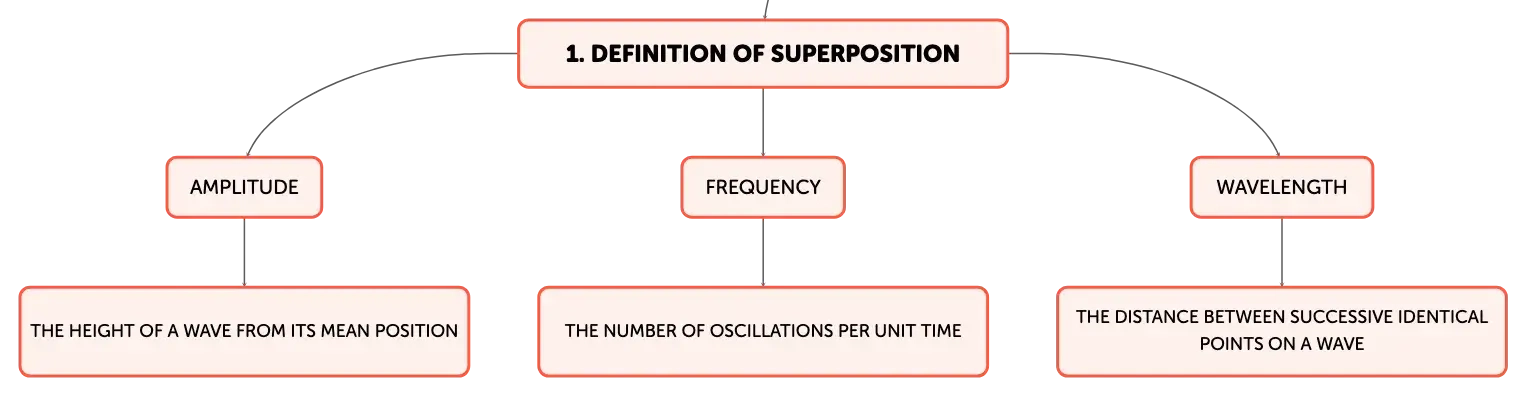

Waves are characterized by their amplitude, frequency, wavelength, and phase. Amplitude is the height of the wave from its mean position, frequency is the number of oscillations per unit time, wavelength is the distance between successive identical points on the wave, and phase describes the position of a point in the wave cycle at a given time. When waves superpose, their amplitudes add algebraically, which can result in constructive interference (amplitude increase) or destructive interference (amplitude decrease), depending on their phase relationship.

Constructive and Destructive Interference in Coherent Waves

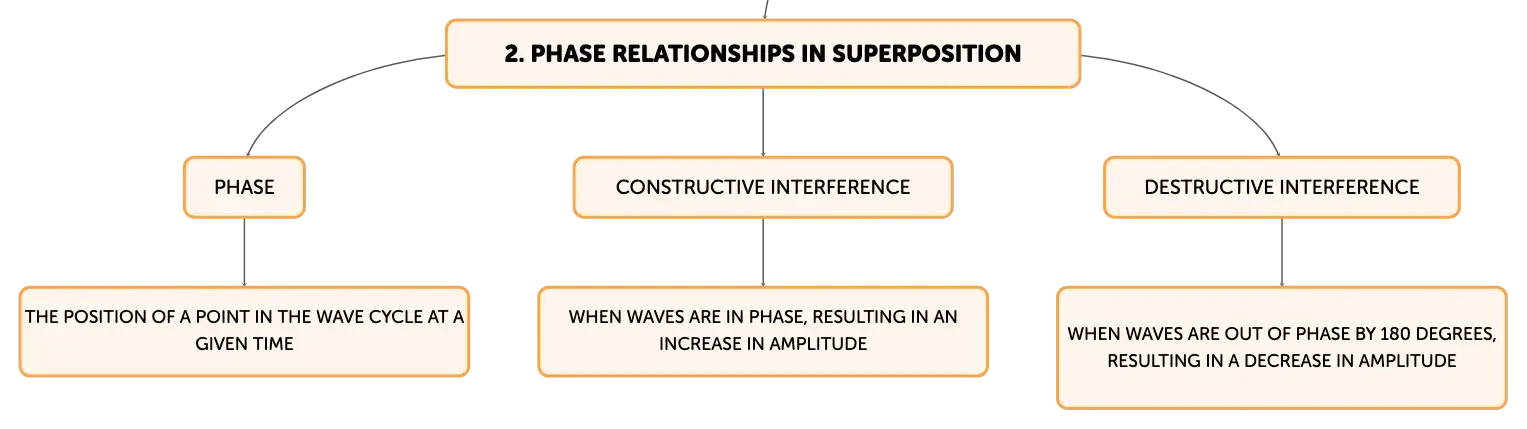

Coherent waves, which have constant phase differences and the same frequency, can interfere constructively or destructively. Constructive interference occurs when the waves are in phase, leading to a resultant amplitude that is the sum of the individual amplitudes. Destructive interference happens when the waves are out of phase by 180 degrees, resulting in a resultant amplitude that is the difference between the individual amplitudes. The precise mathematical description of the resultant amplitude depends on the phase difference and the amplitudes of the interacting waves.

Superposition of Non-Identical Waves

When waves of different amplitudes and phases superpose, the resultant wave's amplitude is determined by vector addition of the individual wave amplitudes. The resultant amplitude can be calculated using the formula A = √(A1^2 + A2^2 + 2A1A2cos(φ)), where A1 and A2 are the amplitudes of the individual waves and φ is the phase difference between them. This formula accounts for all possible phase relationships and the resulting constructive or destructive interference.

Formation of Standing Waves through Superposition

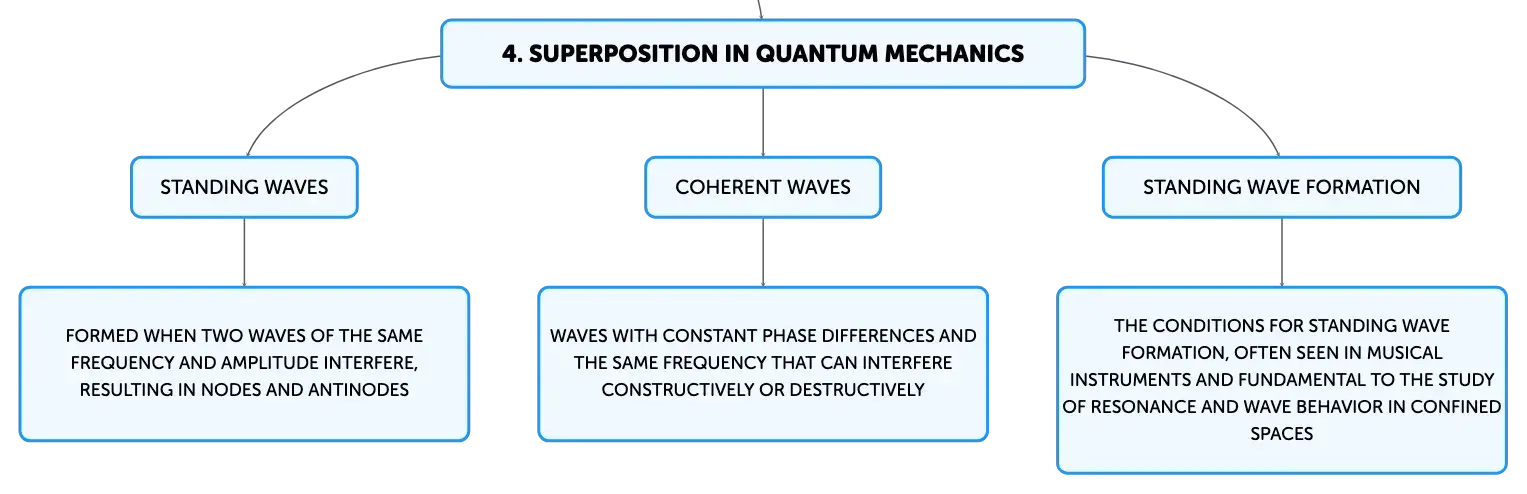

Standing waves are formed when two waves of the same frequency and amplitude travel in opposite directions and interfere with each other. This results in a pattern of nodes, where the amplitude is always zero due to complete destructive interference, and antinodes, where the amplitude reaches a maximum due to constructive interference. The conditions for standing wave formation are often seen in musical instruments and are fundamental to the study of resonance and wave behavior in confined spaces.

Practical Applications of Wave Superposition

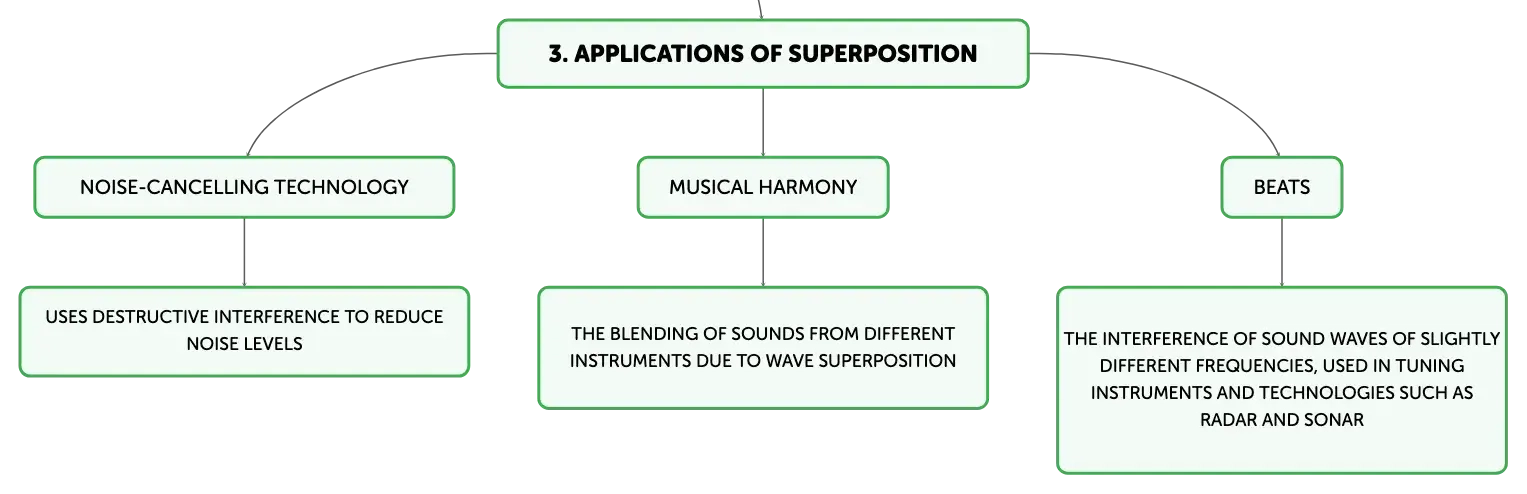

The principle of superposition has numerous practical applications. Noise-cancelling headphones create sound waves that superpose with ambient noise, resulting in destructive interference that reduces noise levels. In music, the harmonious blending of sounds from different instruments is a result of wave superposition. The phenomenon of beats, which occurs when two sound waves of slightly different frequencies interfere, is used in tuning instruments and in technologies such as radar and sonar for distance measurement and object detection.

Quantum Superposition and Its Implications

Beyond classical wave physics, the principle of superposition is integral to quantum mechanics, where it describes the simultaneous existence of particles in multiple states. This leads to the probabilistic interpretation of quantum phenomena and has significant implications for our understanding of reality, including the development of quantum computing and encryption. The principle of superposition in quantum mechanics challenges classical intuition and highlights the non-intuitive nature of the quantum world.

Concluding Remarks on Wave Superposition

The superposition of waves is a fundamental concept in physics, illustrating how individual wave displacements combine to form a resultant wave. The outcome of superposition depends on the phase and frequency of the interacting waves and can lead to various interference patterns, including standing waves. The principle of superposition is not limited to classical physics but is also a key feature of quantum mechanics, demonstrating the pervasive nature of this principle across different domains of science.
