The Cumulative Distribution Function (CDF) and its Properties
Concept Map
The Cumulative Distribution Function (CDF) is a statistical tool that represents the probability of a random variable being less than or equal to a value. It is applicable to both discrete and continuous variables, providing a unified view of probability distributions. The CDF is non-decreasing, bounded by one, and right-continuous. Understanding the CDF is crucial for interpreting probabilities and is closely related to the Probability Density Function (PDF) through integration and differentiation.
Summary
Outline
Exploring the Cumulative Distribution Function (CDF)
The Cumulative Distribution Function (CDF) is an essential concept in the field of statistics, representing the probability that a random variable \(X\) will assume a value less than or equal to a particular number \(x\). The CDF, symbolized by \(F(x)\), is mathematically defined as \( F(x) = P(X \le x)\). This function is applicable to both discrete and continuous random variables, offering a complete picture of the distribution of probabilities for all potential outcomes. As a fundamental tool in statistical analysis, the CDF provides a comprehensive view of a variable's probability distribution through a single, unified function.Relationship Between Probability Density Function (PDF) and CDF
The connection between the Probability Density Function (PDF) and the CDF is crucial for continuous random variables. The PDF, denoted as \(f_X(x)\), specifies the relative likelihood of the random variable \(X\) taking on a precise value. It is characterized by two main conditions: the function must be non-negative (\(f_X(x) \ge 0\) for all \(x\)) and the integral of \(f_X(x)\) over the entire range of \(X\) must be equal to \(1\). The CDF is obtained by integrating the PDF from negative infinity up to the value \(x\), expressed mathematically as \( F(x) = \int_{-\infty}^x f_X(t) \, \mathrm{d} t \). Conversely, the derivative of the CDF with respect to \(x\) yields the PDF. This integral-derivative relationship is fundamental to understanding the link between these two statistical functions.Characteristics of the Cumulative Distribution Function
The CDF has several key characteristics that reflect its probabilistic nature. It is always non-decreasing, as probabilities accumulate, and it is bounded above by one, indicating the certainty of the entire sample space. Additionally, the CDF is right-continuous, which means that at any point \(x\), the value of the CDF is equal to the limit of \(F(t)\) as \(t\) approaches \(x\) from the right. The CDF graphically represents the area under the PDF curve up to a point \(x\), allowing for the direct calculation of probabilities. For instance, the probability \(P(X \le 3.5)\) can be found by locating the value of \(F(3.5)\) on the CDF graph or by applying the function's formula if the graph is a straight line.The CDF of the Normal Distribution
The normal distribution, often used to model a wide range of random variables, has a well-known CDF. The CDF of the normal distribution is the integral of its PDF, which is a symmetric, bell-shaped curve. The CDF graph for a standard normal distribution is sigmoidal, starting at zero and asymptotically approaching one, visually depicting the probability that a random variable falls within a specific interval. Mastery of the normal distribution's CDF is vital for its role in numerous statistical methods and theoretical frameworks.Criteria for Valid CDFs and PDFs
To qualify as a CDF or PDF for a continuous random variable, a function must satisfy specific criteria. A PDF must be non-negative across its domain and integrate to one over that domain. A CDF, on the other hand, must be non-decreasing and cannot exceed one, as it represents cumulative probabilities. Functions that fail to meet these conditions cannot be considered legitimate PDFs or CDFs. For example, a function \(g(x)\) that takes on negative values or exceeds one cannot be a PDF or a CDF, respectively.Creating a CDF from a Probability Density Function
To construct a CDF from a given PDF, one must perform integration. If the PDF of a continuous random variable \(X\) is defined piecewise, with different functions over specific intervals, the CDF is determined by integrating the PDF over these intervals. The resulting CDF will also be piecewise, with separate formulas corresponding to different ranges of \(x\). The integration constant is chosen to ensure that the CDF is zero when \(x\) is below the smallest interval. The CDF can then be utilized to compute probabilities for particular values or intervals, such as \(P(x \le \frac{\pi}{4})\), by evaluating the CDF at the specified point.Concluding Insights on Cumulative Distribution Functions
In conclusion, the cumulative distribution function is a vital statistical tool that encapsulates the entirety of a random variable's probability distribution. Defined for any random variable \(X\) as \(F(x) = P(X \le x)\), the CDF is intimately related to the probability density function for continuous variables. It is non-decreasing, bounded above by one, and represents the cumulative probability up to a given point. The transition between a PDF and a CDF involves integration or differentiation, respectively. A thorough understanding of the CDF's properties and uses is indispensable for statistical analysis and for interpreting the likelihood of different outcomes.
Show More

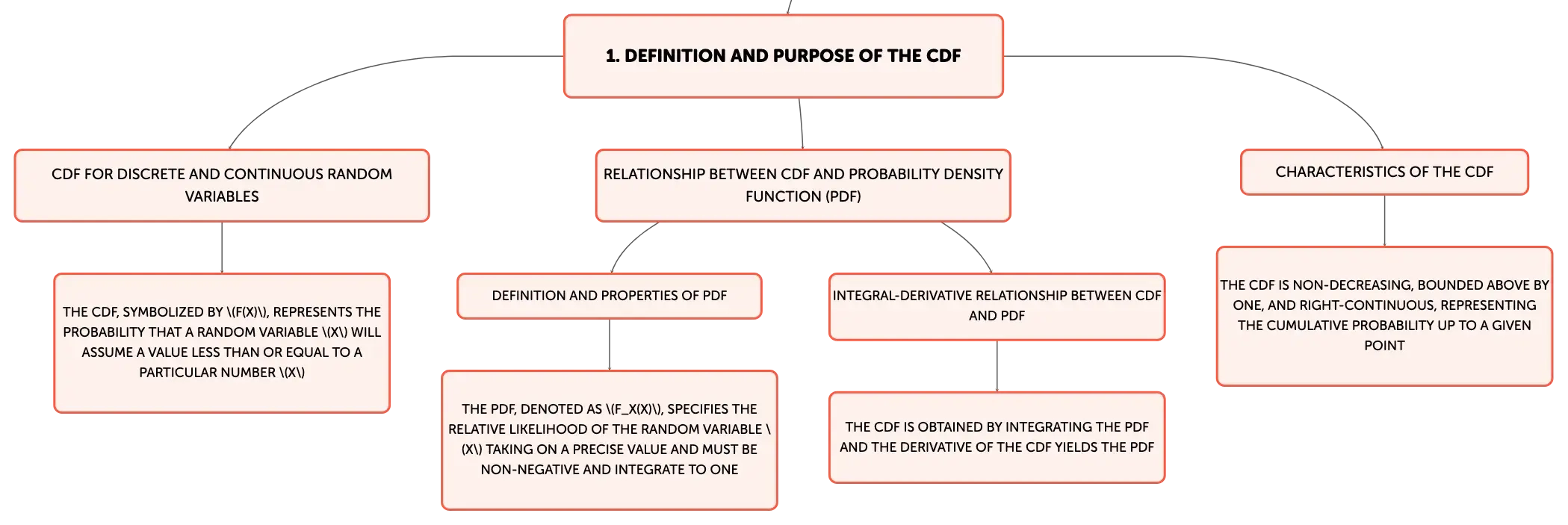

Definition and Purpose of the CDF
CDF for discrete and continuous random variables
The CDF, symbolized by \(F(x)\), represents the probability that a random variable \(X\) will assume a value less than or equal to a particular number \(x\)
Relationship between CDF and Probability Density Function (PDF)
Definition and properties of PDF
The PDF, denoted as \(f_X(x)\), specifies the relative likelihood of the random variable \(X\) taking on a precise value and must be non-negative and integrate to one
Integral-derivative relationship between CDF and PDF
The CDF is obtained by integrating the PDF and the derivative of the CDF yields the PDF
Characteristics of the CDF
The CDF is non-decreasing, bounded above by one, and right-continuous, representing the cumulative probability up to a given point

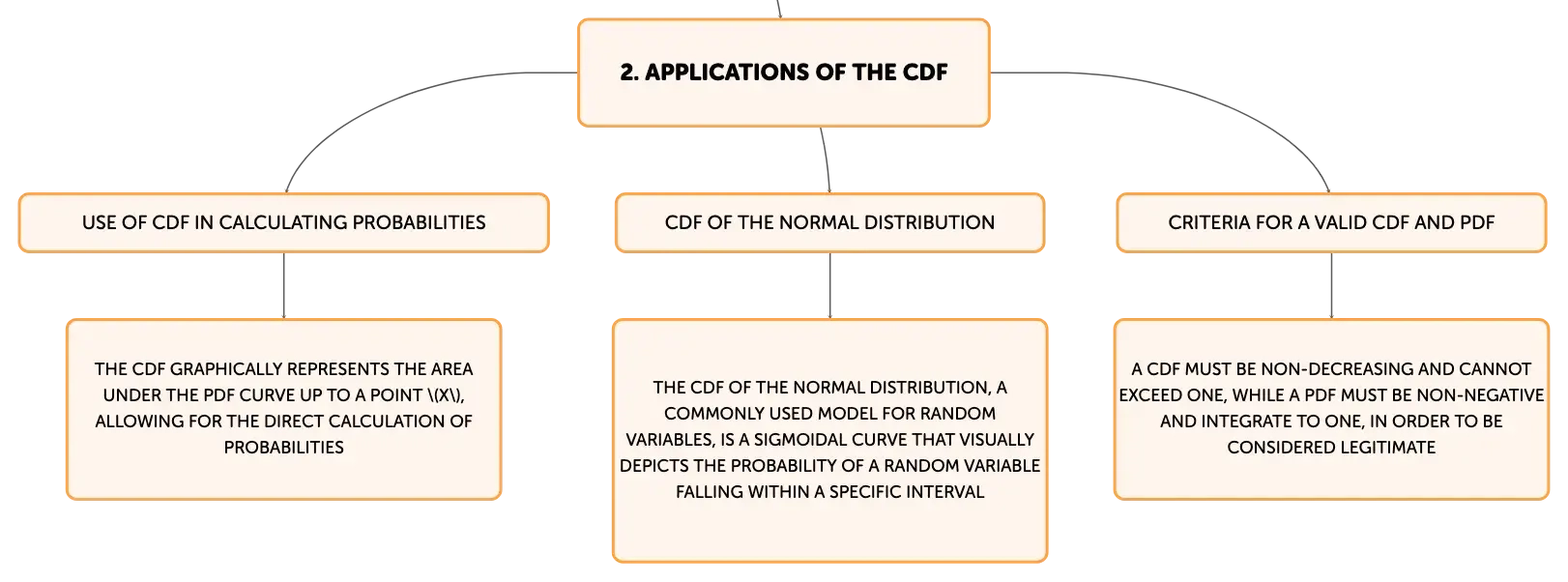

Applications of the CDF
Use of CDF in calculating probabilities
The CDF graphically represents the area under the PDF curve up to a point \(x\), allowing for the direct calculation of probabilities
CDF of the normal distribution
The CDF of the normal distribution, a commonly used model for random variables, is a sigmoidal curve that visually depicts the probability of a random variable falling within a specific interval
Criteria for a valid CDF and PDF
A CDF must be non-decreasing and cannot exceed one, while a PDF must be non-negative and integrate to one, in order to be considered legitimate
The Cumulative Distribution Function (CDF) and its Properties
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Normal Distribution Usage
Models a wide range of random variables in various fields.
01
Normal Distribution PDF Characteristics
Symmetric, bell-shaped curve representing probability density.
02
Importance of Normal Distribution CDF Mastery
Crucial for statistical methods and theoretical frameworks.
