Linear Motion

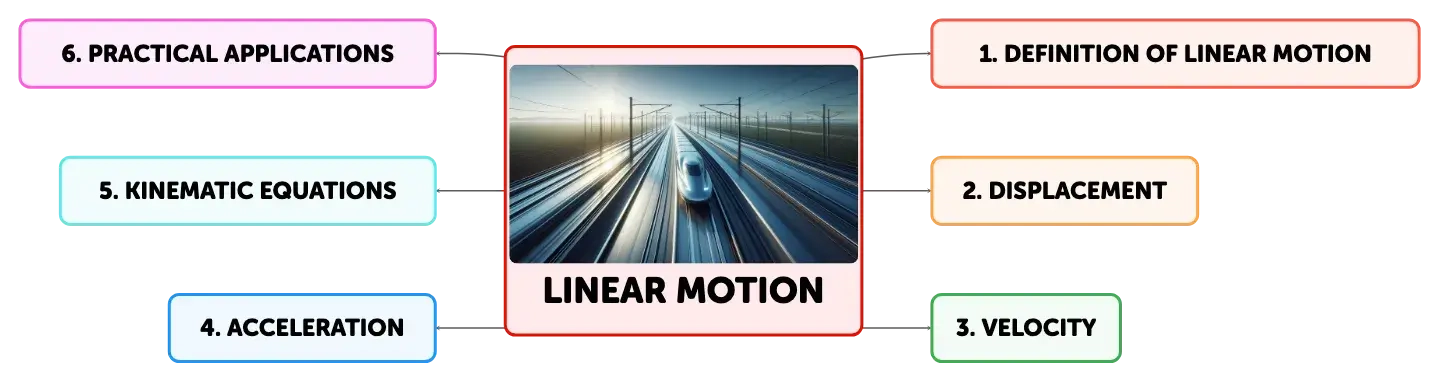

Concept Map
Exploring linear motion, this overview covers displacement as a vector quantity, velocity, and acceleration, along with their graphical representations. It delves into kinematic equations for analyzing objects in motion with constant acceleration, highlighting their real-world applications, such as in projectile motion scenarios. The principles of linear motion are fundamental in physics, aiding in the understanding of how forces influence the dynamics of objects.
Summary
Outline
Exploring the Fundamentals of Linear Motion
Linear motion is a principal concept in physics, describing the movement of an object along a straight path in a single dimension. This motion is the simplest form, as it occurs in a straight line and can be either in the direction of motion or the opposite, depending on the reference frame. Understanding linear motion is essential for analyzing the dynamics of objects influenced by forces, and it is commonly observed in daily life, such as a train moving along a straight track.Displacement in Linear Motion: A Vector Approach
In the context of linear motion, displacement is a vector quantity that signifies the shortest distance from the initial to the final position of an object, along with the direction of that line. It is important to distinguish displacement from distance, as the latter is a scalar quantity that only measures the length of the path taken. Displacement is calculated using the formula Δx = xf - xi, where Δx represents displacement, xf is the final position, and xi is the initial position.Understanding Velocity as a Vector
Velocity is a vector quantity that denotes the rate at which an object's displacement changes with time. It is given by the formula v = Δx/Δt, where v is the velocity, Δx is the displacement, and Δt is the time interval. Average velocity is calculated over a finite time period, while instantaneous velocity is the velocity at a specific moment, which can be determined by considering an infinitesimally small time interval. If an object's velocity is constant, its average and instantaneous velocities are identical.Graphical Representation of Instantaneous Velocity
Instantaneous velocity, the velocity of an object at a precise instant, can be graphically interpreted using a displacement-time graph. The slope of the tangent to the curve at any point on this graph represents the object's instantaneous velocity. A linear displacement-time graph indicates constant velocity, as the slope (and thus the instantaneous velocity) remains unchanged throughout the object's motion.Acceleration: Quantifying Changes in Velocity
Acceleration is the vector quantity that measures the rate of change of velocity over time. It is calculated using the formula a = Δv/Δt, where a is acceleration, Δv is the change in velocity, and Δt is the time interval. Instantaneous acceleration is the acceleration at a specific point in time and can be found by making the time interval infinitesimally small. An object moving at a constant velocity has an acceleration of zero, as there is no change in velocity.Analyzing Acceleration Through Velocity-Time Graphs
Velocity-time graphs are instrumental in analyzing acceleration. The slope of the graph at any point gives the instantaneous acceleration. A constant positive or negative slope indicates a constant acceleration, while a zero slope indicates that the object is not accelerating. The area under the velocity-time graph also provides the displacement of the object over the time interval represented.Kinematic Equations: Tools for Linear Motion Analysis
Kinematic equations are vital for solving problems in linear motion with constant acceleration. These equations link displacement (s), initial velocity (u), final velocity (v), acceleration (a), and time (t). The primary kinematic equations are: v = u + at, s = ut + (1/2)at^2, and v^2 = u^2 + 2as. These equations assume that the acceleration is constant throughout the motion and are not applicable for non-uniform acceleration.Real-World Applications of Linear Motion Principles
Linear motion principles have numerous practical applications. For instance, in projectile motion, such as a ball thrown vertically, the time for the ball to return to its starting height can be calculated using kinematic equations. By considering the initial velocity, the acceleration due to gravity (which is constant and directed downward), and the final velocity (which is equal in magnitude and opposite in direction to the initial velocity at the starting height), one can determine the ball's time of flight. This demonstrates the utility of linear motion concepts in analyzing one-dimensional motion scenarios.
Show More
Definition of Linear Motion
Principal concept in physics
Linear motion is a fundamental concept in physics that describes the movement of an object along a straight path in a single dimension
Simplest form of motion
Occurs in a straight line
Linear motion occurs in a straight line, either in the direction of motion or the opposite, depending on the reference frame
Can be influenced by forces
Understanding linear motion is crucial for analyzing the dynamics of objects influenced by forces
Commonly observed in daily life
Linear motion can be observed in daily life, such as a train moving along a straight track

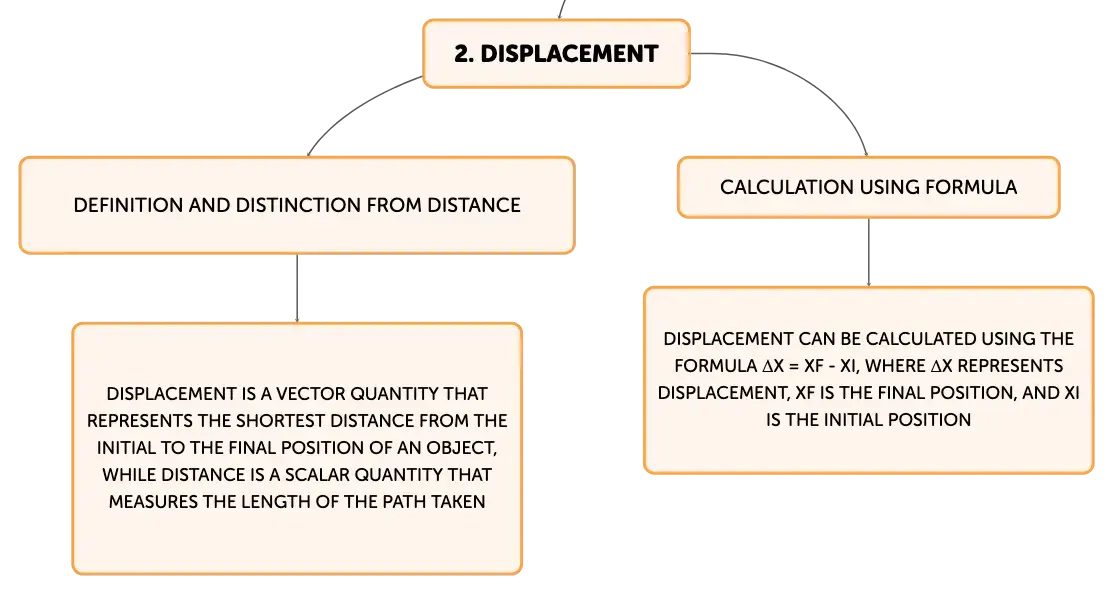

Displacement
Definition and distinction from distance
Displacement is a vector quantity that represents the shortest distance from the initial to the final position of an object, while distance is a scalar quantity that measures the length of the path taken
Calculation using formula
Displacement can be calculated using the formula Δx = xf - xi, where Δx represents displacement, xf is the final position, and xi is the initial position
Velocity
Definition and distinction from speed
Velocity is a vector quantity that denotes the rate of change of an object's displacement with time, while speed is a scalar quantity that measures the rate of change of distance with time
Calculation using formula
Velocity can be calculated using the formula v = Δx/Δt, where v is the velocity, Δx is the displacement, and Δt is the time interval
Average and instantaneous velocity
Average velocity is calculated over a finite time period, while instantaneous velocity is the velocity at a specific moment, which can be determined by considering an infinitesimally small time interval

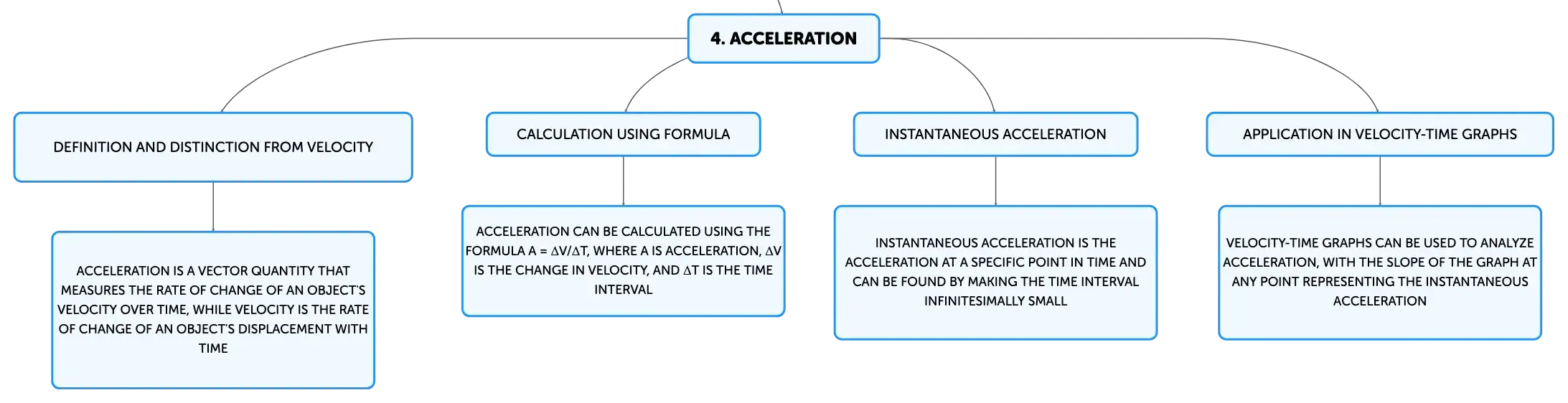

Acceleration
Definition and distinction from velocity
Acceleration is a vector quantity that measures the rate of change of an object's velocity over time, while velocity is the rate of change of an object's displacement with time
Calculation using formula
Acceleration can be calculated using the formula a = Δv/Δt, where a is acceleration, Δv is the change in velocity, and Δt is the time interval
Instantaneous acceleration
Instantaneous acceleration is the acceleration at a specific point in time and can be found by making the time interval infinitesimally small
Application in velocity-time graphs
Velocity-time graphs can be used to analyze acceleration, with the slope of the graph at any point representing the instantaneous acceleration

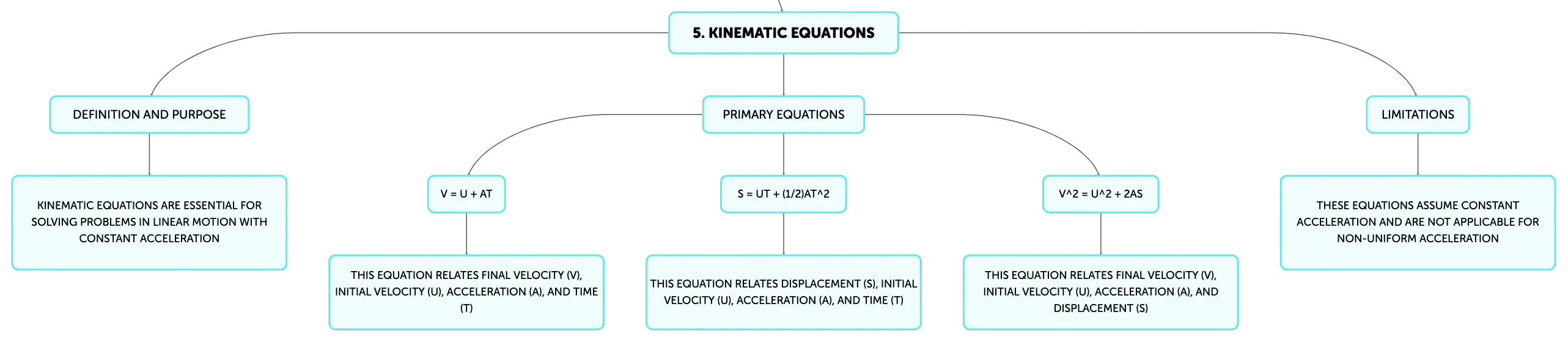

Kinematic Equations
Definition and purpose
Kinematic equations are essential for solving problems in linear motion with constant acceleration
Primary equations
v = u + at
This equation relates final velocity (v), initial velocity (u), acceleration (a), and time (t)
s = ut + (1/2)at^2
This equation relates displacement (s), initial velocity (u), acceleration (a), and time (t)
v^2 = u^2 + 2as
This equation relates final velocity (v), initial velocity (u), acceleration (a), and displacement (s)
Limitations
These equations assume constant acceleration and are not applicable for non-uniform acceleration

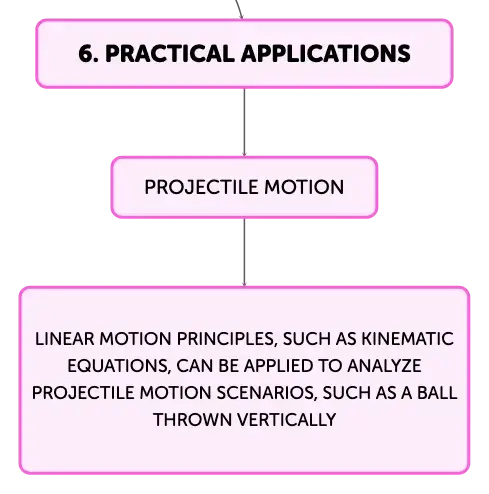

Practical Applications
Projectile motion
Linear motion principles, such as kinematic equations, can be applied to analyze projectile motion scenarios, such as a ball thrown vertically
Linear Motion
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In physics, comprehending ______ motion is crucial for examining the ______ of objects affected by forces.
linear
dynamics
01
Displacement definition in linear motion
Vector quantity; shortest path from start to end with direction
02
Displacement calculation formula
Δx = xf - xi; where Δx is displacement, xf final position, xi initial position
