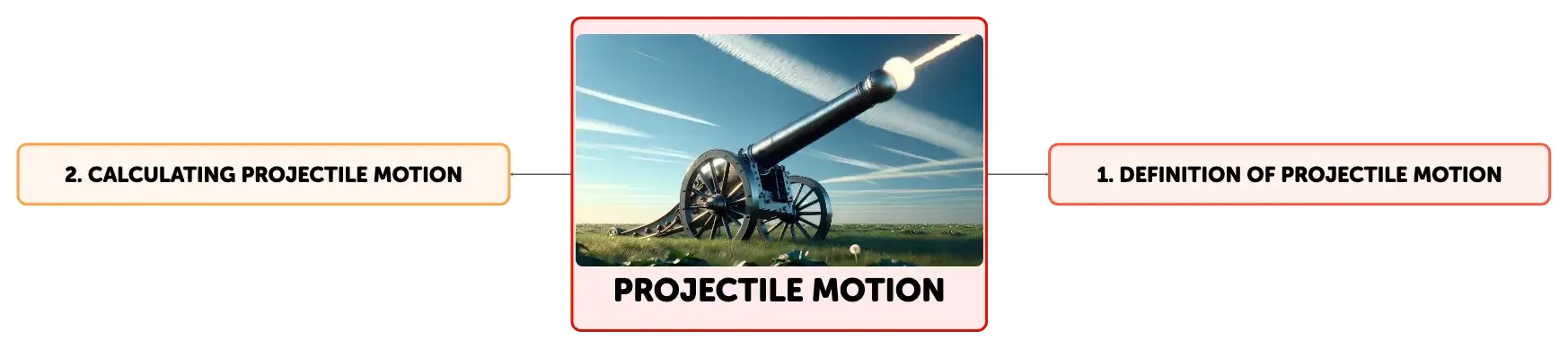

Projectile Motion
Projectile motion is the two-dimensional path of an object under the influence of gravity, resulting in a parabolic trajectory. It involves independent horizontal and vertical components, allowing for simplified calculations using kinematic equations. Factors such as gravity, air resistance, initial velocity, launch angle, release height, and spin shape the projectile's trajectory. Understanding these principles is vital for applications in sports and engineering.
See moreExploring the Dynamics of Projectile Motion
Projectile motion is a two-dimensional motion that occurs when an object is propelled into the air and then influenced by gravity, resulting in a characteristic parabolic trajectory. This type of motion is distinct from one-dimensional linear motion, as it involves both horizontal and vertical components that operate independently. Understanding this independence is fundamental to analyzing projectile motion, as it allows us to apply the principles of linear motion to each component separately, simplifying the overall problem-solving process.The Principle of Independence in Motion
The principle of independence between horizontal and vertical motions is a cornerstone of projectile motion analysis. This principle can be demonstrated by comparing the fall of two identical marbles, one dropped vertically and the other projected horizontally from the same height. Assuming no air resistance, both marbles will hit the ground at the same time, indicating that the horizontal motion does not influence the time taken for an object to fall due to gravity. This separation of motions is crucial when using kinematic equations to predict projectile behavior, as it allows for the independent determination of horizontal and vertical positions over time.Projecting Objects Without Launch Angles

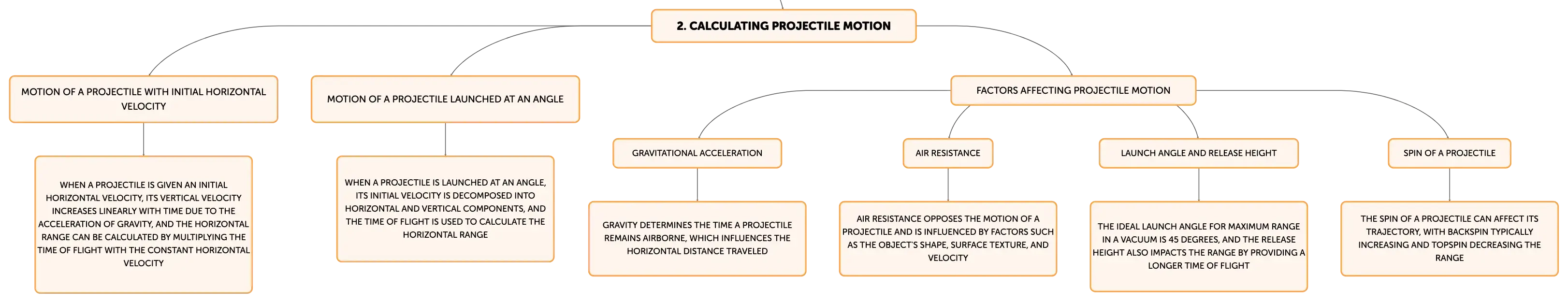

Calculating the motion of a projectile that is not launched at an angle but simply given an initial horizontal velocity, such as an object rolling off a cliff, requires the use of kinematic equations. The horizontal velocity of the object remains constant, while the vertical velocity increases linearly with time due to the acceleration of gravity. By applying these equations to the vertical motion, one can determine the time to impact. This duration is then used to calculate the horizontal range by multiplying it with the constant horizontal velocity, yielding the total distance traveled in the horizontal direction.Analyzing Angled Projectile Launches
When a projectile is launched at an angle, its initial velocity is decomposed into horizontal and vertical components using sine and cosine functions, respectively. These components are then analyzed independently using kinematic equations. The time of flight, which is determined by the vertical motion, is the same for both components and is used to calculate the horizontal range. The range is found by multiplying the horizontal velocity by the time of flight. This approach is valid even when the launch and landing occur at different elevations, with adjustments made to account for the change in vertical displacement.Influences on Projectile Trajectories
The path of a projectile can be affected by various factors, including gravitational acceleration, air resistance, the object's shape and surface characteristics, initial velocity, launch angle, and the height of release. Gravity determines the time a projectile remains airborne, which influences the horizontal distance traveled. Air resistance opposes the motion and is influenced by the object's shape, surface texture, and velocity. The ideal launch angle for maximum range in a vacuum is 45 degrees, assuming equal elevation for launch and landing. The release height also impacts the range, with higher altitudes providing a longer time of flight. Additionally, the spin of a projectile can affect its trajectory, with backspin typically increasing and topspin decreasing the range.Fundamental Concepts in Projectile Motion
Projectile motion encompasses the two-dimensional path of an object under gravity's influence. Its horizontal and vertical components are independent, which simplifies calculations using kinematic equations. The time of flight is consistent across both components, and the projectile's trajectory is shaped by factors such as gravity, air resistance, initial velocity, launch angle, release height, and spin. Mastery of these principles is crucial for accurately predicting and analyzing projectile motion in a variety of applications, from sports to engineering.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1

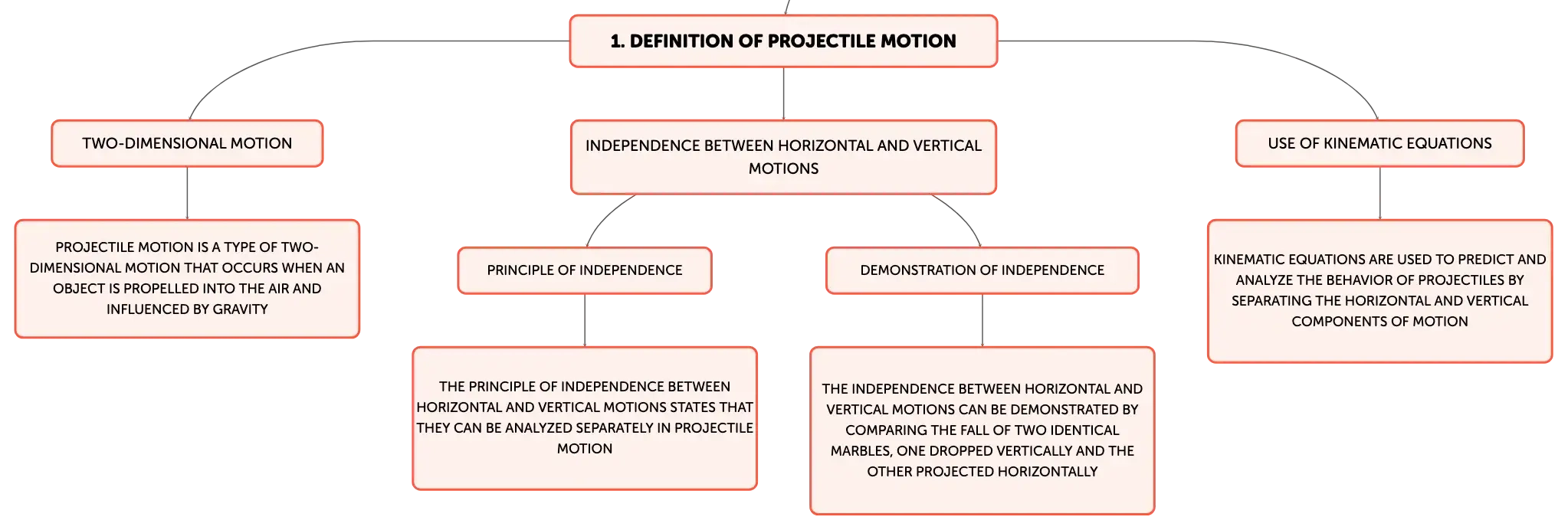

Definition of Projectile Motion
Click to check the answer
2
Components of Projectile Motion
Click to check the answer
3
Importance of Independence in Motion Components
Click to check the answer
4
When two ______ are dropped from the same height, one vertically and one horizontally, they will land simultaneously if ______ is disregarded.
Click to check the answer
5
Horizontal velocity in projectile motion
Click to check the answer
6
Vertical velocity in projectile motion
Click to check the answer
7
Determining time to impact for a projectile
Click to check the answer
8
The initial speed of an angled projectile is split into horizontal and vertical parts using ______ and ______ functions.
Click to check the answer
9
Gravitational acceleration impact on projectile
Click to check the answer
10
Air resistance effects on projectile motion
Click to check the answer
11
Optimal launch angle for maximum range in vacuum
Click to check the answer
12
The path of an object in ______ motion is two-dimensional and influenced by ______.
Click to check the answer
13
In projectile motion, the ______ and ______ motion components are independent, aiding in the use of ______ equations.
Click to check the answer
