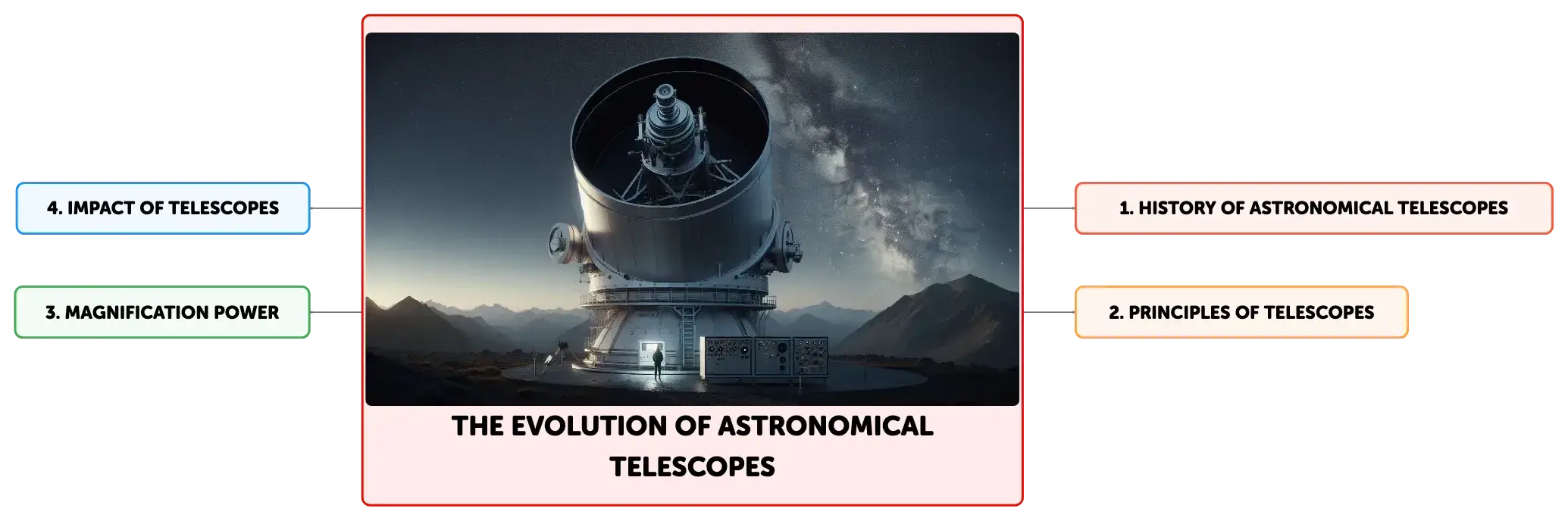

The Evolution of Astronomical Telescopes

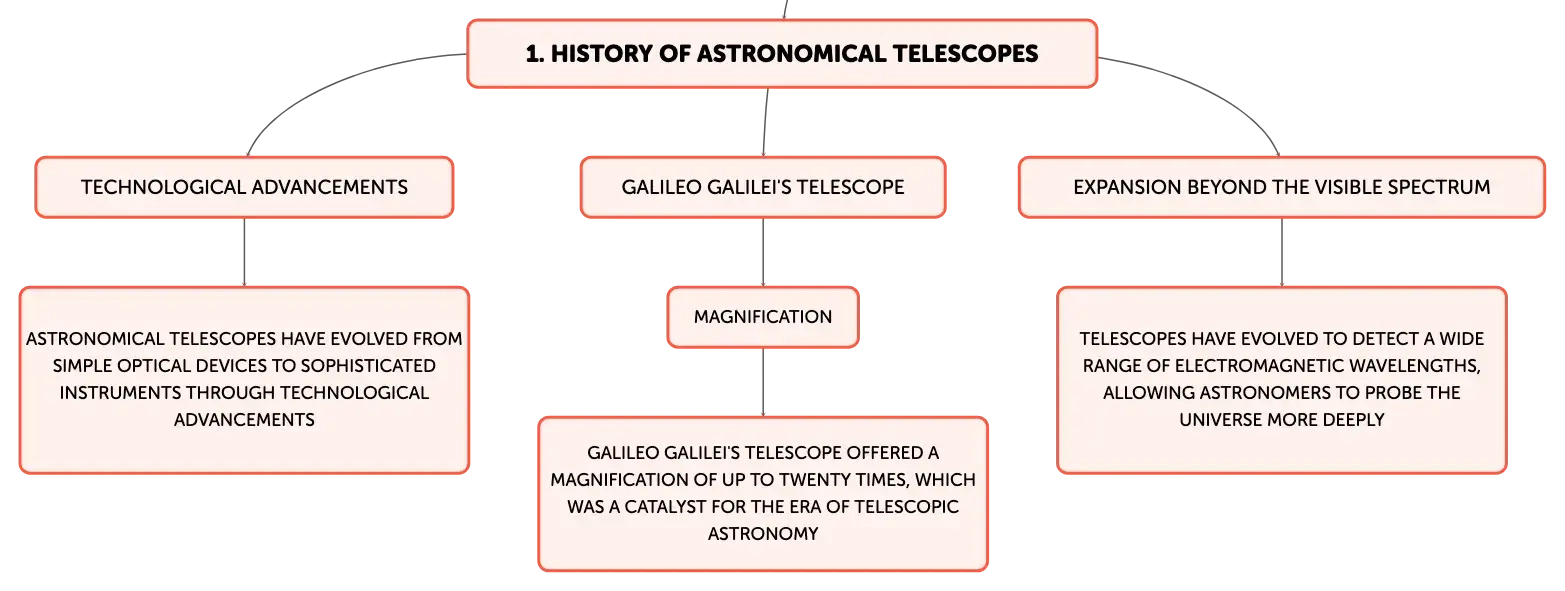

The Evolution of Astronomical Telescopes

The history of astronomical telescopes is a journey of technological advancement from the simple optical devices of the early 17th century to the sophisticated instruments of today. Galileo Galilei's pioneering telescope, which offered a magnification of up to twenty times, was a catalyst for the era of telescopic astronomy. Over the centuries, telescopes have evolved to include not only optical enhancements but also the ability to detect a wide range of electromagnetic wavelengths, from radio waves to gamma rays. This expansion beyond the visible spectrum has allowed astronomers to probe the universe more deeply. The principles of Galileo's telescope, though basic, are still relevant as they form the foundation for understanding how modern telescopes magnify distant celestial objects.

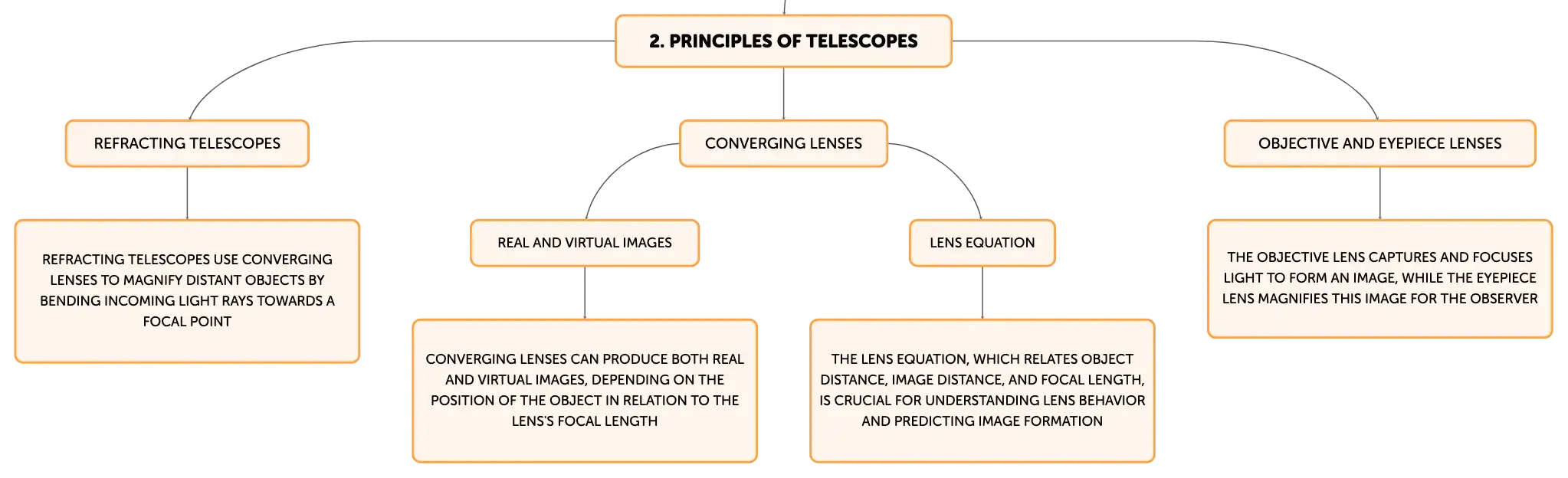

Understanding the Function of Lenses in Telescopes

The lens is the heart of a refracting telescope, serving to gather and focus light through the process of refraction. The focal length of a lens, the measure from the lens to the point where parallel rays of light converge, is a critical factor in determining the telescope's power. Astronomical telescopes primarily use converging lenses, which bend incoming light rays toward a focal point, to magnify distant objects. By studying the properties of converging lenses, including their focal length and shape, students can gain insight into the fundamental principles that dictate the magnifying capabilities of telescopes.

Diagrammatic Representation of Converging Lenses

Converging lenses are capable of producing both real and virtual images, depending on the position of the object in relation to the lens's focal length. A real image is formed when the object is placed beyond the focal length, resulting in an inverted image on the opposite side of the lens. If the object is within the focal length, a virtual image appears, upright and on the same side as the object. Diagrams that depict these scenarios are essential educational tools, illustrating how lenses bend light to enlarge the appearance of distant objects, a concept central to the functionality of telescopes.

Mathematical Description of Lens Behavior

The lens equation, which relates the object distance (o), image distance (i), and focal length (f), is fundamental to understanding lens behavior. This equation allows us to predict the formation of real or virtual images and their respective sizes. The magnification (M) of a lens is determined by the ratio of the image distance to the object distance, and it indicates the degree to which the image is enlarged. Mastery of this mathematical framework is crucial for students to anticipate the performance of lens systems in telescopes and other optical instruments.

The Basic Astronomical Refracting Telescope

A basic refracting telescope consists of two key elements: the objective lens and the eyepiece. The objective lens, which is larger and has a longer focal length, captures and focuses light to form an image. The eyepiece, with a shorter focal length, then magnifies this image for the observer, presenting it as a virtual image at infinity. The design and alignment of these lenses are vital to the telescope's operation, as they determine the quality and magnification of the observed image. An understanding of the roles and interplay between these lenses is essential for students to appreciate how telescopes enhance our view of the night sky.

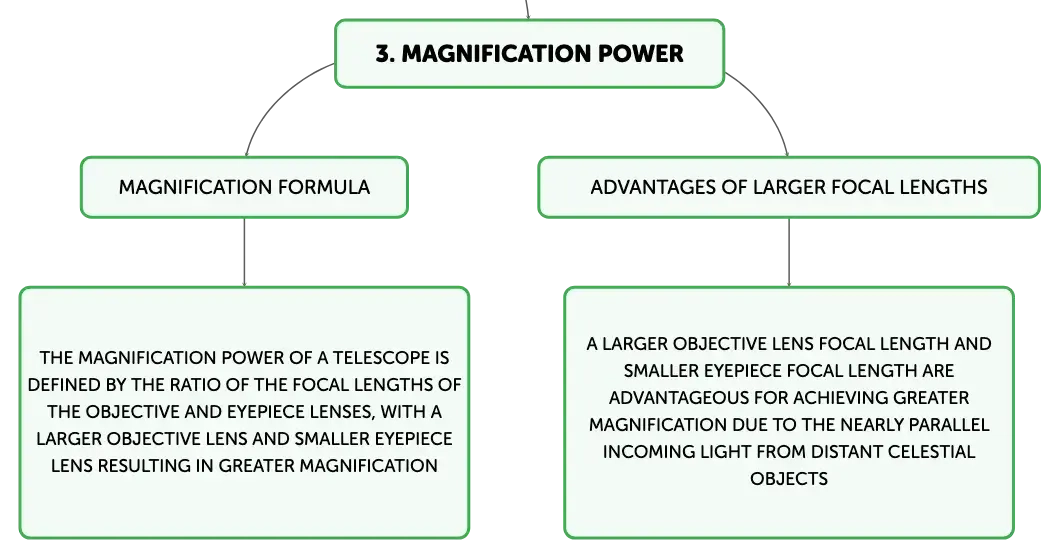

Magnification Power of Astronomical Telescopes

The magnification power of a telescope is defined by the ratio of the focal lengths of the objective lens to the eyepiece lens. Because celestial objects are so distant, their incoming light is nearly parallel, and the image is formed at the focal point of the objective lens. The magnification formula demonstrates why a larger objective lens focal length and a smaller eyepiece focal length are advantageous for achieving greater magnification. This relationship is a key consideration in telescope design and is fundamental to bringing distant celestial phenomena into closer view for detailed study.

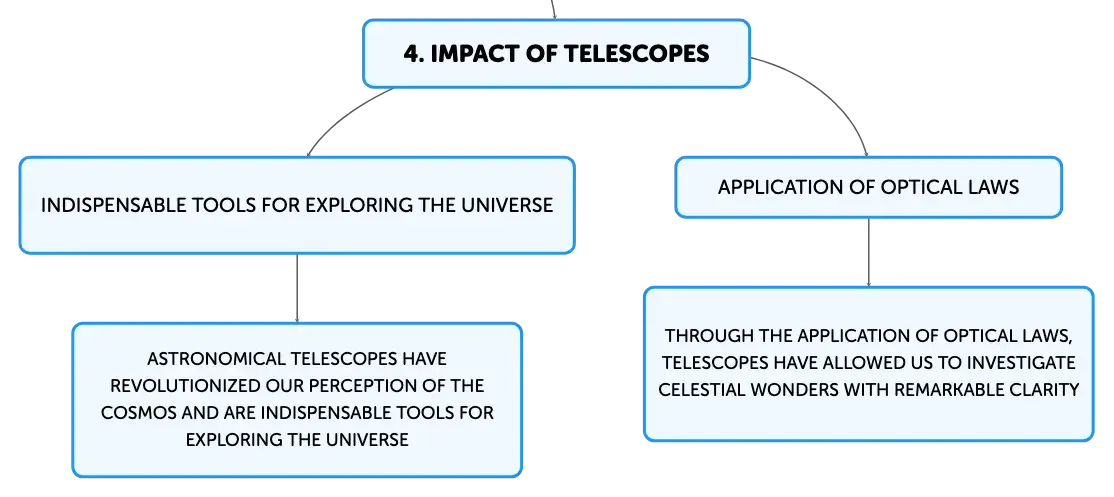

Key Takeaways on Astronomical Telescopes

Astronomical telescopes are indispensable tools for exploring the universe, relying on the principles of optics and the refractive properties of lenses. The basic refracting telescope model, with its two converging lenses, provides a framework for understanding image amplification. The magnification power is a crucial feature of telescopes, enabling the observation of otherwise invisible celestial objects. Through the application of optical laws, telescopes have revolutionized our perception of the cosmos, allowing us to investigate celestial wonders with remarkable clarity.
