Wave Amplitude
Concept Map
Wave amplitude is crucial in physics, indicating the maximum displacement of a wave's point from equilibrium and reflecting energy. It affects the intensity of light in optics and the loudness of sound in acoustics. Factors like energy source, damping, and superposition influence amplitude. Understanding its mathematical representation and control methods is vital for practical applications in technology and science.
Summary
Outline
Exploring the Concept of Wave Amplitude
Wave amplitude is a key concept in physics that quantifies the maximum displacement of a point on a wave from its equilibrium position, reflecting the wave's energy. This measurement is applicable to various wave forms, such as mechanical, sound, electromagnetic, and light waves. Amplitude is visually represented on a graph as the vertical distance from the midpoint, or equilibrium line, to the crest (top) or trough (bottom) of a wave. The amplitude is symbolized by \( A \) in the sinusoidal wave equation \( y = A \sin (kx - \omega t) \), where \( k \) is the wave number, \( x \) is the position, \( \omega \) is the angular frequency, and \( t \) is time.Amplitude's Influence in Wave Optics
In wave optics, amplitude plays a pivotal role in determining the intensity and brightness of light. Greater amplitudes result in more intense light, which is crucial for understanding optical phenomena such as interference and diffraction. These effects arise when light waves converge or encounter barriers, and the patterns produced are dependent on the interacting waves' amplitudes.Determinants of Wave Amplitude
The amplitude of a wave can be influenced by various factors. The energy source is a primary determinant, with more energy imparting a higher initial amplitude. Damping, the reduction of amplitude due to energy loss in the medium, such as air resistance or internal friction, significantly affects wave propagation. Furthermore, the principle of superposition dictates that when waves intersect, their amplitudes may combine constructively or destructively, depending on their phase relationship, leading to increased or diminished resultant amplitudes.Amplitude Characteristics Across Wave Types
Different types of waves exhibit distinct amplitude characteristics. For sound waves, amplitude is associated with loudness; higher amplitudes produce louder sounds, measured in decibels (dB). Sine waves, prevalent in alternating current (AC) circuits and audio synthesis, have amplitudes that represent their maximum values. Electromagnetic waves, encompassing light, radio, and X-rays, have amplitudes related to the magnitude of their electric and magnetic fields, influencing wave intensity. Longitudinal waves, such as compressions and rarefactions in air (sound) or a spring, have amplitudes that correspond to the maximum displacement of the medium's particles from their rest position.Mathematical Analysis of Wave Amplitude
The mathematical representation of wave amplitude is essential for analyzing wave behavior. In the sinusoidal wave equation \( y = A \sin(Bx + C) \), \( A \) denotes the amplitude, \( B \) represents the wave's angular frequency, and \( C \) is the phase constant. To calculate amplitude, one must determine the wave's equilibrium position and measure the vertical distance to a peak or trough. This calculation is vital in fields such as acoustics and optics, where understanding and manipulating amplitude can lead to various practical applications.Generating and Modulating Wave Amplitude
The generation of wave amplitude is contingent on the energy supplied by the source or the properties of the medium. For example, the amplitude of sound waves depends on the force exerted on the vibrating object, while for light waves, it is the intensity of the electromagnetic field that matters. Amplitude can be controlled through methods such as adjusting the energy input, employing amplifiers, or utilizing wave interference. These techniques enable precise management of a wave's energy and intensity, which is critical in diverse applications, from audio production to earthquake analysis.Amplitude's Proportional Relationship to Wave Energy
In wave physics, the energy conveyed by a wave is directly proportional to the square of its amplitude, as described by the equation \( E \propto A^2 \). Consequently, a wave with twice the amplitude will transport four times the energy. This relationship is fundamental to the conservation of energy principle, which asserts that energy is neither created nor destroyed but can be transformed from one form to another. Grasping this relationship is indispensable for the study and application of wave dynamics in various technological and scientific domains, where managing wave amplitude is crucial for effective energy transmission and control.
Show More

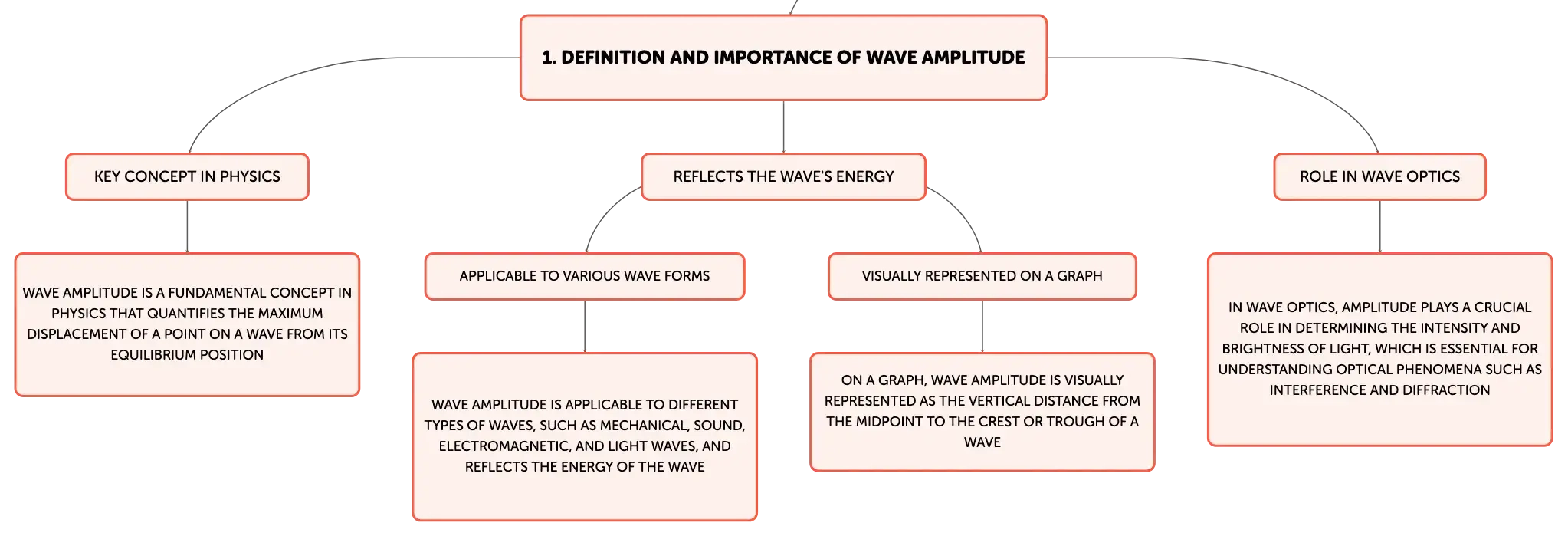

Definition and Importance of Wave Amplitude
Key concept in physics
Wave amplitude is a fundamental concept in physics that quantifies the maximum displacement of a point on a wave from its equilibrium position
Reflects the wave's energy
Applicable to various wave forms
Wave amplitude is applicable to different types of waves, such as mechanical, sound, electromagnetic, and light waves, and reflects the energy of the wave
Visually represented on a graph
On a graph, wave amplitude is visually represented as the vertical distance from the midpoint to the crest or trough of a wave
Role in wave optics
In wave optics, amplitude plays a crucial role in determining the intensity and brightness of light, which is essential for understanding optical phenomena such as interference and diffraction
Factors Affecting Wave Amplitude
Energy source
The energy source is a primary determinant of wave amplitude, with more energy resulting in a higher initial amplitude
Damping
Damping, the reduction of amplitude due to energy loss in the medium, significantly affects wave propagation
Principle of superposition
The principle of superposition states that when waves intersect, their amplitudes may combine constructively or destructively, depending on their phase relationship, leading to increased or diminished resultant amplitudes

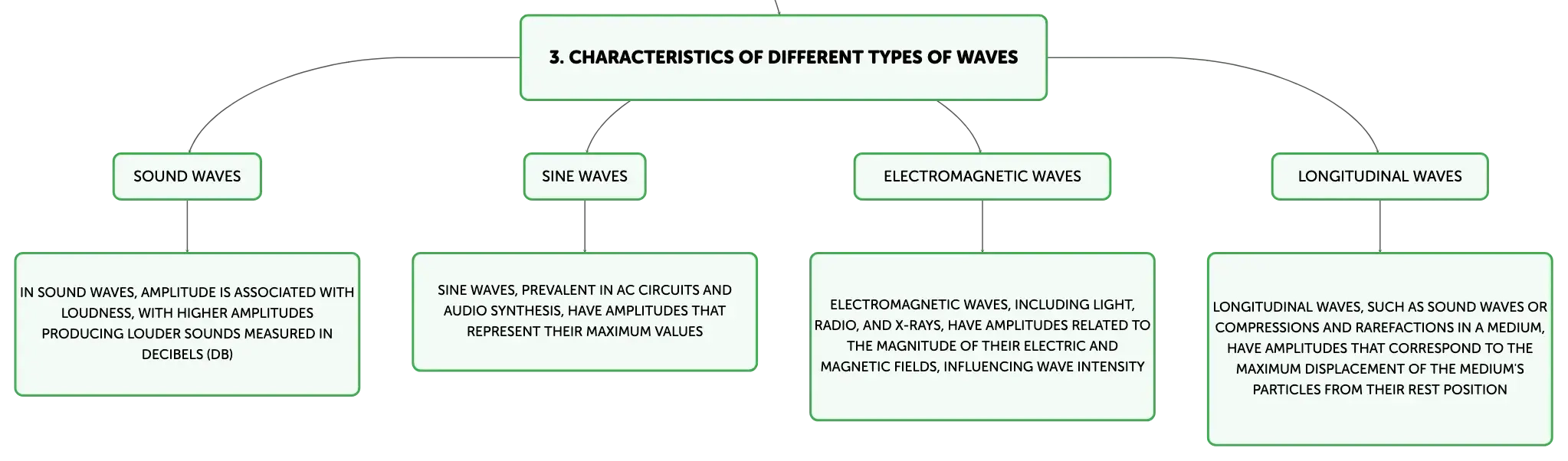

Characteristics of Different Types of Waves
Sound waves
In sound waves, amplitude is associated with loudness, with higher amplitudes producing louder sounds measured in decibels (dB)
Sine waves
Sine waves, prevalent in AC circuits and audio synthesis, have amplitudes that represent their maximum values
Electromagnetic waves
Electromagnetic waves, including light, radio, and X-rays, have amplitudes related to the magnitude of their electric and magnetic fields, influencing wave intensity
Longitudinal waves
Longitudinal waves, such as sound waves or compressions and rarefactions in a medium, have amplitudes that correspond to the maximum displacement of the medium's particles from their rest position

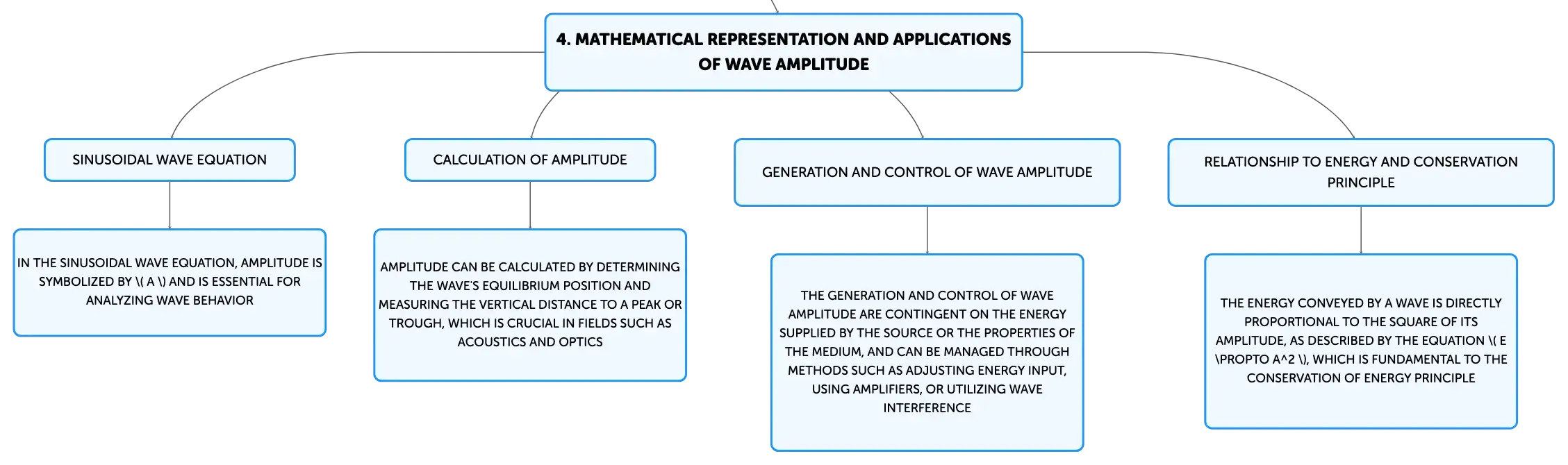

Mathematical Representation and Applications of Wave Amplitude
Sinusoidal wave equation
In the sinusoidal wave equation, amplitude is symbolized by \( A \) and is essential for analyzing wave behavior
Calculation of amplitude
Amplitude can be calculated by determining the wave's equilibrium position and measuring the vertical distance to a peak or trough, which is crucial in fields such as acoustics and optics
Generation and control of wave amplitude
The generation and control of wave amplitude are contingent on the energy supplied by the source or the properties of the medium, and can be managed through methods such as adjusting energy input, using amplifiers, or utilizing wave interference
Relationship to energy and conservation principle
The energy conveyed by a wave is directly proportional to the square of its amplitude, as described by the equation \( E \propto A^2 \), which is fundamental to the conservation of energy principle
Wave Amplitude
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
In ______, the ______ of light waves is key to determining their ______ and ______.
wave optics
amplitude
intensity
brightness
01
Energy Source Impact on Amplitude
Higher energy from source increases wave's initial amplitude.
02
Damping Effect on Waves
Damping causes amplitude reduction due to energy loss, e.g., air resistance, internal friction.
