Understanding Equipotential Surfaces

Equipotential surfaces are three-dimensional manifestations where every point holds an identical electric potential value. In the realm of electrostatics, this implies that a charge can traverse along an equipotential surface without any net work being done, as there is no change in electric potential energy. Visualizing this concept can be akin to imagining a spherical shell surrounding a central charge; every point on this shell is equidistant from the charge, thus all points are at the same potential. This spherical shell represents an equipotential surface in the space around a point charge.

Transparent spheres in descending sizes aligned diagonally with parallel white lines intersecting them against a light blue background, reflecting soft light.

Electric Potential and Potential Difference

Electric potential, denoted as $V$, quantifies the potential energy a unit charge possesses at a given point in an electric field, relative to a reference point, typically taken at infinity where the potential is zero. It is defined by the equation $V=\frac{U_{\mathrm{E}}}{q}$, where $U_{\mathrm{E}}$ is the electric potential energy and $q$ is the charge. More critical than the absolute value of electric potential is the concept of potential difference, $\Delta V$, which is the difference in electric potential between two points in space. This difference is fundamental to understanding the work involved when a charge moves through an electric field and is calculated by $\Delta V=\frac{\Delta U_{\mathrm{E}}}{q}$.

Relationship Between Equipotential Surfaces and Electric Fields

Equipotential surfaces are closely linked to the behavior of electric fields. An electric field, represented by $E$, is the force per unit charge exerted on a positive test charge placed within the field. It is mathematically expressed as $E=\frac{F}{q_1}$, with $F$ being the force and $q_1$ the test charge. The electric field is also described as the negative gradient of the electric potential, or $E=-\nabla V$. This indicates that electric field lines are perpendicular to equipotential surfaces at every point. As a result, when a charge moves along an equipotential surface, it does so without work being done by or against the electric field since the force has no component in the direction of the charge's movement.

Examples and Properties of Equipotential Surfaces

A classic example of an equipotential surface is the exterior of a charged conductor. Charges within a conductor are free to move and distribute themselves on the surface due to electrostatic repulsion. By Gauss's law, the electric field inside a hollow conductor is null, resulting in a uniform electric potential throughout the interior and on its surface, thus forming an equipotential surface. The properties of equipotential surfaces include their non-intersecting nature, the perpendicularity of the electric field to these surfaces, and their shape, which for a point charge, consists of concentric spheres. The spacing between these surfaces reflects the electric field's intensity; a smaller distance between surfaces indicates a stronger field.

Electric Field Lines and Visualization of Equipotential Surfaces

Electric field lines are visual tools that depict the direction and relative magnitude of electric fields, emanating from positive charges and converging at negative charges. Equipotential surfaces intersect these field lines at right angles and can be visualized as contours on a map of electric field lines. For a single point charge, equipotential surfaces are represented as concentric spheres. The potential at any point due to a charge is given by $V=\frac{1}{4\pi\epsilon_0}\frac{q}{r}$, where $r$ is the radial distance from the charge and $\epsilon_0$ is the permittivity of free space. This formula illustrates that potential varies inversely with distance, and thus at a constant radius, the potential is uniform, delineating an equipotential surface.

Key Takeaways on Equipotential Surfaces

Equipotential surfaces are a crucial concept in electrostatics, signifying zones of constant electric potential. They are inherently related to electric fields, with the latter being perpendicular to these surfaces at all points. Comprehending equipotential surfaces is vital for understanding electric field dynamics and the work done on charges within these fields. Their characteristics, such as not intersecting and indicating the electric field's strength, are instrumental in analyzing electric field configurations and forecasting the trajectories of charged particles.

Equipotential Surfaces and their Relationship to Electric Fields

Concept Map

Summary

Outline

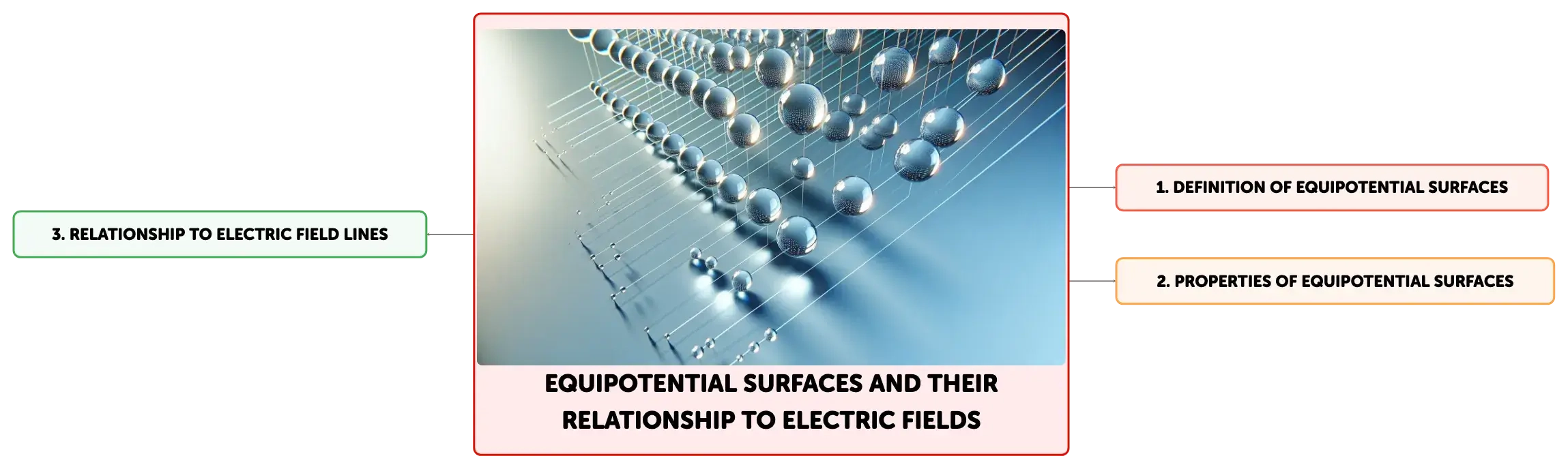

Equipotential Surfaces and their Relationship to Electric Fields

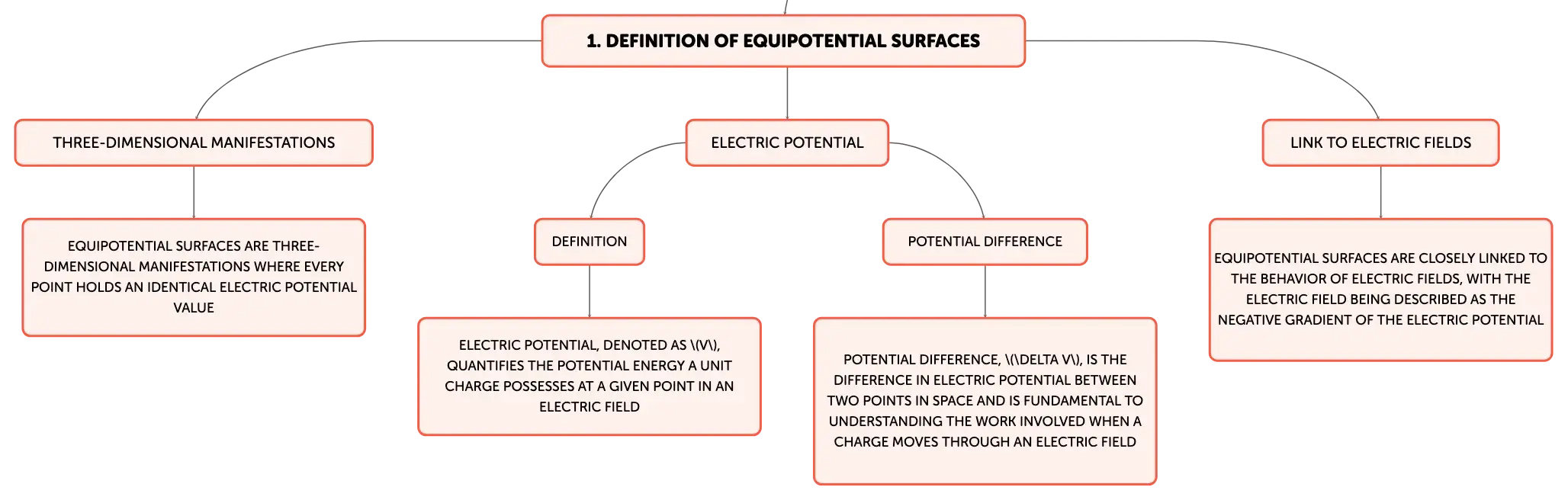

Definition of Equipotential Surfaces

Three-dimensional manifestations

Electric potential

Link to electric fields

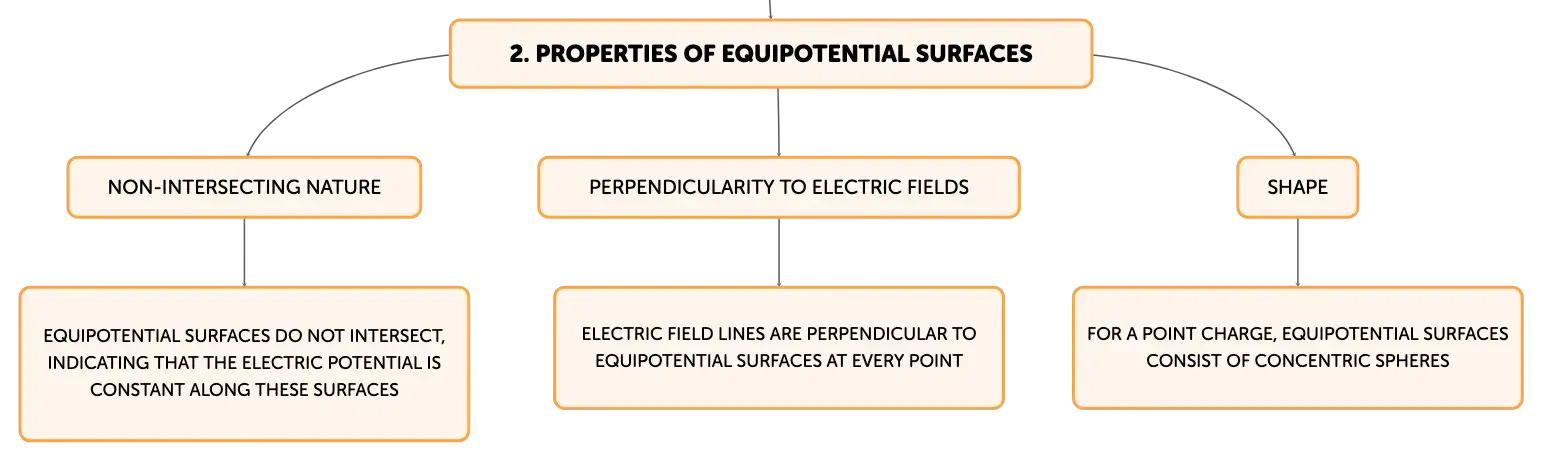

Properties of Equipotential Surfaces

Non-intersecting nature

Perpendicularity to electric fields

Shape

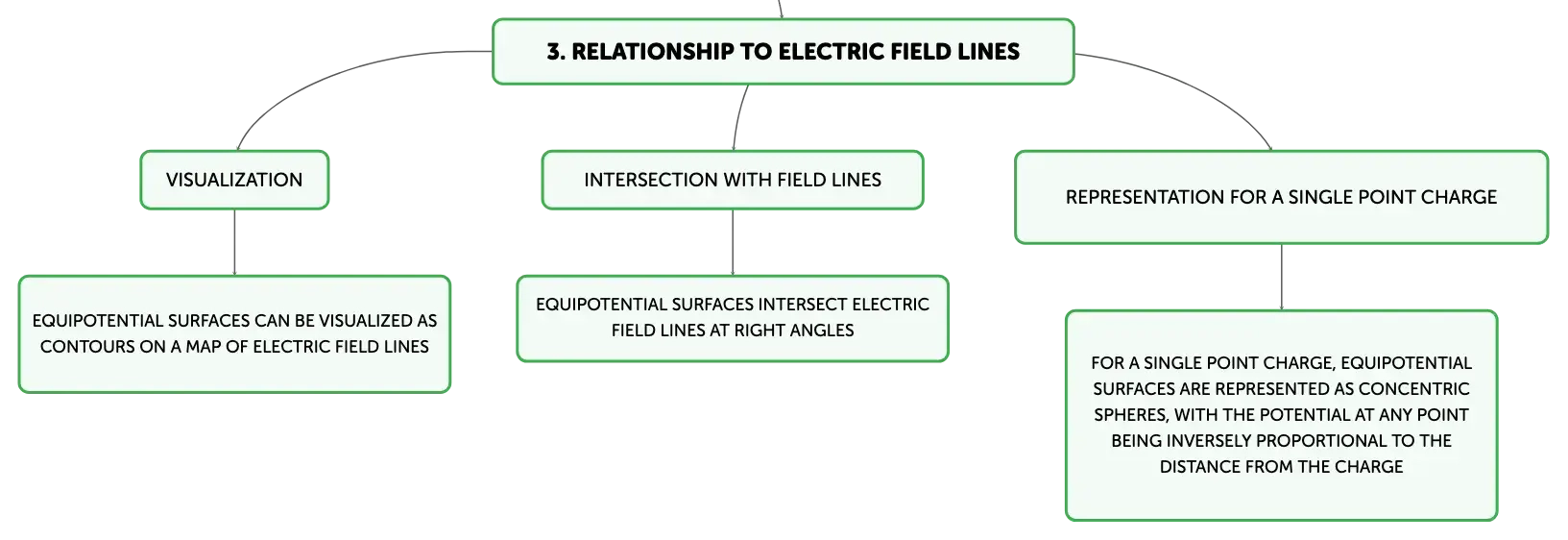

Relationship to Electric Field Lines

Visualization

Intersection with field lines

Representation for a single point charge
