The Harvard Architecture
The Harvard Architecture is a computer design model that separates instruction and data memory for efficient processing. It contrasts with the Von Neumann Architecture, which uses shared memory for both. This architecture is ideal for real-time applications like DSPs, microcontrollers, and ASICs, offering concurrent access and reduced resource contention, but with higher complexity and cost.
See moreExploring the Harvard Architecture in Computing

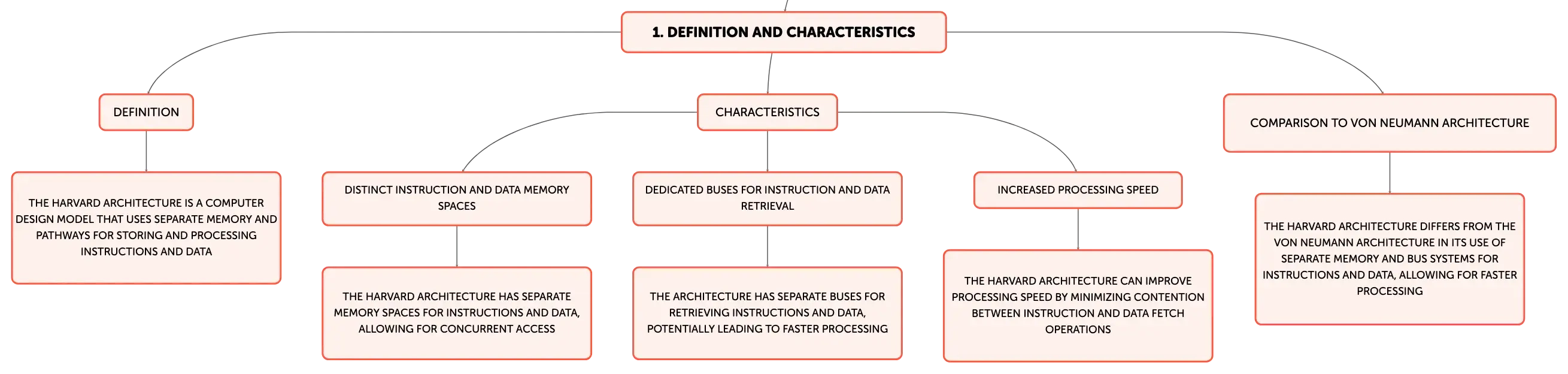

The Harvard Architecture is a computer design model that plays a pivotal role in the way computing systems process information and execute instructions. This model is distinguished by its use of separate memory and pathways for storing and processing instructions (code) and data. Originating from the design of the Harvard Mark I, this architecture is advantageous in scenarios requiring efficient real-time processing, such as in embedded systems. Key characteristics of the Harvard Architecture include distinct instruction and data memory spaces, dedicated buses for instruction and data retrieval, and the potential for increased processing speed due to minimized contention between instruction and data fetch operations.Harvard vs. Von Neumann Architectures: A Comparative Study
The Harvard Architecture is often compared to the Von Neumann Architecture, another foundational design model for computing systems. The primary distinction lies in the Harvard model's separate memory and bus systems for instructions and data, enabling concurrent access and potentially faster processing. In contrast, the Von Neumann model employs a single shared memory and bus for both instructions and data, which can lead to performance bottlenecks due to sequential access. While the Harvard Architecture can be more complex and require a larger physical footprint, it excels in specialized applications such as digital signal processing. Conversely, the simpler and more cost-effective Von Neumann Architecture is well-suited to general-purpose computing.Implementations of Harvard Architecture in Modern Technology

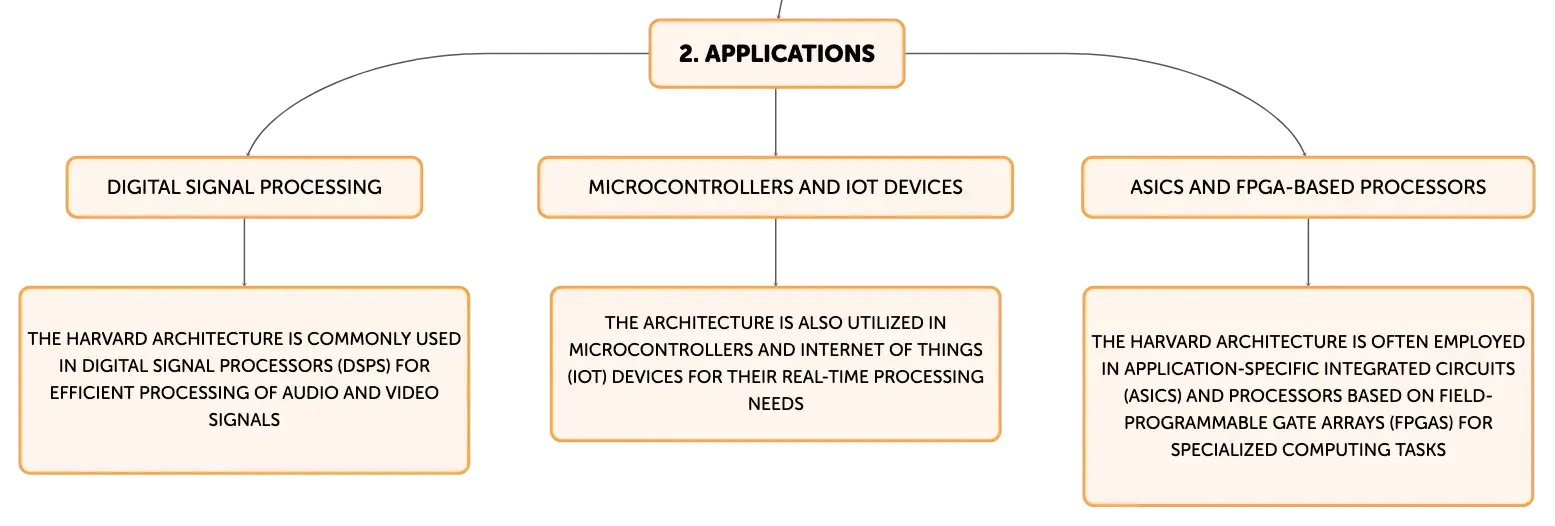

The Harvard Architecture finds its application in a variety of modern processors and microcontrollers, especially in areas where efficiency and real-time processing are paramount. Digital Signal Processors (DSPs), which handle high-speed processing of audio and video signals, are typical examples of devices that benefit from the architecture's design. Microcontrollers embedded in systems and Internet of Things (IoT) devices also take advantage of the architecture's efficient processing capabilities. Furthermore, Application-Specific Integrated Circuits (ASICs) and processors based on Field-Programmable Gate Arrays (FPGAs) often employ the Harvard Architecture to meet the needs of specialized computing tasks.Illustrating Harvard Architecture with Diagrams

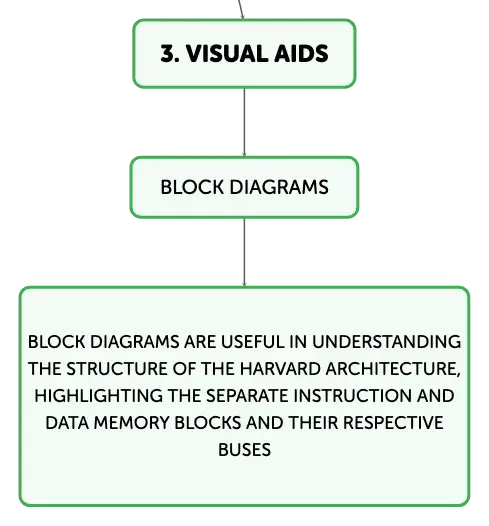

Visual aids such as block diagrams are instrumental in elucidating the structure of the Harvard Architecture. These diagrams highlight the separate instruction and data memory blocks, along with their respective buses. The instruction fetch unit is shown retrieving instructions from the instruction memory via an exclusive instruction bus, while the data processing unit interacts with the data memory through a separate data bus. This delineation allows for the parallel access of instructions and data, which can significantly improve the speed and efficiency of computational tasks.Pros and Cons of the Harvard Architecture

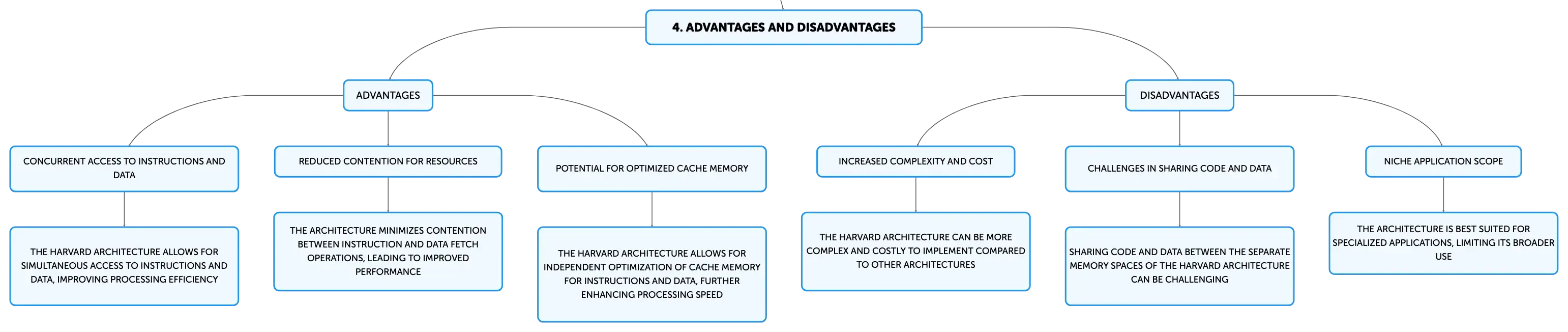

The Harvard Architecture offers numerous advantages, including the ability to access instructions and data concurrently, reduced contention for resources, the possibility of optimizing cache memory independently for instructions and data, and improved parallel processing capabilities. These strengths make it particularly well-suited for applications that require high-speed and real-time performance. However, the architecture also has its drawbacks, such as increased complexity in design, higher costs of implementation, challenges in sharing code and data between the two memory spaces, and a more niche application scope. These trade-offs must be carefully evaluated when considering the Harvard Architecture for a computing system.Concluding Insights on the Harvard Architecture
To conclude, the Harvard Architecture is a specialized computer architecture that offers performance enhancements by segregating the memory and bus systems for instructions and data. Its benefits are most pronounced in applications such as DSPs, microcontrollers, ASICs, and FPGA-based processors, where specialized processing is required. Nonetheless, the increased complexity and cost associated with this architecture necessitate a thoughtful analysis of the application's requirements. A comprehensive understanding of the differences and trade-offs between the Harvard and Von Neumann Architectures is essential for system designers and engineers tasked with creating efficient and purposeful computing solutions.Want to create maps from your material?
